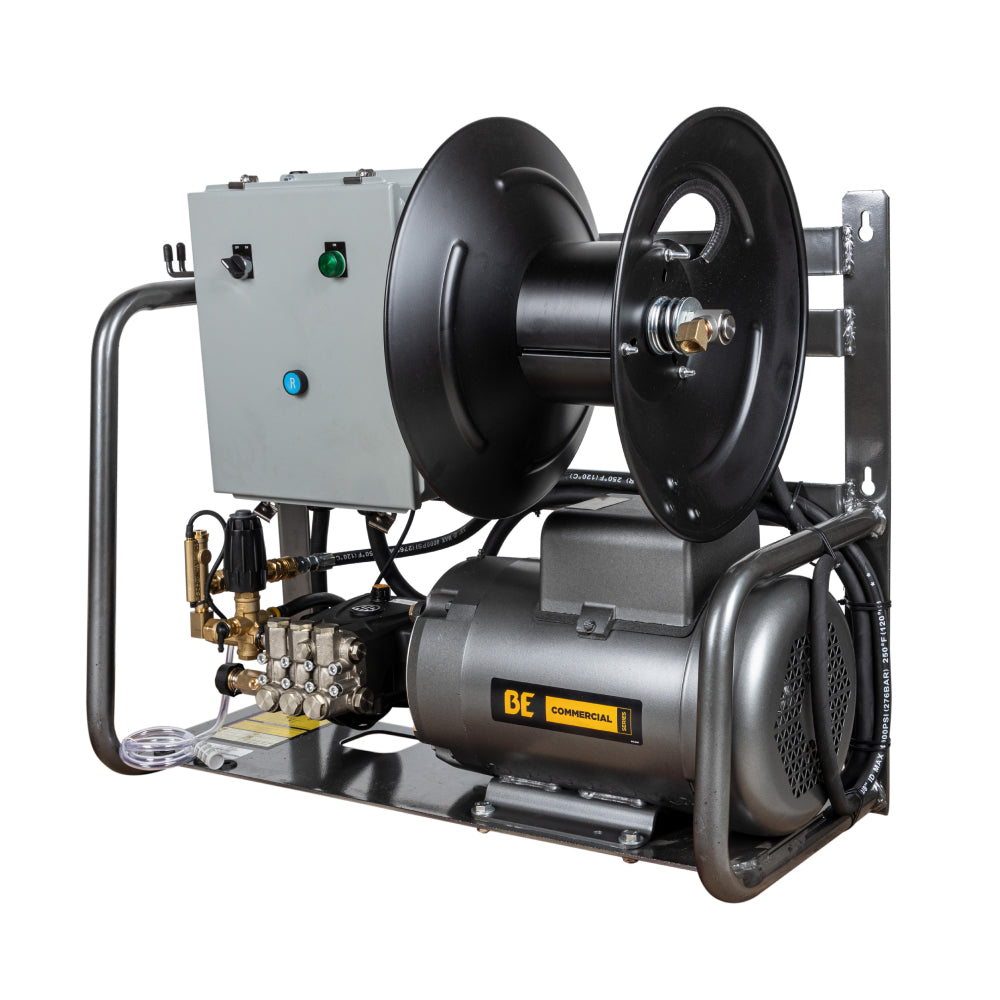

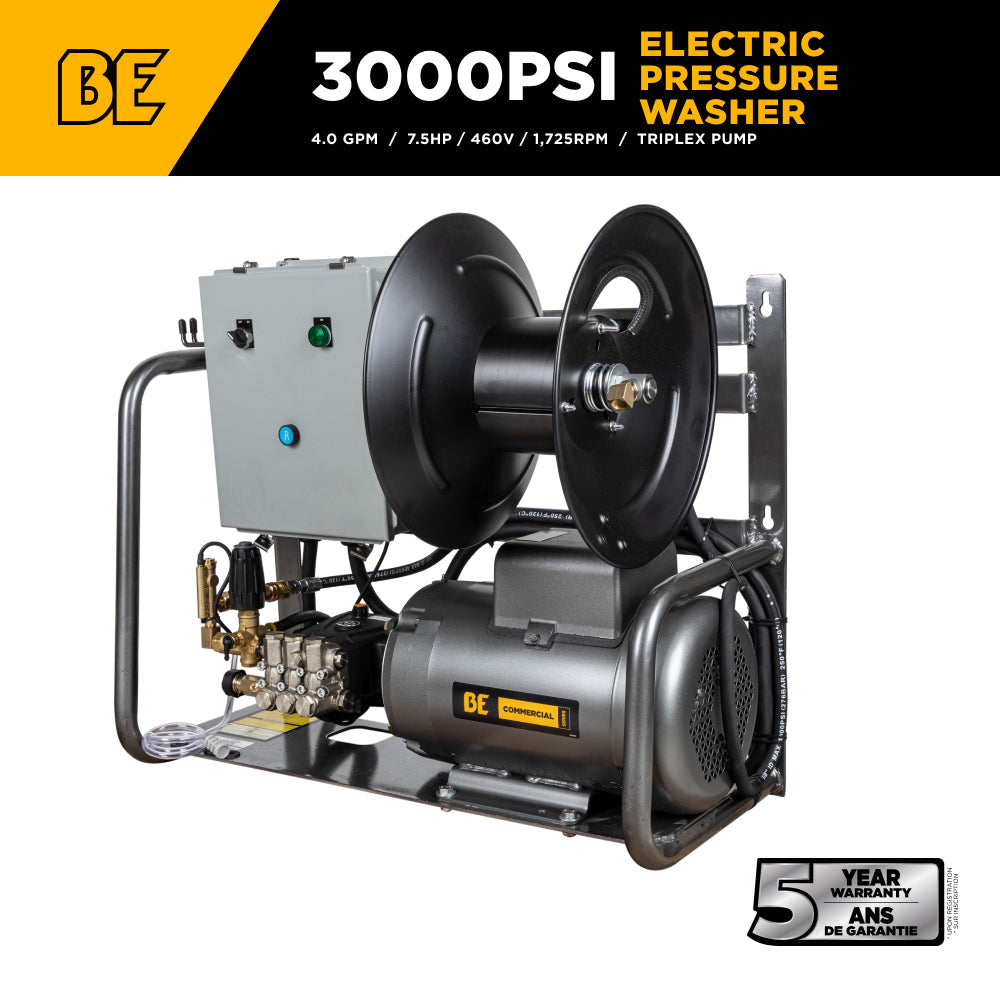

3,000 PSI 4.0 GPM 7.5 HP Electric Pressure Washer with 7.5 HP - 3 Phase Baldor Motor and General Triplex Pump - X-2775FW3GENHT4

Commercial High-Temperature Wall-Mounted Pressure Washing

The X-2775FW3GENHT4 is a commercial wall-mounted electric pressure washer designed to deliver continuous-duty, high-output performance in the toughest industrial environments. With a 7.5 HP, 3-phase Baldor motor (460V) and a General triplex pump, this unit puts out 3,000 PSI at 4.0 GPM for heavy-duty cleaning with a small footprint.

When choosing a pressure washer, you need to know your cleaning requirements and options.

This unit accepts up to 73°C (165°F) inlet water, making it perfect for sanitation-intensive industries, food processing plants, industrial shops or anywhere hot water is part of the cleaning process. With a direct drive system, an external unloader valve, and a fully integrated hose reel and accessory storage system, the X-2775FW3GENHT4 is built to work hard, stay organized and last for years.

Features

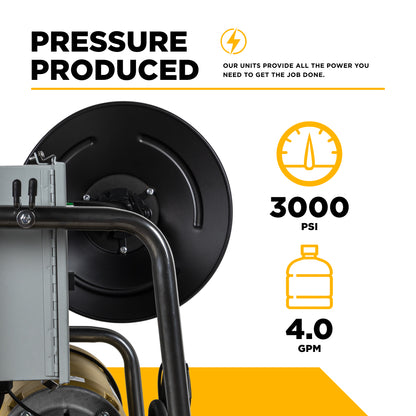

• 3,000 PSI @ 4.0 GPM: Heavy-duty degreasing, surface prep and industrial sanitation

• High Temperature Ready: Accepts up to 73°C (165°F)

• 7.5 HP, 3-Phase, 460V Baldor Motor: Commercial grade energy efficiency and continuous-duty power

• Direct Drive System: Compact and efficient power transfer from motor to pump

• General Triplex Pump: Die-cast body, forged brass manifold, solid ceramic plungers, high-temp seals and plating

• External Unloader Valve: Dump-to-ground bypass and improved pump cooling

• Wall-Mount Powder-Coated Steel Frame: Space-saving design with hose reel and accessory hooks

• Included Accessories: 50 ft. high-pressure hose, insulated spray gun/wand assembly and five quick-connect spray nozzles* Electrician Wiring Required: Unit ships without plug or switch; must be hardwired to power source

High-Temperature Industrial Cleaning

The X-2775FW3GENHT4 is designed for facilities with externally heated water supplies. The 73°C (165°F) high-temperature rating allows you to connect the unit directly to a hot water source to:

• Break down grease, oil and protein

• Sanitize food and beverage facilities faster

• Clean heavily soiled machinery more efficiently

• Eliminate the need for integrated burner systems

The General triplex pump is built to withstand high inlet temperatures with specialized seals, plating and durable components for long life in heat-intensive applications.

7.5 HP Baldor Motor – 3 Phase, 460V

The heart of the unit is a 7.5 horsepower Baldor motor, one of the most trusted brands in industrial electric motors. Designed for 3 phase 460V systems, this motor is quiet, smooth and efficient — even in continuous-use applications.

Key motor benefits:

• Continuous-duty rated for full-shift operation

• Energy-efficient reduces operating costs

• Low maintenance and proven reliability

• Ideal for fixed, high-output cleaning systems

Whether in a manufacturing plant, transport hub or wash bay, this motor has the system running without compromise.

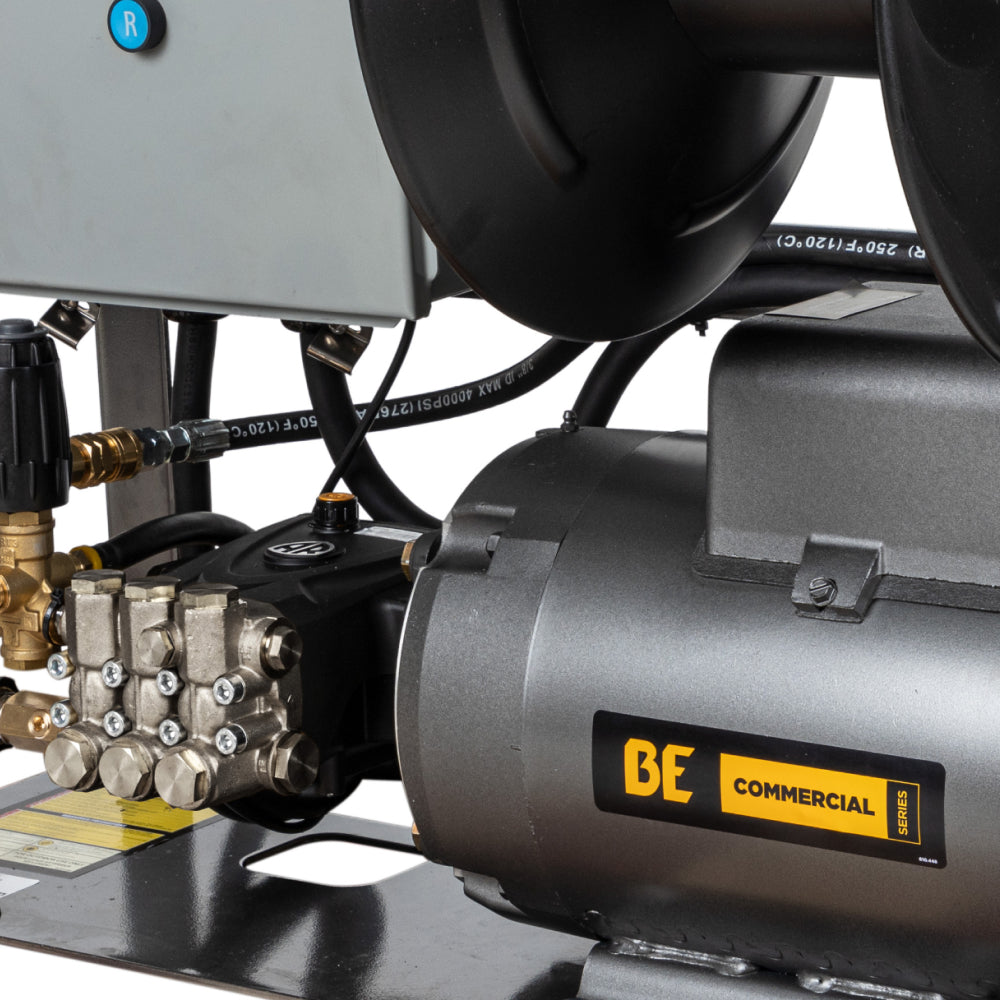

General Triplex Plunger Pump

The General Pump on the X-2775FW3GENHT4 is built tough, engineered to deliver performance under pressure and heat. Features include:

• Die-cast aluminum body for strength and heat dissipation

• Forged brass manifold for corrosion resistance and pressure durability

• Solid ceramic plungers for long life and heat resistance

• Thermal relief valve to prevent pump overheating

• High-temp seals and plating to withstand elevated inlet water temperatures

This pump is known for high output, long life and compatibility with many chemicals and water conditions.

Many compatible products and replacement parts are available to further enhance performance and life of the pressure washer.

Direct Drive System – Compact and Efficient****Direct Drive System

The direct drive configuration means smooth, efficient power transfer from motor to pump without belts, pulleys or tensioning systems. That means:

• Less vibration and noise

• Fewer parts to maintain

• Smaller footprint for wall mounting

• Improved efficiency during operation

It’s a system that simplifies ownership and delivers results.

External Unloader for Cooling and Pressure Regulation

The external unloader gives you pressure control and bypass water flow. For optimal pump life and cooling efficiency the unloader can be set for dump-to-ground bypass which prevents heated water from circulating back into the pump during off-trigger periods.

This is critical for units receiving hot water input where recirculating water can damage seals or wear the pump.

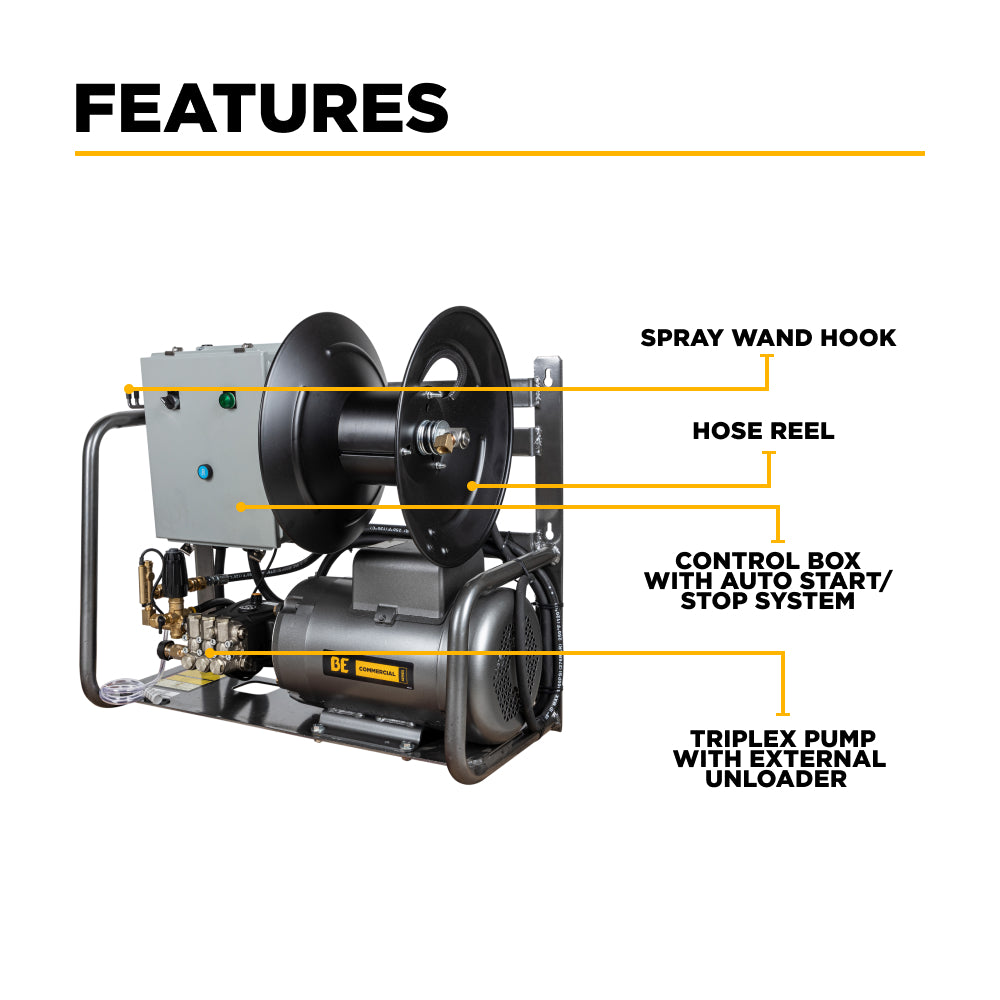

Wall-Mounted Frame with Hose Reel and Accessory Storage

The powder-coated steel frame is designed for secure wall mounting, a clean permanent cleaning station without taking up floor space. Features include:

• Built-in hose reel for fast and tidy hose storage

• Accessory storage hooks for spray gun, wand and nozzles

• Corrosion resistant finish that withstands chemicals, moisture and daily wear

• Compact footprint for utility rooms, wash bays and industrial spaces

The wall mounted design keeps everything organized and at your fingertips — an efficient way to have equipment ready when your team needs it.

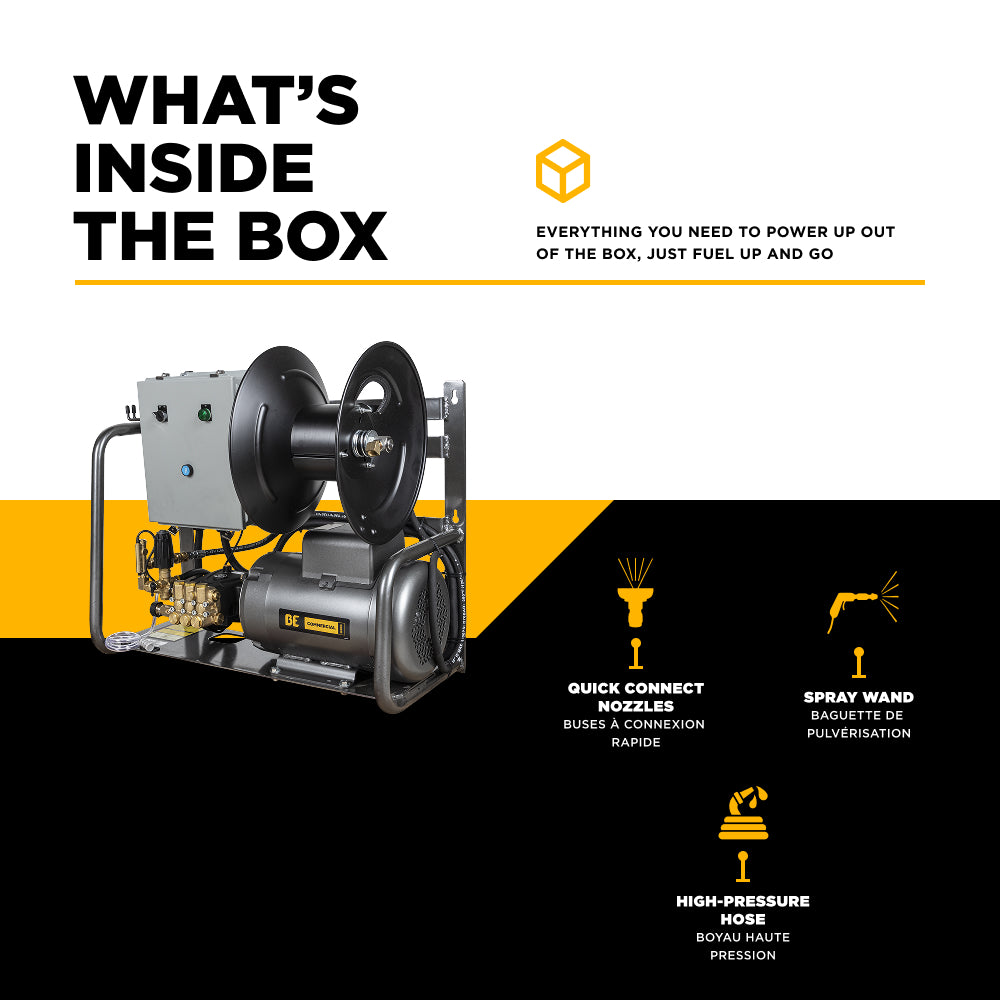

Includes Commercial Grade Accessories

This unit ships with everything you need to start cleaning (after electrical installation):

• 50 ft. High-Pressure Hose: Twin-wire braided and hot water rated

• Commercial Spray Gun and 36" Wand: Ergonomic and insulated for safety and comfort

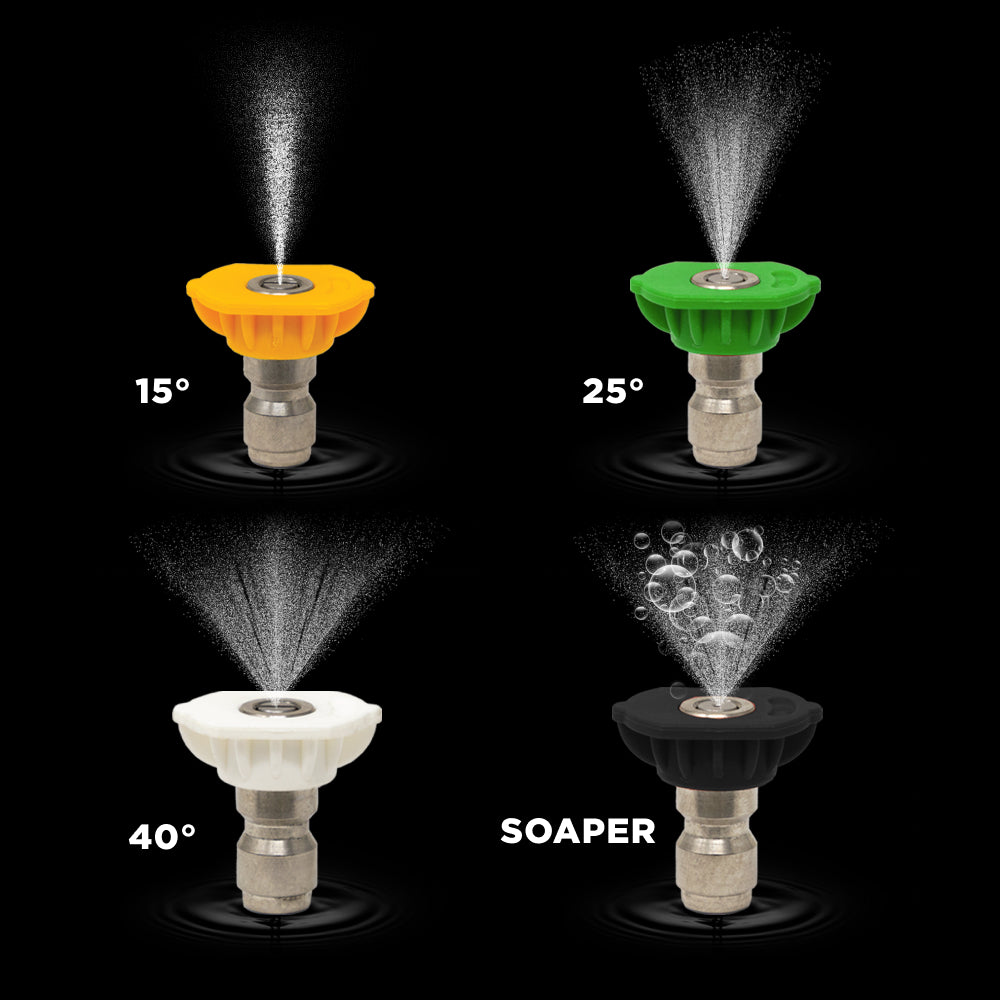

• 5 Quick-Connect Nozzles: 0°, 15°, 25°, 40° and Soap — covers all your cleaning angles

These accessories are designed for daily commercial use and are compatible with the pressure, flow and heat this system delivers.

Safety Features

Cam Spray electric pressure washers are designed with a range of safety features to protect both users and equipment during demanding cleaning tasks. Each unit has an auto stop/start function that turns off the motor when the trigger gun is released. This prevents accidental starts and reduces the risk of injury and wear on the pressure washer.

To further protect the equipment a thermal overload protection is built into the electric motor. This prevents overheating and ensures the pressure washer is safe and operational even during extended use. The wall mount design elevates the pressure washer off the ground, minimizes tripping hazards and protects the unit from impacts or water damage in busy areas.

A protective cover shields the internal components from dust, debris and environmental hazards, extending the life of your investment. These safety features are designed for both commercial and residential use, giving you peace of mind and reliable performance in any environment.

For optimal safety regular inspection and maintenance of all safety features is recommended. Always follow the manufacturer’s guidelines and safety instructions when operating your electric pressure washer for a safe and efficient cleaning experience.

Maintenance and Repair

To keep your electric pressure washer in top condition is crucial for long term performance and reliability. Regular maintenance helps identify and address potential issues before they become costly repairs or downtime. Users should check the hose, trigger gun and pump for any signs of wear, leaks or damage.

The filter should be cleaned or replaced as needed to maintain optimal flow rate and prevent clogging so your pressure washer delivers consistent cleaning power. With the wall mount design accessing the unit’s components for inspection, maintenance or repair is easy and convenient saving you time and effort.

Cam Spray provides maintenance guides, troubleshooting tips and replacement part information to help you keep your equipment running smoothly. Their customer support team is also available to assist with any maintenance or repair questions so your electric pressure washer remains a reliable tool for all your cleaning jobs.

By following the recommended maintenance schedule and addressing any issues promptly you can extend the life of your pressure washer and maintain its performance for years to come.

Electrical Installation Note

⚠️ Important: This unit ships without plug or switch. It must be hardwired by a licensed electrician into a 460V, three-phase power source to ensure safe and compliant operation.So your wall mounted pressure washer is a permanent, tamper proof installation for industrial use.

Product Specifications

Before you choose a wall mounted electric pressure washer you need to understand the description of PSI (pounds per square inch) and GPM (gallons per minute). These specs determine cleaning performance and efficiency. Here we explain how higher PSI means more cleaning power for tough stains and higher GPM means faster rinsing. Comparing these specs across different models helps you choose the right one for your cleaning needs.

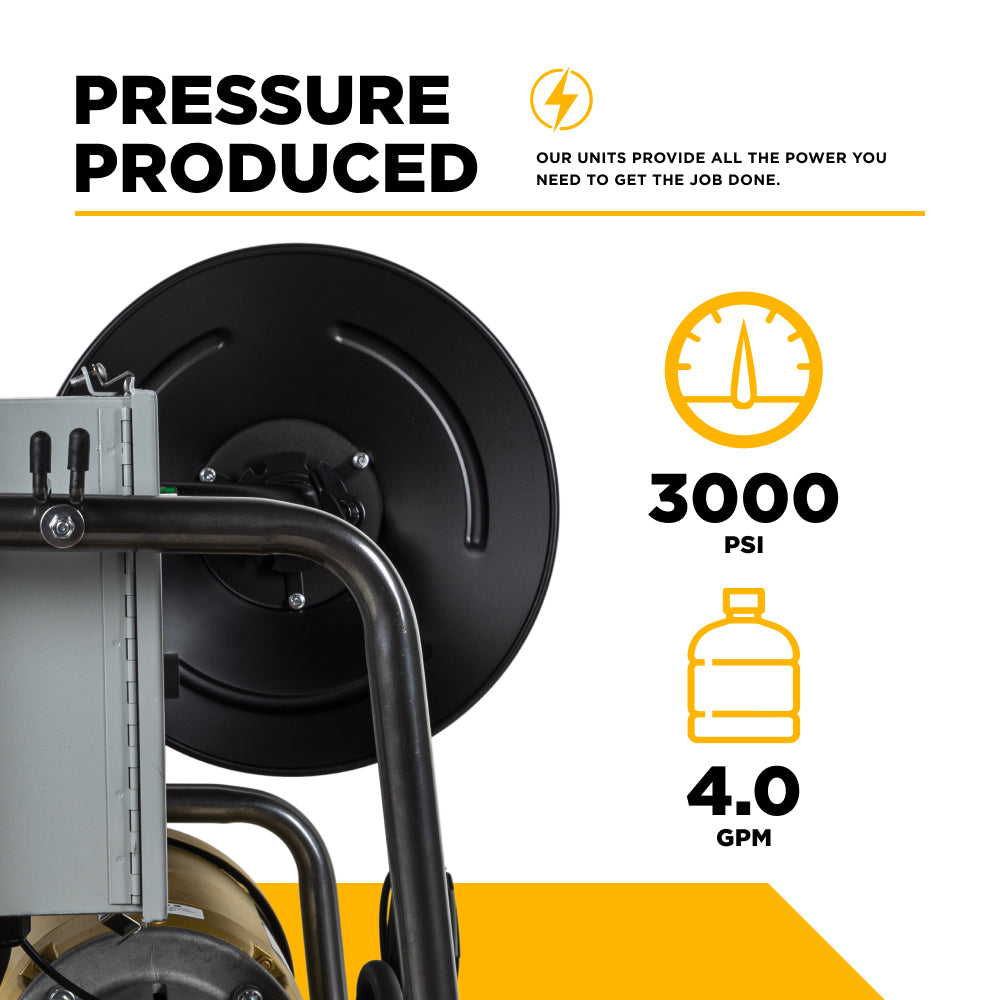

Performance

• Pressure: 3,000 PSI

• Flow Rate: 4.0 GPM

• Max Inlet Water Temp: 73°C / 165°F

Motor

• Brand: Baldor

• Power: 7.5 HP

• Type: 3 Phase, 460 Volt

• Duty Rating: Continuous-duty industrial motor

• Installation: Hardwired (no plug or switch included)

Pump

• Brand: General Pump

• Type: Triplex plunger

• Body: Die-cast aluminum

• Manifold: Forged brass

• Plungers: Solid ceramic

• Thermal Protection: Thermal relief valve

• Seals/Plating: High-temp rated

• Unloader: External, dump-to-ground capable

Frame

• Material: Powder-coated steel

• Mounting: Wall-mounted

• Features: Hose reel and accessory storage

Accessories

• Hose: 50 ft., high-pressure, twin-wire braided

• Spray Gun & Wand: 36” insulated, quick-connect

• Nozzles: 0°, 15°, 25°, 40°, and Soap

Shipping Info

• Weight: 203 lbs

• Dimensions: 40” x 21” x 31”

Warranty and Support

Cam Spray backs their electric pressure washers with a comprehensive warranty program so you can have peace of mind and protection against defects or damage. The warranty covers parts and labor for a specified period so if any covered issues arise your pressure washer can be repaired or replaced.

In addition to warranty coverage Cam Spray offers full customer support to help you get the most out of your equipment. User manuals, troubleshooting guides and FAQs are all available so you can find answers and solutions for your cleaning jobs.If you have any questions or need help Cam Spray’s support team is just a phone call or email away. They stand behind their products and want to make sure you can rely on your electric pressure washer for all your cleaning needs.

To learn more about warranty or to access support resources just contact Cam Spray’s customer service team. Their warranty and support program is designed to give you peace of mind and help you get the most out of your investment.

Operational Costs

Cam Spray electric pressure washers are designed to be efficient and cost effective for both commercial and residential use. The energy efficient design and auto stop/start function saves energy and prolongs the life of the pump by only running when needed. This reduces energy consumption and the frequency of repairs or replacements.

The wall mount design saves floor space and makes storage and access easy, reduces the risk of damage and maintenance needs. With high flow rate and powerful pressure output you can complete cleaning tasks fast and thorough, reducing labor and operational costs.

Compared to other cleaning equipment the total cost of ownership for a Cam Spray electric pressure washer is lower due to its durable construction, efficient operation and reduced maintenance requirements. You can estimate your operational costs by factoring in energy use, routine maintenance and replacement parts.

By choosing a Cam Spray electric pressure washer you’re investing in a reliable, cost effective cleaning solution that delivers great performance and high ROI — it’s a must have in any cleaning equipment lineup.

Your Permanent Hot Water Pressure Washing Station

The X-2775FW3GENHT4 has more power, more efficiency and more durability in a clean wall mounted system, it’s a versatile solution for any industrial cleaning task. Whether you’re washing down equipment, vehicles or facilities this system is designed to perform in the toughest environments — day in and day out.

X-2775FW3GENHT4 — Hot water compatible. Built for pros. Ready for the toughest jobs.
