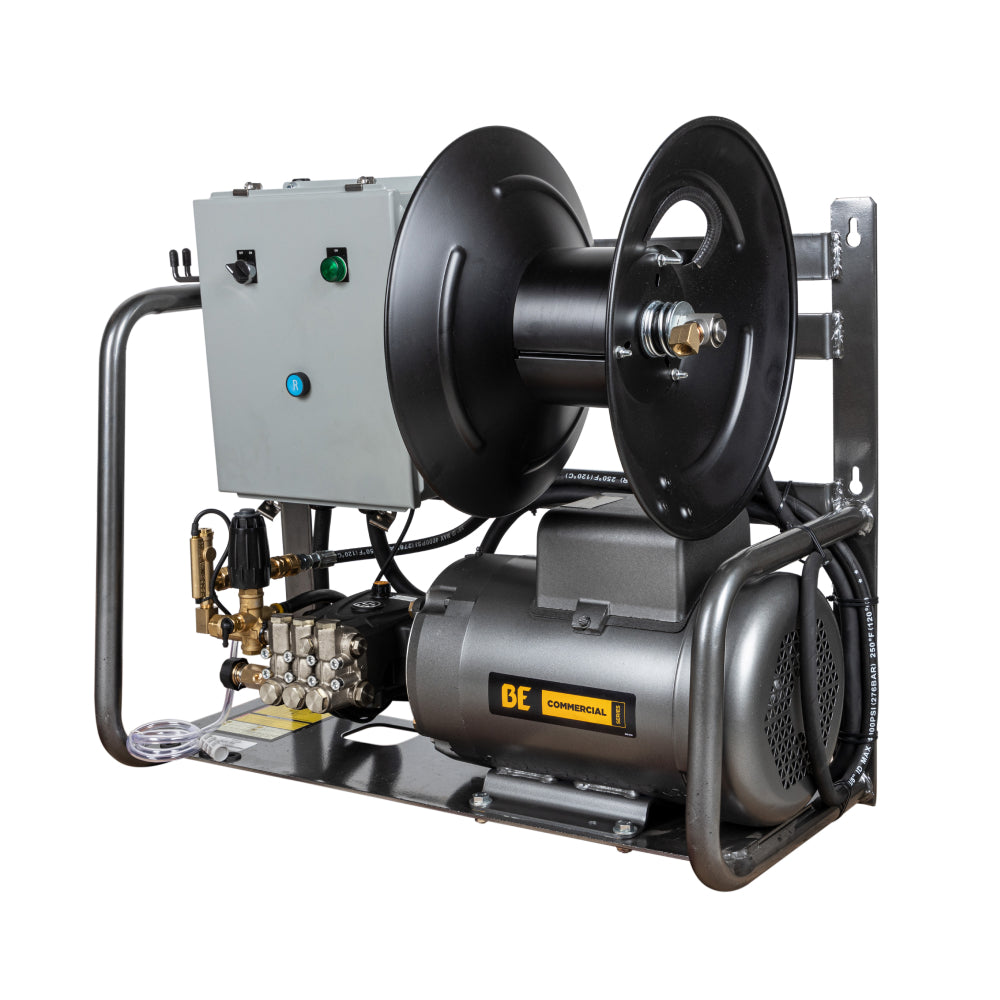

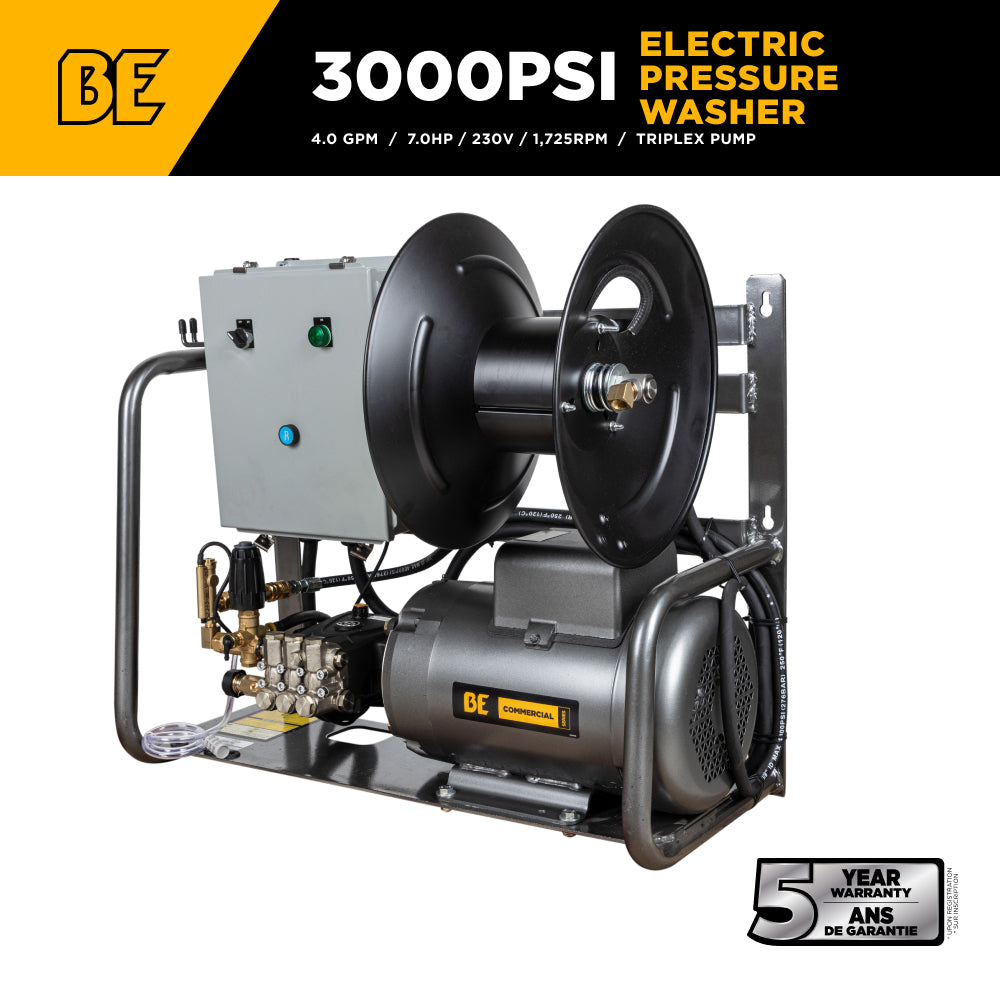

3,000 PSI 4.0 GPM 7.5 HP Electric Pressure Washer with Baldor Motor and General Triplex Pump - X-2775FW1GENHT

High Pressure, High Temperature Cleaning in a Wall Mounted Workhorse

The X-2775FW1GENHT is a high output, professional grade wall mounted electric pressure washer designed to withstand the demands of daily industrial cleaning. With 3,000 PSI at 4.0 GPM this system has serious power in a compact and organized wall mount frame – perfect for commercial garages, food processing facilities, sanitation stations, equipment wash bays, all of which require tough equipment like this model. Among pressure washers, the X-2775FW1GENHT is a commercial grade solution for demanding environments.

Powered by a 7.5 HP Baldor motor and built with a rugged General triplex pump, the X-2775FW1GENHT is also designed for high temperature operation, can accept an external water supply heated up to 73°C (165°F). This versatile washer is for light maintenance to heavy duty industrial applications, so it’s adaptable to any user’s needs. With a direct drive configuration, external unloader, and full accessory kit including a 50 ft. high pressure hose and hose reel, this system has everything a commercial cleaning team needs – mounted and ready to go.

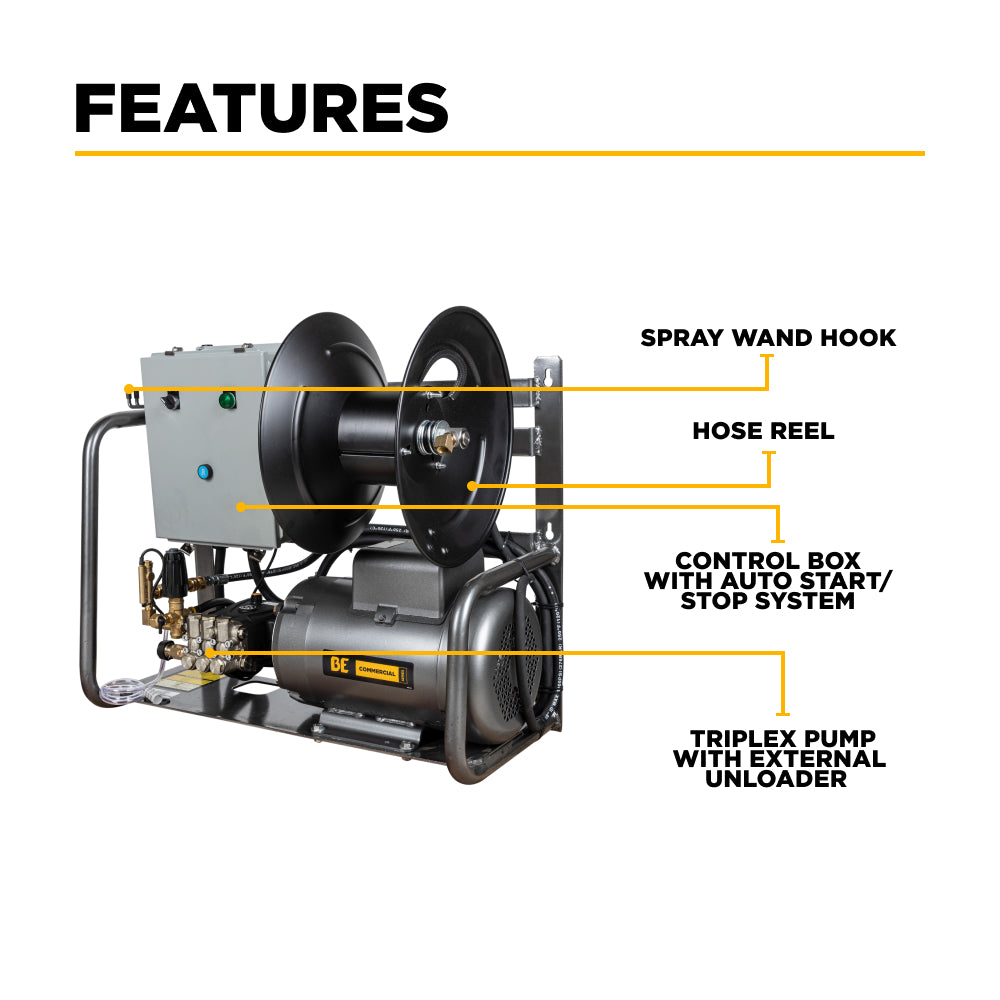

Features

• 3,000 PSI at 4.0 GPM: Perfect balance of pressure and volume for fast commercial cleaning – 4.0 gallons per minute means more flow for faster cleaning results

• High Temperature Ready: Accepts preheated water up to 73°C / 165°F for grease cutting and sanitation tasks

• 7.5 HP Baldor Electric Motor: Continuous duty, energy efficient motor for industrial use

• General Triplex Pump: Die cast body, forged brass manifold, ceramic plungers, temperature resistant seals

• Direct Drive System: Compact, efficient design with fewer wear parts and smooth operation means easy maintenance and user comfort

• External Unloader Valve: Enhances pump cooling and allows dump to ground bypass configuration

• Wall Mount Powder Coated Steel Frame: Saves floor space and has built in hose reel and accessory storage* Full Accessory Kit: 50 ft. high pressure hose, commercial grade spray gun and wand, and five quick connect nozzles

• Electrician Required: Unit must be hardwired – no power plug or switch included

High Temperature System for Serious Cleaning Power

What sets the X-2775FW1GENHT apart is its ability to accept incoming water heated up to 73°C / 165°F. This is perfect for operations that use external water heating systems to improve cleaning efficiency such as:

• Food and beverage processing plants

• Industrial maintenance facilities

• Truck and fleet wash stations

• Agricultural and sanitation environments

The General Pump has special seals and plated components designed to withstand high temperatures so you can harness the full degreasing and sanitizing power of hot water without sacrificing pump life or system performance.

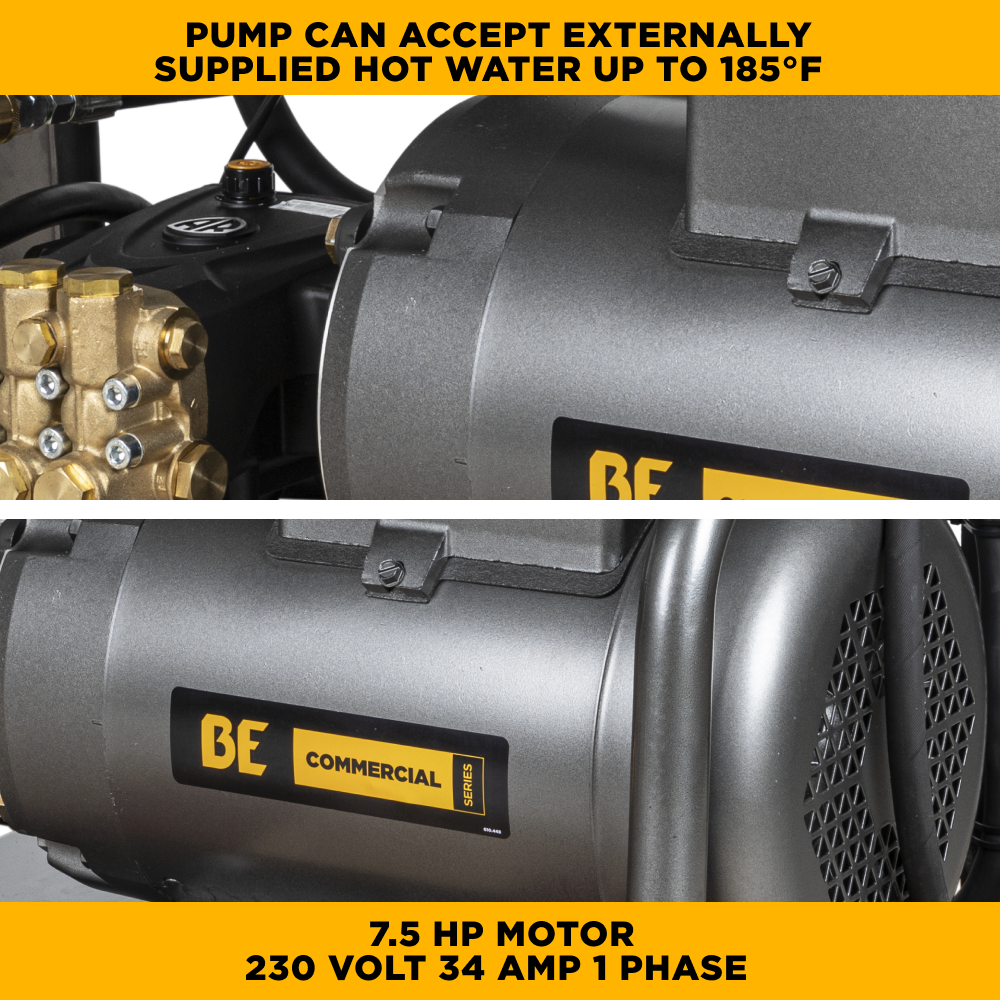

7.5 HP Baldor Motor – Industrial Strength and Efficiency

The power behind the performance is the 7.5 HP single phase Baldor electric motor, built for continuous duty operation in the toughest environments. Known for its reliability, efficiency and quiet operation this Baldor motor is a top tier choice for industrial applications.

Benefits include:

• High energy efficiency to reduce long term operating costs

• Smooth, low vibration performance for longer equipment life

• Low maintenance requirements

• Built to run for hours without overheating

Baldor motors are trusted worldwide across manufacturing, transportation and commercial service industries – and this one delivers dependable performance for the toughest pressure washing tasks.

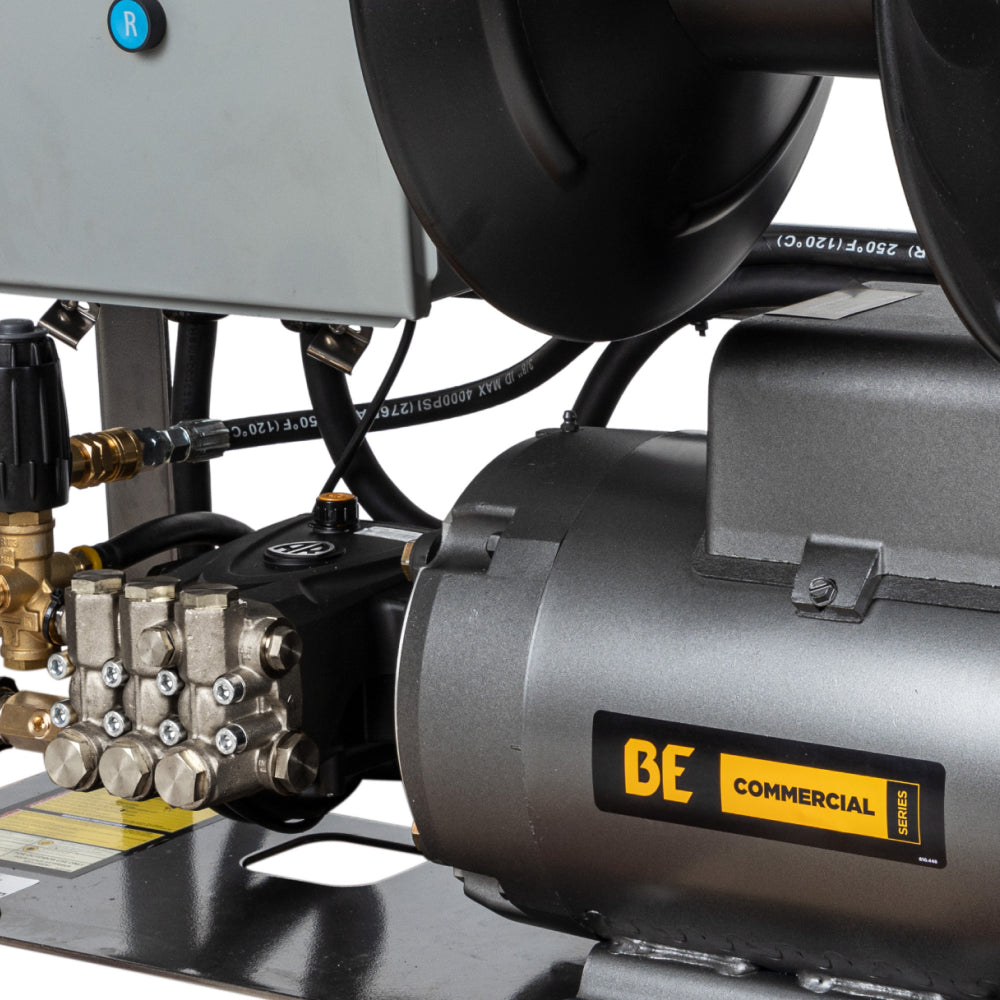

Commercial Grade General Triplex Pump with High Temp Capability

The General triplex plunger pump on the X-2775FW1GENHT is built to last and optimized for high temperature performance. It features:

• Forged brass manifold for corrosion resistance and pressure retention

• Die cast aluminum body for structural integrity and heat dissipation

• Solid ceramic plungers that withstand high heat and abrasive wear

• Special plating and seals designed for long term use with hot water

• Thermal relief valve for added safety and pump protection

This pump is for high use, high heat environments where reliability and efficiency is non negotiable.

External Unloader Valve with Dump to Ground Option

The unit has an external unloader valve which improves overall system cooling by redirecting bypass water. It can be configured for dump-to-ground bypass which prevents the pump from recirculating hot water and reduces the risk of internal overheating — a must have for high volume cleaning or multi-user environments.

This feature extends pump life, maintains performance under pressure and simplifies maintenance when adjustments are needed.

Compact Direct Drive System

The direct drive connects the motor shaft directly to the pump, minimizing vibration, reducing wear and shrinking the unit’s overall footprint — all while improving energy transfer and system efficiency.

Direct drive benefits include:

• Fewer moving parts = lower maintenance

• Cleaner and more compact installation

• Reduced operating noise and vibration

• Ideal for wall mounted, space sensitive applications

This is perfect for permanent installations where simplicity and reliability is key.

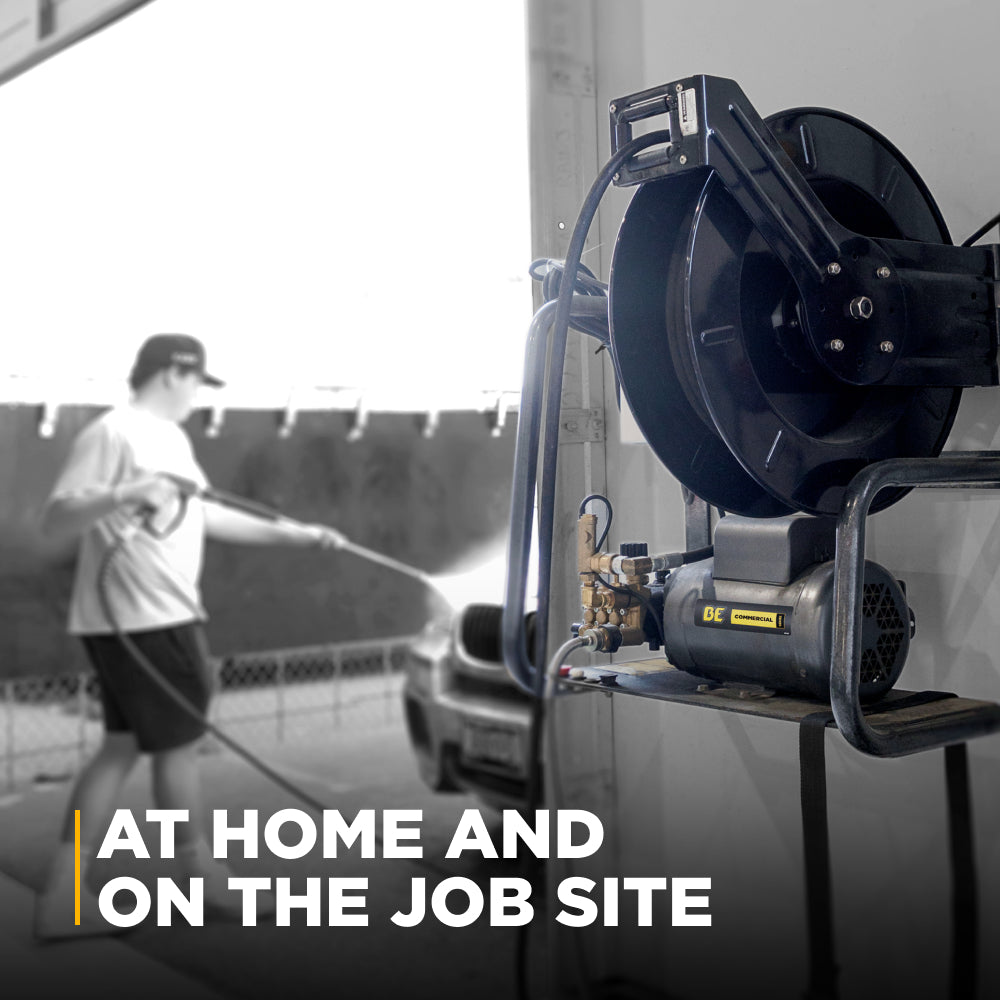

Wall Mount Steel Frame with Hose Reel

The powder coated steel frame is designed to mount to a wall, keeping the unit off the floor and out of harm’s way. This is especially beneficial in high traffic shops or wash bays where clutter can lead to damage or inefficiency.

Frame features:

• Durable, corrosion resistant coating for long life in moist or chemical prone environments

• Built in hose reel for 50 ft. hose storage

• Accessory hooks and holders for spray gun, wand and nozzles

• Compact footprint (40” x 21” x 31”) to maximize space efficiency

It’s a clean professional installation that’s easy to maintain and ideal for demanding environments. For added protection during storage consider using a cover to shield the unit from dust, moisture and accidental damage.

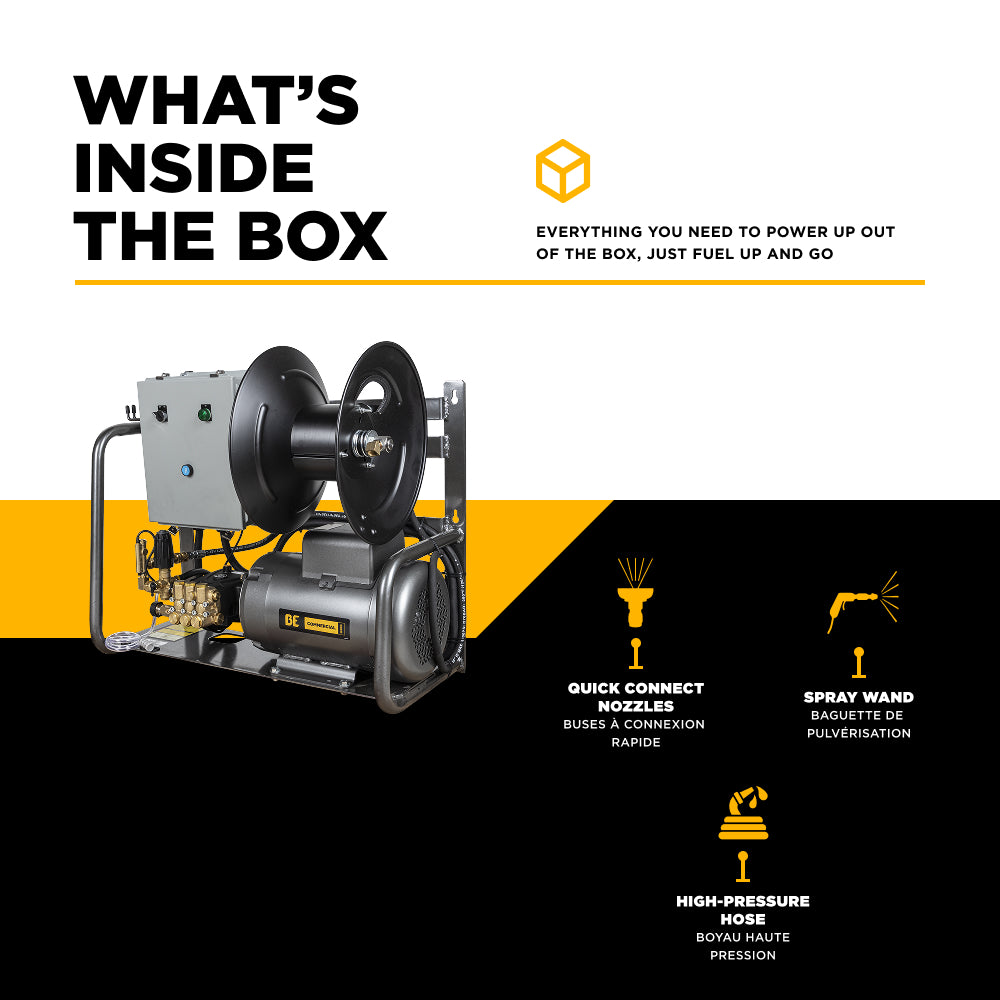

Everything Included

The X-2775FW1GENHT ships with a full commercial grade accessory kit so you can start cleaning (after electrical installation):

• 50 ft. High Pressure Hose: Twin wire braided for flexibility and long life

• Commercial Spray Gun and 36” Wand: Insulated and ergonomic with safety lock-off

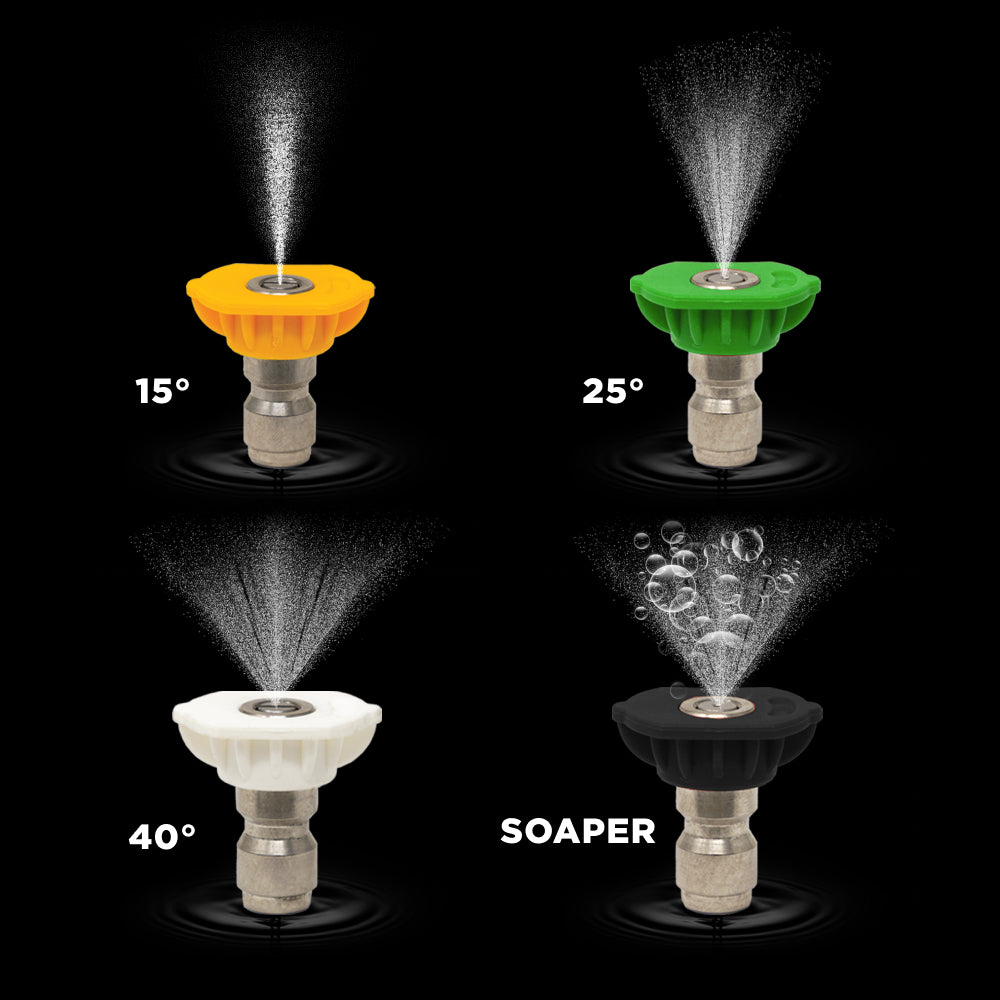

• 5 Quick Connect Nozzles: 0°, 15°, 25°, 40° and Soap — switch spray patterns quickly based on cleaning needsEach accessory is high pressure and high temperature rated to match the system.

Electrical Installation Note

This unit does not come with a power plug and must be hardwired into your facility’s electrical system by a licensed electrician. This ensures the unit is code compliant, safe and permanently ready for industrial use.

Operating the X-2775FW1GENHT

Operating the X-2775FW1GENHT is easy, thanks to its user friendly design and features. Before starting always check that the wall mount is secure and the unit is properly hardwired to a compatible power source. Once the unit is ready grip the trigger gun firmly to start your cleaning tasks. The flow rate can be adjusted to suit the specific cleaning job, whether you’re cleaning light dirt or heavy grime.

This unit has an auto stop/start feature which stops the motor when the trigger is released. This saves energy and extends the life of the unit by reducing wear. Always check the power supply and double check the wall mount can support the weight of the unit before use. Designed for efficiency and safety the X-2775FW1GENHT makes it easy to start and stop your cleaning sessions, giving you total control over your high pressure cleaning equipment.

Industrial and Commercial Applications

The X-2775FW1GENHT stands out among electric pressure washers for its versatility and performance in industrial and commercial applications. High pressure and flow rate make it ideal for cleaning large equipment, vehicles and building exteriors as well as tough dirt, grease and stains in demanding environments. The wall mount saves valuable floor space and provides easy access to the unit, making it a practical choice for busy facilities with limited space.

Whether you need to clean machinery in a factory, sanitize surfaces in a food processing plant or maintain a fleet of vehicles, this electric pressure washer is designed for commercial users. The auto stop/start feature reduces energy consumption and wear, and the range of models means you can choose the right one for your cleaning tasks. To learn more about the features and benefits of each model check the product description or talk to a knowledgeable sales representative to find the right one for your cleaning applications.

Safety Features and Precautions

Safety is key with the X-2775FW1GENHT electric pressure washer. This unit has an auto stop/start feature which stops the motor when the trigger is released reducing the risk of accidents and keeping the work area safe. The wall mount keeps the pressure washer off the ground and out of high traffic areas reducing the chance of tripping hazards or damage.

To add extra safety always wear gloves and safety glasses when operating the pressure washer. Read and follow all safety guidelines in the user manual to prevent equipment damage and personal injury. Inspect your pressure washer regularly to identify and address any potential safety issues before they become problems. By following these precautions and using the built in safety features you can have a safe and efficient cleaning experience every time you use the unit.

Maintenance and Repair

Keeping your X-2775FW1GENHT electric pressure washer in top shape is easy with regular maintenance and timely repairs. The wall mount makes maintenance and servicing a breeze. Always inspect the pressure washer for any signs of wear or damage and perform routine maintenance tasks like cleaning the filter and checking oil levels as per the user manual.

The auto stop/start feature reduces wear on the motor further extending the life of the unit. If you have any issues check the user manual for troubleshooting or contact a sales representative for support. Knowing your warranty and support options will give you peace of mind and ensure your pressure washer continues to be safe and efficient. Maintenance is the best way to protect your investment and keep your cleaning equipment ready for any job.

Energy Efficiency

The X-2775FW1GENHT electric pressure washer is designed to be energy efficient making it a smart choice for businesses looking to reduce operational costs and environmental impact. The auto stop/start feature saves energy by stopping the motor when the trigger is not engaged and prevents unnecessary power usage and wear on the system. The wall mount also contributes to efficiency by keeping the unit organized and out of the way minimizing the need for extra handling or movement.With high pressure and flow rate this pressure washer is designed to get the job done fast and efficiently so you can complete jobs in less time and with less energy. The electric motor provides reliable power for all your cleaning needs. By choosing an energy efficient electric pressure washer like the X-2775FW1GENHT you not only save on energy costs but also a more sustainable way to keep your facility clean and maintained.

Product Specifications

Before we get into the specs let’s talk about PSI (pounds per square inch) and GPM (gallons per minute) in electric wall mount pressure washers. These two factors directly impact cleaning effectiveness—higher PSI means more force to remove tough grime and higher GPM means faster rinsing and coverage.

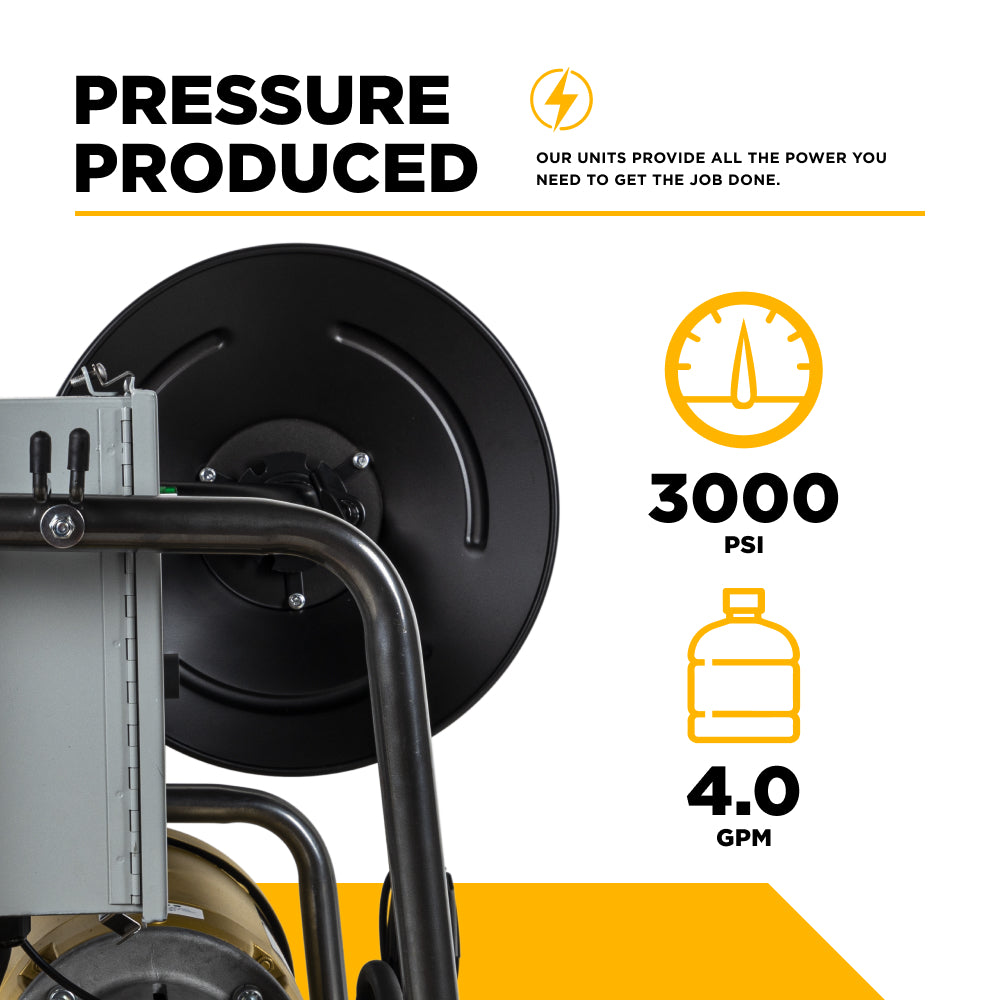

Performance

• Pressure: 3,000 PSI

• Flow Rate: 4.0 GPM

• Max Inlet Water Temperature: 73°C / 165°F

Motor

• Brand: Baldor

• Power: 7.5 HP

• Type: Single-phase electric

• Operation: Continuous-duty

• Wiring: Hardwired installation (no plug included)

Pump

• Brand: General Pump

• Type: Triplex plunger

• Manifold: Forged brass

• Body: Die-cast aluminum

• Plungers: Solid ceramic

• Features: Special plating and high-temp seals

• Relief Valve: Included

• Unloader: External with dump-to-ground capability

Frame & Mounting

• Material: Powder-coated steel

• Design: Wall-mounted

• Storage: Built-in hose reel and accessory hangers

Accessories

• Hose: 50 ft. high-pressure, twin-wire braided

• Gun & Wand: 36” insulated, commercial-grade

• Nozzles: 5 quick-connect tips — 0°, 15°, 25°, 40°, Soap

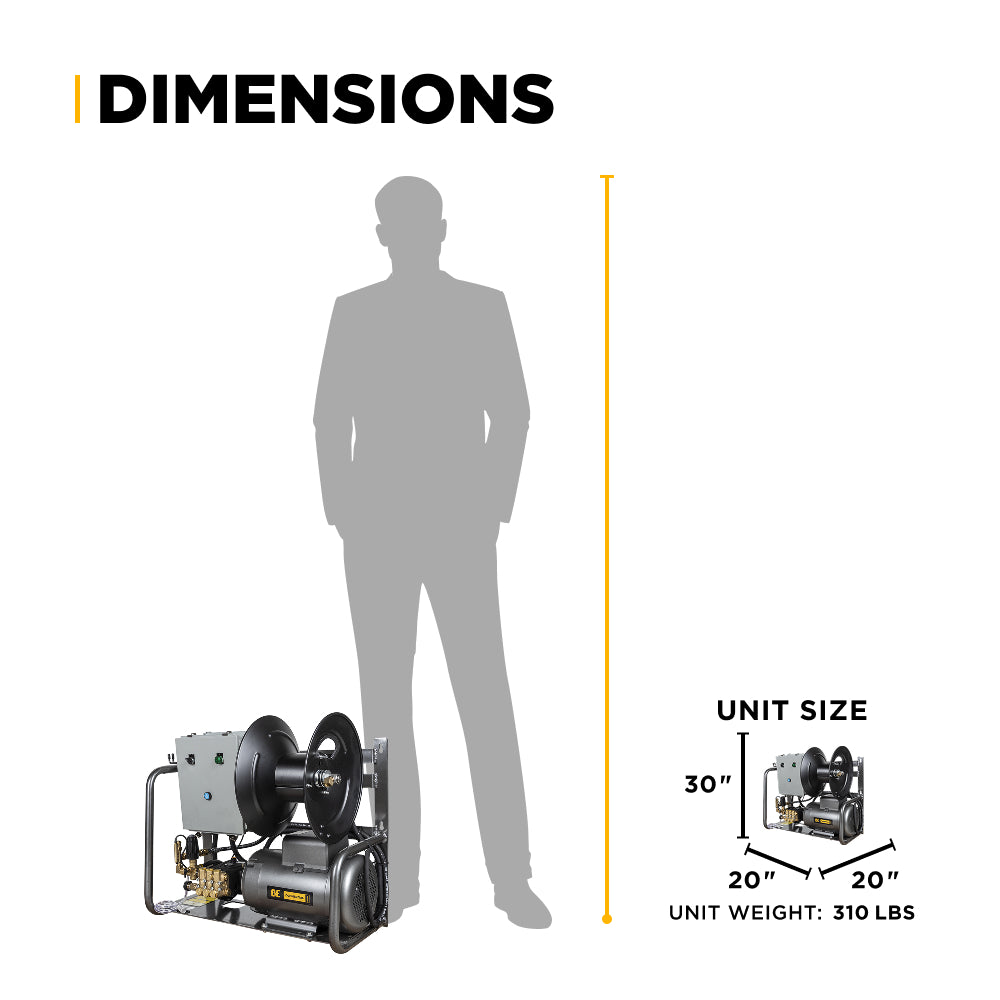

Shipping Information

• Weight: 203 lbs

• Dimensions (L x W x H): 40” x 21” x 31”

Heat, Power, Performance

X-2775FW1GENHT High-pressure, high-flow, hot water wall mount. Professional grade components, compact footprint, hot water capable. Built for the toughest commercial environments.

X-2775FW1GENHT Wall mount pressure washing for professionals who want more.
