Product / Pressure Washers / X-2050FW1GENHT

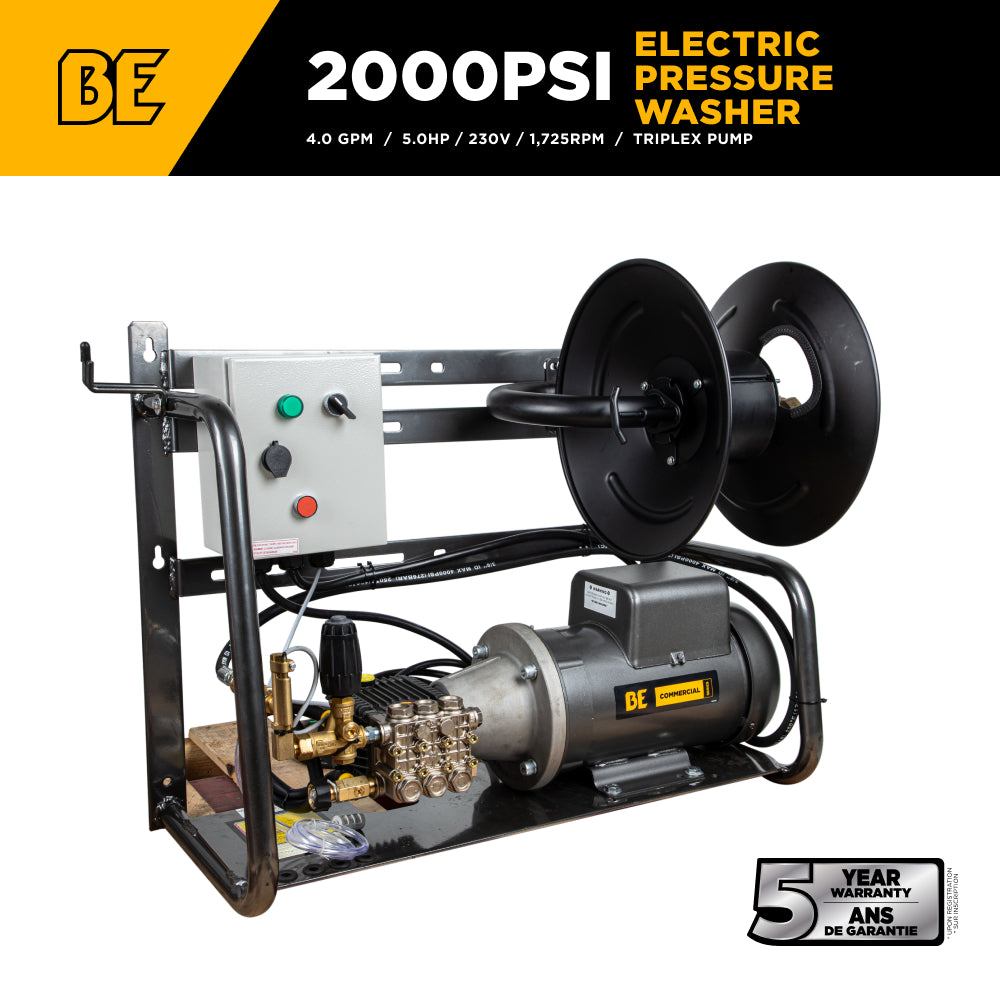

2,000 PSI 4.0 GPM 5.0 HP Wall Mount Electric Pressure Washer with a Baldor Motor and General Triplex Pump - X-2050FW1GENHT

2,000 PSI 4.0 GPM 5.0 HP Wall Mount Electric Pressure Washer with a Baldor Motor and General Triplex Pump - X-2050FW1GENHT

Specifications

FRAME

112

PSI

2,000

GPM

4.0

UNLOADER

External

SERIES

Commercial

RPM

1,725

MOTOR

5.0 HP / 1 Phase / 23 Amp

PUMP MODEL

General EPHT1812

PUMP TYPE

Triplex

VOLTS

230

MAX TEMPRATURE

85°C

View full details

PRODUCT

DESCRIPTION

High Volume Hot Water Pressure Washing in a Wall-Mounted Design

The X-2050FW1GENHT is a tough, high-performance electric pressure washer for fixed-installation commercial use that demands high volume and high temp water sources. 2,000 PSI at 4.0 GPM. 5.0 HP Baldor motor and General triplex plunger pump with specialized components to handle incoming water temp up to 85°C (185°F). A model designed for commercial use, the X-2050FW1GENHT stands out for durability and features.

For auto detail shops, sanitation bays, industrial garages and other commercial wash stations, the X-2050FW1GENHT brings consistent power and stays off the floor. With an external unloader for advanced pump cooling, a hose reel and included professional grade accessories, it’s ready to go to work – day in and day out. This model helps you find the right solution for high volume, high temp cleaning needs so you can choose the right equipment for your application.

If you need fixed-installation cleaning power, choose this wall mount electric pressure washer for your commercial facility.

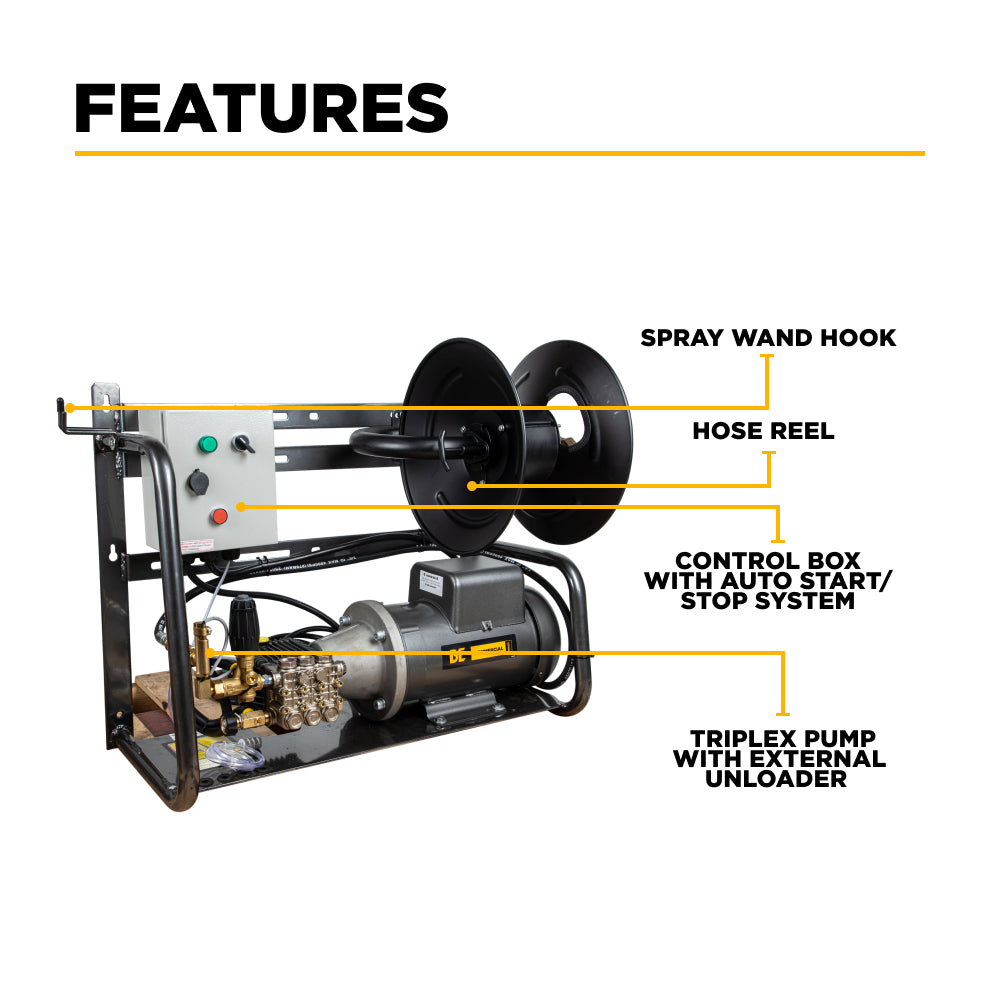

Key Features

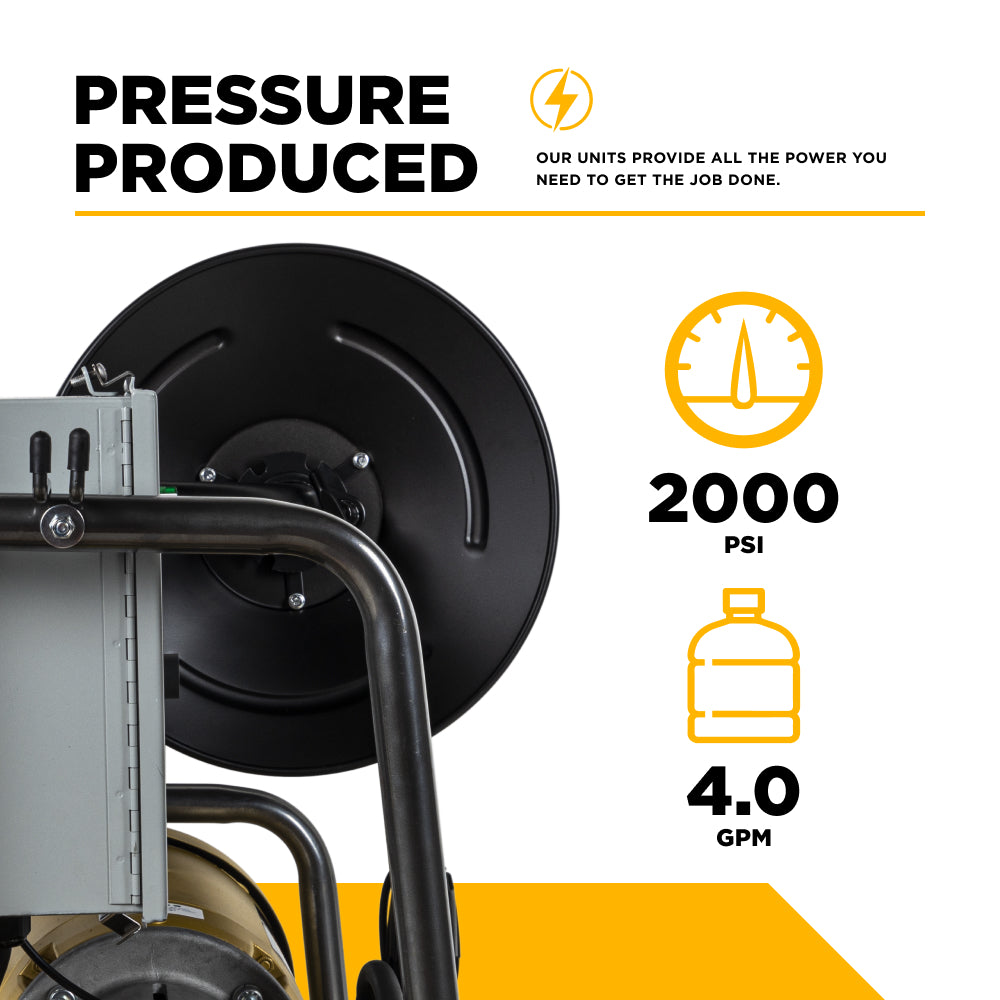

  • 2,000 PSI at 4.0 GPM: 4.0 GPM flow for fast commercial cleaning

  • High Temp System: Accepts externally heated water up to 85°C (185°F)

  • 5.0 HP Baldor Electric Motor: Commercial continuous duty use

  • General Triplex Pump: Reinforced body, forged brass manifold, solid ceramic plungers, high temp seals and plating

  • Direct Drive System: Compact and efficient power transfer from motor to pump

  • External Unloader Valve: Enhances pump cooling over time

  • Powder-Coated Wall-Mount Frame: Saves space and includes hose reel and accessory storage* Full Pro Accessory Kit: 50 ft. high-pressure hose, spray gun and wand, and five quick-connect nozzles included, multiple nozzle options for different cleaning needs

  • Electrician Installation Required: Unit must be hardwired — no plug or switch included

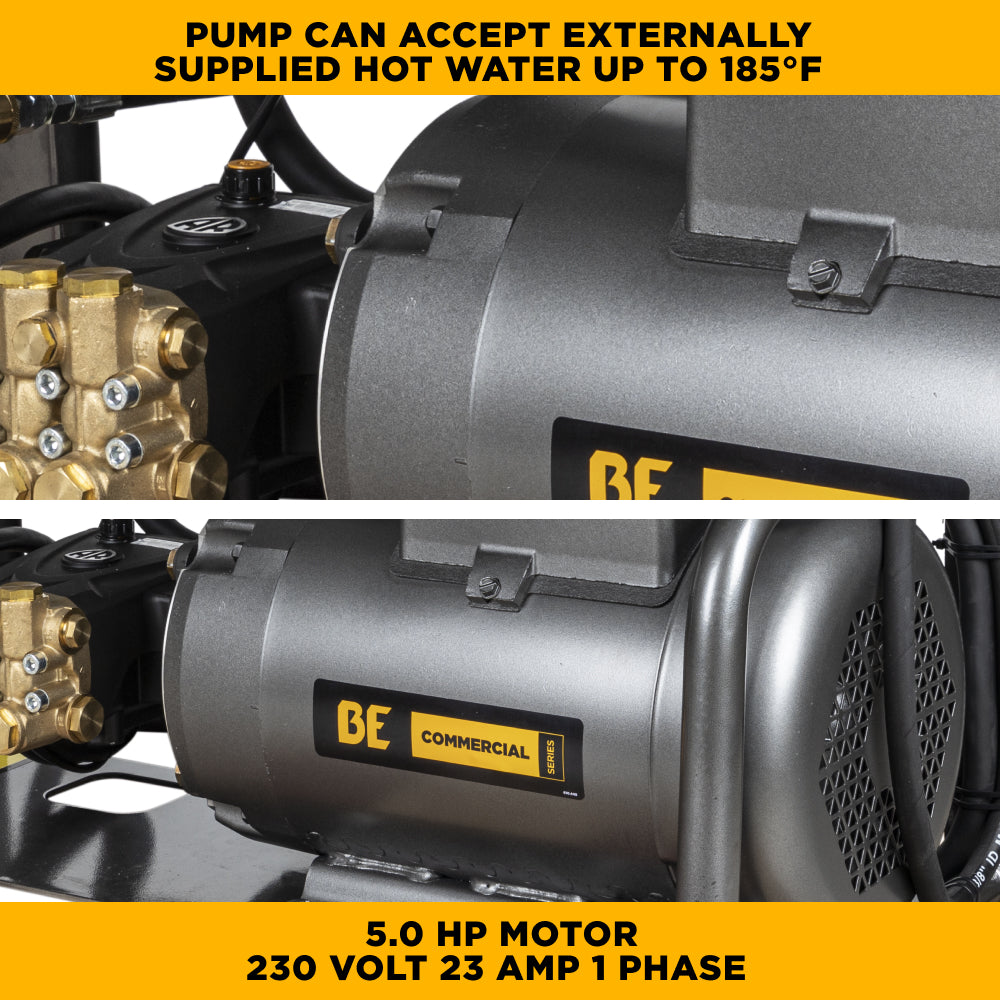

High Temp Cleaning Applications

The X-2050FW1GENHT is high temp capable, accepting incoming water up to 85°C (185°F). Perfect for applications where hot water is supplied — food processing facilities, maintenance bays, sanitation environments that require hot water for disinfection and heavy duty degreasing.

Before you buy, identify your cleaning needs, sanitation or degreasing to determine if this unit is right for your application.

The General triplex pump has plated components and high temp seals for long life and optimal performance even in extended high temp use. These features meet the demands of high temp, heavy duty cleaning.

Baldor Power for Continuous Use

This pressure washer has a 5.0 HP single phase Baldor electric motor known for industrial reliability, smooth operation and long life. Built for demanding conditions, Baldor motors are the choice of professionals in automotive, manufacturing and heavy equipment industries.

Motor benefits:

  • Continuous duty rating for non-stop cleaning

  • Energy efficient to reduce utility costs

  • Quiet and vibration reducing

  • Low maintenance

The Baldor motor is easy to handle and maintain, perfect for users who want manageable equipment that matches their maintenance capabilities.

Whether you’re washing down trucks or sanitizing work areas, the Baldor motor delivers smooth power. Remember to check the motor regularly for optimal performance and longevity.

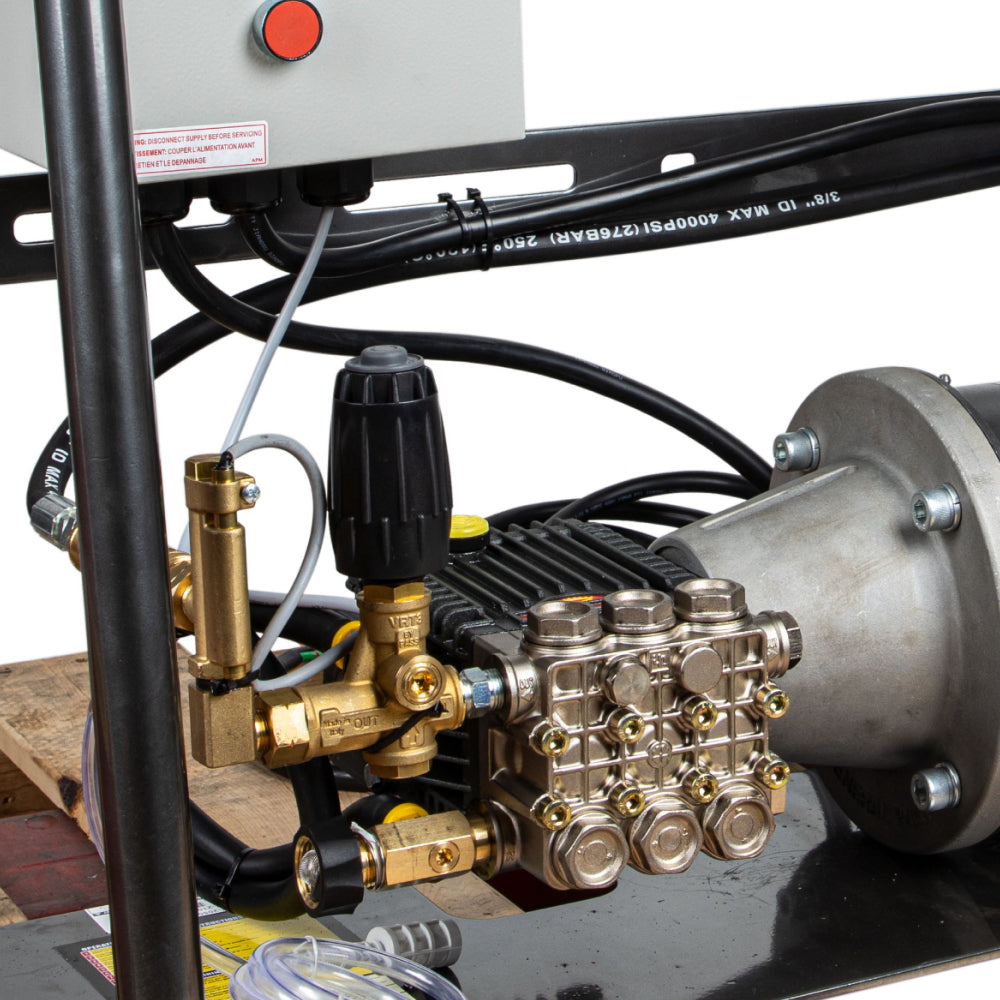

Commercial General Triplex Pump

At the heart of the system is a General Pump triplex plunger pump engineered for high performance and long life in commercial use. This pump is versatile for many commercial cleaning applications.

Pump features:

  • Forged brass manifold corrosion and pressure fatigue resistant

  • Solid ceramic plungers temp and abrasion resistant* High temp seals and plating

  • Die-cast aluminum body

  • Thermal protection with high temp components

  • External unloader for pump cooling, pressure tuning and seal life

This pump is for long hot water cleaning sessions and built for the toughest environments. Users can complete the toughest cleaning jobs quickly and thoroughly.

Direct Drive in a Space Saving Frame

The direct drive connects the motor directly to the pump, no pulleys or belts. This reduces mechanical complexity and improves overall efficiency and footprint of the machine.

Benefits of direct drive:

  • Compact design for wall mount

  • Fewer wear points for less maintenance

  • More efficient power transfer

  • Less vibration for smoother operation

With a steel wall-mounted frame, this is perfect for permanent installations in facilities where space, organization and uptime are key.

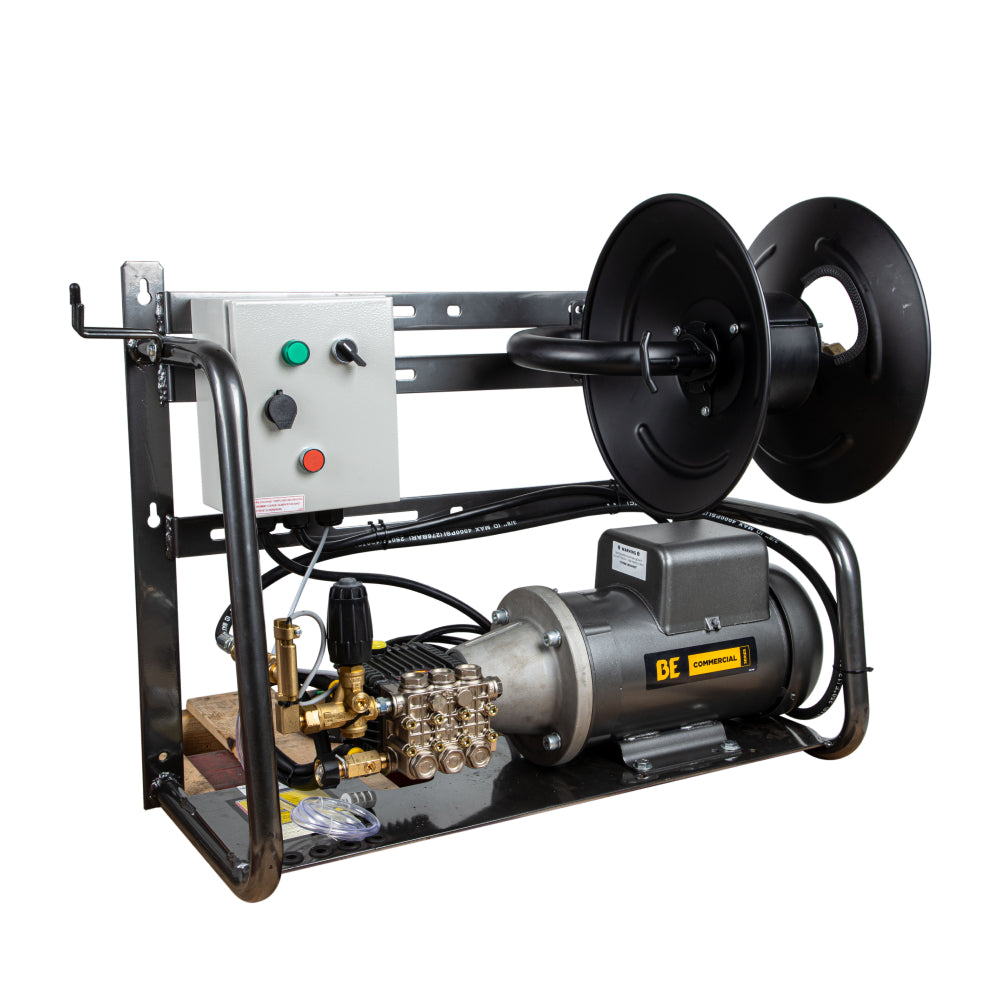

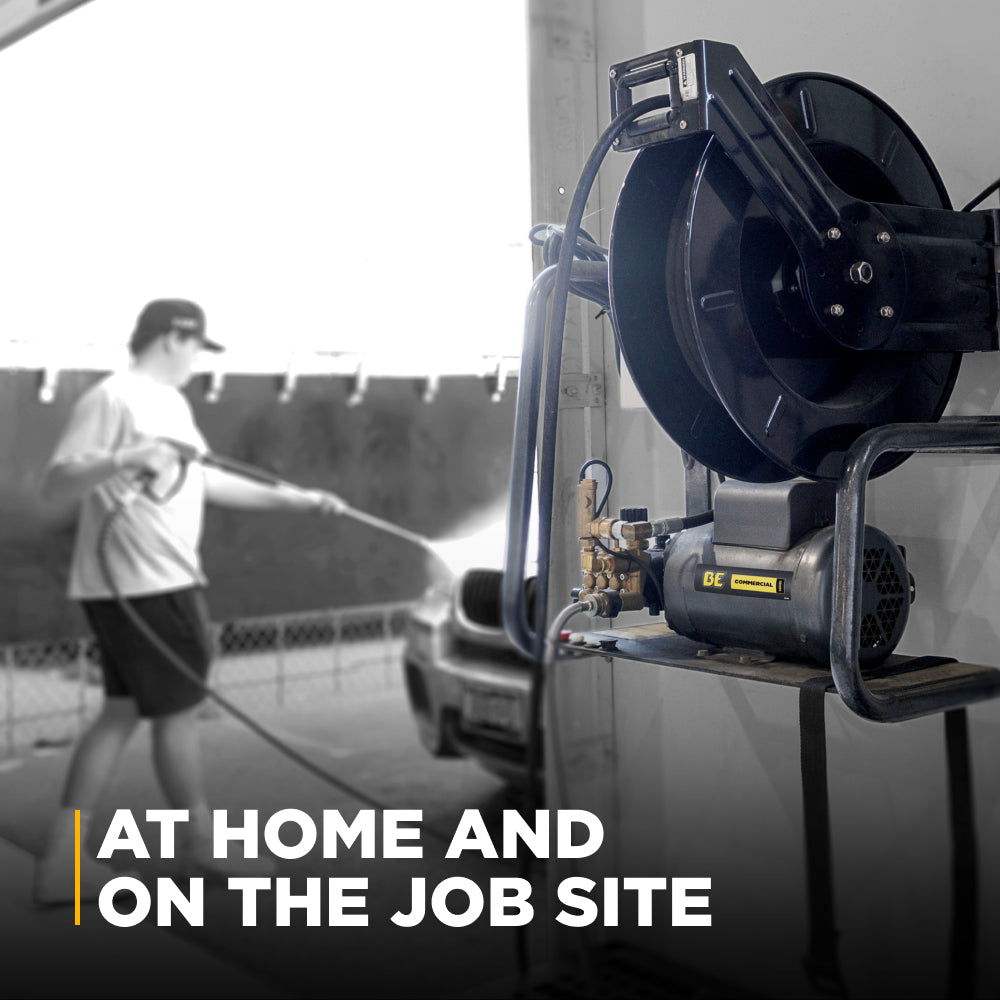

Wall Mounted Powder Coated Frame with Hose Reel

The frame of the X-2050FW1GENHT is built for daily commercial use. Made from heavy gauge steel and powder coated, it resists corrosion, moisture and wear.

Wall mount benefits:

  • Keeps the washer off the floor to maximize usable space

  • Protects equipment from impacts and spills

  • Built in hose reel for the 50 ft. pressure hose

  • Accessory storage hooks for the spray wand and nozzles

This clean professional look keeps your work environment safe and efficient and reduces setup time between jobs.

For added protection consider using a cover to shield the pressure washer from the elements and extend its life, especially when mounted outdoors or stored during harsh weather.

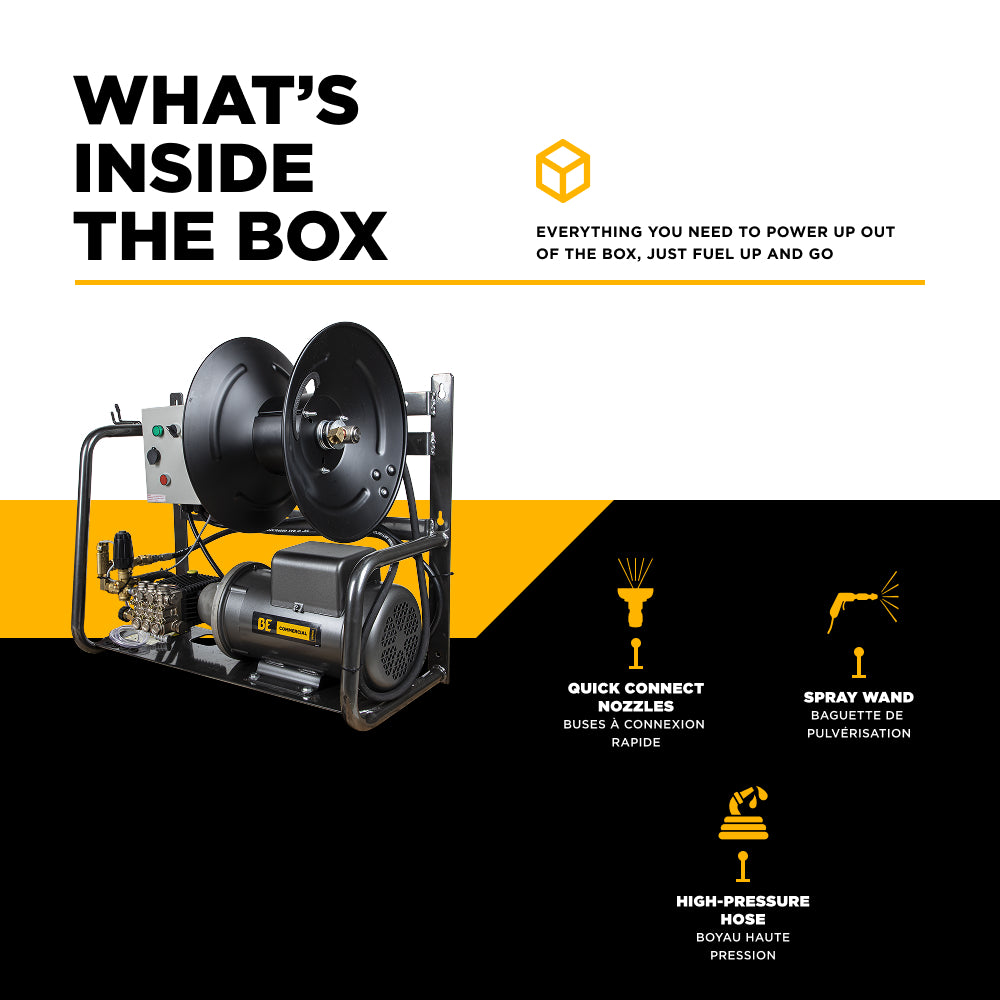

Everything You Need to Get Started

The X-2050FW1GENHT comes with a full set of commercial grade accessories so you can start cleaning now:

  • 50 ft. High Pressure Hose: Twin wire braided for flexibility and strength

  • Professional Spray Gun and 36” Wand: Ergonomic and insulated for safe operation

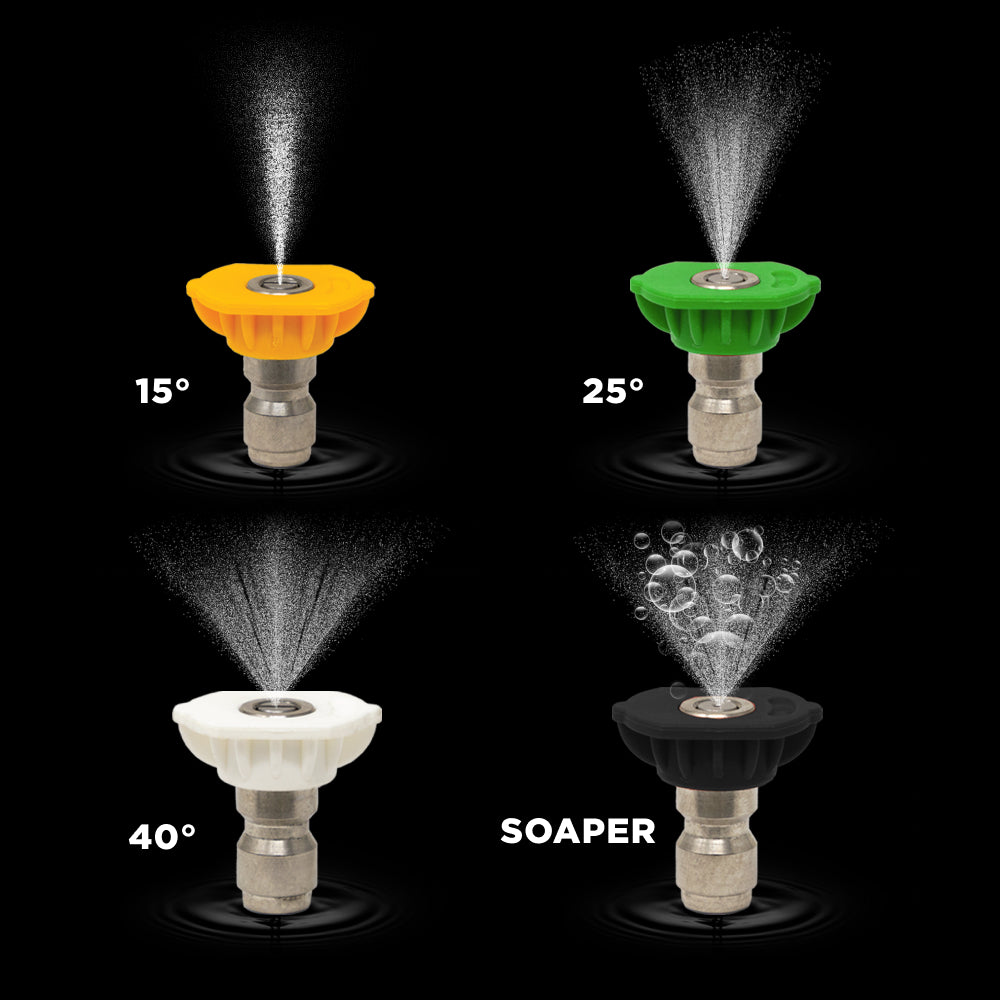

  • 5 Quick Connect Spray Nozzles: 0°, 15°, 25°, 40° and Soap — easy to change for the jobAll components are designed for high volume high temp use and provide the performance and longevity professionals demand.

A range of pressure washer products and accessories are also available to further enhance the unit.

Safety Features and Precautions

Operating an electric pressure washer safely is key to protecting users and equipment. The X-2050FW1GENHT is designed with safety in mind, with a trigger gun with safety lock to prevent accidental start up. The wall mount design keeps the pressure washer secure and prevents it from falling or damaging the unit and surrounding area. This keeps the equipment off the floor for better storage and access and maintains a safe and organized workspace.

The auto stop/start is another safety feature, the electric pressure washer will shut off when the trigger is released. This saves energy and prevents overheating and extends the life of the motor. To ensure safe operation, regularly inspect hoses, connections and the pressure washer for any signs of wear or damage. Follow the manufacturer’s guidelines for maintenance and storage to keep the equipment in top condition and reduce the risk of accidents.

Personal safety should never be overlooked—always wear gloves and safety glasses when using high pressure equipment to protect against water jets or flying debris. By understanding and using these built in safety features users can confidently complete a range of cleaning tasks with minimal risk.

Environmental Benefits

Choosing an electric pressure washer like the X-2050FW1GENHT has many environmental advantages over gas powered models. Electric pressure washers produce zero direct emissions and reduce your facility’s carbon footprint. The auto stop/start system means the motor only runs when needed, minimising power consumption during cleaning tasks and further increasing energy efficiency.

In addition to saving energy, electric pressure washers use water more efficiently than a standard garden hose, making them a smart choice for users who want to conserve resources without sacrificing cleaning power. By choosing equipment that prioritises energy efficiency, water conservation and reduced emissions you can meet your cleaning needs and support a more sustainable approach.

Whether you’re doing daily cleaning jobs or tackling tough grime, electric pressure washers are a responsible way to get high pressure results. Choosing environmentally friendly models benefits your business and the planet.

Installation Notice: Hardwiring Required

The X-2050FW1GENHT is shipped without a plug, switch or power cord. For safety and code compliance this pressure washer must be wired in by a licensed electrician to your facility’s electrical specifications.

This configuration is for fixed location applications and provides a clean tamper resistant installation.

Product Specifications

Before we get into the technical specs here is a brief explanation of the PSI (pounds per square inch) and GPM (gallons per minute) ratings: these are the key to understanding the cleaning power and efficiency of a pressure washer as they determine how well the machine can handle commercial cleaning tasks.

Performance

  • Pressure: 2,000 PSI

  • Flow Rate: 4.0 GPM

  • Max Inlet Water Temp: 85°C / 185°F

To explain the importance of these ratings the PSI and GPM values determine the effectiveness of the pressure washer for different cleaning applications for optimal results for light and heavy duty jobs.

Motor

  • Brand: Baldor

  • Power: 5.0 HP

  • Phase: Single-phase

  • Type: Continuous-duty industrial-grade motor

  • Wiring: Hardwired installation required (no plug or switch included)

Pump

  • Brand: General Pump

  • Type: Triplex plunger

  • Manifold: Forged brass

  • Plungers: Solid ceramic

  • Features: High temp components, thermal protection

  • Unloader: External for pump cooling, pressure tuning and seal life

Frame

  • Material: Powder coated steel

  • Design: Wall mount with built in hose reel and storage

Accessories Included

  • Hose: 50 ft. high pressure, twin wire braided

  • Spray Gun: Insulated with 36” commercial grade wand

  • Nozzles: 5 quick connect tips (0°, 15°, 25°, 40° and Soap)

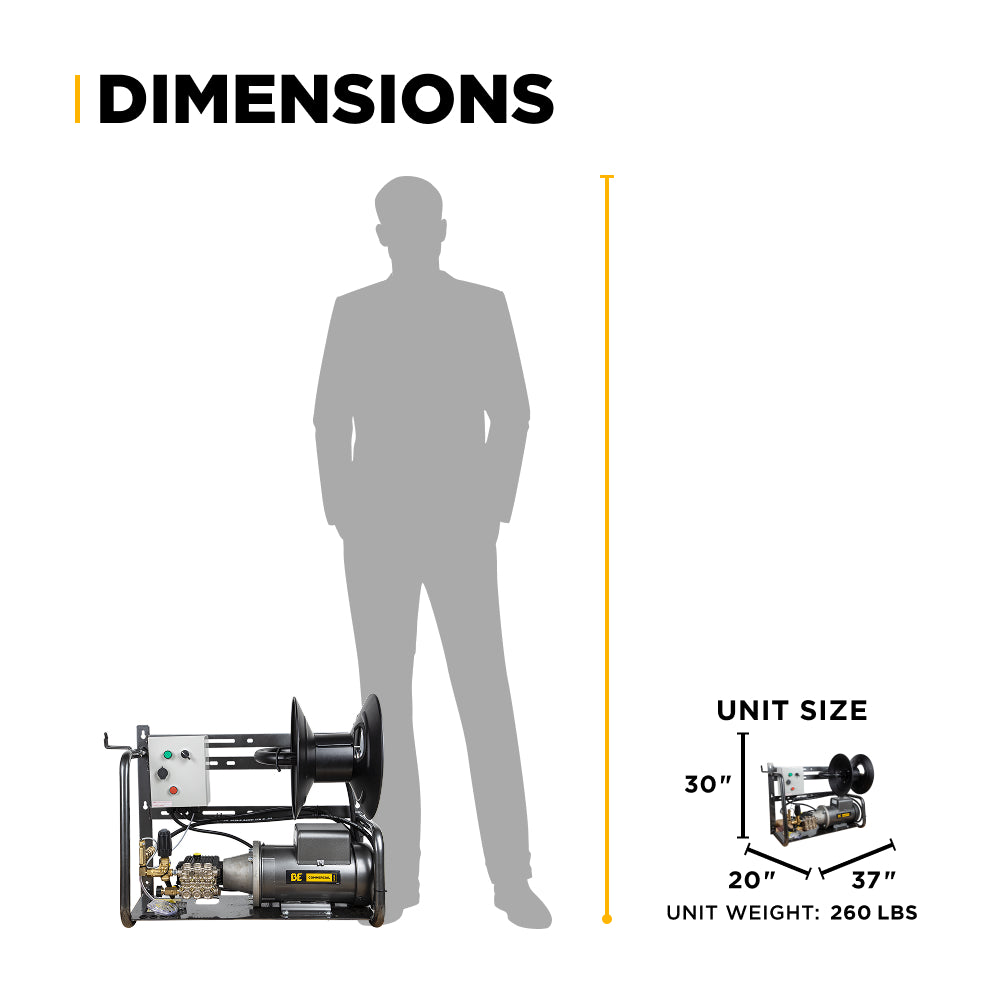

Shipping Information

  • Weight: 253 lbs

  • Dimensions (L x W x H): 40” x 22” x 32”

Hot Water Wall Mount Cleaning Solution

Fleet vehicles, food grade equipment, indoor wash bays? The X-2050FW1GENHT has it all. High temp, wall mount, commercial grade. For professionals who need high flow, high performance pressure washing with minimal downtime and maximum efficiency.

X-2050FW1GENHT — Hot water pressure washing with Baldor power and General Pump performance for the pros.
