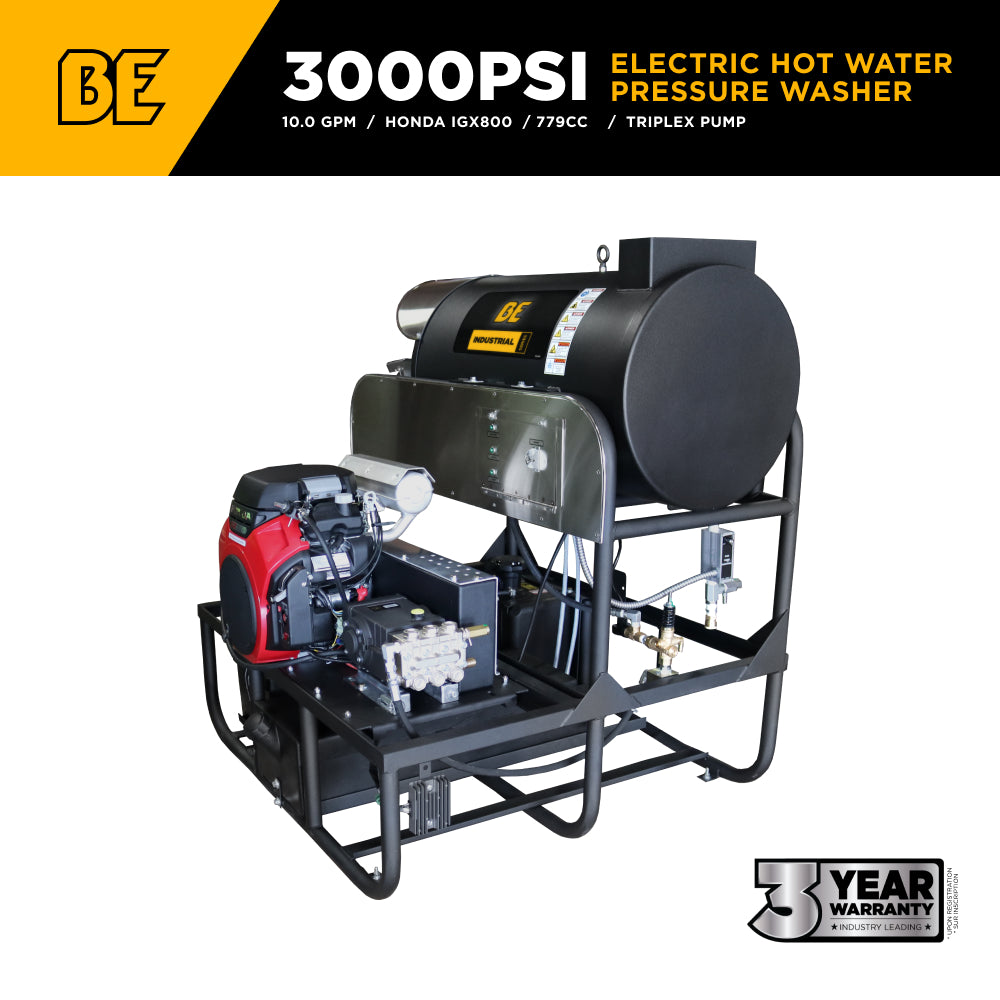

3,000 PSI 10 GPM Hot Water Gas Pressure Washer Skid with General Triplex Pump - SE5815HIHZGP

3,000 PSI 10 GPM Hot Water Gas Pressure Washer Skid with General Triplex Pump - SE5815HIHZGP

Specifications

FRAME

Reinforced Powder Coated Steel Frame

ENGINE

Honda IGX800

CC

779CC

PSI

3,000

GPM

10

UNLOADER

External

SERIES

Industrial

WARRANTY

Engine: 3 Years / Pump: 5 Years / Burner: 3 Years

ENGINE START

Electric

PUMP MODEL

GENERAL TSF2421

PUMP TYPE

Triplex

Hose Length

50'

MAX TEMPRATURE

93°C / 200°F

MATERIAL

Powder Coated

Nozzles Included

15° & 25°

Oil Type

30W Non-Detergent

Weight

940 lbs

View full details

PRODUCT

DESCRIPTION

Industrial Hot Water Cleaning Power with Honda IGX800 and Belt-Driven Triplex Pump

The BE Power Equipment SE5815HHZGP Hot Water Pressure Washer Skid is engineered for serious professionals who demand maximum performance, durability, and heat for heavy-duty industrial cleaning applications. Delivering 3,000 PSI at 10.0 GPM, this hot water pressure washer provides the pressure, flow, and heat required to remove grease, oil, and heavy buildup faster and more effectively than cold water systems.

Powered by a Honda IGX800 electric start engine and paired with an industrial-grade belt-driven General triplex pump, the SE5815HHZGP is designed for continuous operation in demanding environments. A 12V Beckett burner, high-output heating coil, and adjustable thermostat allow this unit to deliver hot water up to 93°C / 200°F, dramatically improving cleaning efficiency on tough industrial jobs.

Mounted on a heavy-duty powder-coated steel skid, this unit is built for permanent truck or trailer installation and plumbed for mobile water tank use with bypass return, making it ideal for professional mobile cleaning operations.

Built for Serious Industrial and Mobile Cleaning

This hot water pressure washer skid is purpose-built for industrial, commercial, and fleet applications where heat, flow, and reliability matter most. The SE5815HHZGP is ideal for:

  • Industrial facility and plant maintenance

  • Heavy equipment and machinery cleaning

  • Fleet, transport, and trailer washing

  • Oil, grease, and contaminant removal

  • Construction, agricultural, and municipal cleaning

With high GPM output and controlled heat, this hot water system reduces cleaning time, chemical use, and labor costs while delivering superior results.

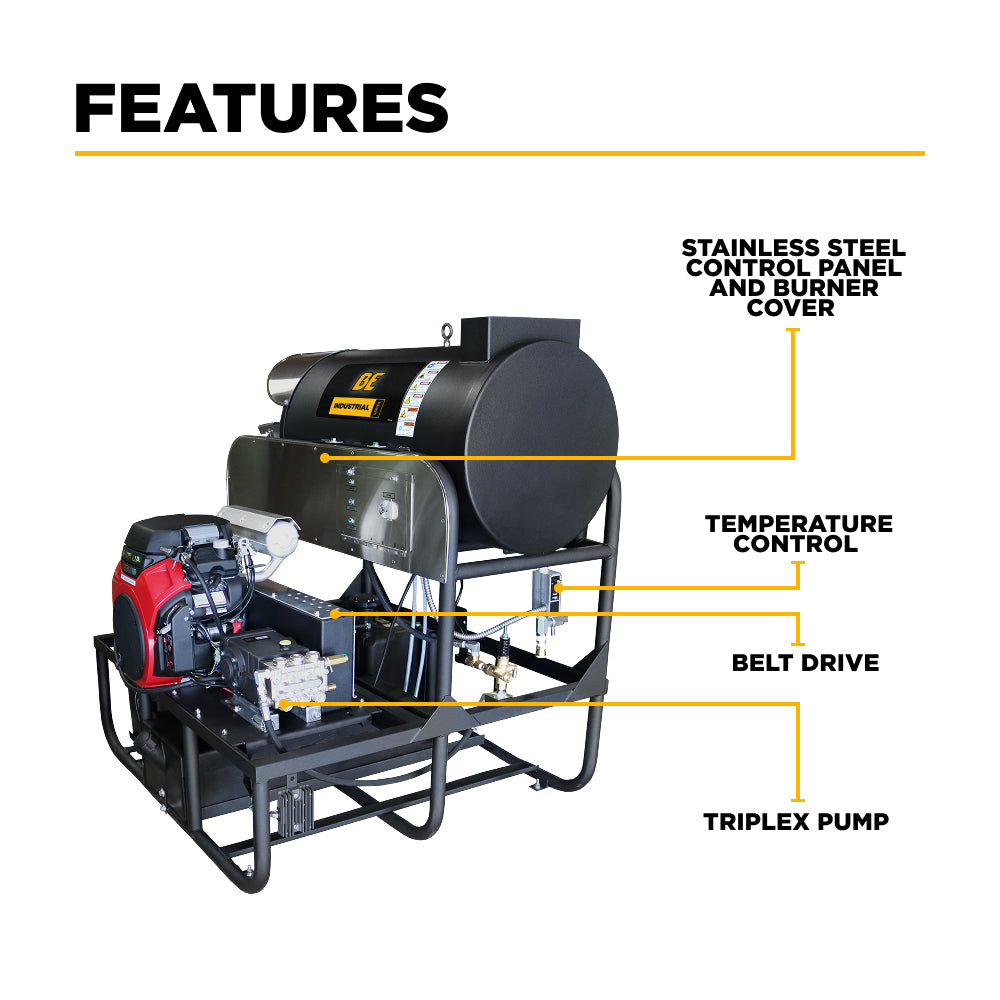

Features

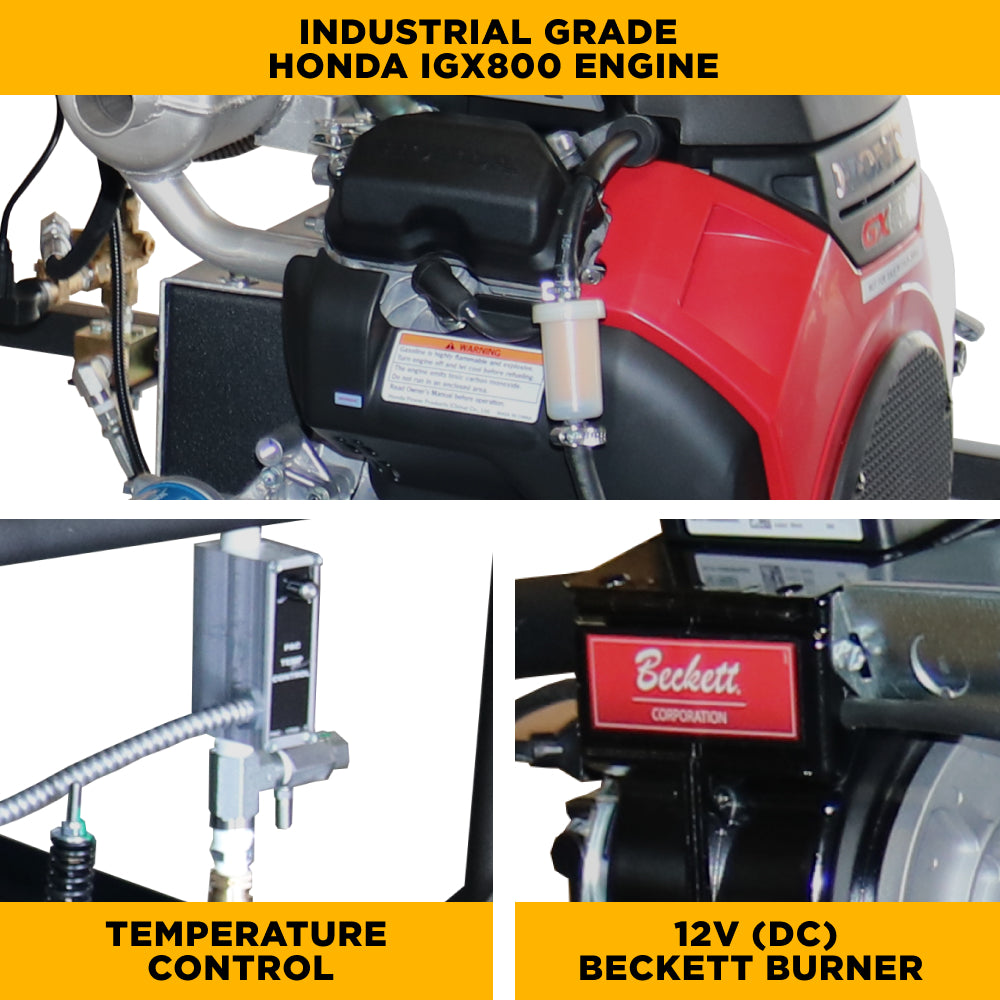

Honda IGX800 Electric Start Engine

At the core of this hot water pressure washer is the Honda IGX800 779cc electric start engine, a commercial-grade engine designed for heavy-duty use. Featuring electronic fuel injection and a high-output charging system, this engine delivers excellent power-to-weight efficiency and reliable performance.

Engine features include:

  • Electric start for convenient operation

  • Electronic fuel injection for maximum fuel efficiency

  • High-amp charging system

  • Designed for all-day industrial use

Honda IGX engines are trusted worldwide for demanding pressure washing and industrial power applications.

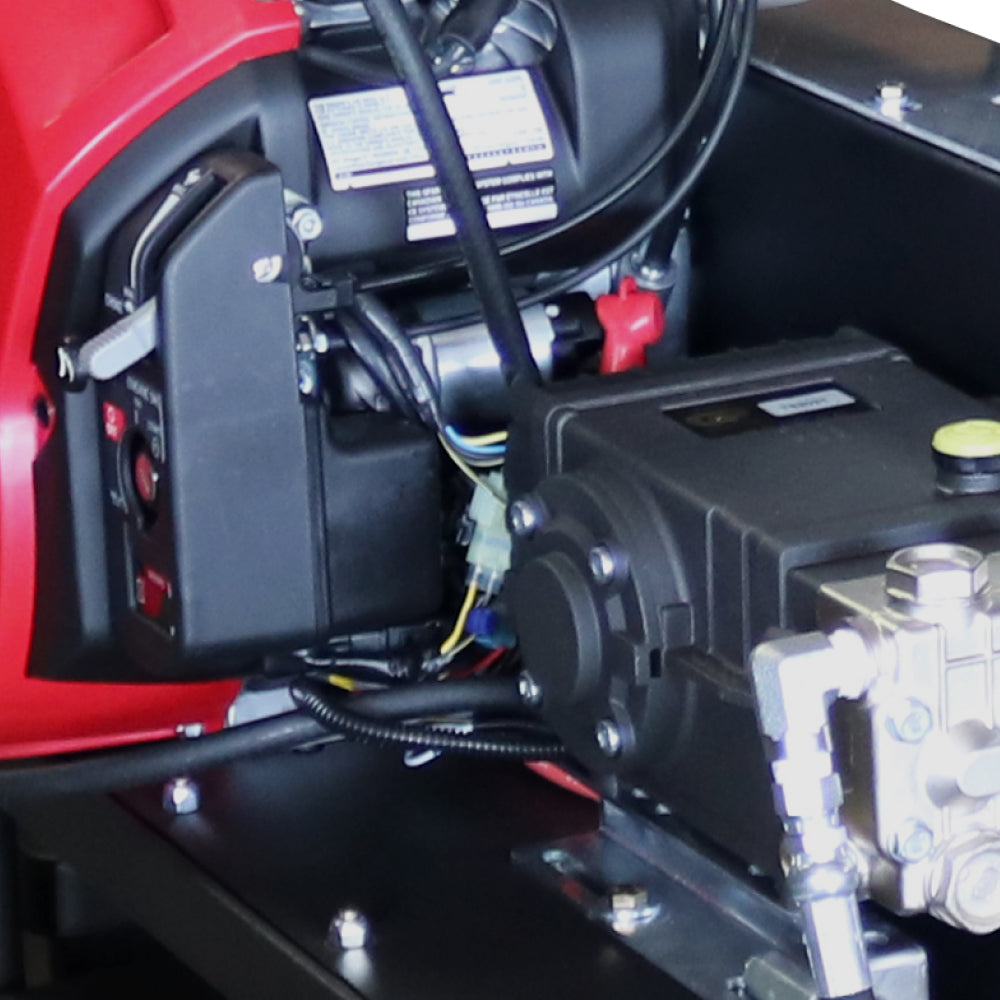

Industrial Grade Belt-Driven General Triplex Pump

Paired with the Honda engine is an industrial-grade General triplex pump (TSF2421), built for continuous high-flow operation. The belt-drive system lowers pump RPM, reduces vibration, and minimizes heat buildup to significantly extend pump life.

Pump features include:

  • Reinforced pump body for durability

  • Forged brass manifold for corrosion resistance

  • Solid ceramic plungers for long service life

  • Stainless steel check valves

  • External unloader for precise pressure control

This belt-driven triplex pump configuration ensures consistent pressure and reliability during extended operation.

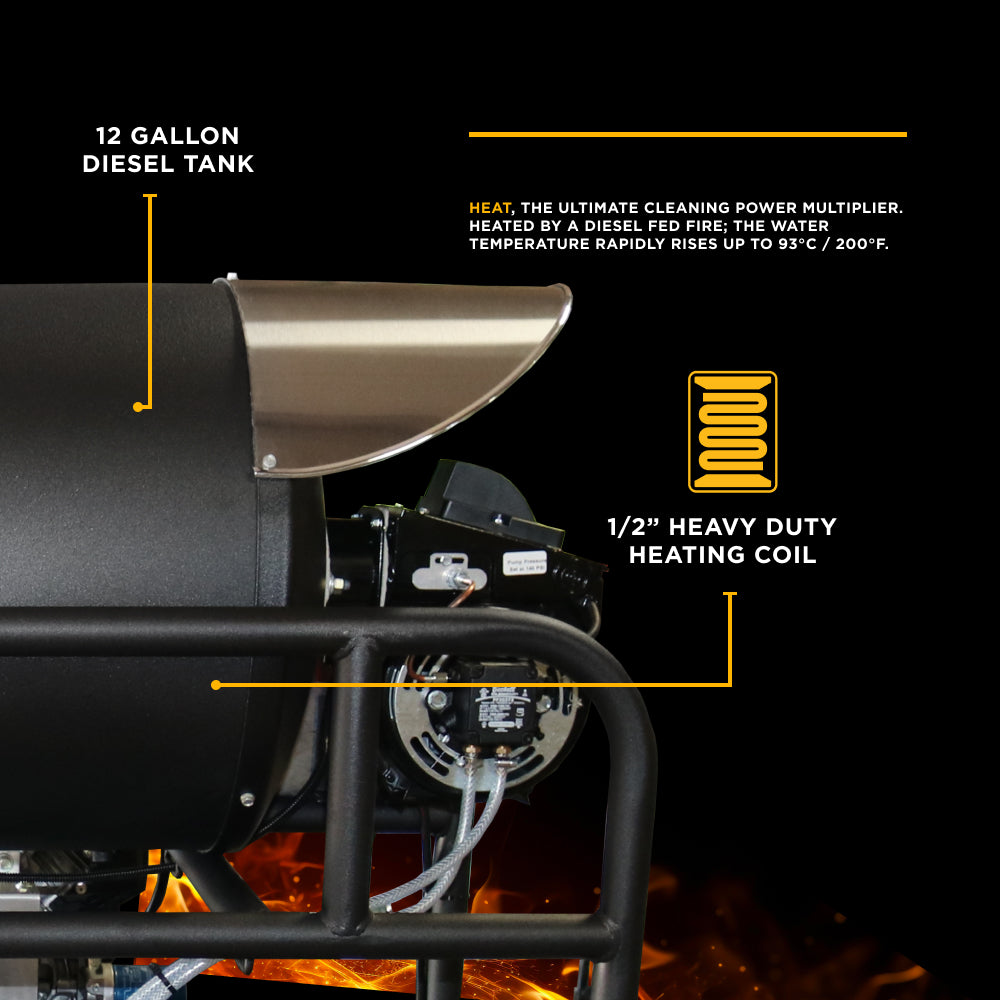

High-Efficiency Hot Water System

The SE5815HHZGP is equipped with a 12V Beckett burner and a high-capacity heating system designed to deliver consistent hot water output for industrial cleaning.

Hot water system features include:

  • 420,000 BTU output for rapid heat recovery

  • 238’ x 1/2” Schedule 80 cold-rolled steel heating coil

  • Adjustable thermostat for temperature control

  • Maximum temperature of 93°C / 200°F

  • Stainless steel control panel and burner cover

  • Painted coil cover for durability

Heat dramatically improves cleaning performance when removing grease, oil, and heavy buildup.

External High-Flow Unloader and Safety Systems

A heavy-duty external unloader valve regulates pressure and can be plumbed to bypass back into a water tank, ideal for mobile applications. Integrated safety systems include:

  • Pressure relief valve

  • Safety and thermal relief valve

  • Flow and pressure switch

  • Diagnostic indicator lights

These features protect the pump, burner, and system components during operation.

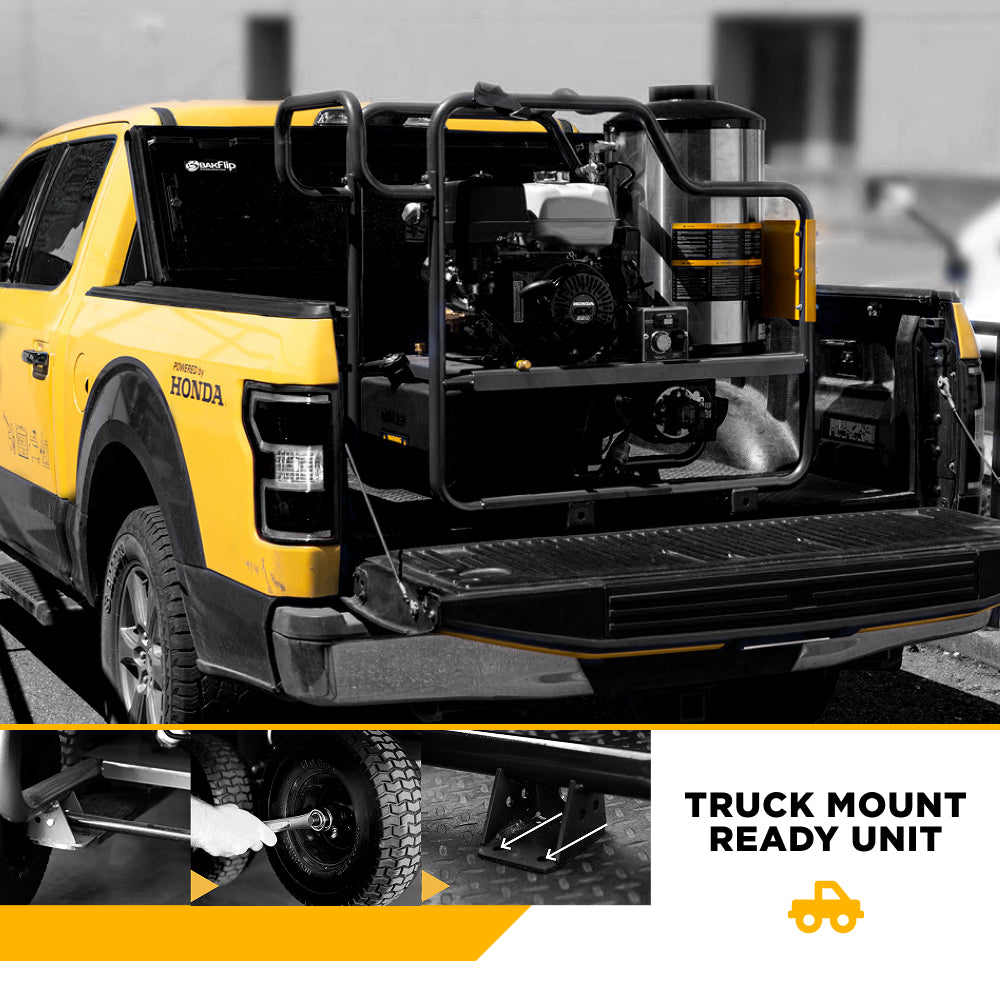

Heavy-Duty Skid Frame for Truck or Trailer Mounting

The unit is built on a heavy-duty powder-coated steel skid frame, designed for long service life and easy mounting to a truck or trailer. The skid configuration provides stability, durability, and a compact footprint for mobile cleaning setups.

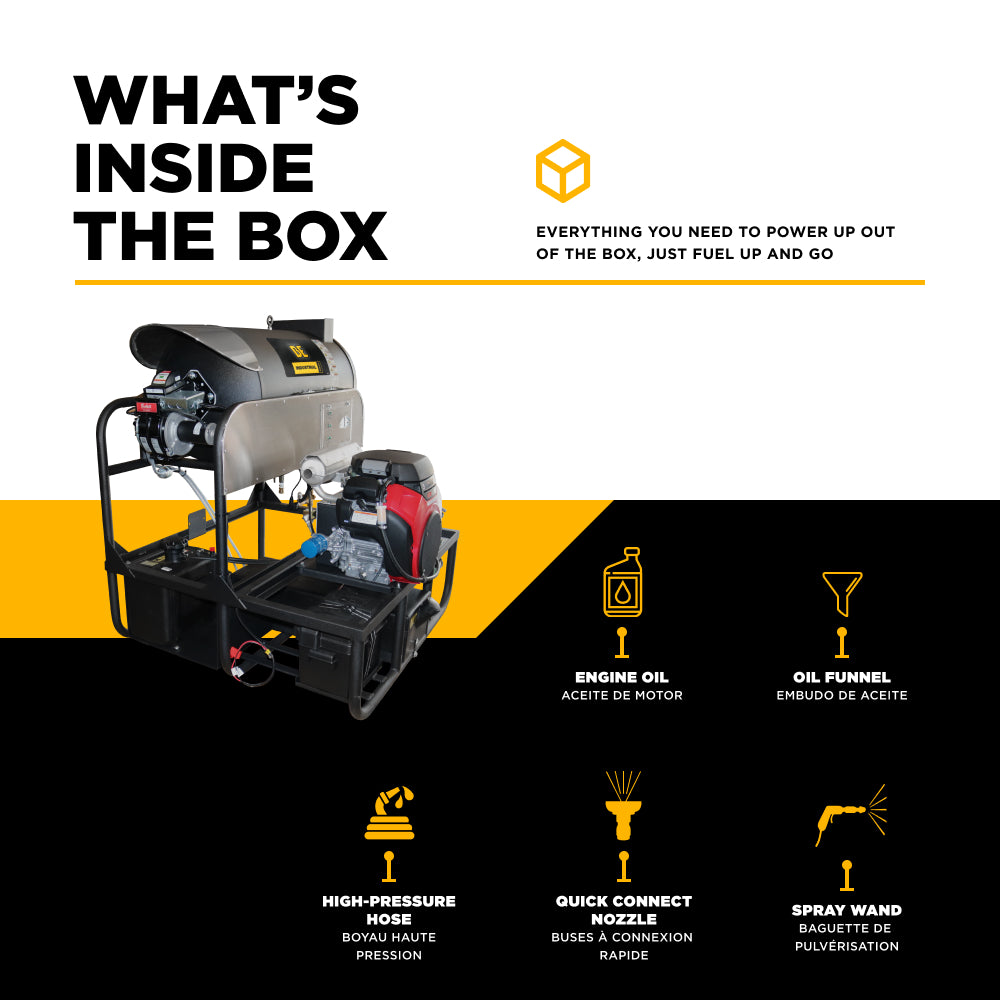

Accessories Included

The SE5815HHZGP comes equipped with professional-grade accessories to get you working immediately:

  • 50 ft. high-pressure hose – Twin-wire braided for strength and flexibility

  • Commercial spray gun with 48” insulated wand – Includes quick-connect fittings

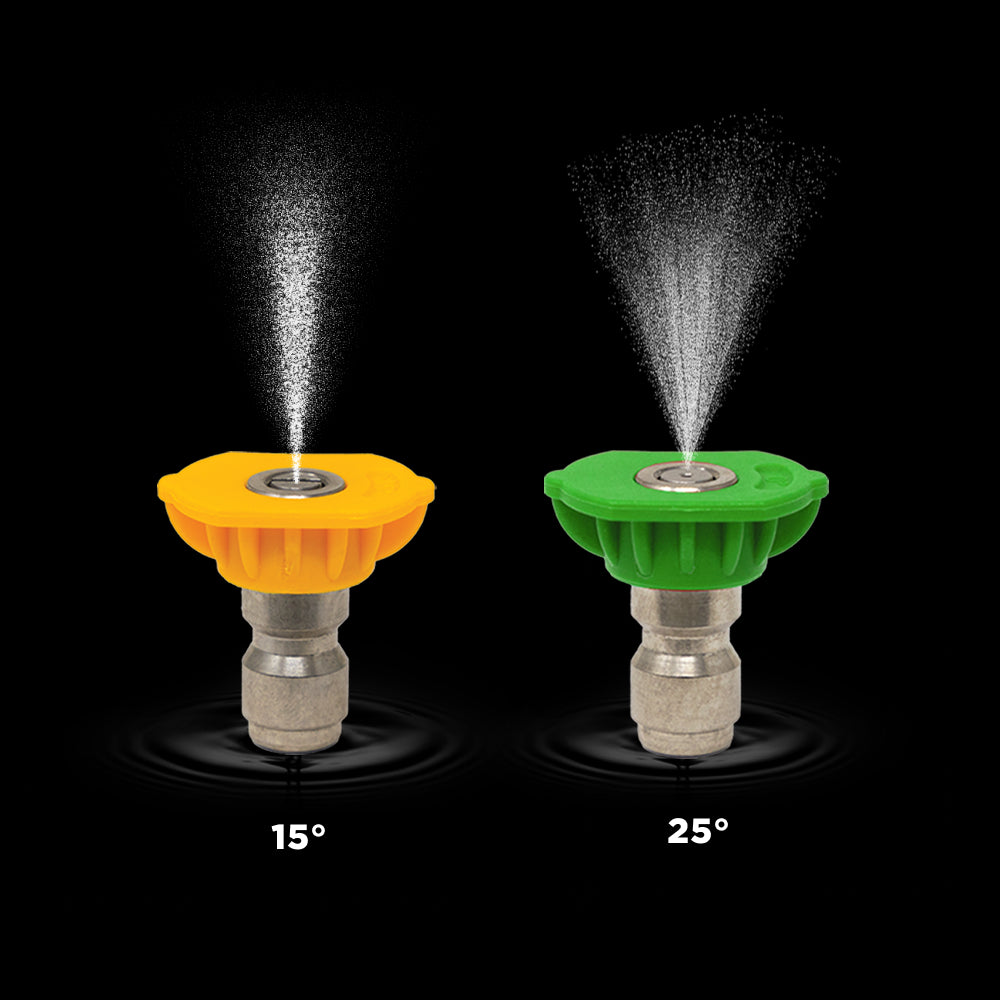

  • 2 quick-connect spray nozzles – 15° and 25° for versatile cleaning applications

These components are designed to withstand extended use in demanding environments.

Product Details

Pressure: 3,000 PSI
Flow Rate: 10.0 GPM
Engine: Honda IGX800, 779cc
Start Type: Electric
Pump: General Triplex Pump TSF2421
Pump Class: P10
Burner: 12V Beckett
Maximum Temperature: 93°C / 200°F
BTU Output: 420,000
Heating Coil: 238’ x 1/2” Schedule 80 cold-rolled steel
Burner Fuel Tank: 45.42 L / 12 gal black poly
Engine Fuel Tanks: 2 × 24.6 L / 6.5 gal
Thermostat: Adjustable
Hour Meter: Yes
Flow / Pressure Switch: Yes
Pressure Relief Valve: Yes
Diagnostic Lights: Yes
Unloader: External
Oil Drain Hoses: Engine & Pump
Adjustable Injector: Optional

Warranty Coverage

  • Engine: 3 Years

  • Pump: 5 Years

  • Burner: 3 Years

  • Coil: Lifetime

Shipping Information

Shipping Weight: 940 lbs

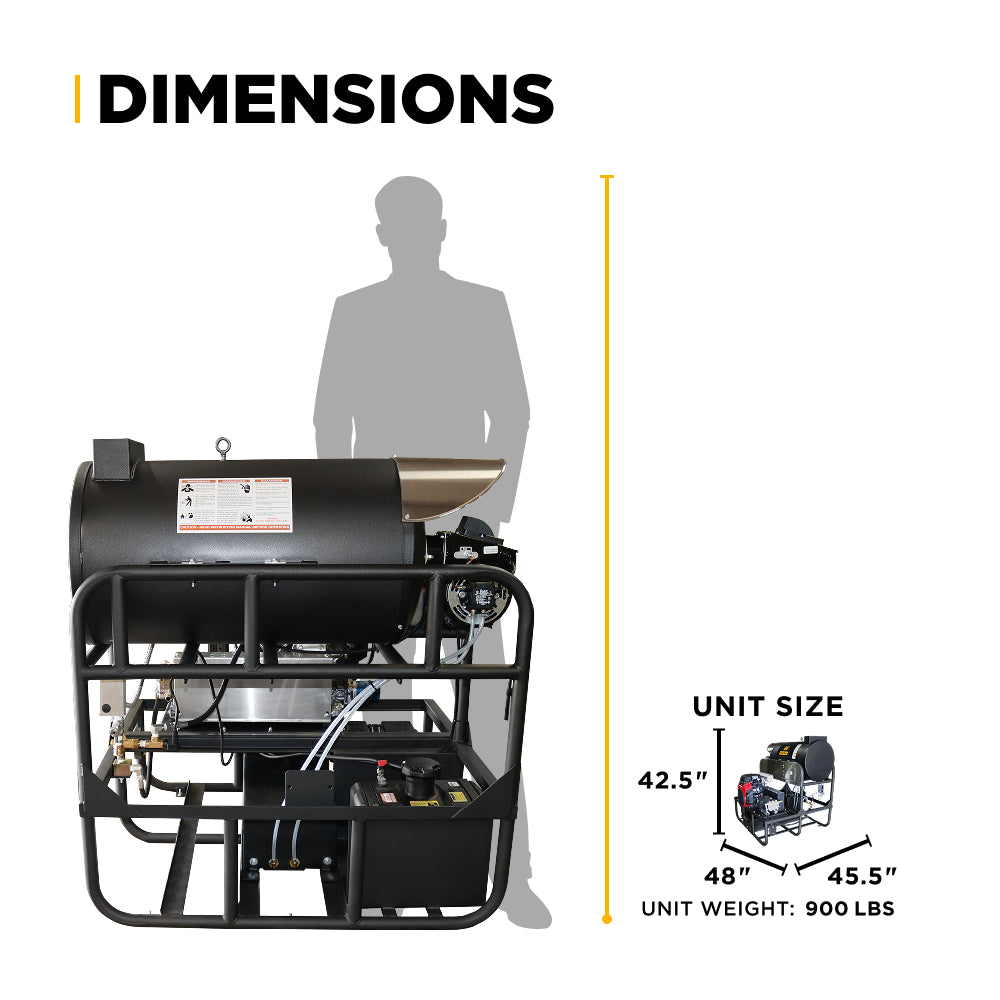

Shipping Dimensions (L × W × H): 60” × 53” × 63”

Factory Tested for Performance

Each BE Power Equipment hot water pressure washer is fully tested at the factory before shipping. Units may contain residual oil or fuel odor, confirming that the system has passed quality inspections and is ready for operation.

Built to Clean Hotter — Trusted by Professionals

For professionals who need to clean faster, smarter, and hotter, the SE5815HHZGP Hot Water Pressure Washer Skid delivers unmatched performance. With a Honda IGX800 engine, belt-driven General triplex pump, and high-output heating system, this unit is built for the toughest industrial cleaning challenges.

SE5815HHZGP — Industrial heat. Serious flow. Professional results.
