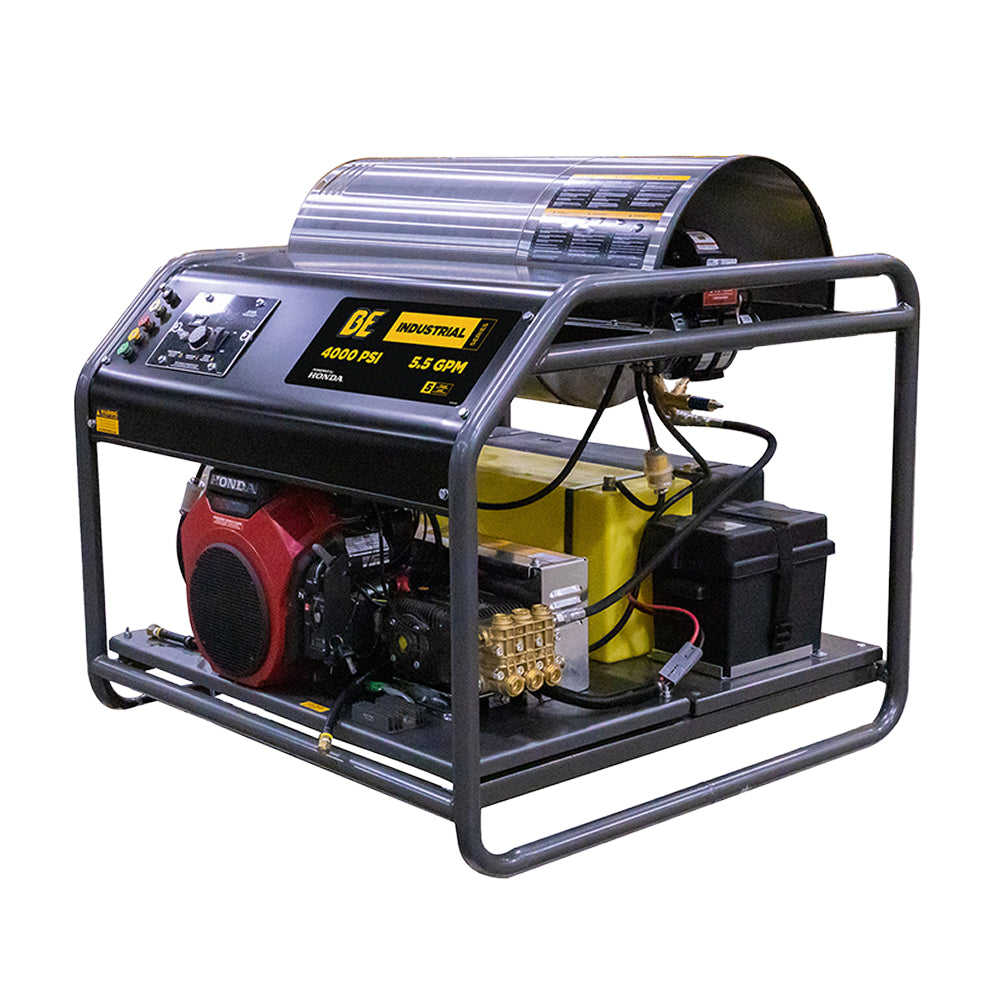

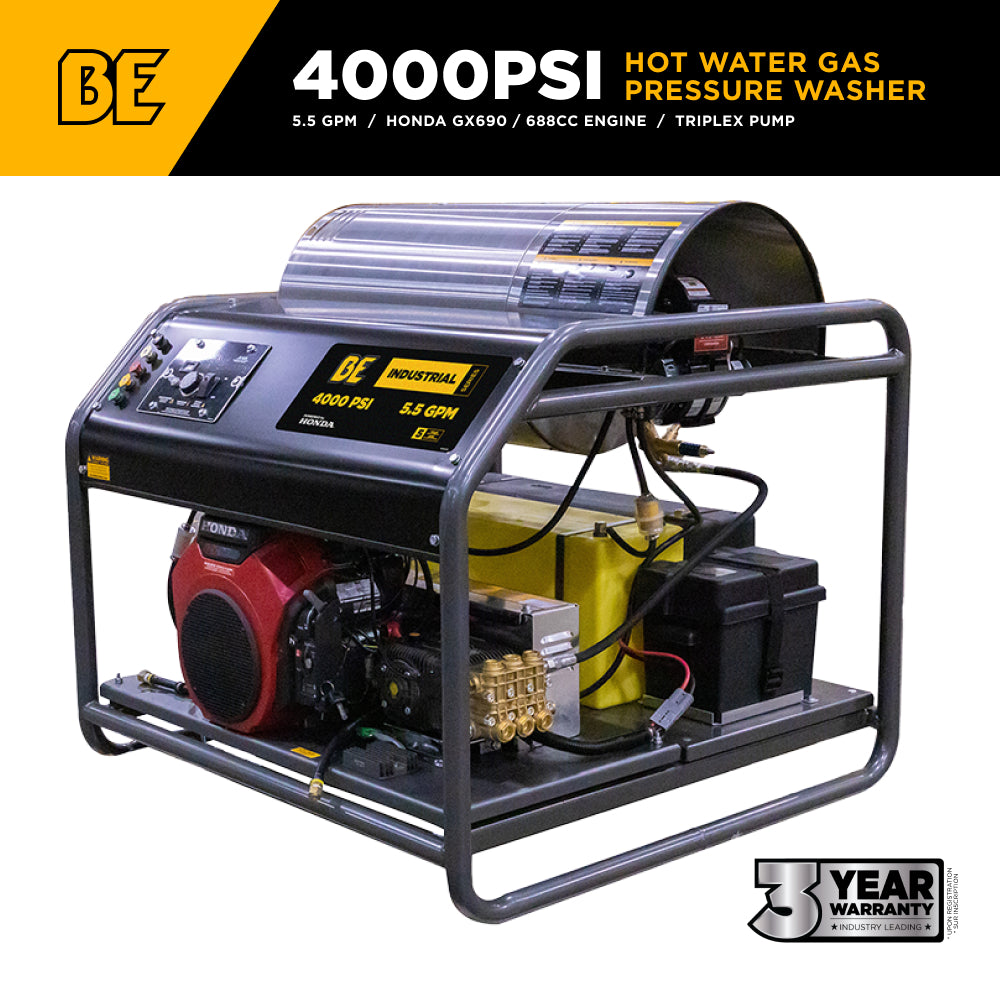

4,000 PSI - 5.5 GPM Hot Water Pressure Washer with Honda GX690 Engine and AR Triplex Pump - HW4024HA12V

4,000 PSI - 5.5 GPM Hot Water Pressure Washer with Honda GX690 Engine and AR Triplex Pump - HW4024HA12V

Specifications

FRAME

Truck Mount

ENGINE

Honda GX690

CC

688

PSI

4,000

GPM

5.5

UNLOADER

External

SERIES

Industrial

ENGINE START

Electric

PUMP MODEL

AR RG2125HN

PUMP TYPE

Triplex

Nozzles Included

0°, 15°, 25°, 40° & Soaper

View full details

PRODUCT

DESCRIPTION

Built for Big Jobs. Powered by Heat. Engineered for Professionals.

When you're up against heavy-duty cleaning challenges, the BE Power Equipment HW4024HA12V brings the heat—literally. This high-performance hot water pressure washer delivers a powerful combination of 4,000 PSI and 5.5 GPM, cutting through grease, oil, grime, and buildup with professional-grade precision. Equipped with a Honda GX690 V-Twin engine, a belt-driven AR triplex pump, and a 12V Beckett burner for diesel-fired hot water up to 200°F, this machine is designed for serious cleaning performance in demanding industrial, agricultural, and commercial environments.

Ready to mount on a truck or trailer and built for continuous use, the HW4024HA12V is a rugged workhorse for teams that can’t afford to slow down.

Hot Water Cleaning That Cuts Through Anything

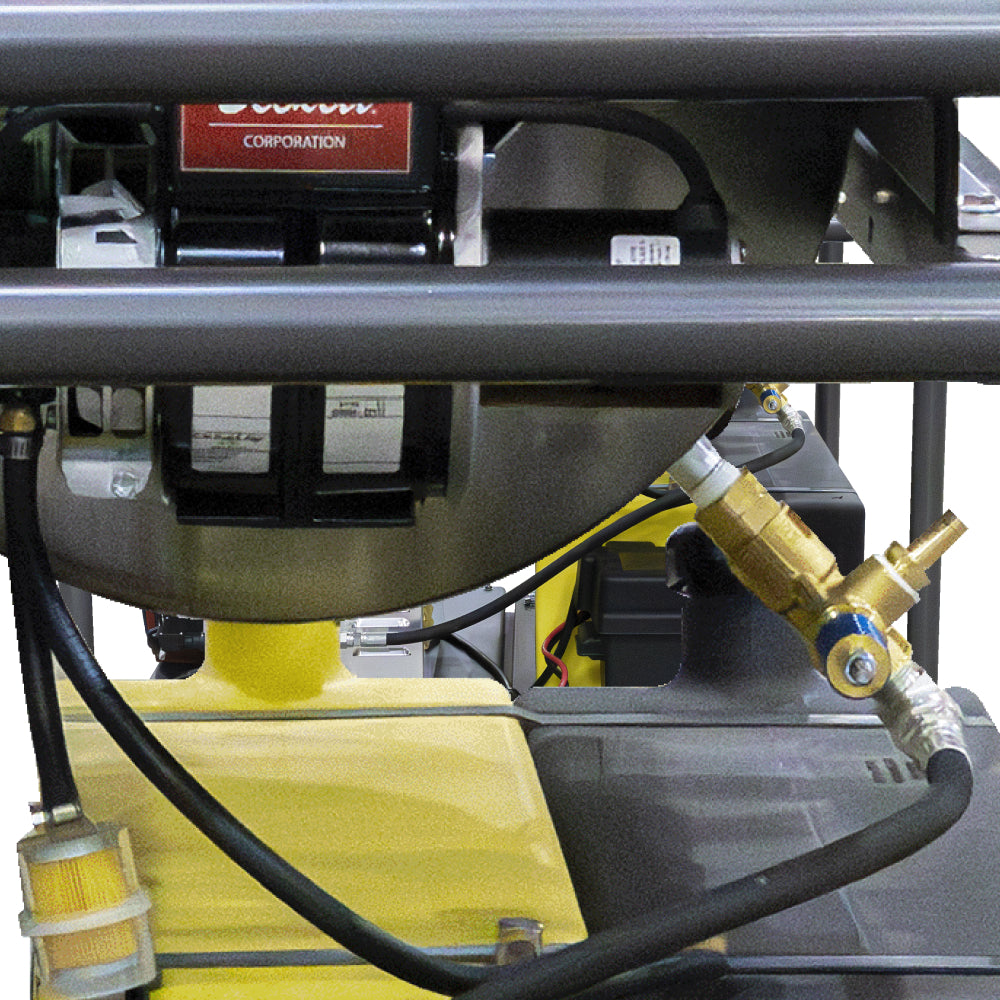

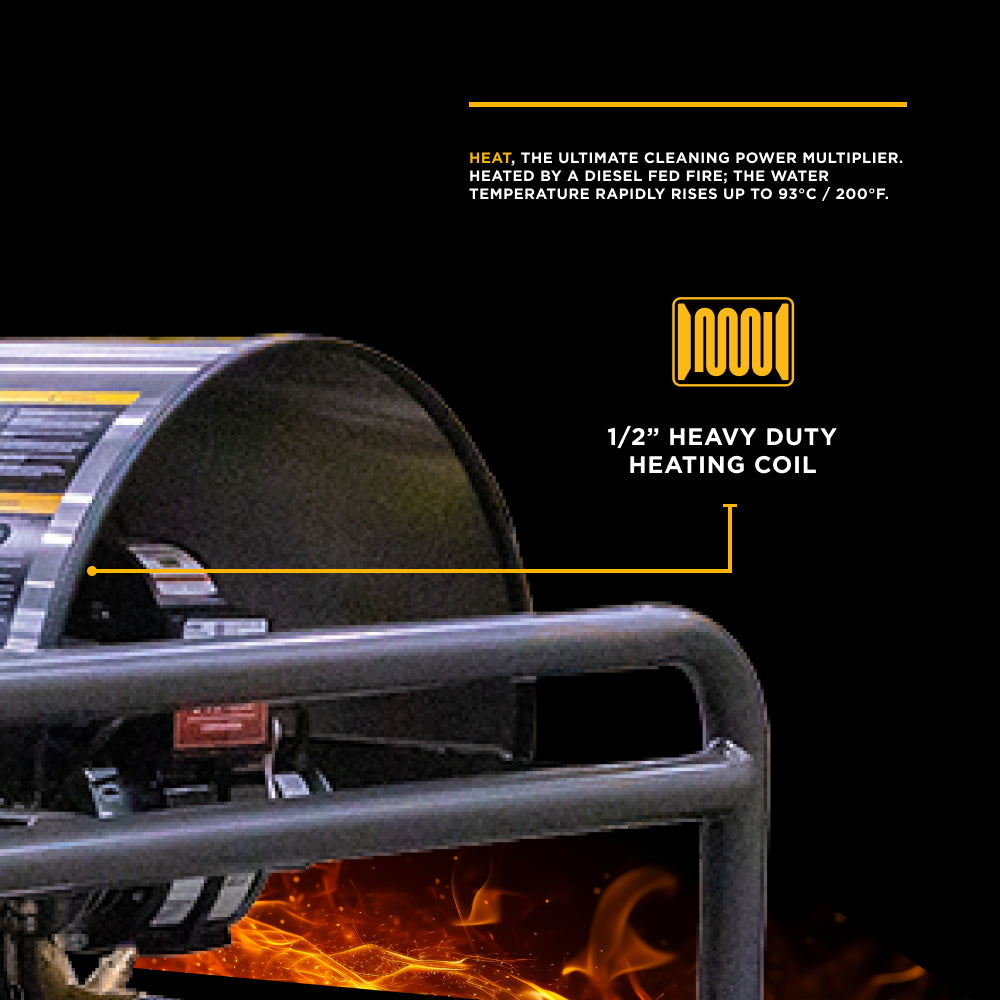

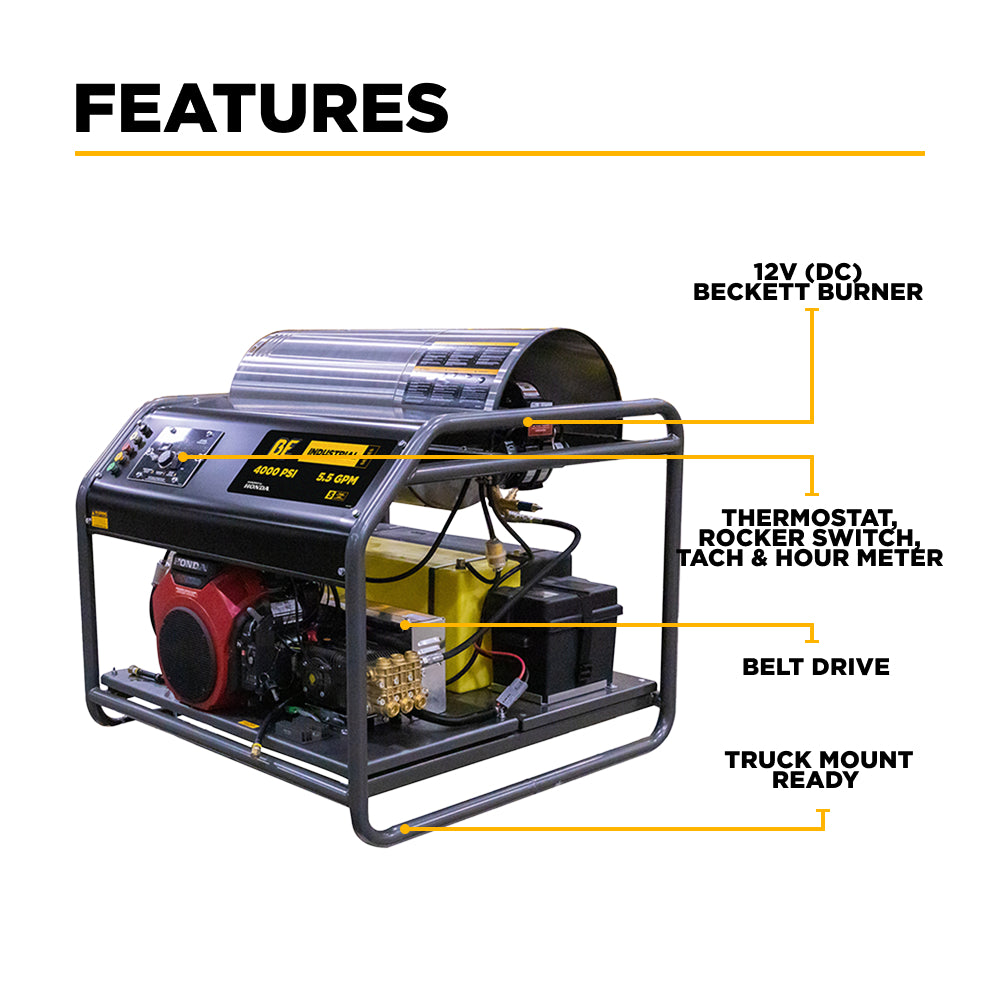

Not all pressure washers are built the same—and when you're working with grease, oil, or baked-on residue, cold water just won’t cut it. That’s where the HW4024HA12V shines. The 12V Beckett burner powers a robust heating coil fueled by diesel, giving you water temperatures of up to 200°F (93°C). This scalding heat breaks down contaminants fast, reduces chemical use, and speeds up your workflow.

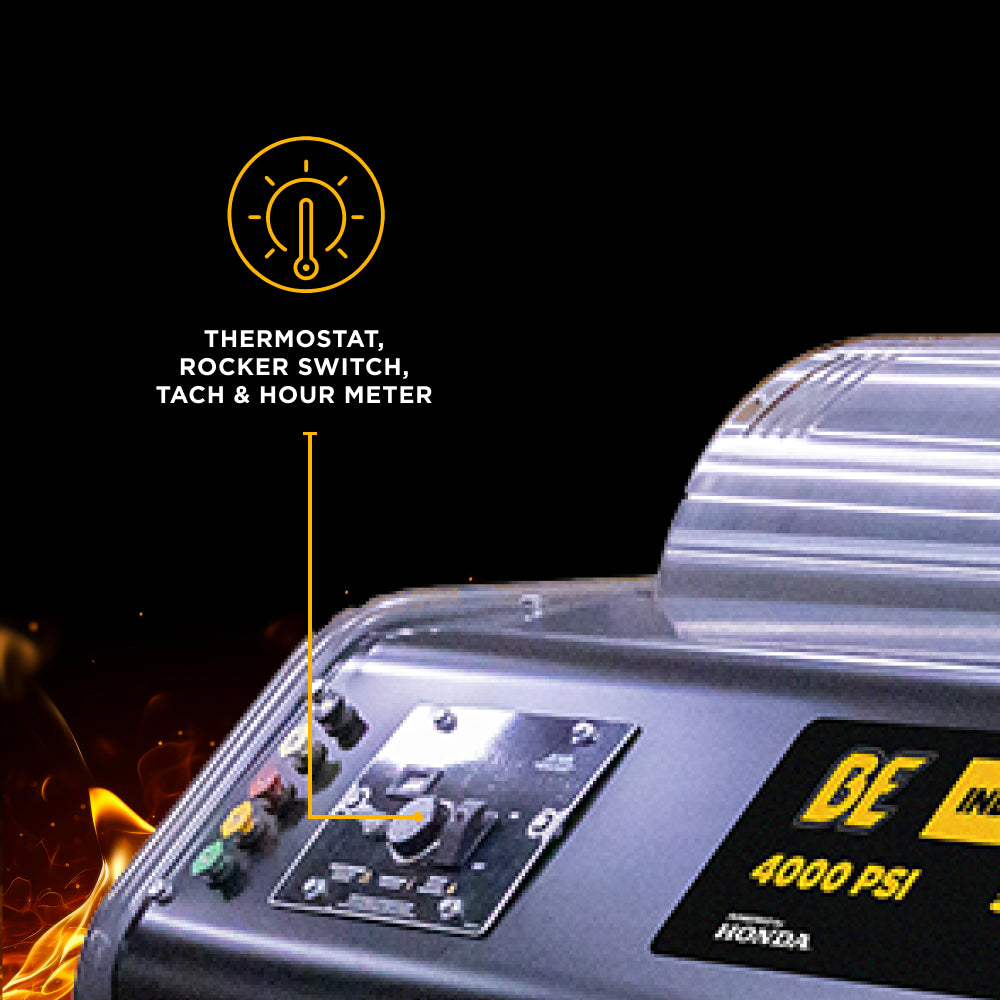

The burner system includes a rocker switch for quick activation and an adjustable thermostat so you can tailor the heat to the task. Whether you're sanitizing equipment or blasting off stubborn residue, this washer gives you full control over the temperature.

Powered by the Honda GX690 Engine

The heart of this machine is the Honda GX690, one of the most powerful and reliable engines in Honda’s commercial lineup. This electric-start V-Twin engine is built for long hours, heavy loads, and real-world abuse. It's engineered with OHV technology, a cast iron cylinder sleeve, and a high-output charging system to ensure consistent power for both the pump and the burner system.

An included 55AH marine-grade AGM battery ensures reliable starts, even in cold or remote conditions. With this engine on board, you’re investing in years of low-maintenance, high-efficiency performance.

Belt Drive System for Maximum Longevity

The HW4024HA12V features a belt-driven pump, which means the engine drives the pump using a pulley system rather than a direct shaft. This design reduces vibration, lowers pump speed, and dramatically cuts down on heat—making it the preferred setup for long-term use in commercial applications.

Belt drive systems also isolate the pump from engine torque, reducing wear and extending the life of both components. It’s a quieter, cooler, and more reliable solution for professionals who need performance that lasts.

AR Triplex Pump: Built to Run and Run

The industrial-grade AR (Annovi Reverberi) triplex pump in this washer is engineered for maximum durability and long service life. Designed to operate under high pressure and high temperatures, this pump includes:

  • A reinforced body for structural integrity

  • A forged brass manifold for corrosion resistance

  • Solid ceramic plungers to handle heat and abrasion

  • Stainless steel check valves for high-flow reliability

  • A thermal release valve to protect the system from overheating

An external unloader further enhances performance by reducing internal pump pressure, improving heat dissipation, and allowing pressure adjustments on the fly. This combination ensures consistent operation, even on long or tough jobs.

Professional Accessories Included

The HW4024HA12V comes fully equipped with industrial-grade components so you can get to work immediately:

  • 50-foot high-pressure hose – double-braided steel wire for durability and hot water compatibility

  • Spray gun wand assembly – insulated grip for safe handling under high heat

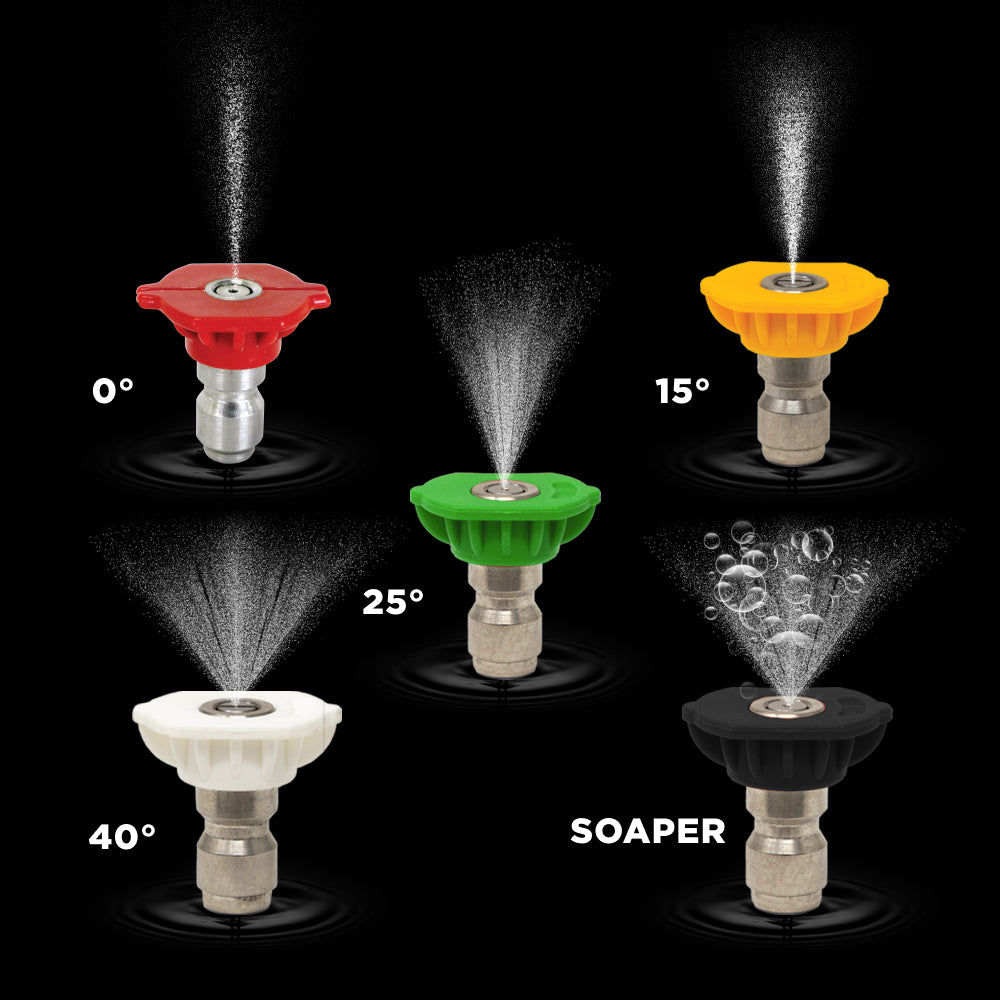

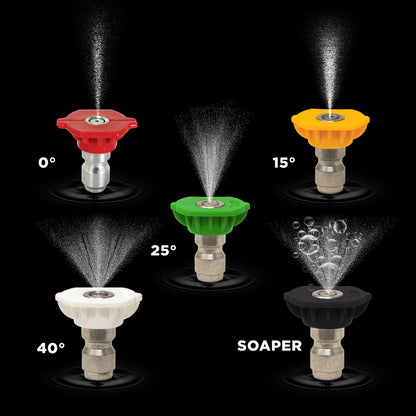

  • Five quick-connect nozzles – includes 0°, 15°, 25°, 40°, and soap tips for total cleaning versatility

  • Quick-connect fittings – streamline your setup and nozzle changes between tasks

Every accessory included is built to match the heavy-duty performance of the washer itself.

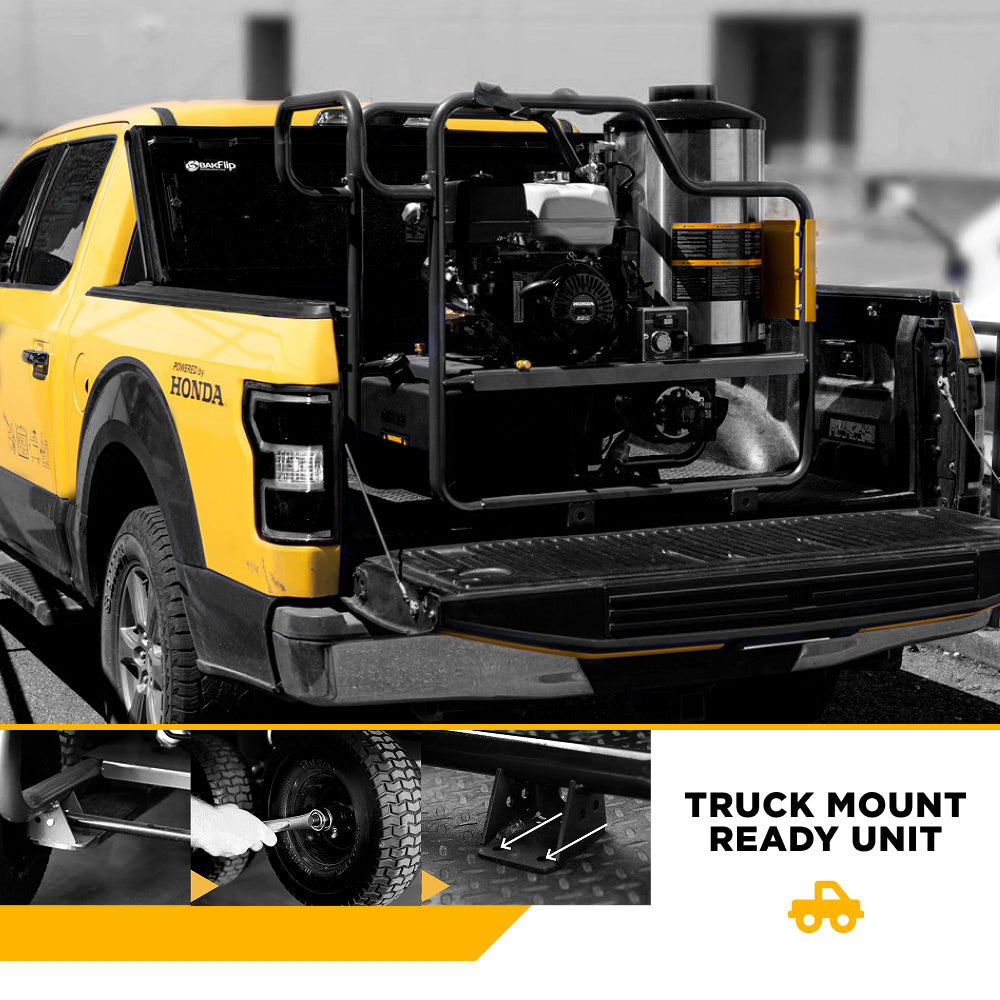

Heavy-Duty Frame for Truck and Trailer Mounting

The HW4024HA12V is built on a 1.5" OD powder-coated steel roll cage, designed specifically for mobile installation on trucks or trailers. The frame protects the engine, pump, and burner while keeping all components accessible for operation or maintenance. Reinforced mounting brackets and a central lift point make it easy to install, secure, and relocate as needed.

Whether you’re building a mobile wash rig or adding to a fleet of industrial cleaners, this pressure washer is ready to integrate into your operation.

Designed for Easy Maintenance

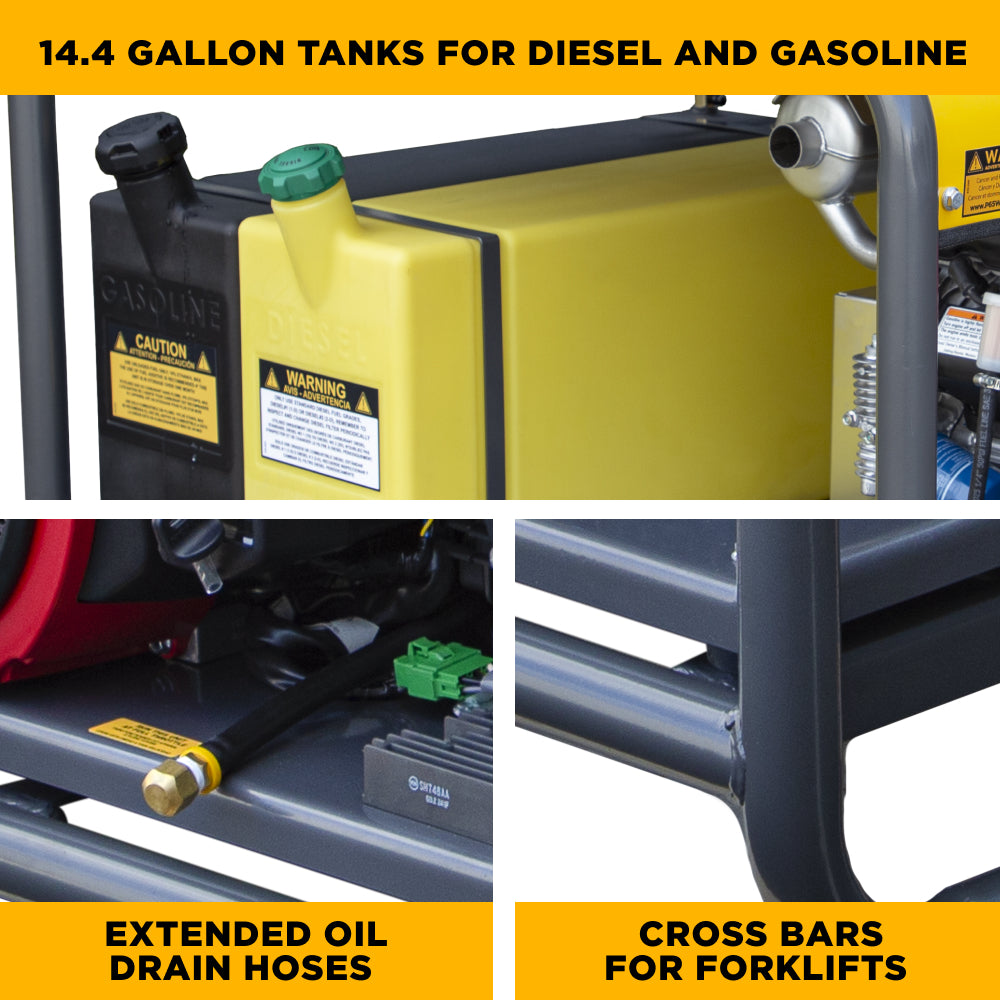

Time on the job is too valuable to waste wrestling with routine service tasks. That’s why this unit includes oil drain hoses on both the engine and the pump, allowing you to perform oil changes cleanly and quickly without tipping or disassembling the frame.

From regular maintenance to emergency service, this thoughtful design helps reduce downtime and keep your equipment in top shape.

Perfect for the Toughest Jobs

The HW4024HA12V is purpose-built for teams that clean everything from construction equipment to farm machinery, fleet vehicles, industrial facilities, and beyond. With its high output, heavy-duty design, and hot water power, it’s ideal for:

  • Construction and demolition cleanup

  • Heavy equipment and fleet washing

  • Industrial degreasing

  • Municipal and public works services

  • Agriculture and livestock sanitation

  • Oil field and mining operations

  • Food processing and manufacturing plant washdown

This is a pressure washer that thrives in extreme conditions and outperforms in demanding environments.

Product Specifications

  • Pressure: 4,000 PSI

  • Flow Rate: 5.5 GPM

  • Engine: Honda GX690 V-Twin with electric start

  • Battery: 55AH AGM marine battery included

  • Pump: Industrial-grade AR triplex with reinforced body, forged brass manifold, solid ceramic plungers, and stainless steel check valves

  • Drive Type: Belt drive system for reduced vibration and extended pump life

  • Unloader: External unloader valve for improved cooling and performance

  • Burner: 12V Beckett diesel-fired burner

  • Max Water Temperature: Up to 200°F / 93°C

  • Thermostat: Adjustable with on/off rocker switch control

  • Accessories: 50' high-pressure steel braided hose, insulated 47" spray gun wand assembly, five quick-connect spray nozzles (0°, 15°, 25°, 40°, soap)

  • Frame: Powder-coated 1.5" OD steel roll cage frame designed for truck or trailer mounting

  • Oil Drain Hoses: Installed on both engine and pump for cleaner and easier maintenance

  • Shipping Weight: 975 lbs

  • Dimensions (LxWxH): 48" x 46" x 51"

The actual product may vary slightly from the images shown due to ongoing design improvements. All BE Power Equipment pressure washers are factory tested prior to shipment and may contain residual oil or fuel.

Engineered for the Work That Matters Most

The HW4024HA12V isn’t just another hot water pressure washer—it’s a full-power cleaning system designed for real professionals. With high PSI, high flow, and high heat, powered by Honda and AR, this machine doesn’t just meet expectations—it exceeds them. When your job demands the best, trust the washer that’s built to handle it all.
