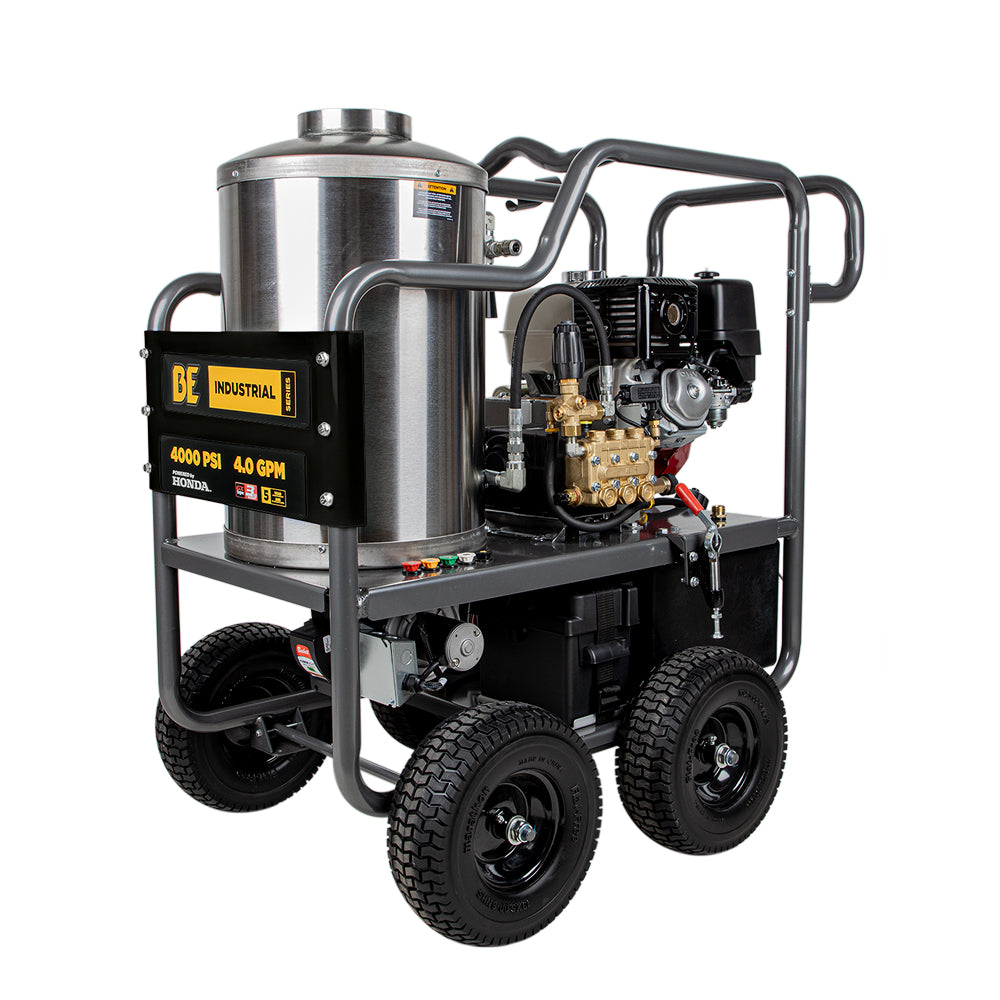

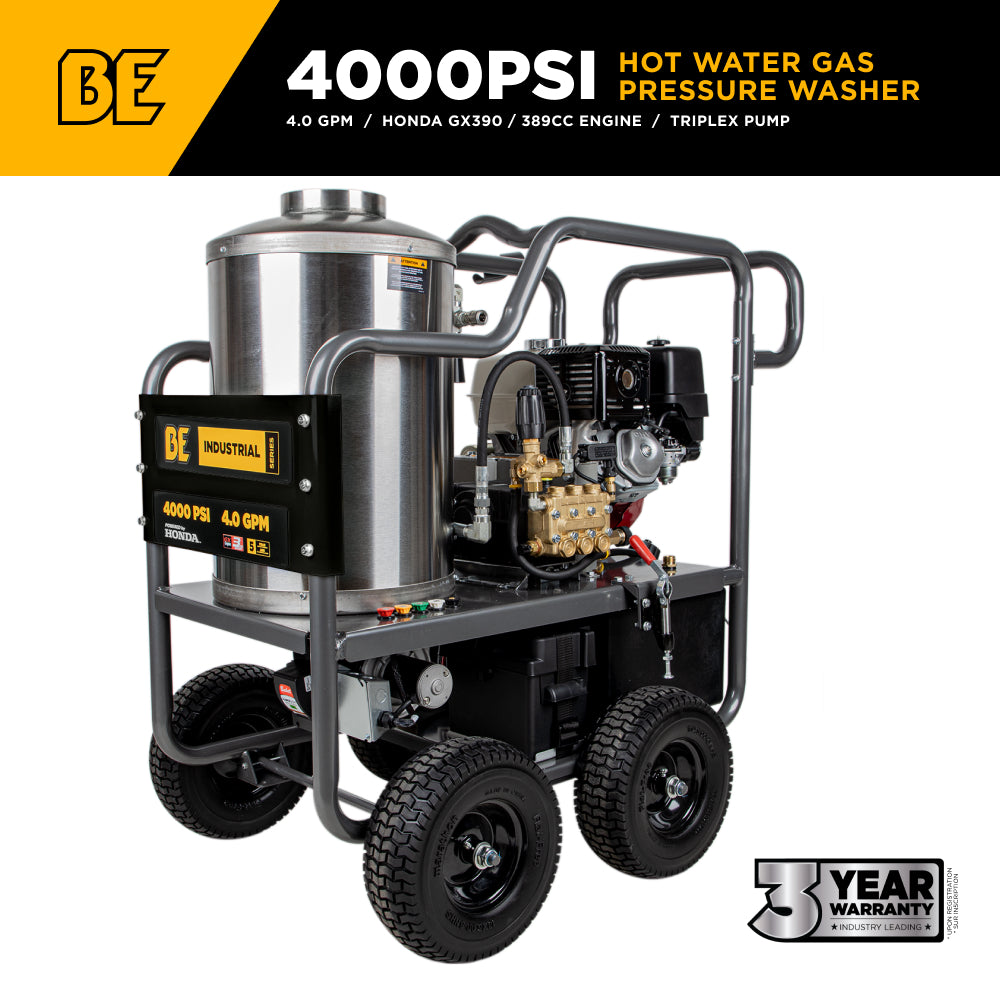

4,000 PSI - 4.0 GPM Hot Water Pressure Washer with Honda GX390 Engine and Belt Driven General Triplex Pump - HW4013HBG

4,000 PSI - 4.0 GPM Hot Water Pressure Washer with Honda GX390 Engine and Belt Driven General Triplex Pump - HW4013HBG

Specifications

ENGINE

Honda GX390

CC

389

PSI

4,000

GPM

4.0

UNLOADER

External

SERIES

Industrial

PUMP MODEL

General TSS1511

PUMP TYPE

Triplex

View full details

PRODUCT

DESCRIPTION

Engineered for Longevity. Powered by Heat. Built for the Toughest Jobs.

When industrial-grade cleaning demands maximum durability, high heat, and relentless power, the BE Power Equipment HW4013HBG delivers without compromise. Featuring a belt-driven General triplex pump, a Honda GX390 engine with electric start, and a 12V diesel-fired Beckett burner, this unit is designed for professionals who expect the most from their equipment—every single day.

With 4,000 PSI at 4.0 GPM, a high-efficiency burner, and extended service life thanks to its belt drive system, this hot water pressure washer is your go-to solution for heavy-duty degreasing, equipment cleaning, and site sanitation in demanding commercial, agricultural, or industrial environments.

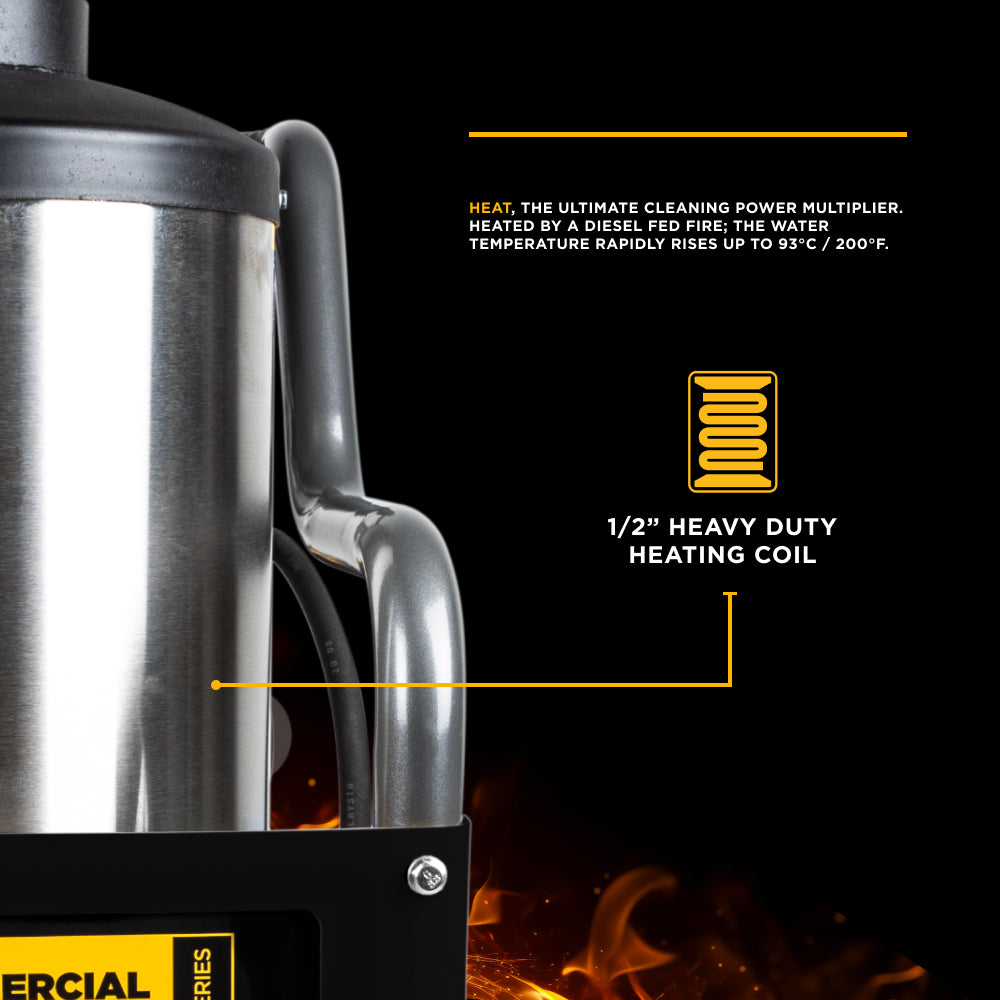

Why Hot Water? Because Cold Isn’t Always Enough.

Some messes need more than high pressure—they need heat. The HW4013HBG harnesses the cleaning power of hot water up to 200°F (93°C) using a 330,000 BTU Beckett burner to cut through grease, oil, and grime that cold water simply can’t handle.

The diesel-fired burner is powered by a reliable 12V ignition system and controlled via an adjustable thermostat and rocker switch, giving you total flexibility to clean with hot or cold water, depending on the job.

Belt Drive Advantage: Built to Go the Distance

Unlike direct drive units, the belt drive system in the HW4013HBG dramatically reduces pump RPM, vibration, and heat—key contributors to wear and tear. By lowering operating stress on the pump, the belt drive increases the service life of critical components, making it ideal for extended daily use in commercial applications.

This configuration not only provides quieter performance but also improved pump longevity, making it the preferred choice for professional cleaning crews, equipment operators, and mobile service businesses that rely on their washer day in and day out.

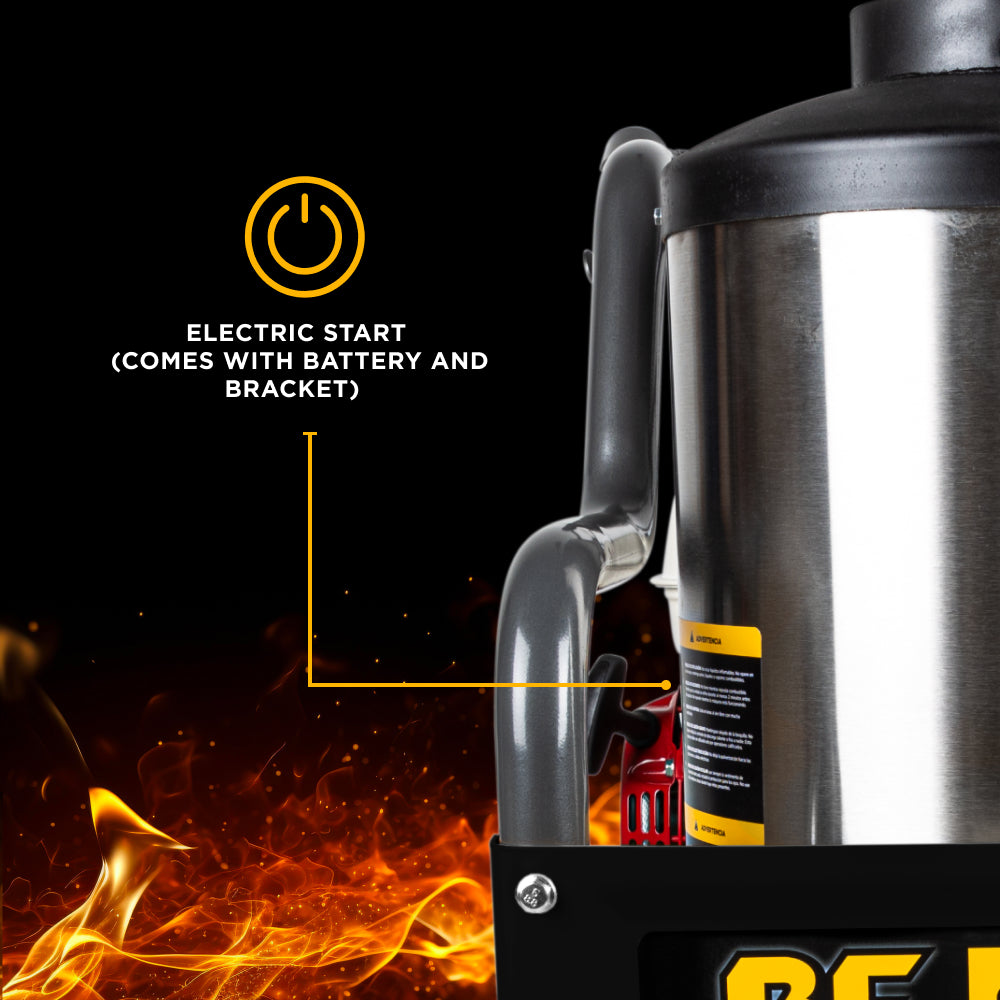

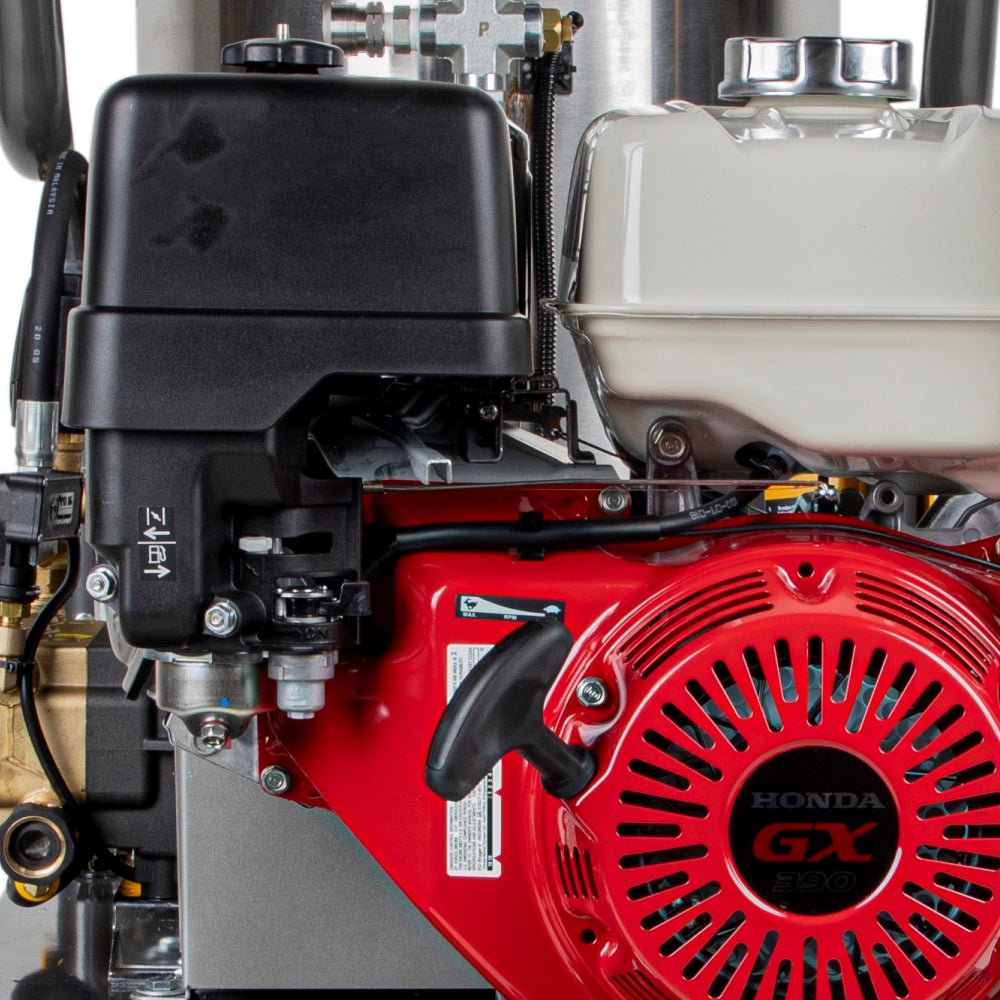

Legendary Honda GX390 Power with Electric Start

At the heart of this unit is the Honda GX390 389cc engine, an industry staple for good reason. Known for its bulletproof durability, smooth performance, and fuel efficiency, the GX390 starts easily and runs reliably under heavy load. With electric start functionality and a 55AH marine-grade AGM battery, you get dependable ignition in any condition—no pull cords, no downtime.

Honda's OHV design, precision camshaft, and cast iron sleeve construction ensure maximum engine life with minimal maintenance. It’s a workhorse—pure and simple.

General Triplex Pump: Industrial Strength from the Inside Out

The commercial-grade General triplex pump is a vital part of this unit’s high-performance package. Built for daily duty, it delivers reliable, high-pressure flow with exceptional internal design:

  • Die-cast body for rugged structural integrity

  • Forged brass manifold for corrosion resistance

  • One-piece plungers for reduced seal wear and smoother operation

  • Thermal release valve to prevent overheating

  • Enhanced heat dissipation for continuous hot water use

Paired with an external unloader, the pump runs cooler and with less strain, ensuring peak performance and longer operational life even in high-demand environments.

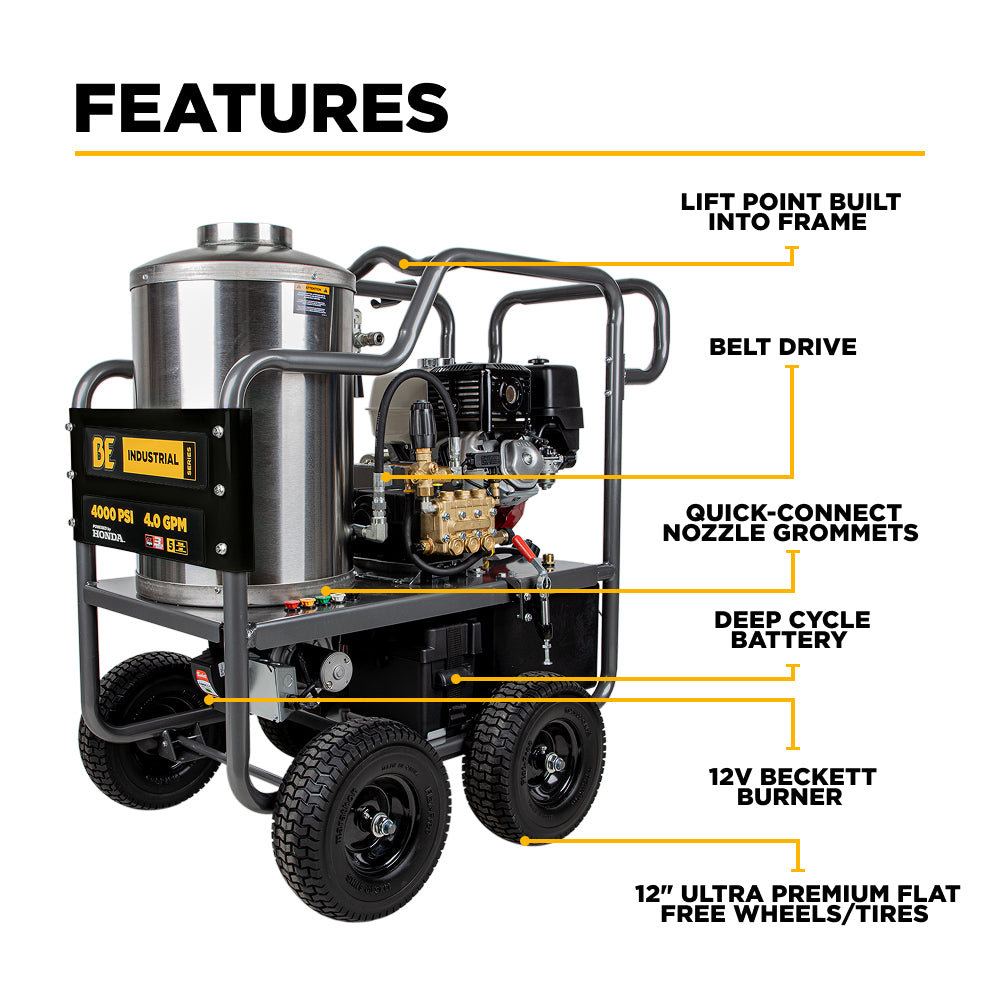

Heavy-Duty Steel Frame with Mobile Jobsite Design

All of this power is protected by a powder-coated steel frame with a roll cage design. It’s built to take a beating—whether in a mobile wash rig, a shop, or a construction site—while still offering easy access for maintenance and control panel adjustments.

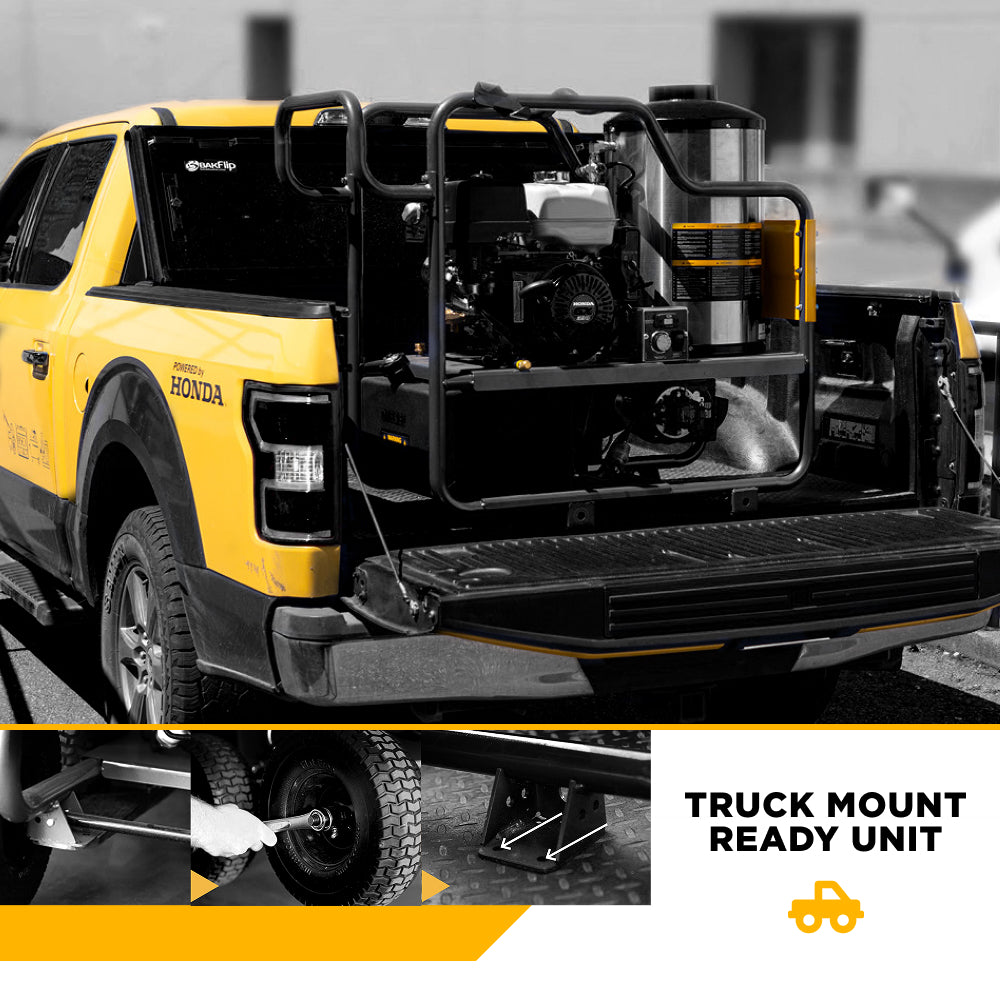

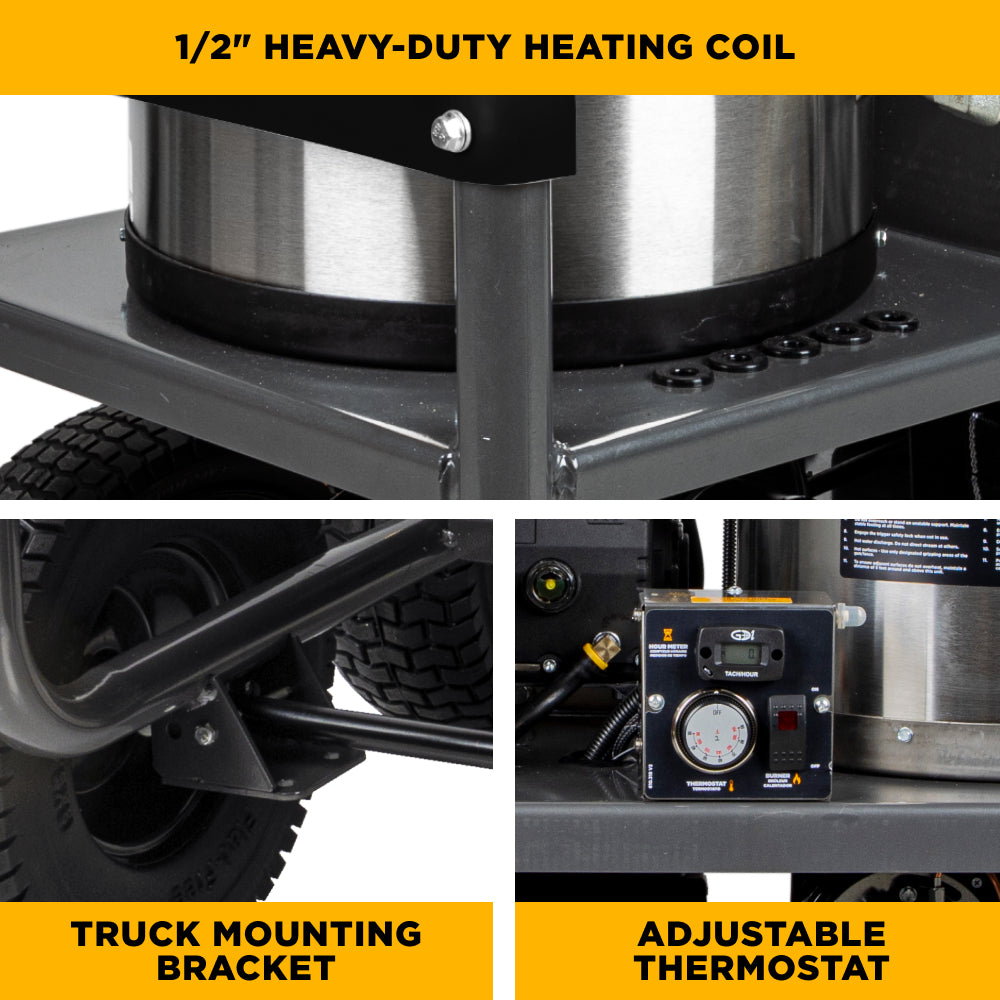

Four 13-inch flat-free tires provide smooth mobility over gravel, dirt, or concrete. For truck or trailer mounting, the unit includes integrated frame brackets—just remove the wheels and bolt it in. And when you need to lift it onto a flatbed or elevated platform, the built-in lift point makes crane handling simple and secure.

Smart Features That Save Time and Extend Lifespan

The HW4013HBG is packed with practical upgrades that make servicing and winterization easier, faster, and cleaner:

  • 12" oil drain hoses simplify oil changes by allowing you to drain fluids cleanly from the pump and engine—no crawling or mess required.

  • An included brass air fitting allows you to connect an air compressor to the water inlet, letting you blow out residual water from the coil. This reduces scale buildup, prevents freezing in cold climates, and extends the life of your heating coil.

These smart additions help protect your investment and keep your equipment in service longer—saving you time, money, and downtime in the long run.

Commercial Accessories Included

Everything you need to start cleaning is included out of the box:

  • 50-foot high-pressure hose: Double-braided steel wire for maximum durability and heat resistance

  • 36” insulated spray gun and wand assembly: Ergonomic grip and heat-protected for comfortable use

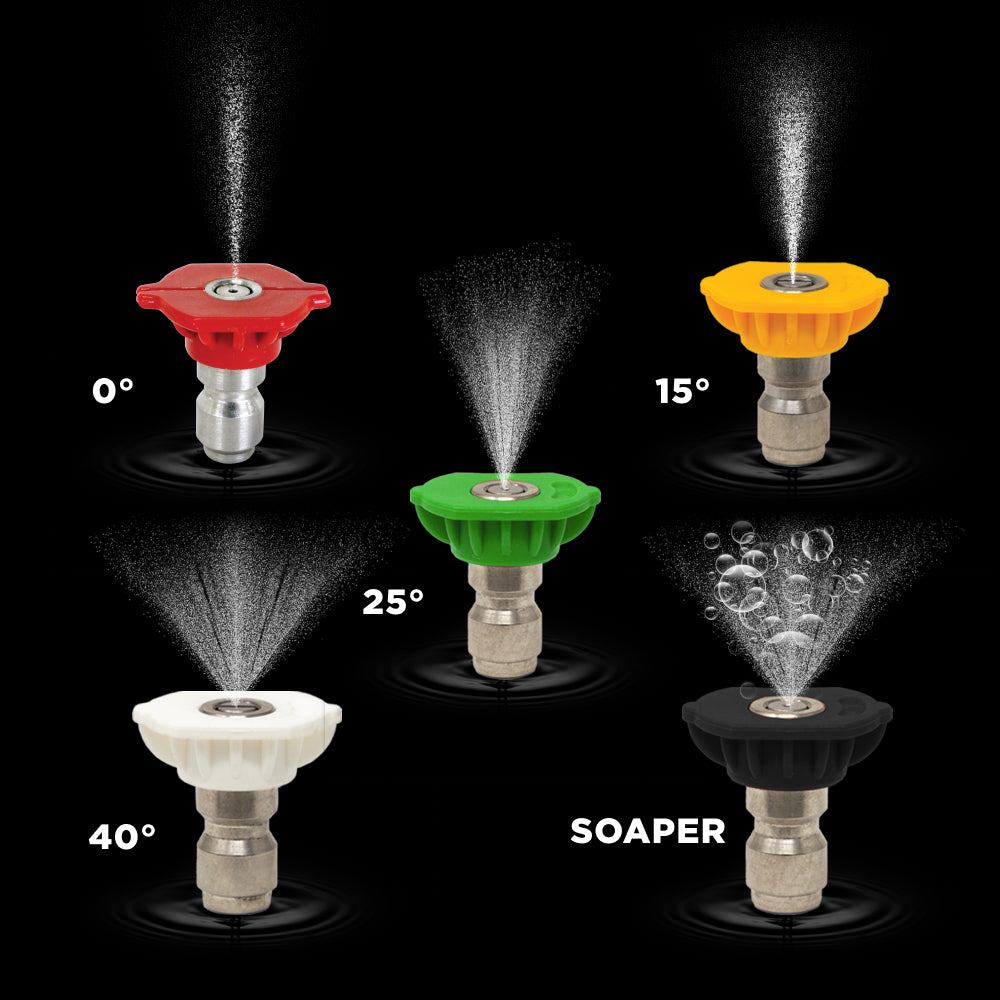

  • 5 quick-connect nozzles: Easily switch between 0°, 15°, 25°, 40°, and soap for versatile cleaning performance

  • Quick-connect fittings: Ensure fast setup and nozzle swaps between jobs

From degreasing shop floors to washing down machinery, you’ll have the reach, flow, and control you need to work efficiently.

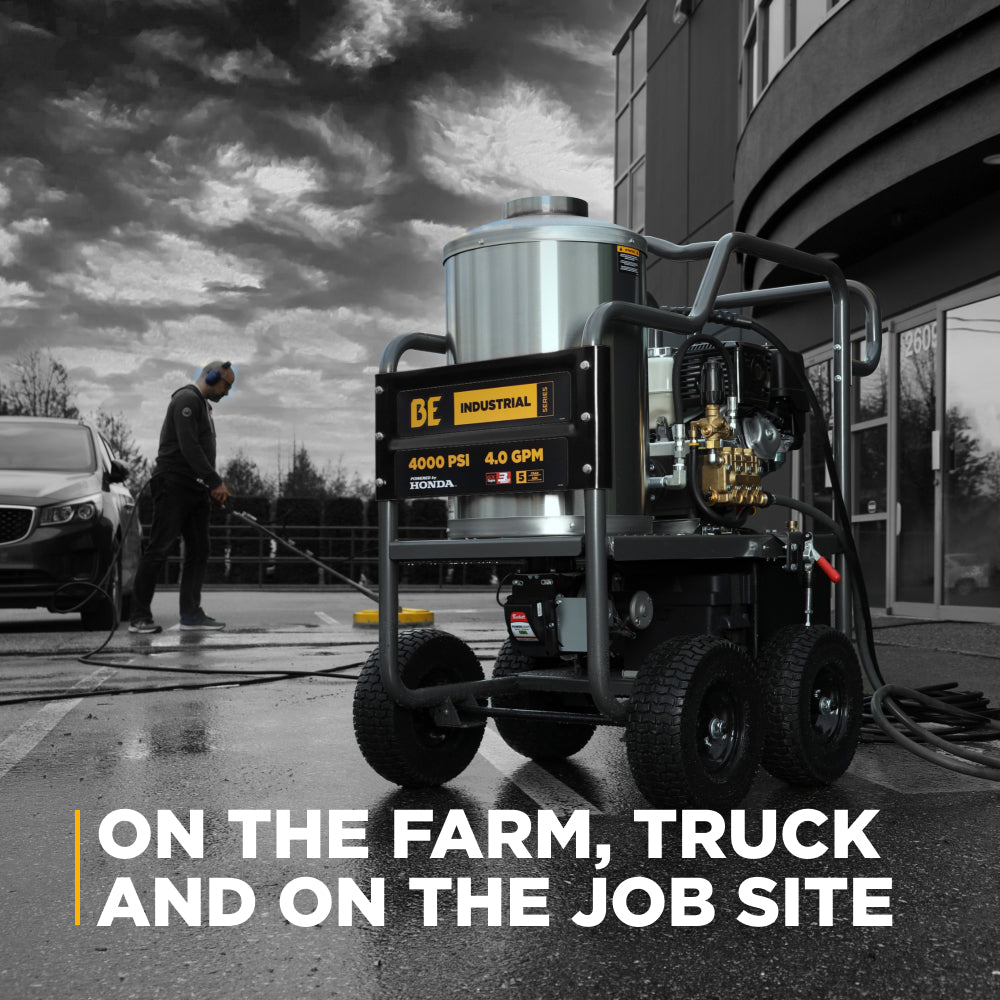

The Ideal Machine for Demanding Work

The HW4013HBG is purpose-built for industries where performance matters:

  • Construction and heavy equipment washing

  • Fleet maintenance and mobile wash services

  • Agricultural and livestock sanitation

  • Municipal services and public works

  • Industrial plant and facility maintenance

  • Oil field and mining operations

Wherever there's grease, mud, grime, or bacteria—this pressure washer is ready.

Product Specifications

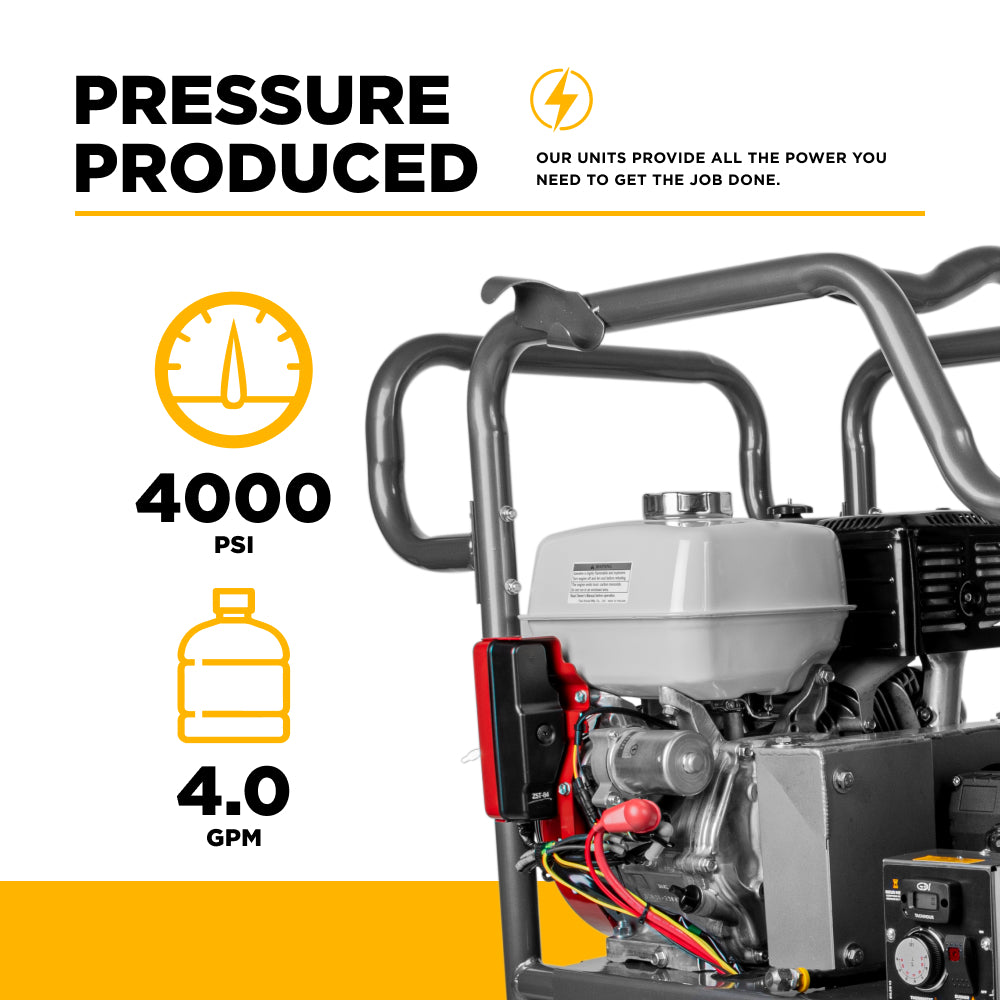

  • Pressure: 4,000 PSI

  • Flow Rate: 4.0 GPM

  • Engine: Honda GX390 389cc with electric start

  • Battery: 55AH marine AGM included

  • Pump: General triplex – die-cast body, forged brass manifold, one-piece plungers

  • Drive Type: Belt drive

  • Unloader: External

  • Burner: Diesel-fired 12V Beckett

  • BTU Output: 330,000

  • Temperature Control: Adjustable thermostat up to 200°F / 93°C

  • Hose: 50-ft double-braided steel, quick-connect

  • Spray Wand: 36” insulated with 5 QC nozzles

  • Frame: Powder-coated steel roll cage

  • Tires: Four 13” flat-free

  • Oil Drain Hoses: 12” extensions for clean oil changes

  • Air Purge Fitting: Brass air inlet to blow out coil

  • Lift Point: Integrated in frame

  • Mounting Brackets: Included for permanent installs

  • Weight: 580 lbs

  • Dimensions (LxWxH): 45" x 33" x 52"

  • Units per Pallet: 1

The actual product may vary slightly from the images shown on the website due to continuous product improvements and testing. All BE Power Equipment pressure washers are factory tested and may show slight traces of oil or fuel.

A Professional’s Pressure Washer, From Engine to Nozzle

With its belt-driven General pump, commercial-grade Honda engine, and 330,000 BTU burner system, the HW4013HBG is the premium choice for hot water pressure washing in high-demand environments. Built for power, built for longevity—and built to help you work smarter.

Help me Choose
my Pressure Washer.

Compare the specifications of your chosen pressure washers to determine the right fit for your application.

Download
HW4013HBG
--- Learn More
--- Learn More
Engine
Honda GX390 - -
Pump Model
General TSS1511 - -
Pump Type
Triplex - -
CC
389 - -
PSI
4,000 - -
GPM
4.0 - -
Unloader
External - -
Series
Industrial - -

Frequently Asked Questions about Pressure Washers

How to store a pressure washer?

To ensure the durability of your heavy duty pressure washer:

  • Empty the gas tank to prevent fuel from degrading or clogging the engine.
  • Empty the pump and hoses of any remaining water.
  • Perform necessary maintenance before storage.
  • Store in a dry area.
  • Cover.

What is a pressure washer?

A power washer is a cleaning machine that uses a gasoline engine to power a high pressure water pump and nozzle. It’s used to clean driveways, decks, vehicles, outdoor furniture and more by spraying water at high PSI to remove dirt, grime, mold and other debris.Many models also come with a detergent tank for added cleaning power.

How does a power washer work?

A power washer works by drawing water from a connected hose and pumping it through a high pressure nozzle. The gas engine powers the pump which pressurizes the water and then expels it through the nozzle at high speed to clean the surface. The water pressure is measured in PSI (pounds per square inch) and the flow rate is measured in GPM (gallons per minute).Many models also feature adjustable water pressure settings to cater to different cleaning needs. BE makes pressure washing easy with models available for light jobs and heavy duty commercial cleaning projects.

Gas vs Electric power washers?

The main difference is that a gas pressure washer, known for its cleaning power, is powered by a gasoline engine, making it more powerful and portable, while an electric pressure washer is powered by electricity and is generally quieter and lighter.

Gas pressure washers are for heavy duty and large areas due to their durability, whereas electric pressure washers are for smaller jobs.

Your BE electric pressure washer is perfect for smaller jobs and built for portability, and we offer a wide range of electric models. Included with our electric models is a long extension cord for use anywhere around your house.

What to consider?

When choosing a gas pressure washer consider:

  • Pressure (PSI): More PSI means more cleaning power but also more potential for damaging delicate surfaces.
  • Flow Rate (GPM): More GPM means faster cleaning as more water is dispensed.
  • Engine Power: Bigger engines mean more durability and power.
  • Portability: Weight, handle design and wheel size for easier to move.
  • Nozzles: Multiple spray nozzles to adjust the spray pattern for different tasks.
  • Adjustable Nozzle: Allows for fine-tuning the spray intensity and pattern for various cleaning needs.

How much pressure do I need for?

The required pressure (PSI) and cleaning power depend on the surface you’re cleaning:

  • Light duty (car washing, outdoor furniture): 1,300-1,800 PSI.
  • Medium duty (patios, fences, decks): 2,000-3,000 PSI.
  • Heavy duty (driveways, brick walls, large equipment): 3,000+ PSI.

Many pressure washers come with adjustable pressure settings to handle different cleaning tasks effectively.

Can a pressure washing damage surfaces?

Yes, a power washer can damage surfaces if used incorrectly. High pressure water can strip paint, dent soft surfaces or even cause structural damage if the pressure is too high or the nozzle is held too close to the surface. Always use the right PSI for the material you’re cleaning and keep a safe distance from delicate surfaces.

To prevent damage, consider using a model with adjustable pressure settings.

How to maintain your pressure washer?

To ensure the durability and smooth operation of a pressure washer:

  • Change the oil as per manufacturer’s instructions.
  • Clean or replace the air filter to ensure good airflow.
  • Inspect and clean the nozzle regularly to prevent clogs.
  • Drain the gas tank if you’re storing the washer for a long time.
  • Check the hoses for leaks or damage and replace them if needed.
  • Follow regular maintenance requirements to keep the washer in optimal condition.

Can I use a pressure washer in cold weather and low water temperature?

You can use a pressure washer in cold weather but it’s more difficult. The water flow rate in the hoses and pump can freeze and damage the equipment. If you plan to use your pressure washer in cold temperatures make sure to winterize it and store it in a warm area when not in use. You can also use anti-freeze solutions for pressure washers.

Some models are designed to use hot water, which can be particularly effective for cleaning in cold weather.
