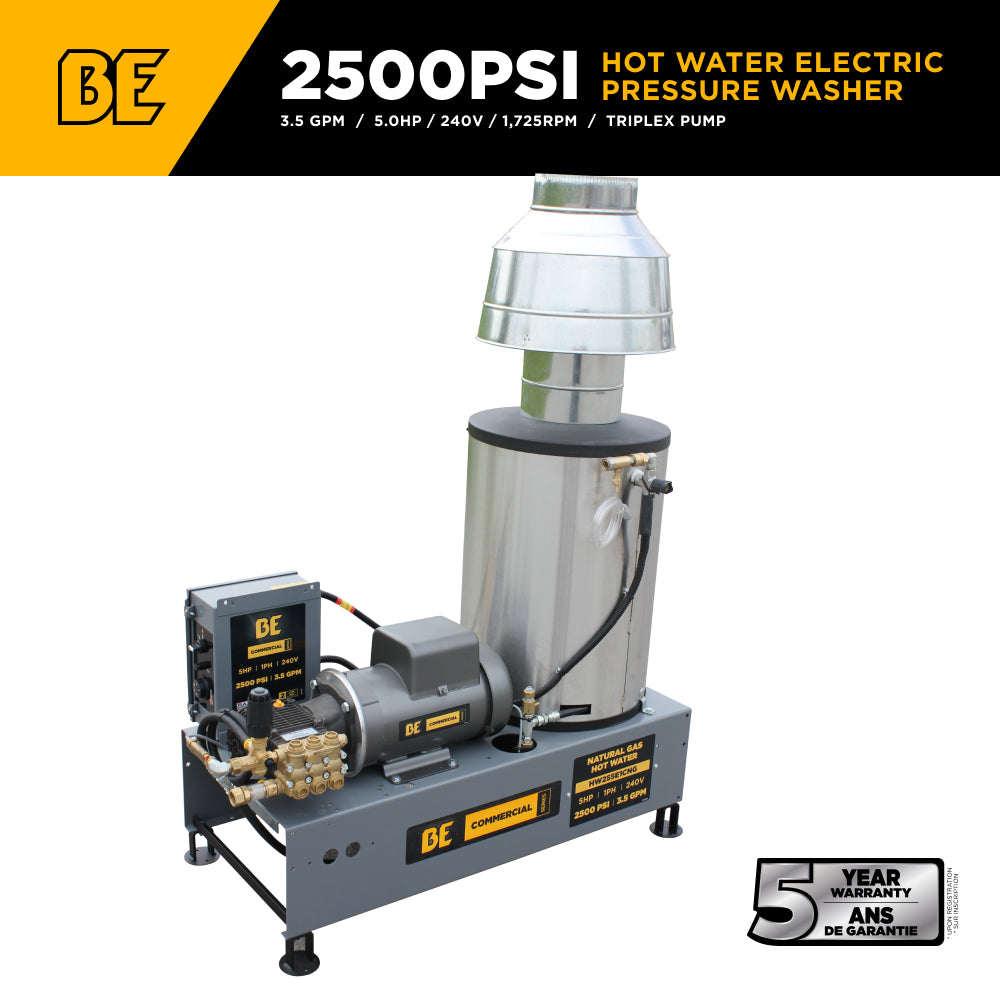

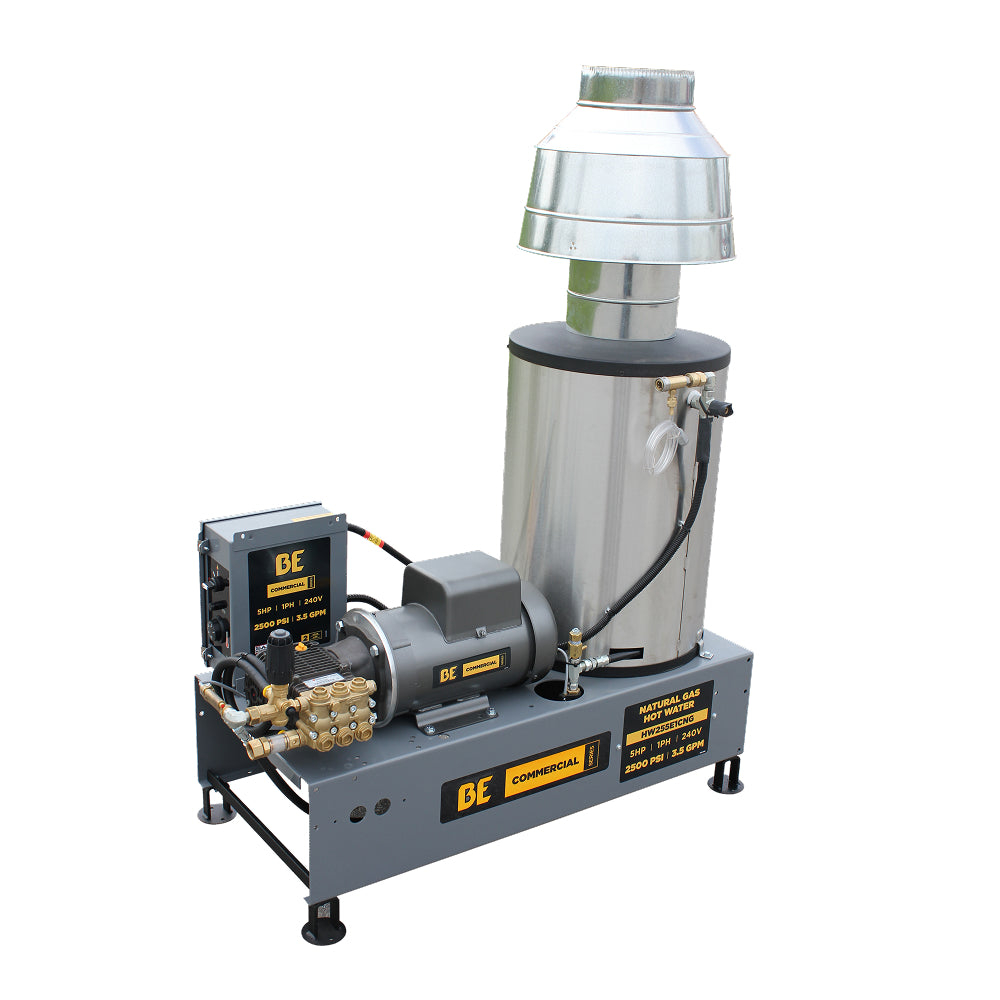

2,500 PSI 3.5 GPM 5.0 HP Hot Water Pressure Washer with Baldor Motor and AR Triplex Pump - HW255E3CNG

2,500 PSI 3.5 GPM 5.0 HP Hot Water Pressure Washer with Baldor Motor and AR Triplex Pump - HW255E3CNG

Specifications

PSI

2,500

GPM

3.5

UNLOADER

External

SERIES

Commercial

MOTOR

Baldor 5 HP

PUMP MODEL

AR

PUMP TYPE

Triplex

VOLTS

240

View full details

PRODUCT

DESCRIPTION

Industrial Hot Water Cleaning – Built for Professionals

The HW255E3CNG is a tough, commercial hot water pressure washer designed for professionals who need reliability, energy efficiency and consistent results in indoor wash bay environments. Powered by a 5.0 HP three-phase Baldor motor and running on natural gas through a Robertshaw valve, this unit is perfect for car dealerships, truck depots, industrial service bays and food-grade cleaning operations. It’s versatile enough for a wide range of applications across many industries including those with strict hygiene requirements like food service and healthcare. Keeping clean is critical in these regulated environments and this washer helps you meet those sanitation standards.

With 2,500 PSI of pressure and 3.5 gallons per minute of high-flow, this machine is built to blast through grease, grime, oil and caked on dirt with precision and control. Customers can use this heavy-duty solution for demanding cleaning applications in their industry as it’s designed for continuous use in commercial applications where downtime isn’t an option.

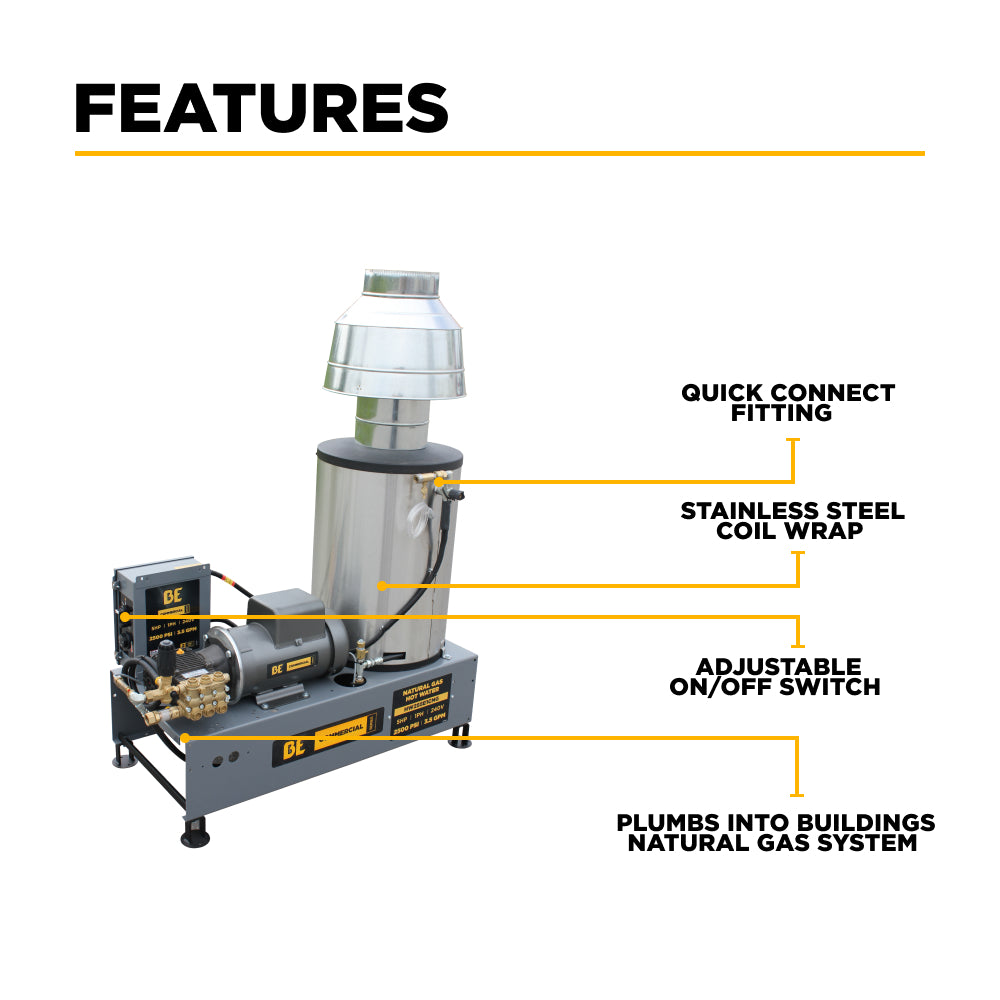

Features

  • 2,500 PSI at 3.5 GPM: The perfect balance of pressure and flow for high-pressure cleaning

  • 5.0 HP Three-Phase Baldor Motor: Energy efficient, durable and reliable

  • Natural Gas Burner System: Designed for permanent indoor wash bays, plugs into your gas line using a Robertshaw valve

  • Commercial AR Triplex Pump: Reinforced body, forged brass manifold, solid ceramic plungers, stainless check valves and thermal relief valve

  • Auto Start/Stop: Pump only turns on when spray trigger is pulled, reduces wear and saves energy

  • External Unloader Valve: Enhances pump cooling, extends component life and easy maintenance access

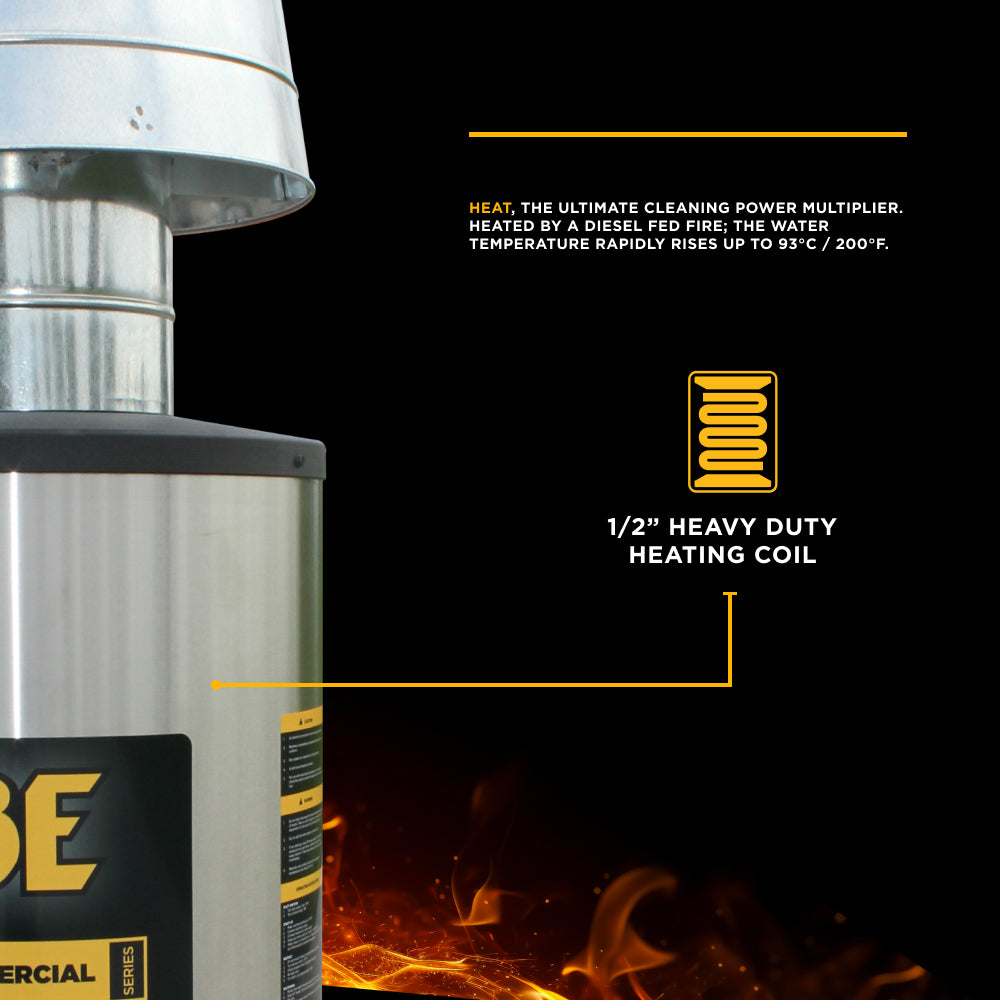

  • Heavy-Duty Heating Coil: 1/2” schedule 80 carbon steel cold rolled pipe with stainless steel wrap for long term heat durability

  • Adjustable Thermostat: Control water temperature up to 93°C / 200°F for degreasing, sanitizing or industrial cleaning* Pro Accessory Kit: 50 ft. high-pressure hose, insulated spray wand and 5 quick-connect nozzles

  • Compact, Mobile Frame: Industrial floor use with hoist-ready lift point and compact footprint for easy transport and use in multiple locations

We have everything you need for cleaning.

Baldor Motor for Commercial Use

At the heart of the HW255E3CNG is a 5.0 HP Baldor motor configured for three-phase power – the industrial standard for high-performance equipment. Built for continuous run times this energy efficient motor has the power for large scale cleaning while keeping the total cost of ownership low. Robust construction protects your investment by ensuring long term durability and reliability. The Baldor motor increases productivity by allowing for faster and more efficient cleaning so you can get the job done with less effort.

Benefits of the three-phase Baldor motor:

  • Lower operating costs over time

  • Smoother, more consistent power delivery

  • Lower heat output during extended use

  • Designed for commercial electrical systems

This motor is paired with the triplex pump and natural gas burner to make a true industrial grade cleaning solution.

Natural Gas Burner – Clean, Safe and Cost Effective

Perfect for indoor use the natural gas burner system plugs into your facility’s gas line using a Robertshaw valve eliminating the need for on-site diesel or kerosene storage. Hot water power washers like the HW255E3CNG can also use fuel oil or liquid propane as alternative heating sources for different industrial cleaning needs. This makes the HW255E3CNG a cleaner, safer choice for garages, warehouses, vehicle bays or service facilities where ventilation may be limited.

Cold water pressure washers are sufficient for removing dry, caked on dirt but are less effective at cleaning deep seated grease, grime and bacteria. Hot water breaks down tough contaminants much more efficiently making the cleaning process faster and more effective on any surface.With the adjustable thermostat you can set the water temperature up to 93°C / 200°F for high-heat degreasing or sanitizing. The heavy-duty heating coil is made from 1/2” schedule 80 carbon steel with a stainless steel wrap for long term heat transfer and corrosion resistance. The heat enhances the cleaning process allowing for fast removal of buildup from surfaces.

AR Triplex Pump for Commercial Use

The AR triplex pump on the HW255E3CNG is designed for continuous-duty operation and maximum service life. Built to the same quality as top industrial systems it can handle any cleaning job from light residential to heavy-duty commercial. It includes:

  • Forged brass manifold for strength and corrosion resistance

  • Solid ceramic plungers for high temperature and extended pump life

  • Stainless steel check valves for consistent flow and pressure

  • Thermal relief valve to prevent overheating during extended use

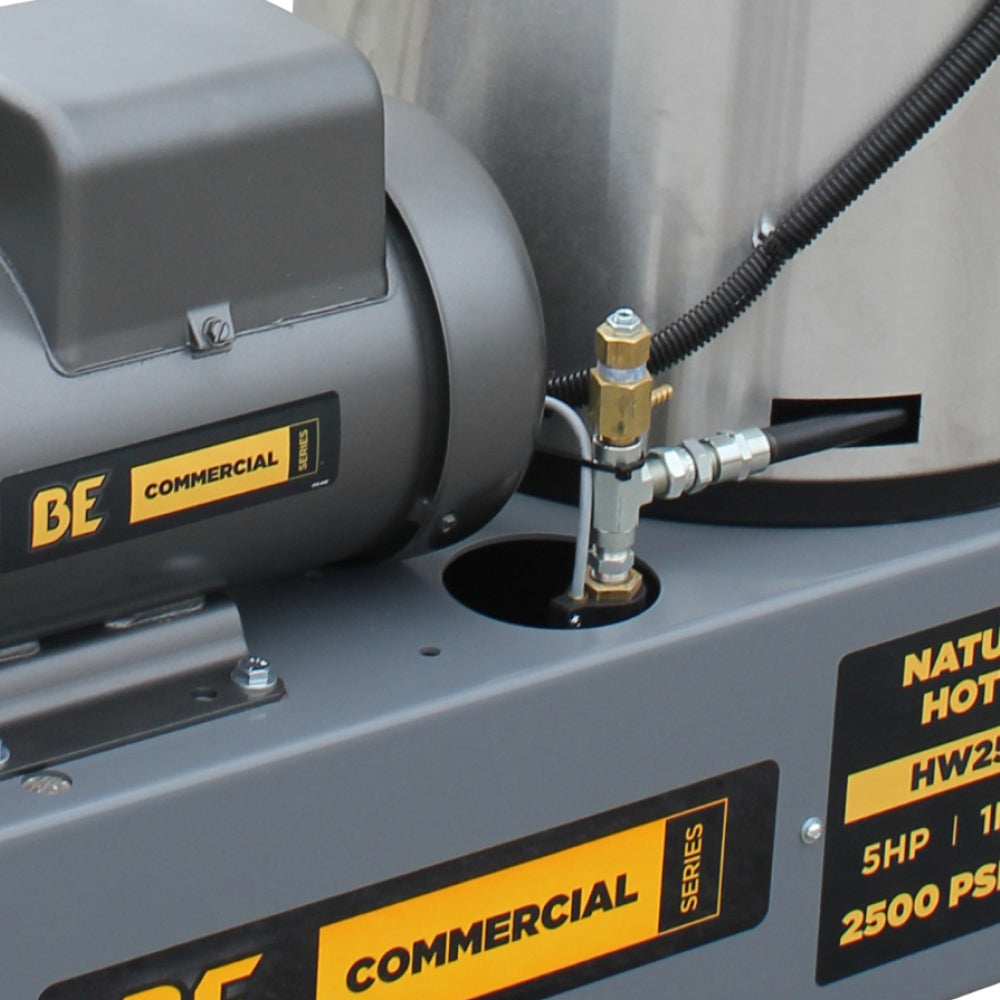

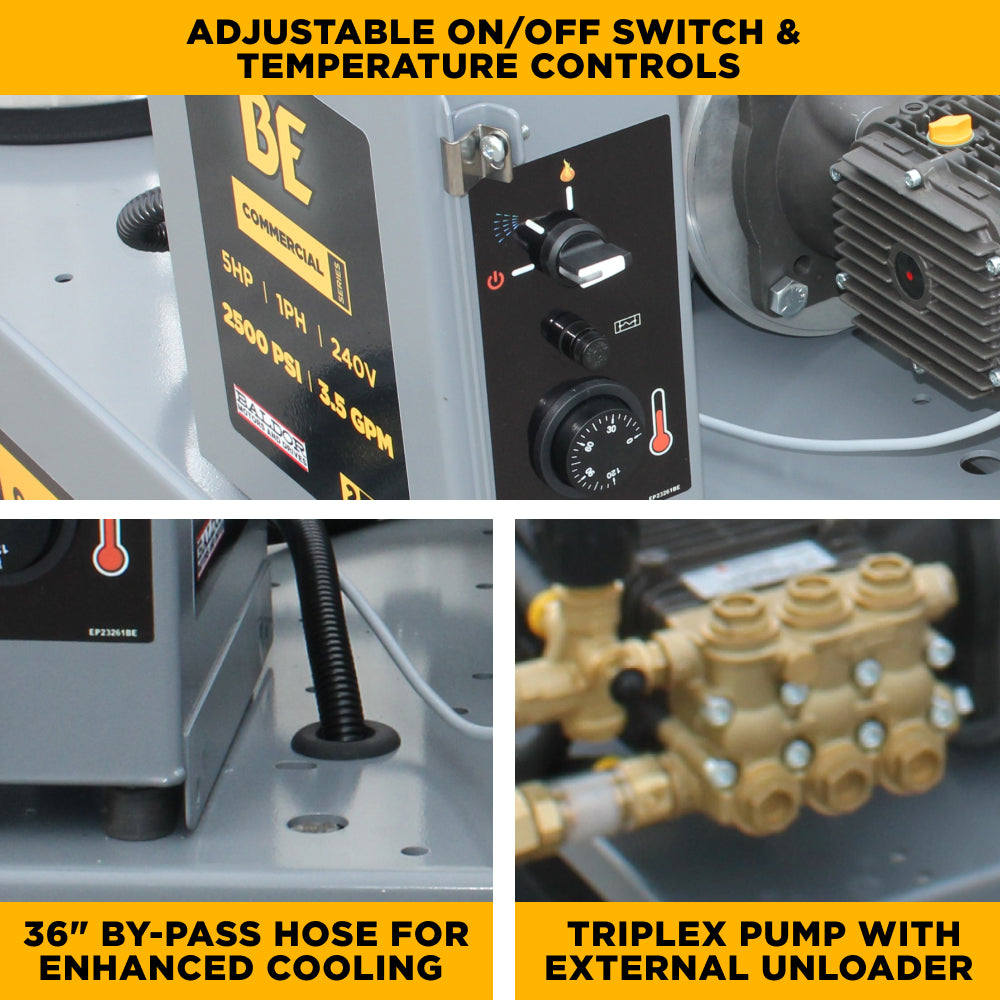

An external unloader valve helps to dissipate heat more effectively than internal unloaders allowing for easier maintenance and better performance – a big advantage for service technicians and operators.

Auto Start/Stop for Efficiency and Longevity

The auto start/stop system enhances safety and reduces wear by turning the pump only when the trigger on the spray wand is pulled. When the trigger is released the pump shuts off after a short delay conserving energy and reducing wear on the components. This also simplifies the cleaning process for the operator by eliminating unnecessary steps and making it more intuitive.

Benefits include:

  • Reduced heat buildup in the pump and motor

  • Lower water and electrical consumption

  • Quieter operation between uses

  • Ideal for multi-operator facilities or shared workspaces

  • Users can find the optimal settings for their cleaning needs

This feature is especially useful in applications where the washer is used intermittently throughout the day.

Built to Last Daily Use

From the powder-coated steel frame to the stainless-wrapped heating coil every component of the HW255E3CNG is built to last. The compact roll cage frame protects the vital parts from impact and provides clear access for inspection and service. A built-in lift point allows for easy transport by crane or forklift – perfect for truck mounted or stationary applications.As a hot water pressure washer leader the HW255E3CNG delivers performance for tough environments. Whether you’re cleaning trucks in a fleet yard, equipment in a factory or vehicles in an indoor garage this unit is built to keep working.

Professional Grade Accessories Included

The HW255E3CNG comes with a full set of high-performance accessories all rated for hot water use and compatible with most hot water pressure washers:

  • 50 ft. High-Pressure Hose: Twin wire braided, flexible and durable for daily use

  • Insulated Spray Gun with 36” Wand: Comfortable grip, safety lock and heat protection

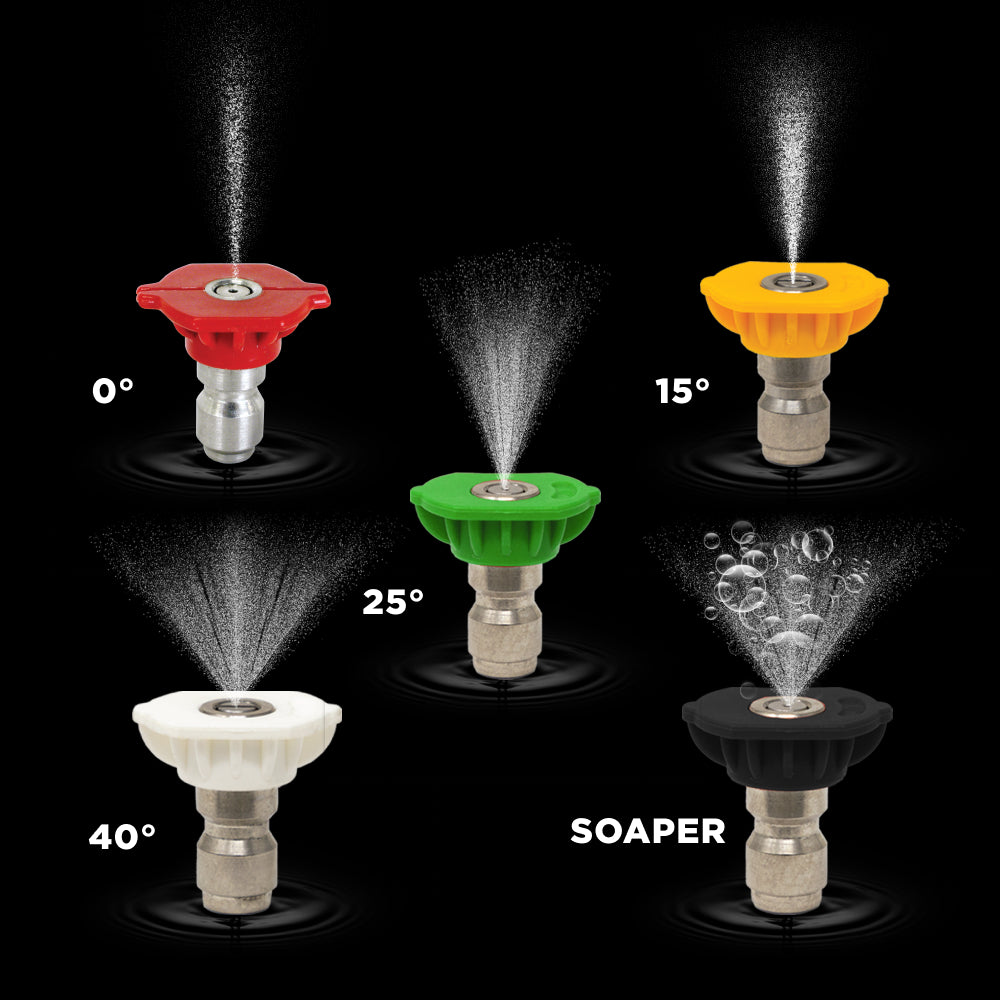

  • Five Quick-Connect Nozzles: 0°, 15°, 25°, 40° and Soap — change patterns with ease for the task at hand

These components are built to withstand pressure — literally — and are quick to swap out for different surfaces and cleaning needs.

For additional accessories or upgrades request a quote to get a custom price.

Product Specifications

Performance

  • Pressure: 2,500 PSI

  • Flow Rate: 3.5 GPM

  • Max Water Temperature: 93°C / 200°F

Motor

  • Brand: Baldor

  • Power: 5.0 HP

  • Phase: Three-phase

  • Voltage: 230V or 460V (depending on configuration)

  • Design: Continuous-duty, energy efficient industrial grade

Pump

  • Brand: AR (Annovi Reverberi)

  • Type: Commercial triplex

  • Features: Forged brass manifold, solid ceramic plungers, stainless steel valves

  • Safety: Thermal relief valve

  • Unloader: External for maximum cooling and serviceability

Burner System

  • Fuel: Natural gas

  • Valve: Robertshaw gas valve

  • Heating Coil: 1/2” schedule 80 carbon steel pipe

  • Wrap: Stainless steel exterior for durability and rust resistance

  • Thermostat: Adjustable up to 93°C / 200°F

Controls

  • Start/Stop: Auto start/stop on trigger squeeze

  • Safety: Burner shuts off automatically if water is low or flow is interrupted

Accessories

  • Hose: 50 ft. high-pressure, quick-connect

  • Gun/Wand: 36" insulated professional-grade spray wand* Nozzles: 5 quick-connect tips — 0°, 15°, 25°, 40°, and Soap

Dimensions & Weight

  • Length x Width x Height: 43” x 20” x 42”

  • Weight: 665 lbs

Commercial Indoor Cleaning Trusted

The HW255E3CNG is for professionals who want natural gas convenience, electric motor efficiency and industrial cleaning power all in one compact, rugged unit. Ideal for indoor wash bays, automotive facilities, fleet maintenance centers and food industry environments where cleanliness matters most.

Looking for a durable, efficient and eco-friendly hot water pressure washer for daily commercial use? The HW255E3CNG is the one you’ve been waiting for.

HW255E3CNG — Natural gas hot water cleaning, powered by performance.
