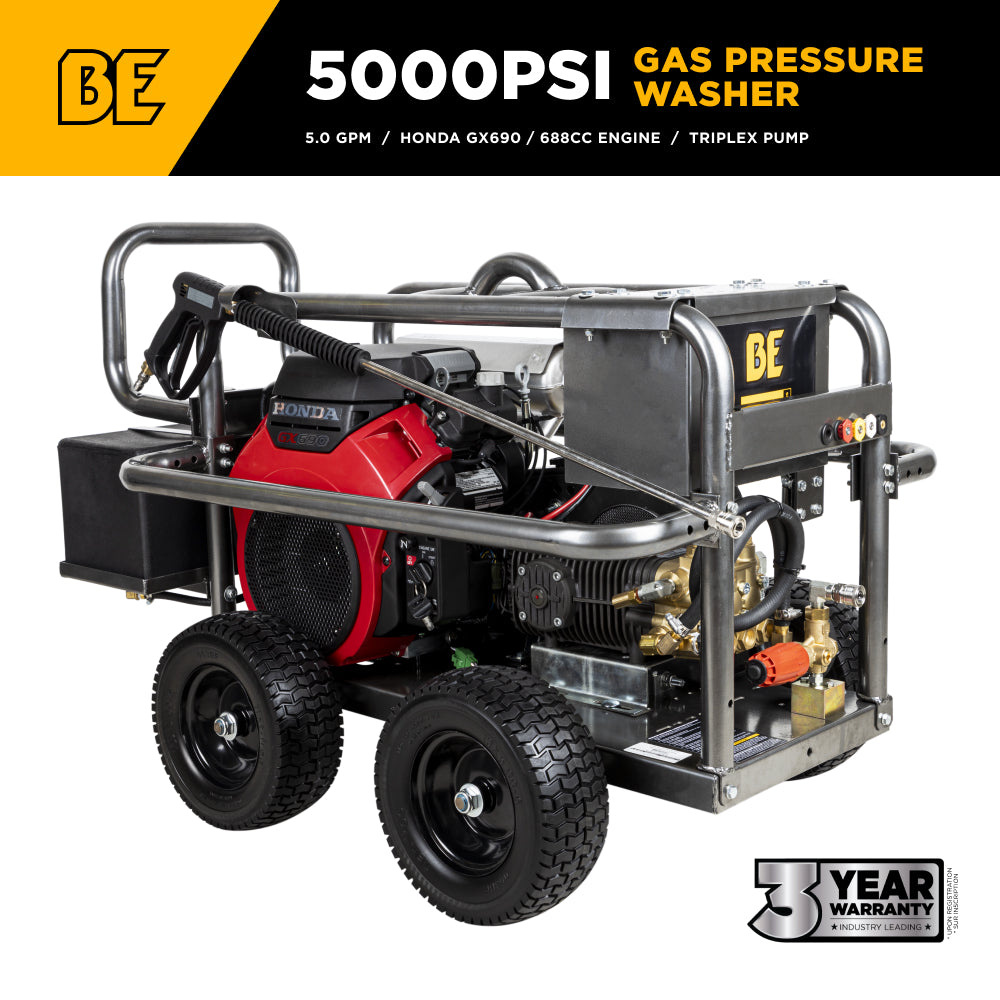

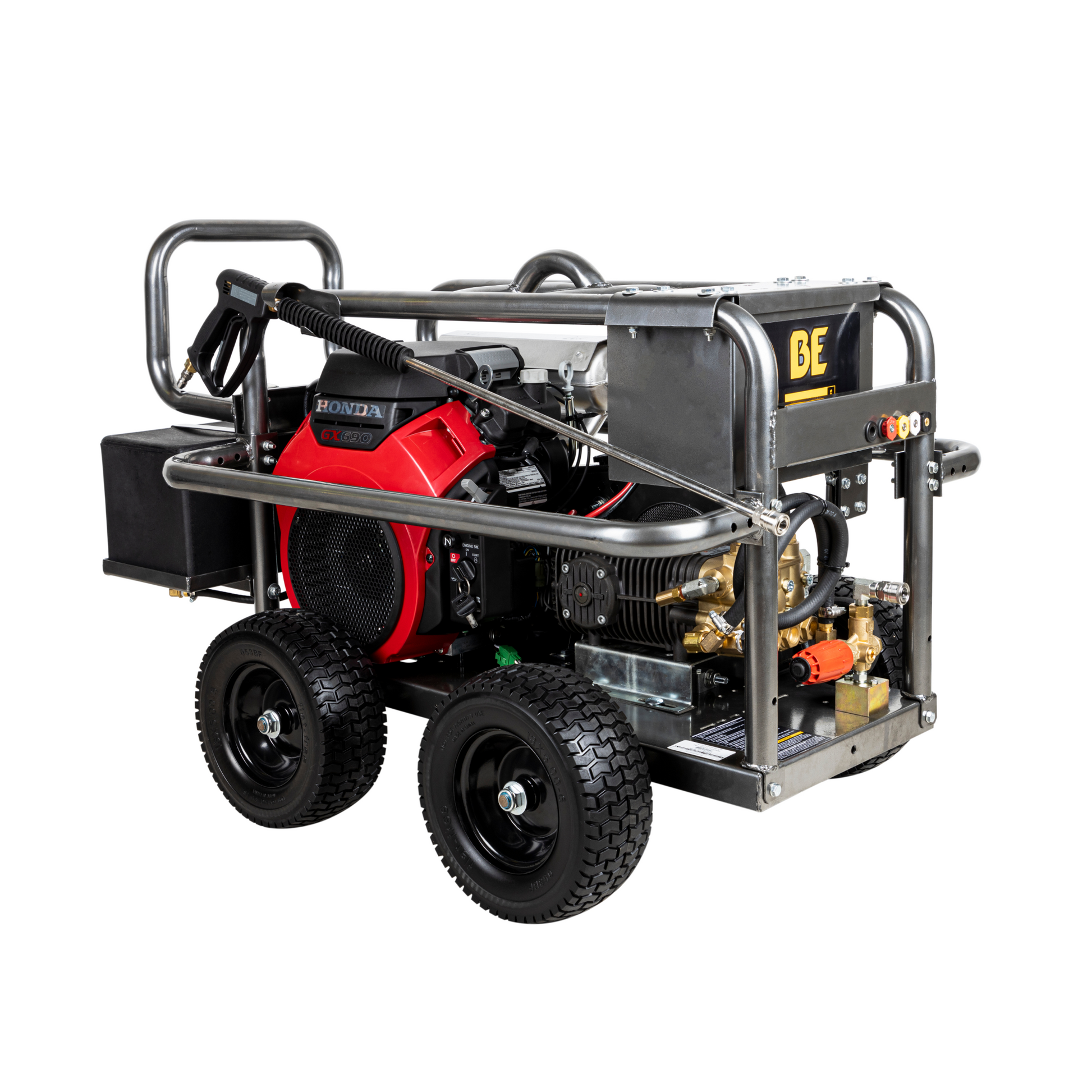

5,000 PSI 5.0 GPM Cold Water Gas Pressure Washer with Honda GX690 Engine and Comet Belt Drive Triplex Pump on Roll Cage Frame - PE-5024HWEBCOM
5,000 PSI 5.0 GPM Cold Water Gas Pressure Washer with Honda GX690 Engine and Comet Belt Drive Triplex Pump on Roll Cage Frame - PE-5024HWEBCOM
Specifications
FRAME
204 4-Wheel Roll Cage Contractor Frame
ENGINE
Honda GX690
CC
689
PSI
5,000
GPM
5.0
UNLOADER
External
SERIES
Industrial
WARRANTY
3 Years
Start Type
Electric
PUMP MODEL
COMET TW5050S
PUMP TYPE
Triplex
PUMP OIL TYPE
30W Non-Detergent
Hose Length
50' x 3/8" QC
Tires
12" Ultra Premium Flat-Free Wheels/Tires
Soap Injector
Adjustable
Drive Type
Gas Belt Drive

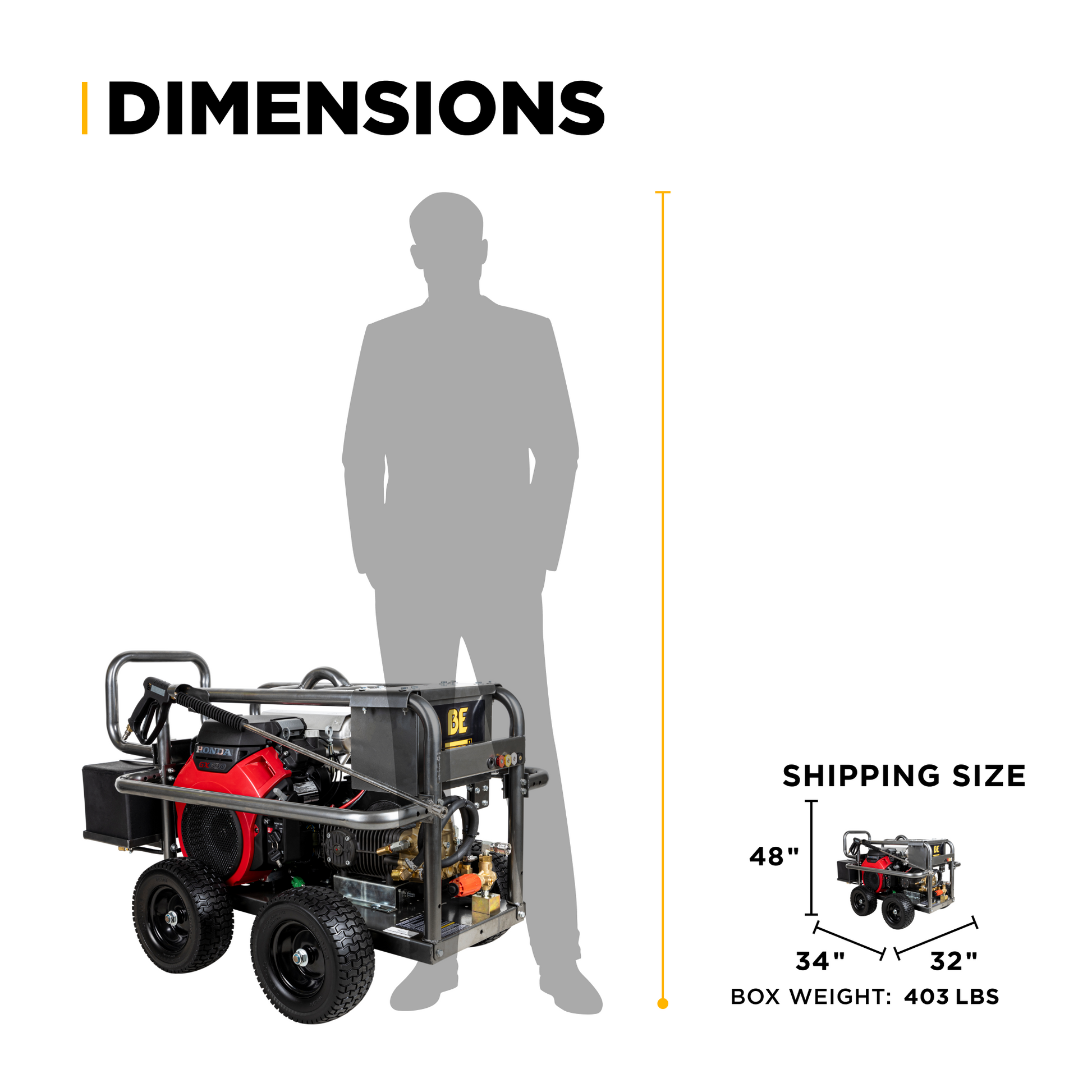

Unit Dimensions
48.0" x 32.0" x 34.0"
Weight
406 lbs / 184.2 kg
Downloads
Manual
PRODUCT
DESCRIPTION
5,000 PSI 5.0 GPM Cold Water Gas Pressure Washer with Honda GX690 Engine and Comet Belt Drive Triplex Pump on Roll Cage Frame
The BE Power Equipment PE-5024HWEBCOM is a 5,000 PSI 5.0 GPM industrial-grade cold water gas pressure washer built for demanding commercial and industrial cleaning environments. Unlike the hand-truck frame units in the BE commercial range, the PE-5024HWEBCOM is built on a 204 4-Wheel Roll Cage Contractor Frame, a powder-coated steel roll cage design with an integrated lift point that allows the unit to be hoisted into position in rough industrial environments where conventional wheeled units cannot operate effectively.
Powered by a Honda GX690 689cc V-twin electric start engine and paired with an industrial-grade Comet TW5050S belt-driven triplex pump, this unit delivers 5,000 PSI of cleaning pressure and 5.0 GPM of flow for heavy-duty industrial applications. At 406 lbs, this is a contractor-class machine designed to be placed and operated in a fixed or semi-fixed position — not transported by hand between cleaning tasks.
The belt drive system reduces pump speed to 1,450 RPM, extending pump service life during continuous high-demand operation. The electric start and 55AH AGM deep cycle battery deliver reliable startup without a recoil pull, which is particularly useful on a unit of this weight and configuration.
Built for Demanding Industrial Environments
The PE-5024HWEBCOM is purpose-built for commercial and industrial applications where cleaning performance, durability, and access to difficult environments are the priority. The roll cage frame with integrated lift point makes this unit suitable for:
- Industrial facility cleaning and surface preparation
- Heavy equipment and fleet washing at fixed or semi-fixed locations
- Construction site cleanup and surface prep for coatings
- Agricultural and processing facility maintenance
- High-demand applications requiring sustained 5,000 PSI output
With 5,000 PSI and 5.0 GPM, this unit delivers the pressure and flow for the most demanding cold water cleaning tasks across commercial and industrial settings.

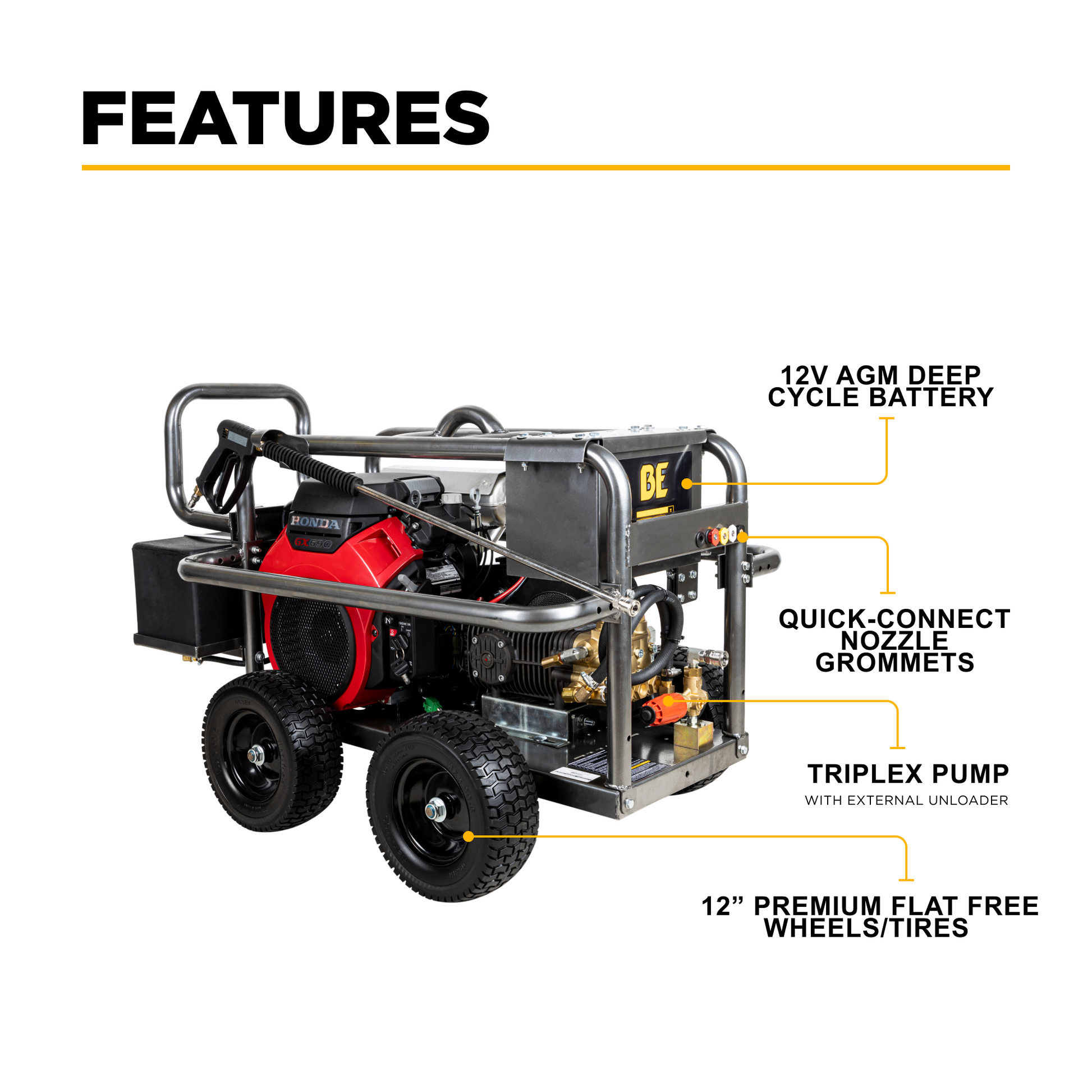

Features

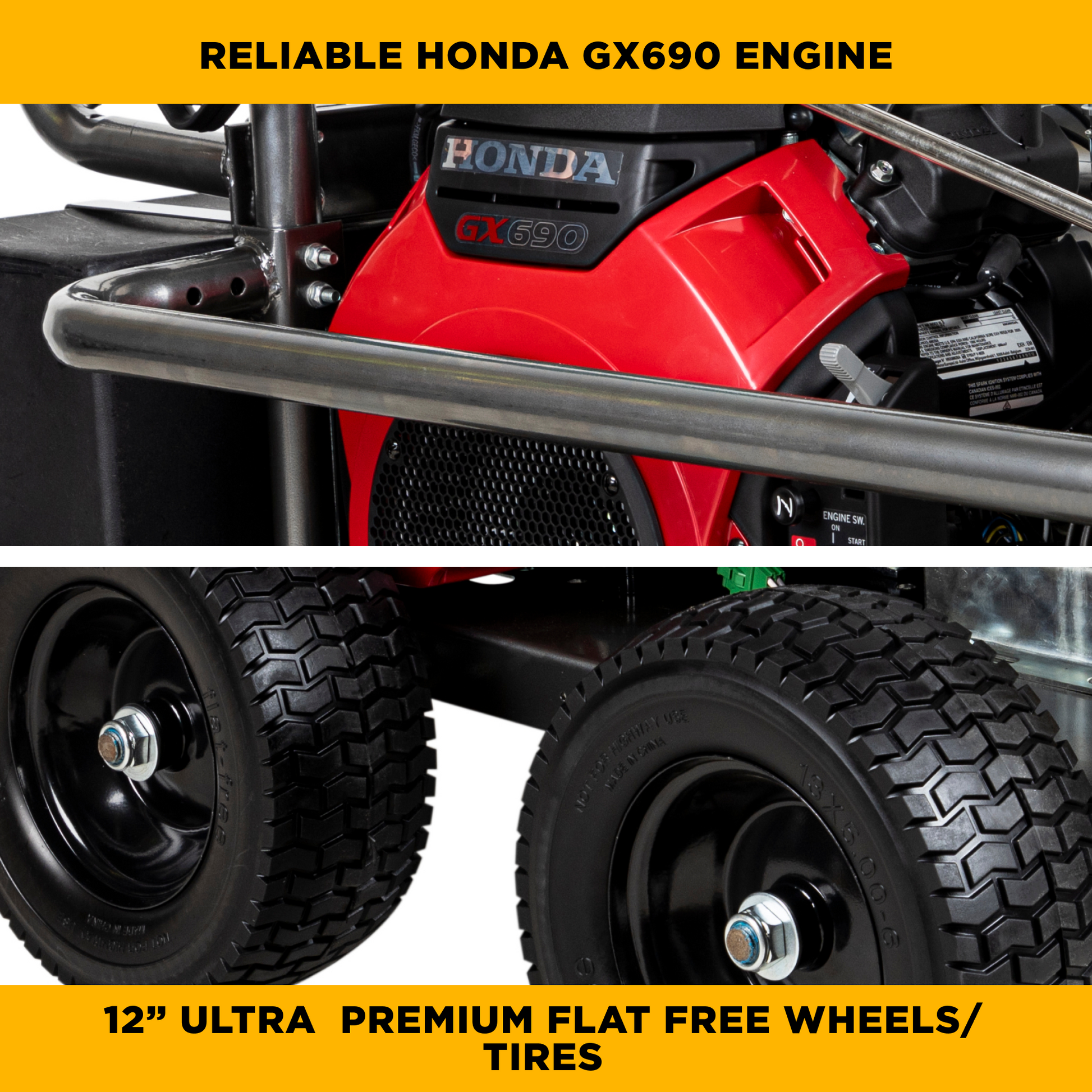

Honda GX690 V-Twin Electric Start Engine
The PE-5024HWEBCOM is powered by the Honda GX690 689cc V-twin OHV electric start engine, a commercial-grade engine known for high-torque output, reliability, and long service life. The GX690's V-twin configuration delivers the sustained power output required to drive a 5,000 PSI belt drive pump through extended cleaning sessions.

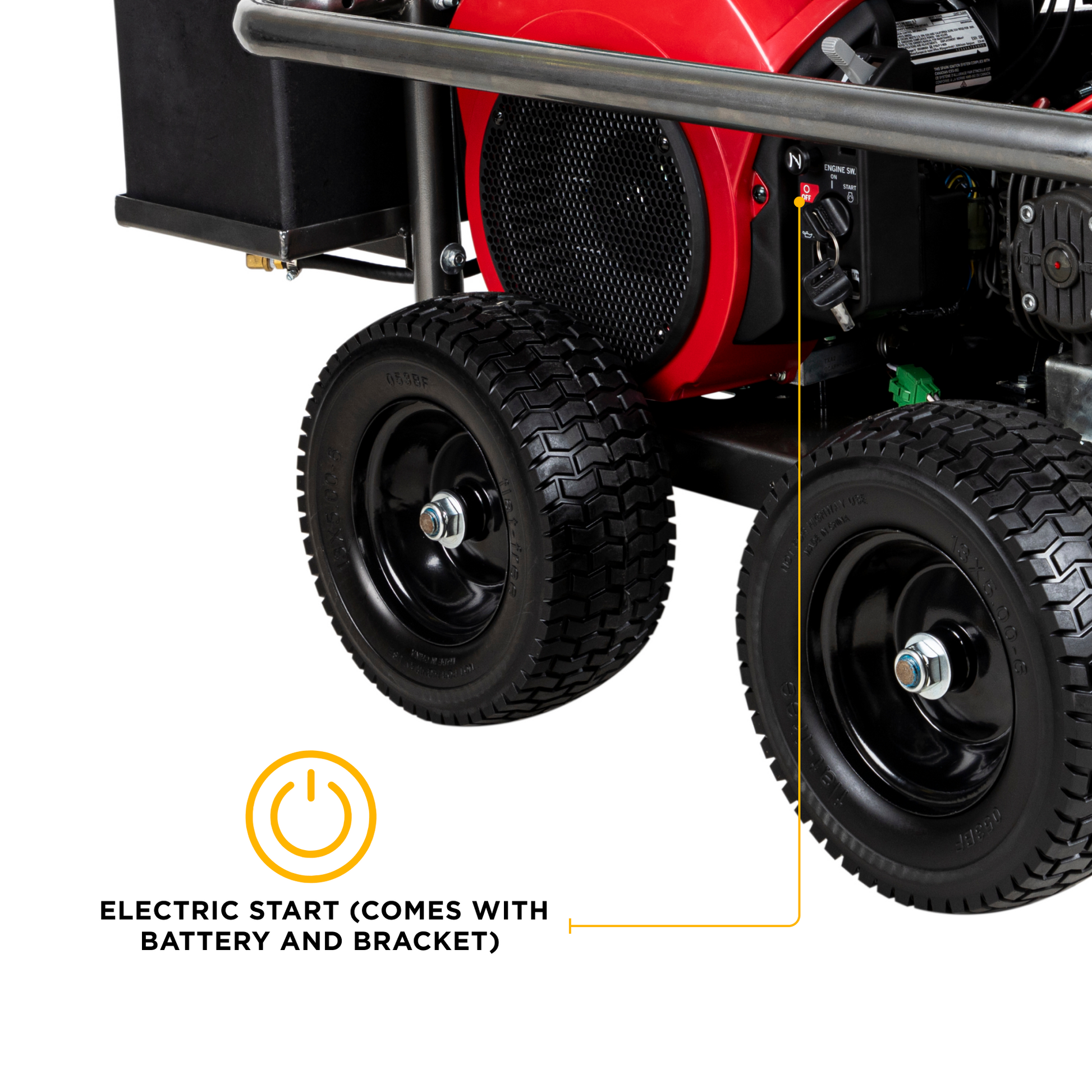

The electric start system is supported by a 55AH AGM deep cycle battery, providing reliable engine startup without a recoil pull — a practical advantage on a 406 lb contractor unit where physical access to a recoil handle may be limited by the roll cage configuration.
Engine features include:
- Electric start with 55AH AGM deep cycle battery
- Honda V-twin OHV design for high-torque, sustained output
- Automatic low-oil shutdown to protect the engine
- Proven Honda reliability for continuous professional use
The Honda GX690 engine is covered under Honda's separate engine warranty program.

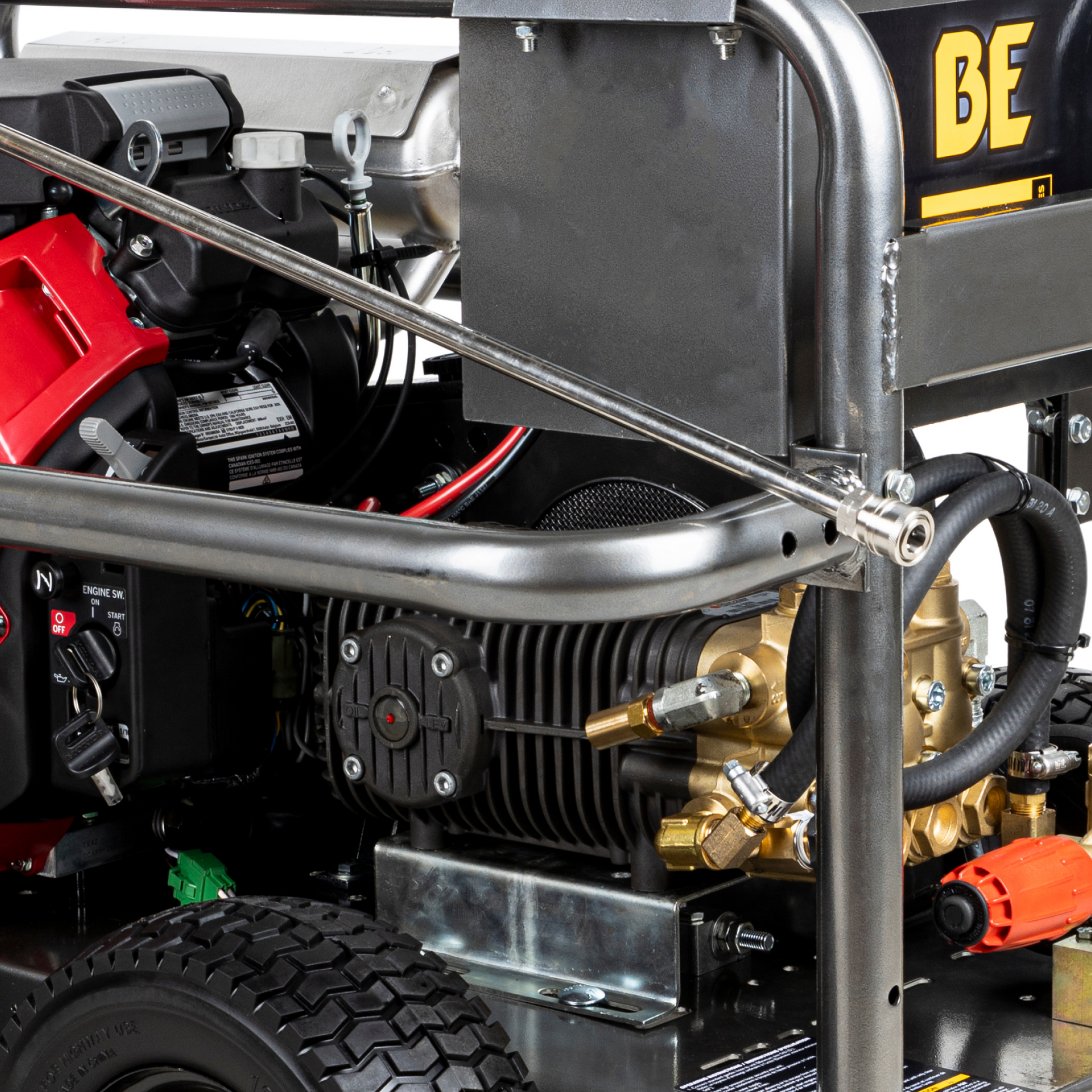

Industrial-Grade Comet TW5050S Belt-Driven Triplex Pump
Paired with the Honda engine is an industrial-grade Comet TW5050S belt-driven triplex pump with an external unloader and adjustable injector. The belt drive reduces pump speed to 1,450 RPM, significantly lowering pump wear and extending service life during continuous heavy-duty use compared to direct drive configurations at similar output levels.
Key pump features include:
- Belt drive system at 1,450 RPM for reduced wear and extended pump life
- External unloader for adjustable pressure control
- Adjustable injector for variable detergent concentration
- Smooth, consistent pressure delivery at 5,000 PSI
- Thermal relief valve to protect the pump during extended bypass operation
204 4-Wheel Roll Cage Contractor Frame with Lift Point
The PE-5024HWEBCOM is built on a 204 4-Wheel Roll Cage Contractor Frame, a heavy-duty powder-coated steel roll cage structure designed for industrial environments. The roll cage provides full perimeter protection for the engine and pump assembly, and the integrated lift point allows the unit to be hoisted using appropriate lifting equipment — a critical feature for positioning a 406 lb machine in industrial facilities, loading docks, or elevated work areas.
The 4-wheel configuration provides ground mobility across flat industrial surfaces, and the 12" Ultra Premium Flat-Free tires eliminate the risk of flats when rolling across debris or rough ground.
50-Foot Steel Braided High-Pressure Hose
The PE-5024HWEBCOM includes a 50' x 3/8" QC steel braided high-pressure hose with quick-connect fittings. The 3/8" diameter supports the 5.0 GPM flow rate of this unit, and the steel braided construction provides abrasion resistance for extended industrial use.
36" Insulated Gun and Wand Assembly
The included 36" QC insulated gun and wand assembly provides reach and comfort during extended cleaning sessions. The insulated wand reduces heat transfer to the operator, and the quick-connect system makes nozzle changes fast and straightforward.

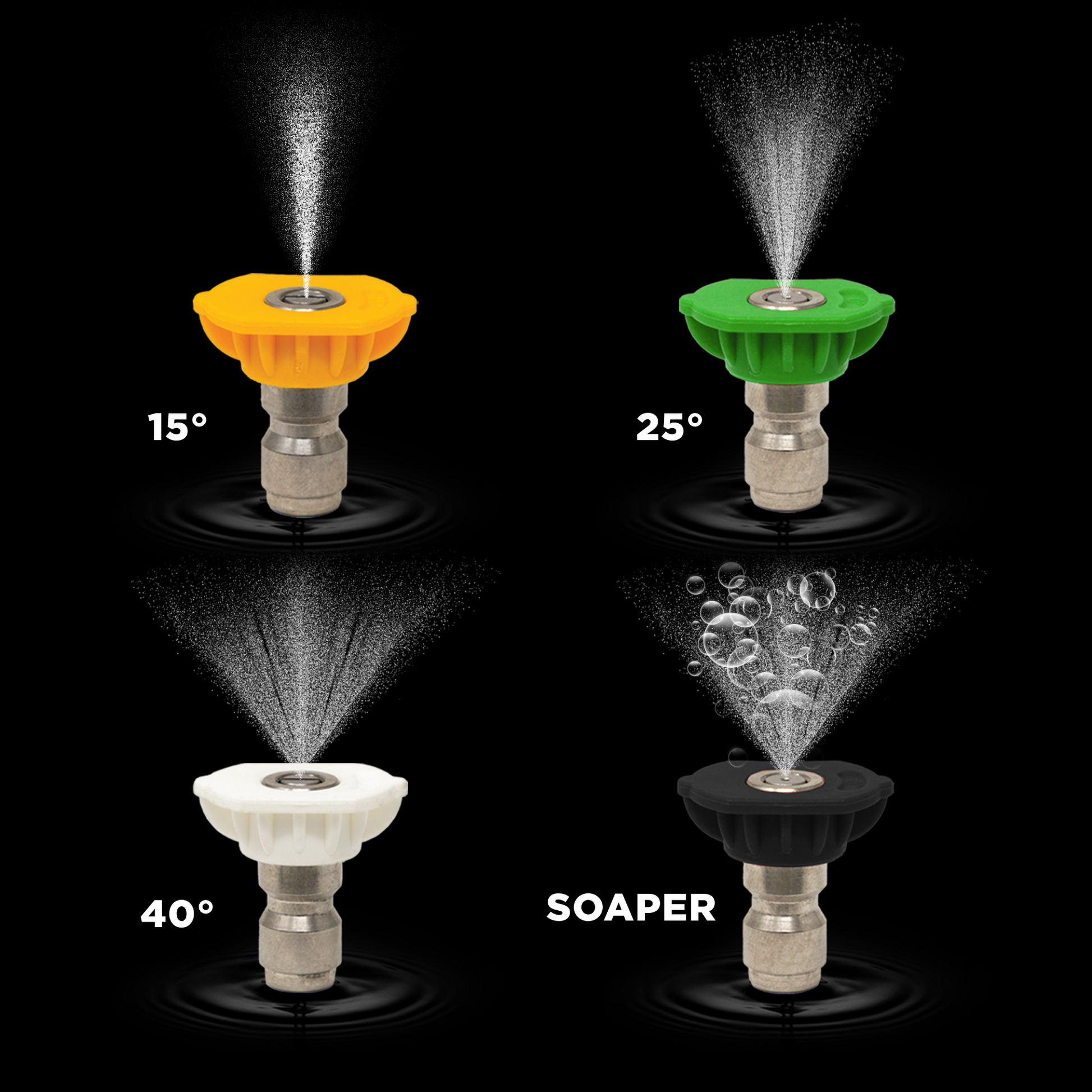

4 Quick-Connect Spray Nozzles
Four quick-connect nozzles are included to cover a range of cleaning applications:
- 15°: Focused, high-pressure spray for heavy surface cleaning and preparation
- 25°: General-purpose spray for equipment and surfaces
- 40°: Wide-angle rinse for vehicles and delicate surfaces
- Soap: Low-pressure nozzle for applying detergent through the adjustable injector
12" Ultra Premium Flat-Free Tires
The PE-5024HWEBCOM rolls on 12" Ultra Premium Flat-Free tires that handle uneven ground and industrial debris without the risk of flats, providing reliable mobility when repositioning the unit within a facility or across a work site.
Warranty and Factory Testing
The PE-5024HWEBCOM is backed by a 3-year limited warranty from BE Power Equipment. The Honda GX690 engine is covered separately under Honda's manufacturer warranty program.
Each unit is functionally tested at the factory before shipping. Your pressure washer may arrive with minimal residual oil or fuel odor, which confirms the unit has passed quality testing and is ready for use.
Product Specifications
- Pressure: 5,000 PSI
- Flow Rate: 5.0 GPM
- Engine: Honda GX690 689cc V-Twin OHV, Electric Start
- Battery: 55AH AGM Deep Cycle Battery
- Pump: Comet TW5050S Triplex, P3 Class, External Unloader, Adjustable Injector
- Drive Type: Belt Drive
- Pump RPM: 1,450
- Frame: 204 4-Wheel Roll Cage Contractor Frame, Powder-Coated Steel with Integrated Lift Point
- Hose: 50' x 3/8" QC Steel Braided Rubber Hose
- Spray Wand: 36" QC Insulated Gun/Wand Assembly
- Nozzles: 4 Quick-Connect, 15°, 25°, 40°, and Soap
- Wheels: 12" Ultra Premium Flat-Free Tires
- Engine Oil Type: 10W-30
- Pump Oil Type: 30W Non-Detergent
- Unit Weight: 406 lbs / 184.2 kg
- Unit Dimensions: 48.0" x 32.0" x 34.0"
- Series: Industrial
- Safety Features: Automatic low-oil shutdown, thermal relief valve
- Warranty: 3-year limited (Honda GX690 engine covered separately by Honda)
- Factory Testing: Each unit is functionally tested before shipment. Minimal residual oil or fuel odor upon delivery is normal and confirms quality testing has been completed.

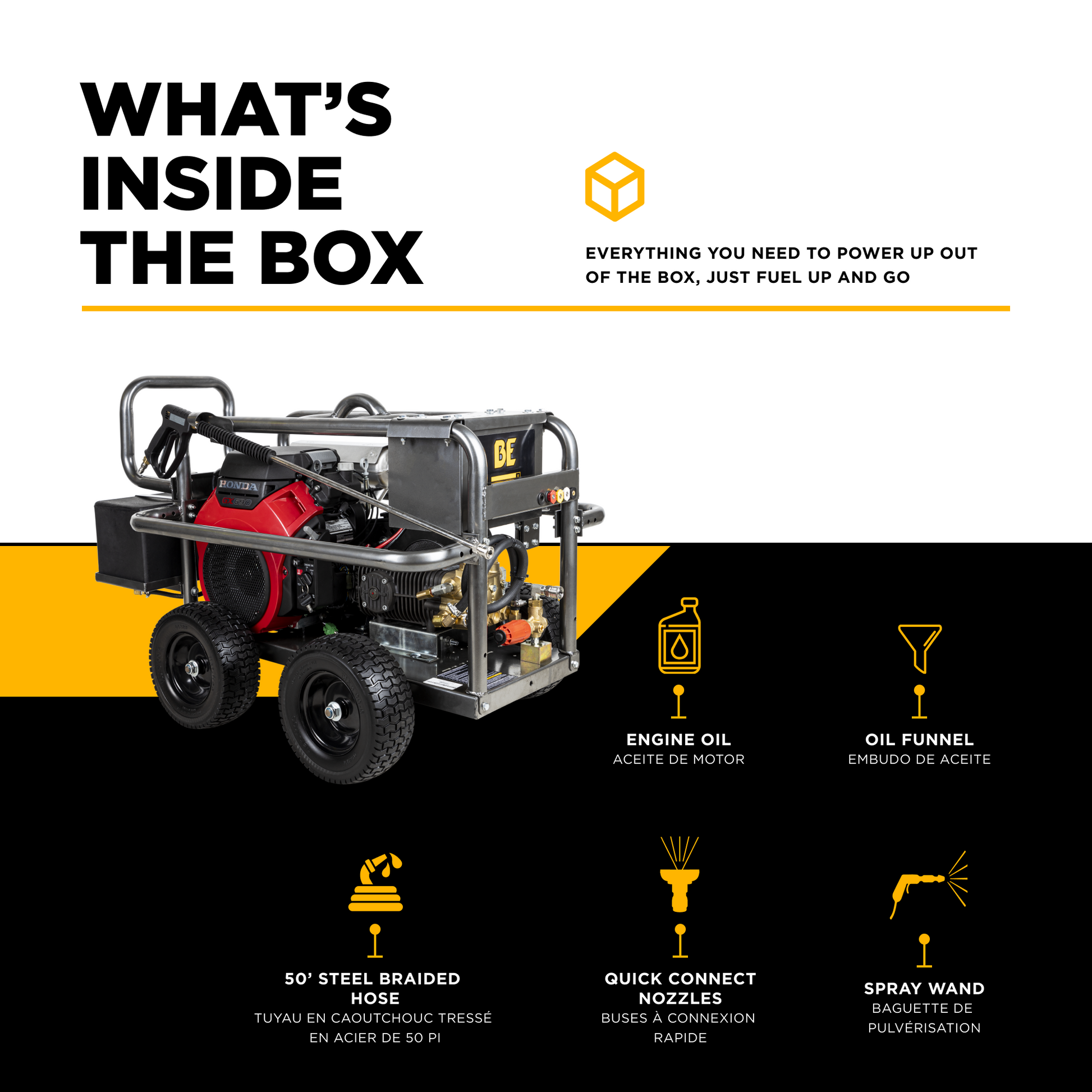

Included in the Box
- 50' x 3/8" QC Steel Braided Rubber Hose
- 36" QC Insulated Gun/Wand Assembly
- 15°, 25°, 40°, and Soaper QC Nozzles
Built for Industrial Cleaning Work
The BE Power Equipment PE-5024HWEBCOM is a contractor-class cold water gas pressure washer combining a Honda GX690 V-twin electric start engine, an industrial-grade Comet TW5050S belt drive triplex pump, and a heavy-duty roll cage frame with integrated lift point. At 5,000 PSI and 5.0 GPM, with a 406 lb roll cage build and electric start convenience, this unit is designed for the demanding fixed and semi-fixed industrial cleaning applications where standard portable units cannot deliver the same level of output and durability.
PE-5024HWEBCOM — 5,000 PSI 5.0 GPM Cold Water Gas Pressure Washer with Honda GX690 Engine and Comet Belt Drive Triplex Pump on Roll Cage Frame.
Help me Choose
|
Frame
|
204 4-Wheel Roll Cage Contractor Frame | - | - |
|
Engine
|
Honda GX690 | - | - |
|
Pump Model
|
COMET TW5050S | - | - |
|
Pump Type
|
Triplex | - | - |
|
Pump Oil Type
|
30W Non-Detergent | - | - |
|
CC
|
689 | - | - |
|
PSI
|
5,000 | - | - |
|
GPM
|
5.0 | - | - |
|
Unloader
|
External | - | - |
|
Series
|
Industrial | - | - |
|
Warranty
|
3 Years | - | - |
|
Engine Start
|
Electric | - | - |
|
Hose Length
|
50' x 3/8" QC | - | - |
|
Tires
|
12" Ultra Premium Flat-Free Wheels/Tires | - | - |
Frequently Asked Questions about Pressure Washers
How to store a pressure washer?
To ensure the durability of your heavy duty pressure washer:
- Empty the gas tank to prevent fuel from degrading or clogging the engine.
- Empty the pump and hoses of any remaining water.
- Perform necessary maintenance before storage.
- Store in a dry area.
- Cover.
What is a pressure washer?
A power washer is a cleaning machine that uses a gasoline engine to power a high pressure water pump and nozzle. It’s used to clean driveways, decks, vehicles, outdoor furniture and more by spraying water at high PSI to remove dirt, grime, mold and other debris.Many models also come with a detergent tank for added cleaning power.
How does a power washer work?
A power washer works by drawing water from a connected hose and pumping it through a high pressure nozzle. The gas engine powers the pump which pressurizes the water and then expels it through the nozzle at high speed to clean the surface. The water pressure is measured in PSI (pounds per square inch) and the flow rate is measured in GPM (gallons per minute).Many models also feature adjustable water pressure settings to cater to different cleaning needs. BE makes pressure washing easy with models available for light jobs and heavy duty commercial cleaning projects.
Gas vs Electric power washers?
The main difference is that a gas pressure washer, known for its cleaning power, is powered by a gasoline engine, making it more powerful and portable, while an electric pressure washer is powered by electricity and is generally quieter and lighter.
Gas pressure washers are for heavy duty and large areas due to their durability, whereas electric pressure washers are for smaller jobs.
Your BE electric pressure washer is perfect for smaller jobs and built for portability, and we offer a wide range of electric models. Included with our electric models is a long extension cord for use anywhere around your house.
What to consider?
When choosing a gas pressure washer consider:
- Pressure (PSI): More PSI means more cleaning power but also more potential for damaging delicate surfaces.
- Flow Rate (GPM): More GPM means faster cleaning as more water is dispensed.
- Engine Power: Bigger engines mean more durability and power.
- Portability: Weight, handle design and wheel size for easier to move.
- Nozzles: Multiple spray nozzles to adjust the spray pattern for different tasks.
- Adjustable Nozzle: Allows for fine-tuning the spray intensity and pattern for various cleaning needs.
How much pressure do I need for?
The required pressure (PSI) and cleaning power depend on the surface you’re cleaning:
- Light duty (car washing, outdoor furniture): 1,300-1,800 PSI.
- Medium duty (patios, fences, decks): 2,000-3,000 PSI.
- Heavy duty (driveways, brick walls, large equipment): 3,000+ PSI.
Many pressure washers come with adjustable pressure settings to handle different cleaning tasks effectively.
Can a pressure washing damage surfaces?
Yes, a power washer can damage surfaces if used incorrectly. High pressure water can strip paint, dent soft surfaces or even cause structural damage if the pressure is too high or the nozzle is held too close to the surface. Always use the right PSI for the material you’re cleaning and keep a safe distance from delicate surfaces.
To prevent damage, consider using a model with adjustable pressure settings.
How to maintain your pressure washer?
To ensure the durability and smooth operation of a pressure washer:
- Change the oil as per manufacturer’s instructions.
- Clean or replace the air filter to ensure good airflow.
- Inspect and clean the nozzle regularly to prevent clogs.
- Drain the gas tank if you’re storing the washer for a long time.
- Check the hoses for leaks or damage and replace them if needed.
- Follow regular maintenance requirements to keep the washer in optimal condition.
Can I use a pressure washer in cold weather and low water temperature?
You can use a pressure washer in cold weather but it’s more difficult. The water flow rate in the hoses and pump can freeze and damage the equipment. If you plan to use your pressure washer in cold temperatures make sure to winterize it and store it in a warm area when not in use. You can also use anti-freeze solutions for pressure washers.
Some models are designed to use hot water, which can be particularly effective for cleaning in cold weather.
Do I need any accessories?
Common accessories for power washers:
- Different nozzles (0°, 15°, 25°, 40°, and soap nozzle) to adjust spray patterns.
- Extension wands for hard to reach areas.
- Surface cleaners for large flat areas like driveways and decks.
- Hose reels to store hoses neatly and prevent tangling.
- Foam cannon or detergent bottles for soap or cleaning solutions.
- Detergents for cleaning a wide variety of surfaces.
