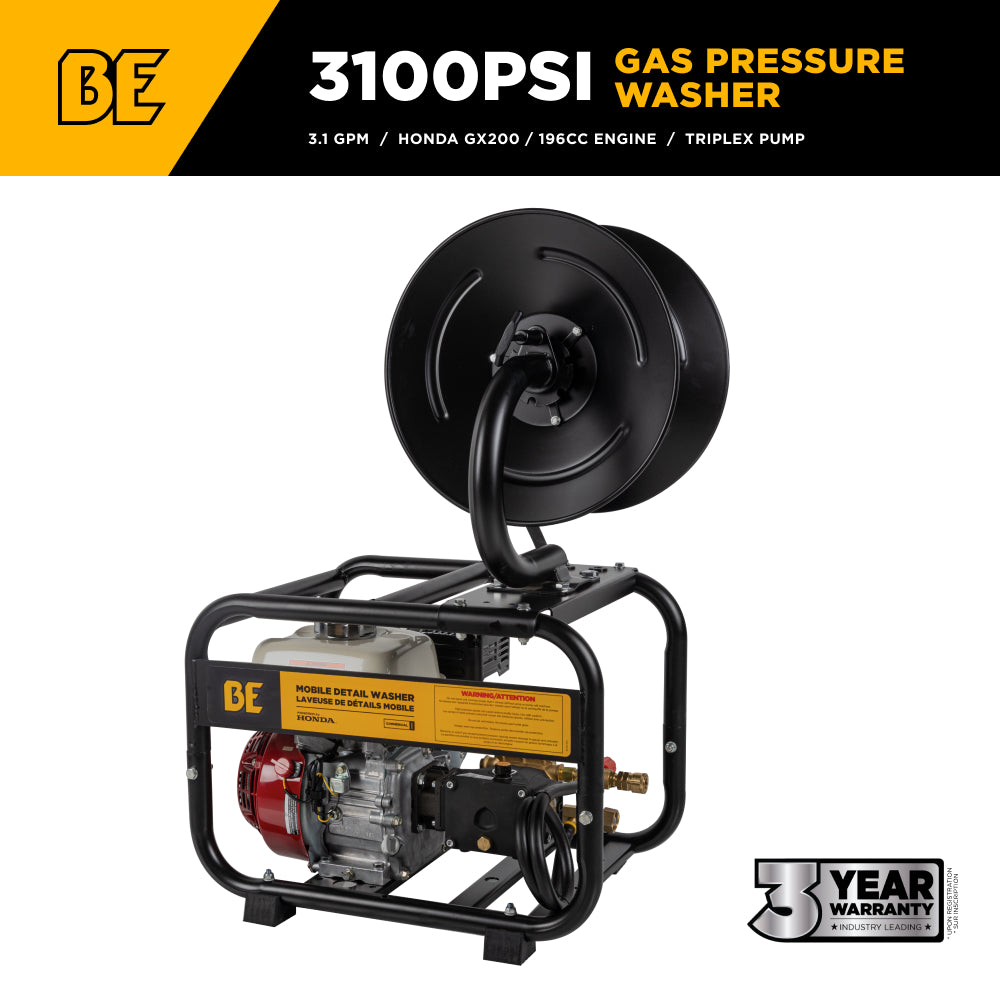

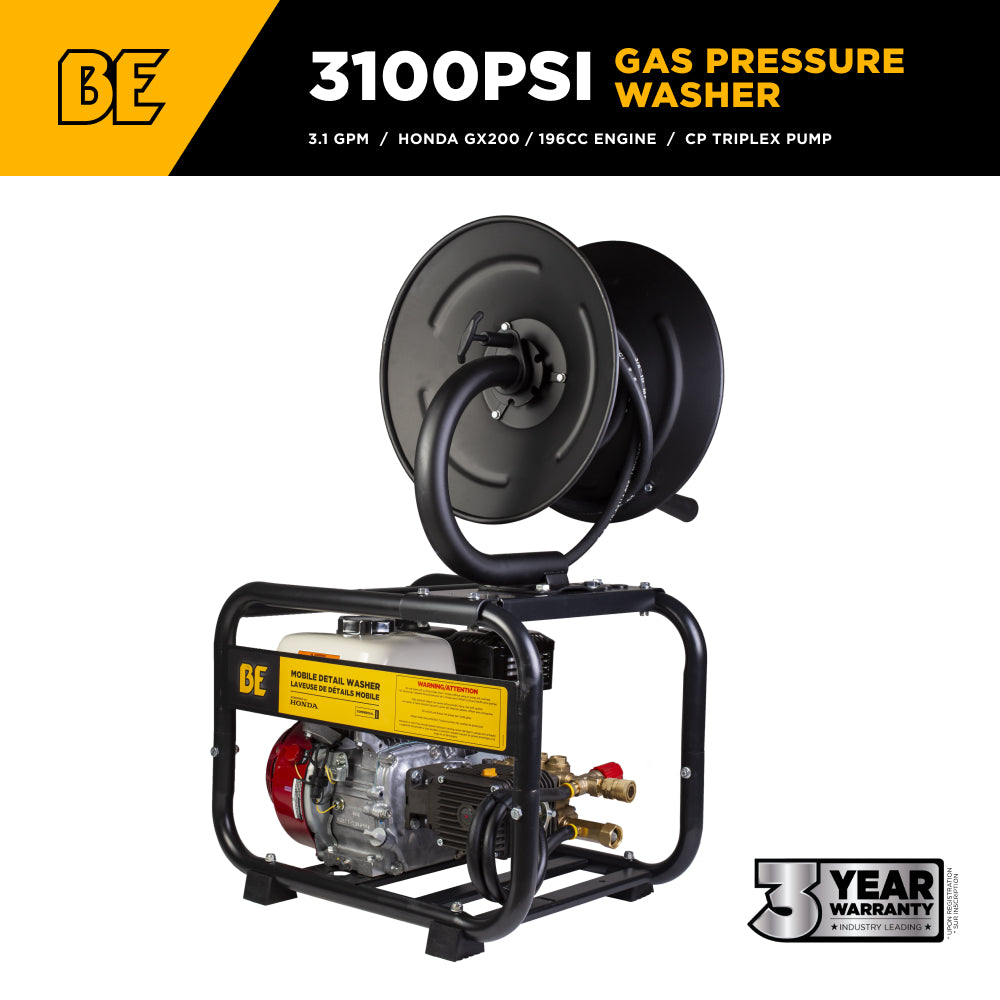

3,100 PSI 3.1 GPM Cold Water Gas Pressure Washer with Honda GX200 Engine and CP Triplex Pump on Roll Cage Frame with Hose Reel - B3165HRAS
3,100 PSI 3.1 GPM Cold Water Gas Pressure Washer with Honda GX200 Engine and CP Triplex Pump on Roll Cage Frame with Hose Reel - B3165HRAS
Couldn't load pickup availability
3100 PSI 3.1 GPM Cold Water Gas Pressure Washer Honda Gx200 Engine and Triplex Pump Roll Cage Frame with Hose Reel
Specifications
FRAME
000 Roll Cage Dealer Frame
ENGINE
Honda GX200
CC
196

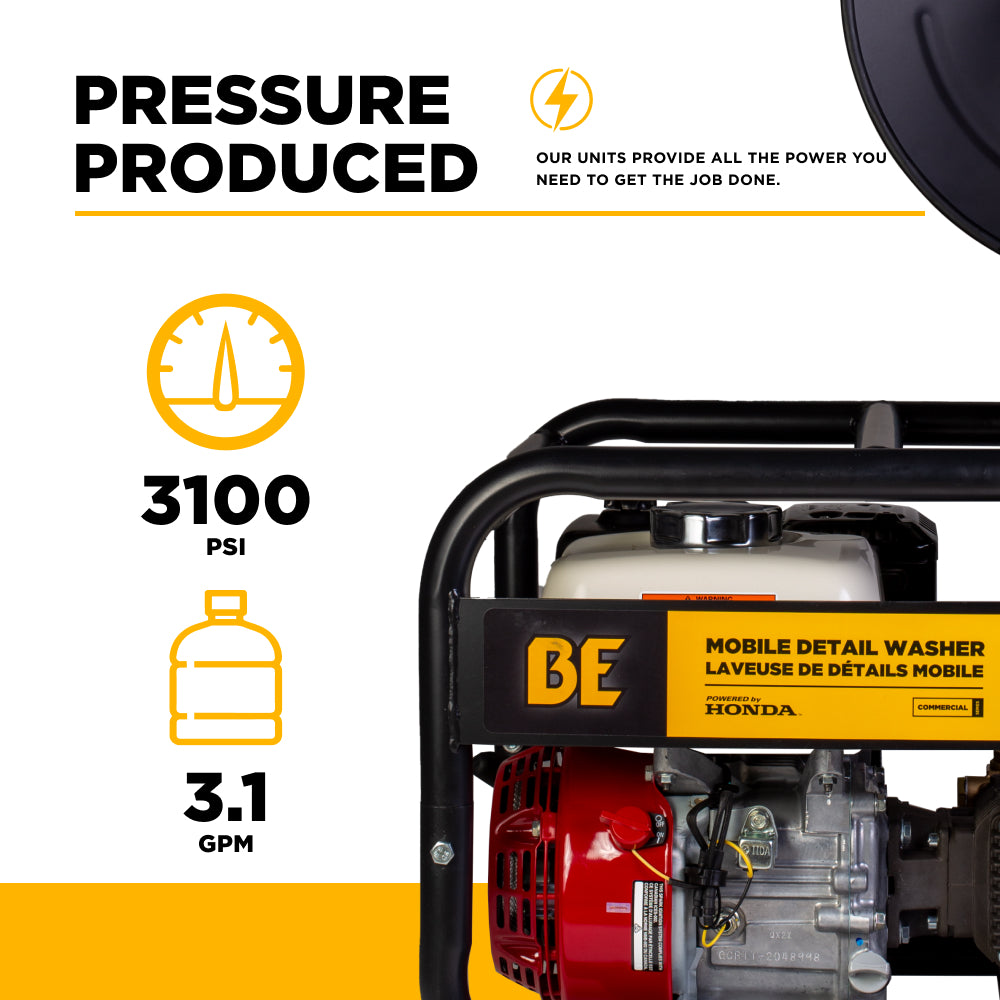

PSI
3,100
GPM
3.1
UNLOADER
External
SERIES
Commercial
WARRANTY
3 Years
Start Type
Recoil
FUEL TANK CAPACITY
3.10 L / 0.8 GAL
PUMP MODEL
Centurion Pump CTG1S
PUMP TYPE
Triplex
PUMP OIL TYPE
30W Non-Detergent
Hose Length
50' x 3/8" QC Single Wire Braided Rubber Hose
Soap Injector
Adjustable
Drive Type
Gas Direct Drive

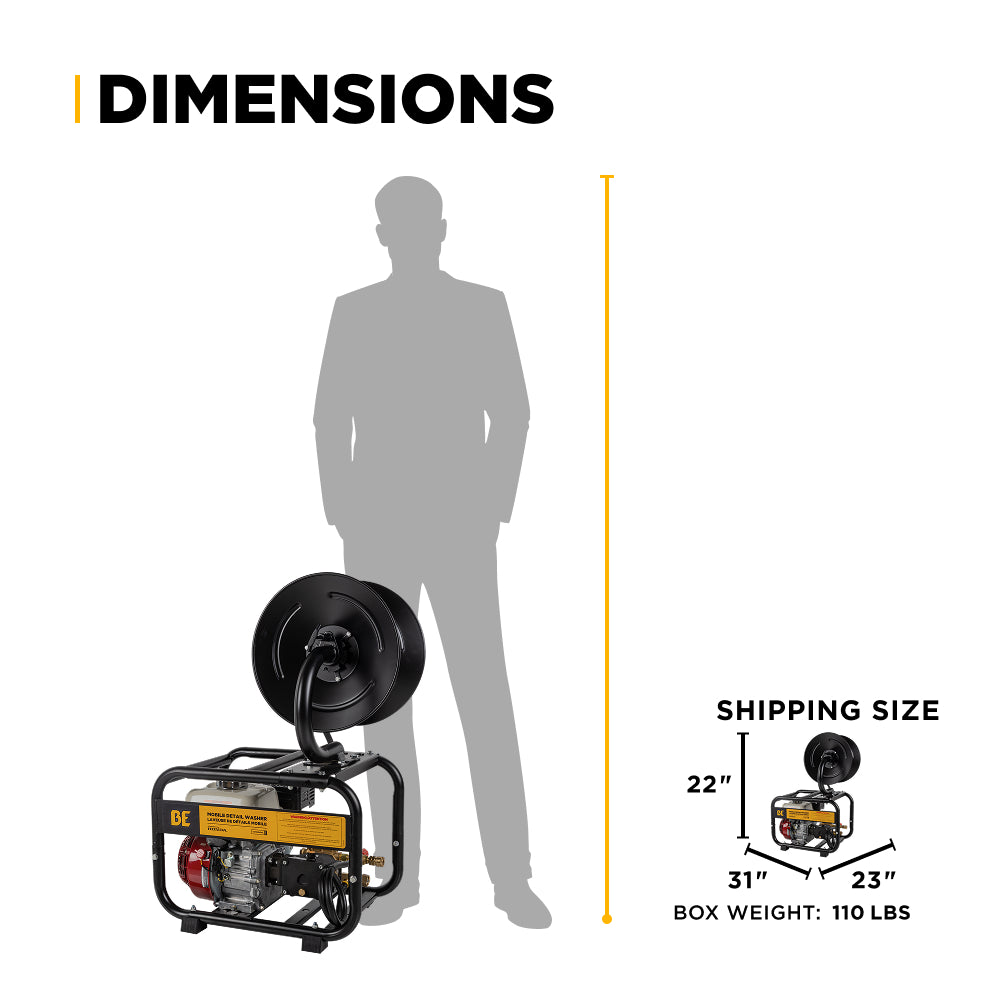

Unit Dimensions
21.0" x 21.0" x 36.0"
Weight
96 lbs / 43.5 kg
PRODUCT
DESCRIPTION
3,100 PSI 3.1 GPM Cold Water Gas Pressure Washer with Honda GX200 Engine and CP Triplex Pump on Roll Cage Frame with Hose Reel
The BE Power Equipment B3165HRAS is a 3,100 PSI 3.1 GPM commercial-grade cold water gas pressure washer built for operators who need truck- and trailer-mount capability in a compact, lightweight package. Built on a 000 Roll Cage Dealer Frame with anti-vibration pads and bolt-through mounting points, this unit is designed to bolt securely to a truck bed or utility trailer and deliver consistent cleaning performance wherever the work takes you.
Powered by a Honda GX200 196cc recoil start engine and paired with a commercial-grade CP CTG1S P3+ triplex pump with external unloader and adjustable injector, the B3165HRAS delivers 3,100 PSI and 3.1 GPM for demanding commercial cleaning tasks. At 96 lbs, it is one of the most portable truck-mount capable units in the BE lineup — light enough to reposition by hand, durable enough to run day after day in rugged environments.
The integrated hose reel keeps the included 50' x 3/8" steel braided hose organized and accessible, reducing setup time and eliminating hose tangles on the job site.
Built for Truck and Trailer Mounting
What sets the B3165HRAS apart is its mount-ready roll cage design. With heavy-duty anti-vibration pads and bolt-through mounting points, this unit mounts securely to a truck bed or utility trailer — ideal for contractors, mobile cleaning crews, and fleet service operators. The fully welded powder-coated steel roll cage protects the engine and pump from impact and wear during transit, storage, and field use. The open-frame layout allows quick access to the engine and pump for maintenance.
The B3165HRAS is also Truck Mount Ready (TMR), with an external unloader that can be set to dump-to-ground bypass to maximize pump cooling during extended operation.
Built for Demanding Commercial Cleaning Jobs
With 3,100 PSI and 3.1 GPM, the B3165HRAS is well suited for demanding commercial cleaning applications including:
- Mobile fleet washing
- Agricultural equipment cleaning
- Construction and mining equipment washdown
- Graffiti removal and surface preparation
- Facility maintenance and outdoor surface cleaning

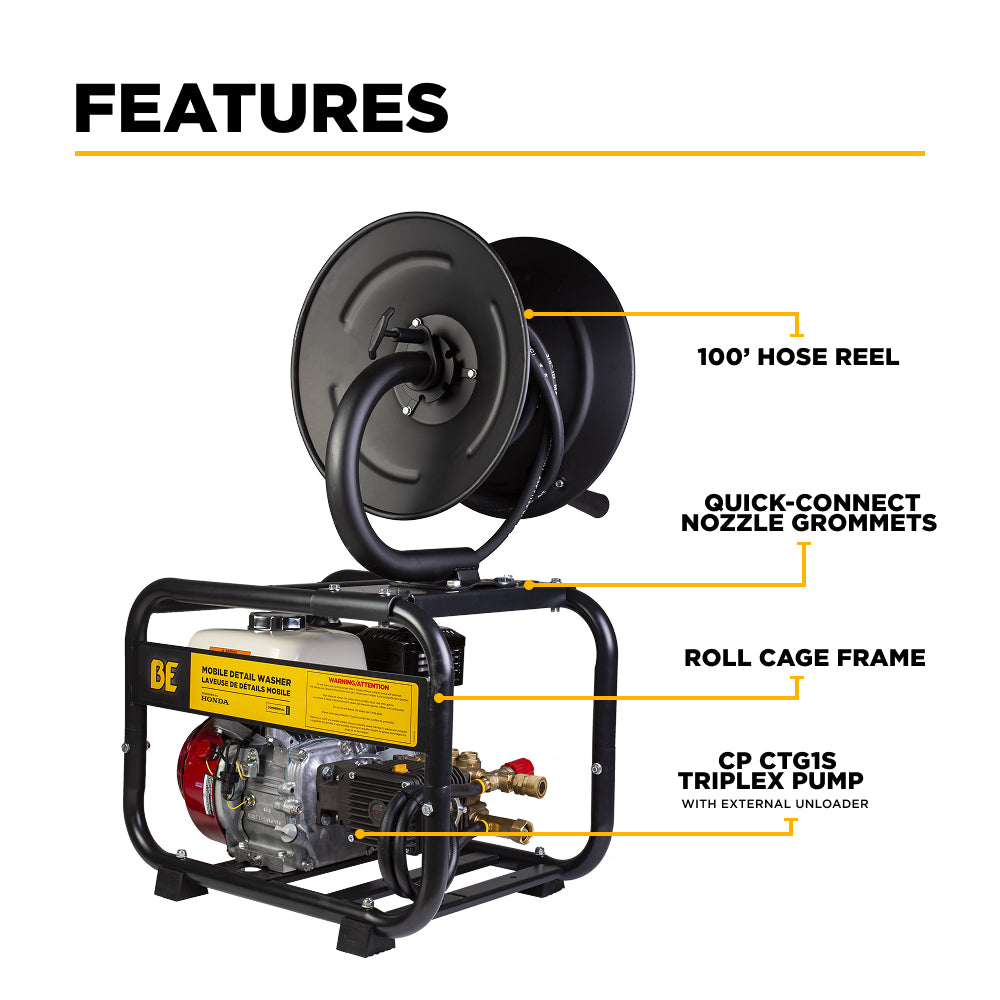

Features

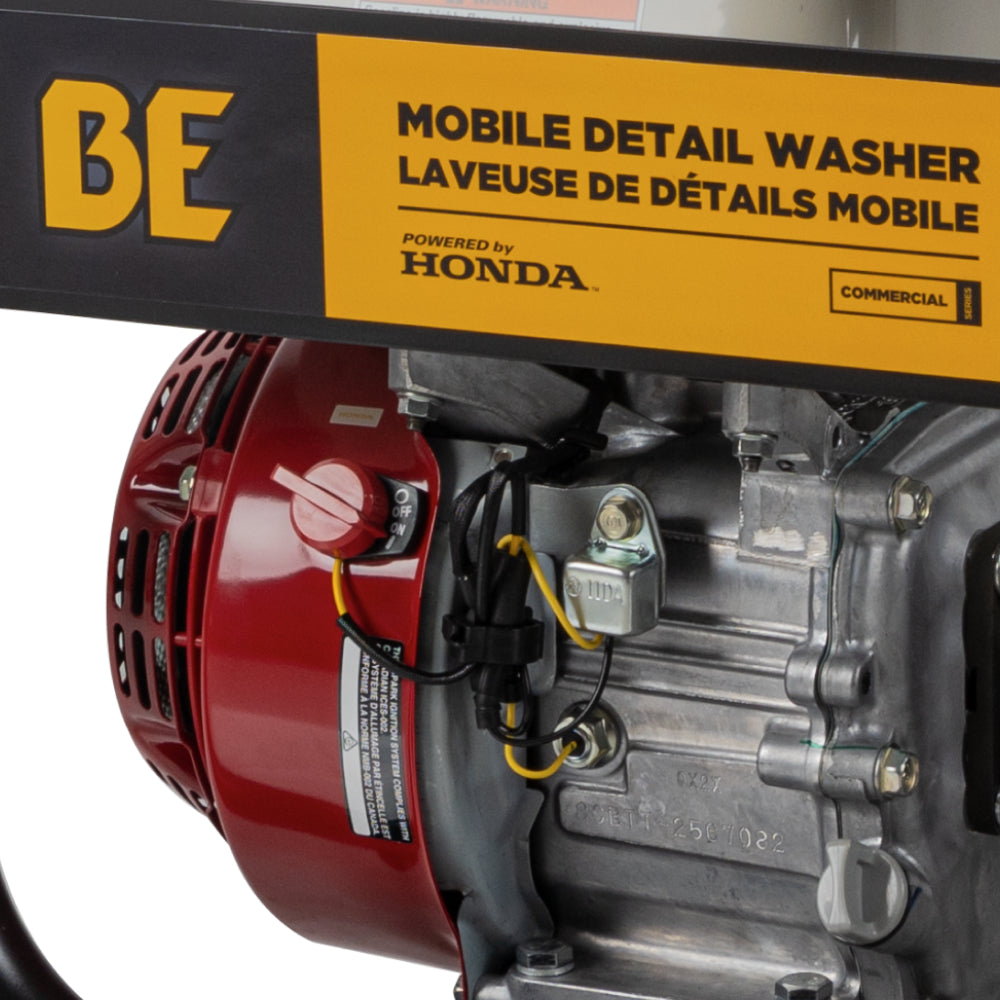

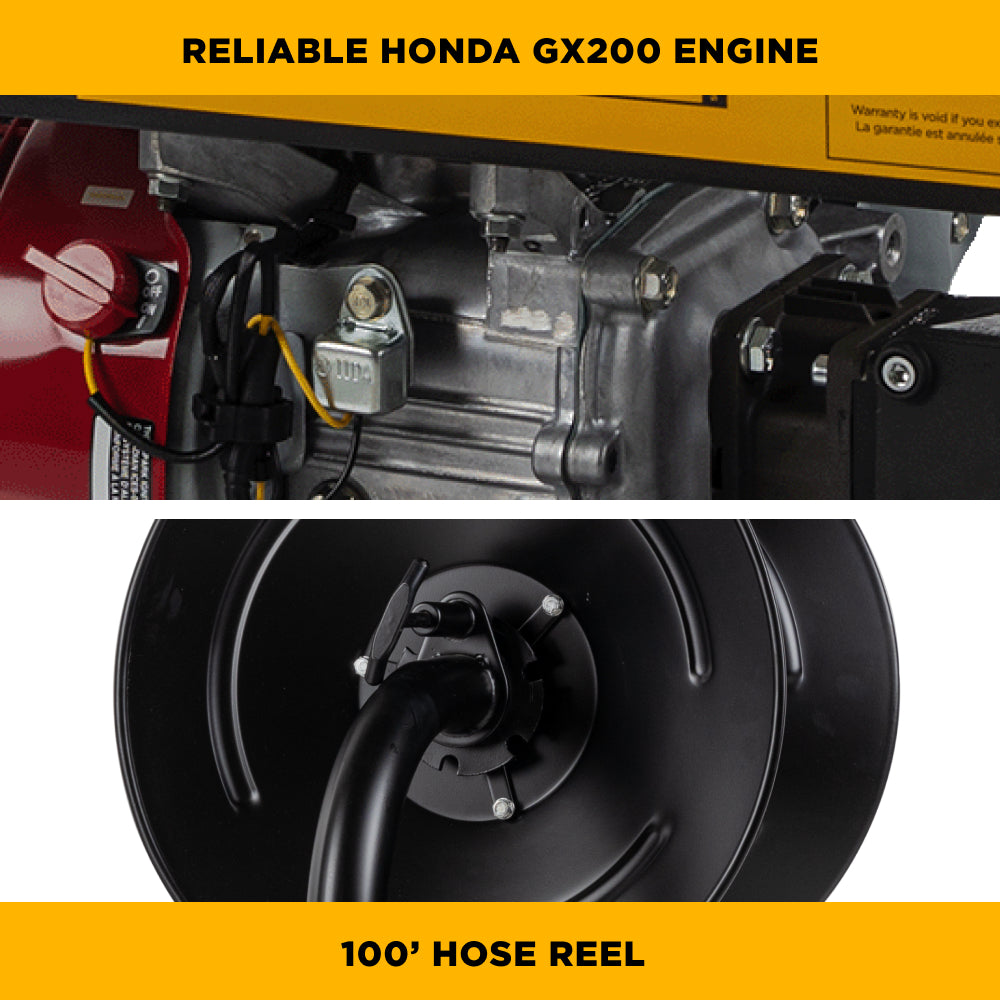

Honda GX200 Engine
At the heart of the B3165HRAS is the Honda GX200 196cc OHV recoil start engine, a commercial-duty engine trusted by professionals for its reliability, fuel efficiency, and long service life. Key engine features include:
- Recoil start with automatic decompression for easy starting
- Fuel-efficient OHV design for longer run times and lower emissions
- Automatic low-oil shutdown to protect the engine from damage
- 3.1 L fuel tank for extended operation between refueling
The Honda GX200 engine is covered under Honda's separate engine warranty program.
CP CTG1S Triplex Pump with External Unloader
Paired with the Honda engine is a commercial-grade CP CTG1S triplex pump (P3+ pump class) with an external unloader and adjustable injector. The triplex design delivers smoother pressure output and longer service life than axial pump configurations, making the B3165HRAS well suited for frequent commercial use.
The external unloader allows you to adjust operating pressure to match the surface and application, and it redirects water flow when the trigger is released, keeping the pump cool during bypass operation. The external unloader can also be set to dump-to-ground bypass to maximize pump cooling during extended idle periods. The pump includes a thermal relief valve that releases built-up heat if the unit is left running with the trigger closed for an extended period.
Adjustable Injector for Detergent Application
The B3165HRAS features an adjustable injector system, allowing you to dial in detergent concentration for different cleaning tasks — giving you greater flexibility than a fixed injector when varying chemical dilution rates are required across different surfaces or cleaning products.

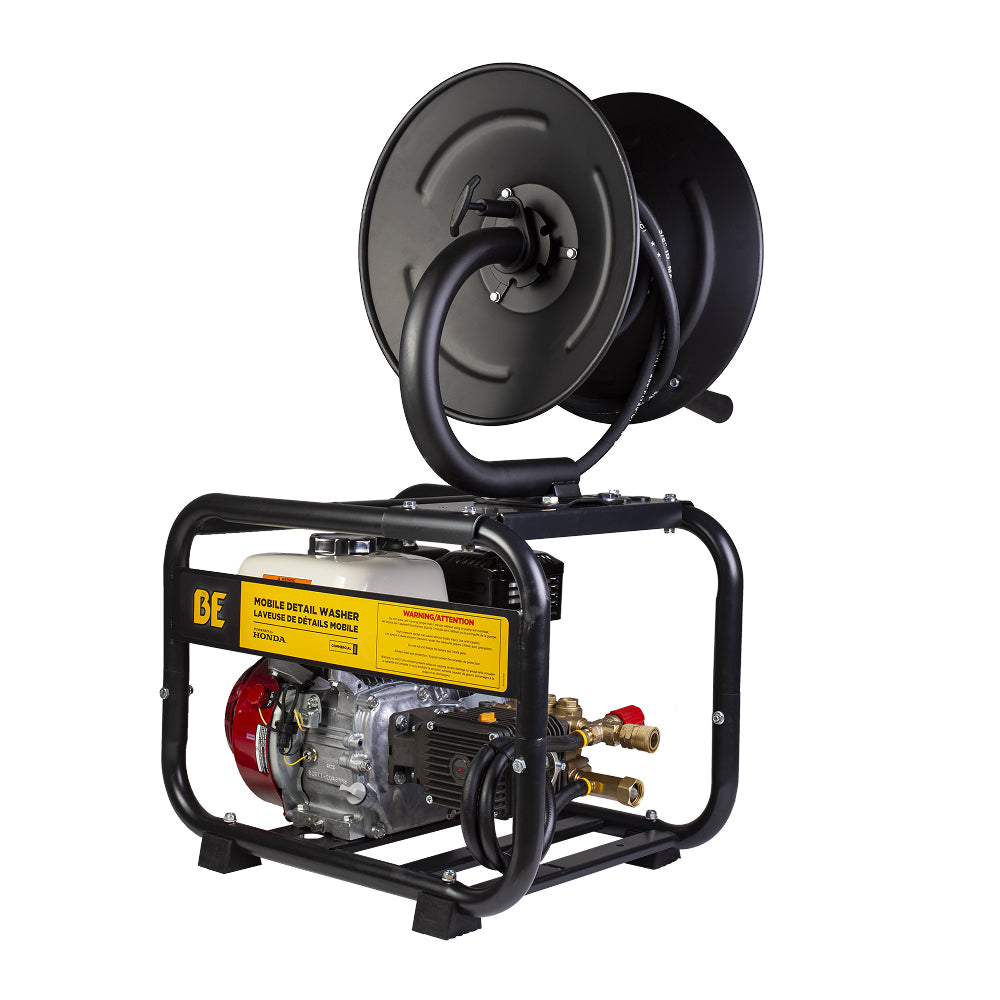

000 Roll Cage Frame with Integrated Hose Reel
The B3165HRAS is built on a 000 Roll Cage Dealer Frame, a powder-coated steel roll cage structure designed for use in rugged industrial and commercial environments. The roll cage provides full perimeter protection for the engine and pump assembly during transit, storage, and field use.
The frame includes an integrated hose reel that keeps the 50 ft. hose organized and immediately accessible. Anti-vibration pads and bolt-through mounting points allow the unit to be secured directly to a truck bed or trailer, creating a stable mobile cleaning platform.
50-Foot Steel Braided High-Pressure Hose
The B3165HRAS includes a 50' x 3/8" QC steel braided rubber hose with quick-connect fittings. The 3/8" diameter supports the 3.1 GPM flow rate of this unit, and the steel braided construction provides abrasion resistance for extended jobsite use. The hose stores on the integrated hose reel for quick deployment and tangle-free storage.
36" Insulated Gun and Wand Assembly
The included 36" QC insulated gun and wand assembly provides reach and comfort for extended cleaning sessions. The insulated wand reduces heat transfer to the operator during prolonged use, and the quick-connect system makes nozzle changes fast and straightforward.

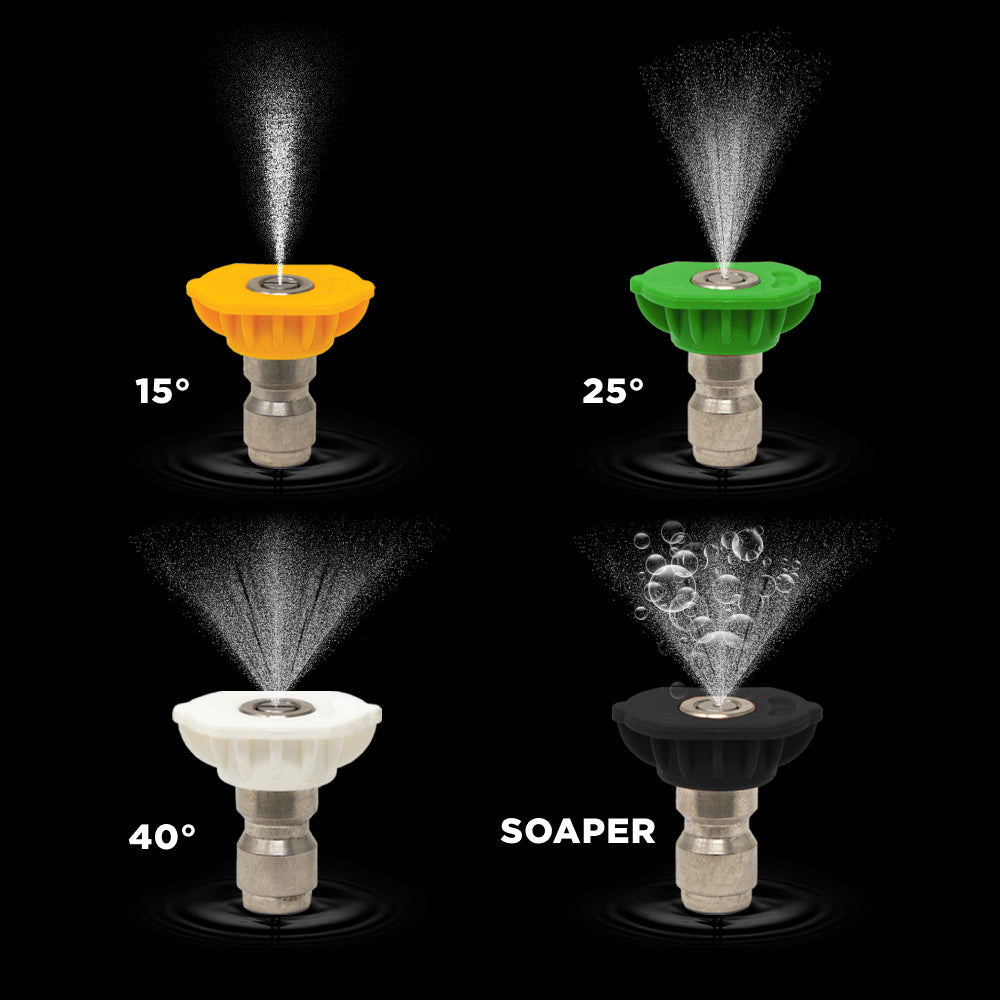

4 Quick-Connect Spray Nozzles
Four quick-connect nozzles are included to cover a range of cleaning applications:
- 15° nozzle: High-intensity spray for concrete, heavy staining, and surface preparation
- 25° nozzle: General-purpose spray for equipment and surfaces
- 40° nozzle: Wide-angle rinse for vehicles and delicate surfaces
- Soap nozzle: Low-pressure nozzle for applying detergent through the adjustable injector
Safety Features
The B3165HRAS includes several safety features to protect both the machine and the operator:
- Automatic low-oil shutdown: Shuts the engine off automatically if oil drops below a safe operating level
- Thermal relief valve: Releases built-up heat from the pump if the unit is left running with the trigger closed for an extended period
Warranty and Factory Testing
The B3165HRAS is backed by a 3-year limited warranty from BE Power Equipment. The Honda GX200 engine is covered separately under Honda's manufacturer warranty program.
Each unit is functionally tested at the factory before shipping. Your pressure washer may arrive with minimal residual oil or fuel odor, which confirms the unit has passed quality testing and is ready for use.
Product Specifications
- Pressure: 3,100 PSI
- Flow Rate: 3.1 GPM
- Engine: Honda GX200 196cc OHV, Recoil Start
- Pump: CP CTG1S Triplex, P3+ Class, External Unloader, Adjustable Injector
- Drive Type: Direct Drive
- RPM: 3,450
- Frame: 000 Roll Cage Dealer Frame, Powder-Coated Steel with Anti-Vibration Pads and Bolt-Through Mounting Points
- Hose Reel: Integrated
- Hose: 50' x 3/8" QC Steel Braided Rubber Hose
- Spray Wand: 36" QC Insulated Gun/Wand Assembly
- Nozzles: 4 Quick-Connect, 15°, 25°, 40°, and Soap
- Fuel Tank: 3.1 L / 0.8 GAL
- Engine Oil Type: 10W-30
- Pump Oil Type: 30W Non-Detergent
- Unit Weight: 96 lbs / 43.5 kg
- Unit Dimensions: 21.0" x 21.0" x 36.0"
- Series: Commercial
- Truck Mount Ready: Yes
- Safety Features: Automatic low-oil shutdown, thermal relief valve
- Warranty: 3-year limited (Honda GX200 engine covered separately by Honda)
- Factory Testing: Each unit is functionally tested before shipment. Minimal residual oil or fuel odor upon delivery is normal and confirms quality testing has been completed.

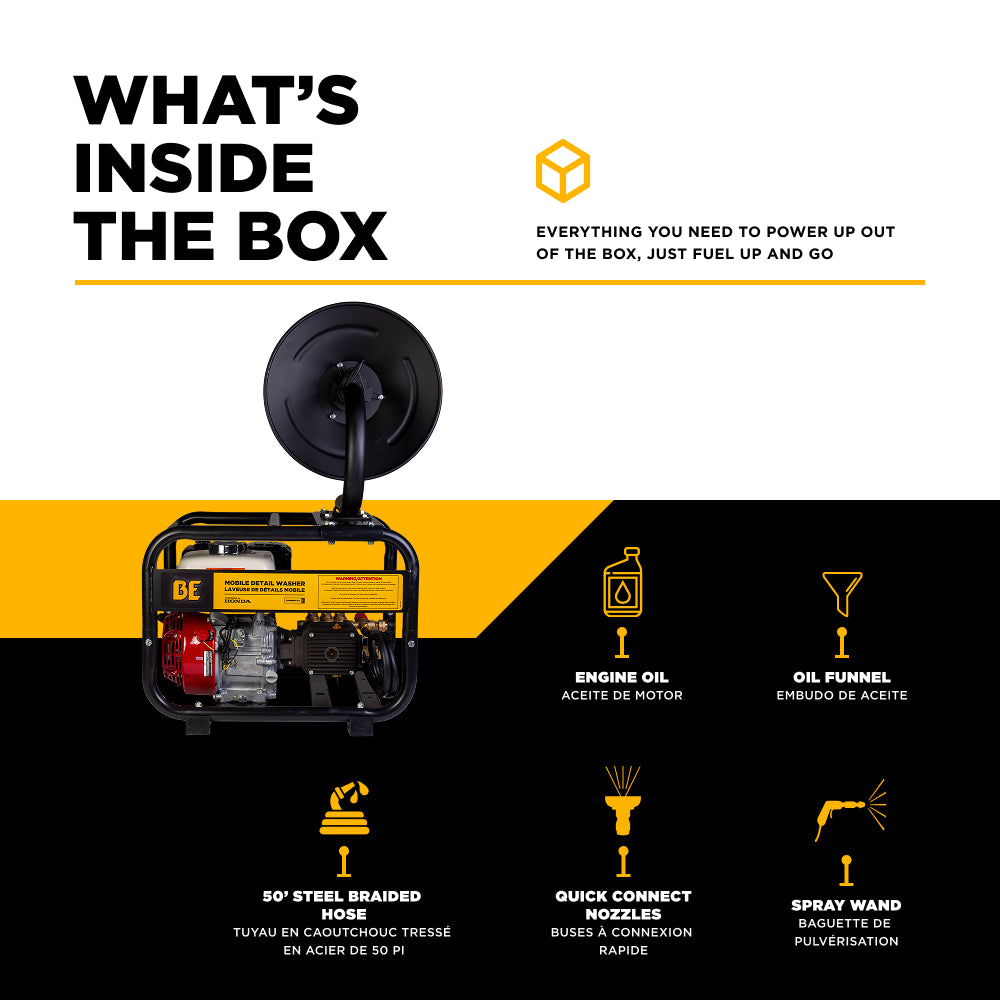

Included in the Box
- 50' x 3/8" QC Steel Braided Rubber Hose
- 36" QC Insulated Gun/Wand Assembly
- 15°, 25°, 40°, and Soaper QC Nozzles
- Engine Oil, Funnel, and Spark Plug Wrench
Built for Mobile Commercial Cleaning
The BE Power Equipment B3165HRAS delivers 3,100 PSI of commercial cleaning power in a compact 96 lb roll cage package with integrated hose reel and truck-mount capability. Powered by a proven Honda GX200 engine and a CP CTG1S P3+ triplex pump with external unloader, it combines the portability of a lightweight unit with the mount-ready durability that mobile cleaning operations demand.
B3165HRAS — 3,100 PSI 3.1 GPM Cold Water Gas Pressure Washer with Honda GX200 Engine and CP Triplex Pump on Roll Cage Frame with Hose Reel.
Help me Choose
|
Frame
|
000 Roll Cage Dealer Frame | - | - |
|
Engine
|
Honda GX200 | - | - |
|
Pump Model
|
Centurion Pump CTG1S | - | - |
|
Pump Type
|
Triplex | - | - |
|
Pump Oil Type
|
30W Non-Detergent | - | - |
|
CC
|
196 | - | - |
|
PSI
|
3,100 | - | - |
|
GPM
|
3.1 | - | - |
|
Unloader
|
External | - | - |
|
Series
|
Commercial | - | - |
|
Warranty
|
3 Years | - | - |
|
Engine Start
|
Recoil | - | - |
|
Hose Length
|
50' x 3/8" QC Single Wire Braided Rubber Hose | - | - |
Frequently Asked Questions about Pressure Washers
How to store a pressure washer?
To ensure the durability of your heavy duty pressure washer:
- Empty the gas tank to prevent fuel from degrading or clogging the engine.
- Empty the pump and hoses of any remaining water.
- Perform necessary maintenance before storage.
- Store in a dry area.
- Cover.
What is a pressure washer?
A power washer is a cleaning machine that uses a gasoline engine to power a high pressure water pump and nozzle. It’s used to clean driveways, decks, vehicles, outdoor furniture and more by spraying water at high PSI to remove dirt, grime, mold and other debris.Many models also come with a detergent tank for added cleaning power.
How does a power washer work?
A power washer works by drawing water from a connected hose and pumping it through a high pressure nozzle. The gas engine powers the pump which pressurizes the water and then expels it through the nozzle at high speed to clean the surface. The water pressure is measured in PSI (pounds per square inch) and the flow rate is measured in GPM (gallons per minute).Many models also feature adjustable water pressure settings to cater to different cleaning needs. BE makes pressure washing easy with models available for light jobs and heavy duty commercial cleaning projects.
Gas vs Electric power washers?
The main difference is that a gas pressure washer, known for its cleaning power, is powered by a gasoline engine, making it more powerful and portable, while an electric pressure washer is powered by electricity and is generally quieter and lighter.
Gas pressure washers are for heavy duty and large areas due to their durability, whereas electric pressure washers are for smaller jobs.
Your BE electric pressure washer is perfect for smaller jobs and built for portability, and we offer a wide range of electric models. Included with our electric models is a long extension cord for use anywhere around your house.
What to consider?
When choosing a gas pressure washer consider:
- Pressure (PSI): More PSI means more cleaning power but also more potential for damaging delicate surfaces.
- Flow Rate (GPM): More GPM means faster cleaning as more water is dispensed.
- Engine Power: Bigger engines mean more durability and power.
- Portability: Weight, handle design and wheel size for easier to move.
- Nozzles: Multiple spray nozzles to adjust the spray pattern for different tasks.
- Adjustable Nozzle: Allows for fine-tuning the spray intensity and pattern for various cleaning needs.
How much pressure do I need for?
The required pressure (PSI) and cleaning power depend on the surface you’re cleaning:
- Light duty (car washing, outdoor furniture): 1,300-1,800 PSI.
- Medium duty (patios, fences, decks): 2,000-3,000 PSI.
- Heavy duty (driveways, brick walls, large equipment): 3,000+ PSI.
Many pressure washers come with adjustable pressure settings to handle different cleaning tasks effectively.
Can a pressure washing damage surfaces?
Yes, a power washer can damage surfaces if used incorrectly. High pressure water can strip paint, dent soft surfaces or even cause structural damage if the pressure is too high or the nozzle is held too close to the surface. Always use the right PSI for the material you’re cleaning and keep a safe distance from delicate surfaces.
To prevent damage, consider using a model with adjustable pressure settings.
How to maintain your pressure washer?
To ensure the durability and smooth operation of a pressure washer:
- Change the oil as per manufacturer’s instructions.
- Clean or replace the air filter to ensure good airflow.
- Inspect and clean the nozzle regularly to prevent clogs.
- Drain the gas tank if you’re storing the washer for a long time.
- Check the hoses for leaks or damage and replace them if needed.
- Follow regular maintenance requirements to keep the washer in optimal condition.
Can I use a pressure washer in cold weather and low water temperature?
You can use a pressure washer in cold weather but it’s more difficult. The water flow rate in the hoses and pump can freeze and damage the equipment. If you plan to use your pressure washer in cold temperatures make sure to winterize it and store it in a warm area when not in use. You can also use anti-freeze solutions for pressure washers.
Some models are designed to use hot water, which can be particularly effective for cleaning in cold weather.
Do I need any accessories?
Common accessories for power washers:
- Different nozzles (0°, 15°, 25°, 40°, and soap nozzle) to adjust spray patterns.
- Extension wands for hard to reach areas.
- Surface cleaners for large flat areas like driveways and decks.
- Hose reels to store hoses neatly and prevent tangling.
- Foam cannon or detergent bottles for soap or cleaning solutions.
- Detergents for cleaning a wide variety of surfaces.
