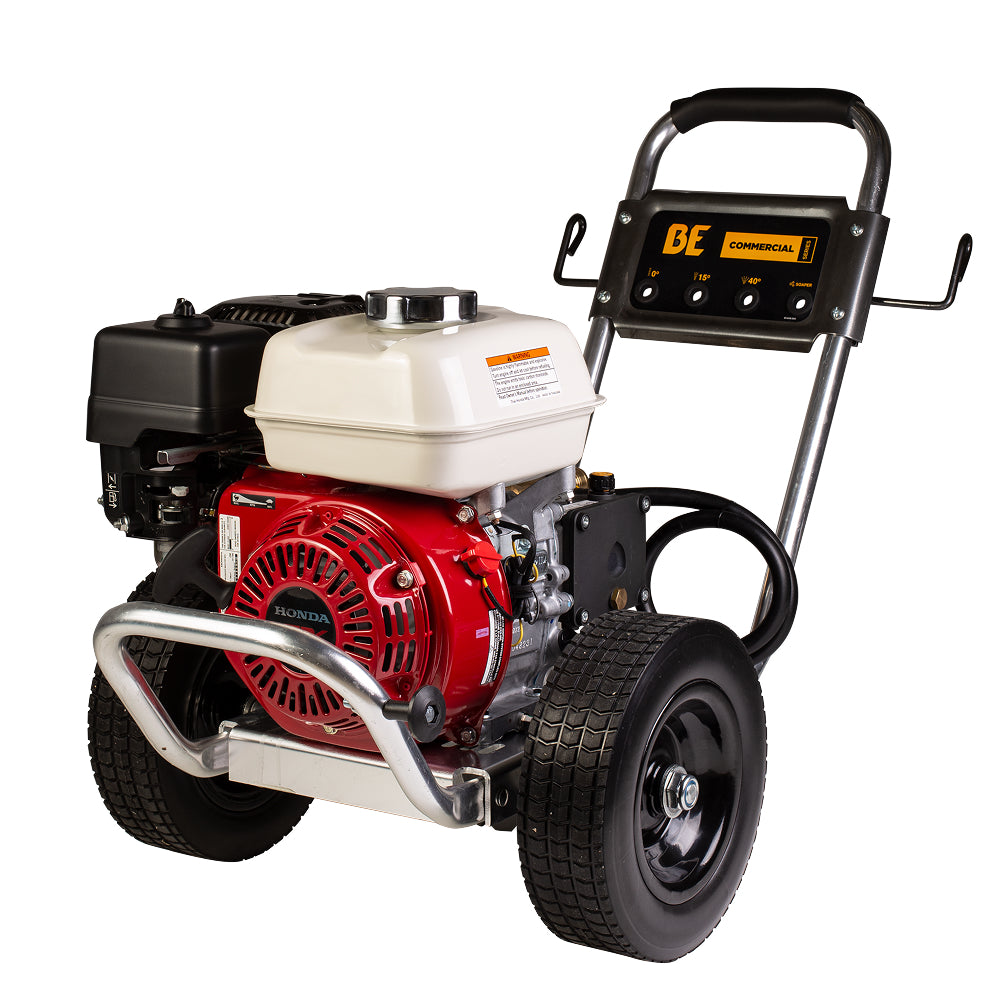

3,100 PSI 3.1 GPM Cold Water Gas Pressure Washer with Honda GX200 Engine and CP Triplex Pump on Aluminum Frame - B3165HAAS
3,100 PSI 3.1 GPM Cold Water Gas Pressure Washer with Honda GX200 Engine and CP Triplex Pump on Aluminum Frame - B3165HAAS
Couldn't load pickup availability
Specifications
FRAME
116 Aluminum Dealer Frame
ENGINE
Honda GX200
CC
196
PSI
3,100
GPM
3.1
UNLOADER
External
SERIES
Commercial
WARRANTY
3 Years
Start Type
Recoil
FUEL TANK CAPACITY
3.10 L / 0.8 GAL
PUMP MODEL
CP CTG1S
PUMP TYPE
Triplex
PUMP OIL TYPE
30W (Non-Detergent)
Hose Length
50' x 3/8" QC Single Wire Braided Rubber Hose
Tires
10" Premium Flat-Free Wheels/Tires
Soap Injector
Adjustable
Drive Type
Gas Belt Drive

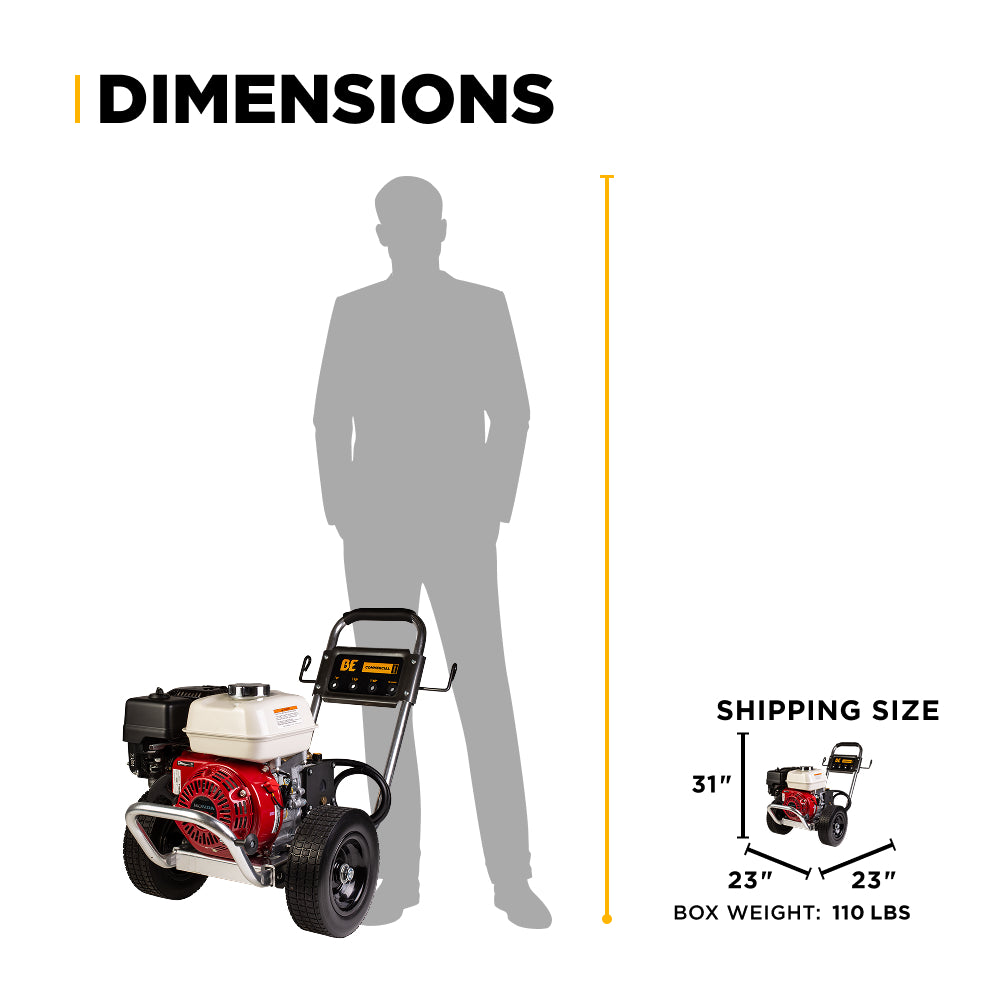

Unit Dimensions
21.0" x 21.0" x 36.0"
Weight
105 lbs
PRODUCT
DESCRIPTION

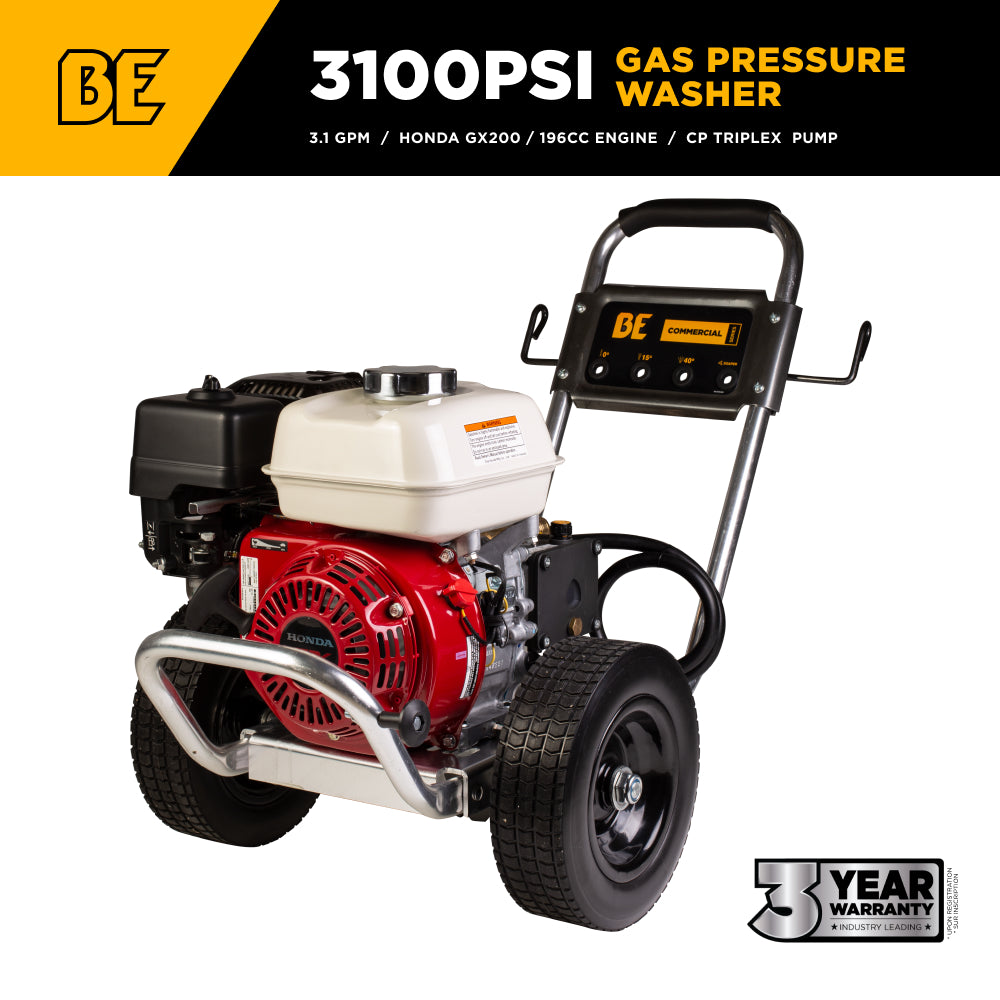

3,100 PSI 3.1 GPM Cold Water Gas Pressure Washer with Honda GX200 Engine and CP Triplex Pump on Aluminum Frame
The BE Power Equipment B3165HAAS is a commercial-grade cold water gas pressure washer delivering 3,100 PSI at 3.1 GPM, combining a proven Honda GX200 196cc engine with a commercial-grade CP CTG1S P3+ triplex pump on a 116 Aluminum Dealer Frame. Built for rough environments and long work days, this unit is designed for operators who want reliable cleaning performance in a frame material that provides superior corrosion resistance and reduced machine weight.
The aluminum frame resists corrosion more effectively than powder-coated steel over time, particularly in environments with regular water exposure, chemical contact, or outdoor conditions. Whether you're cleaning concrete driveways, vinyl siding, wooden decks, dirty trailers, or farm equipment, the B3165HAAS gives you the power and durability to get the job done.
Built for Serious Outdoor Cleaning
The B3165HAAS is built to tackle tough outdoor cleaning without slowing down. It is well suited for:
- Cleaning home exteriors including siding, decks, driveways, and fences
- Stripping paint and cleaning masonry
- Vehicle, trailer, and equipment washing
- Farm and agricultural equipment cleaning
- Concrete and hard surface cleaning
- Construction site cleanup and surface preparation

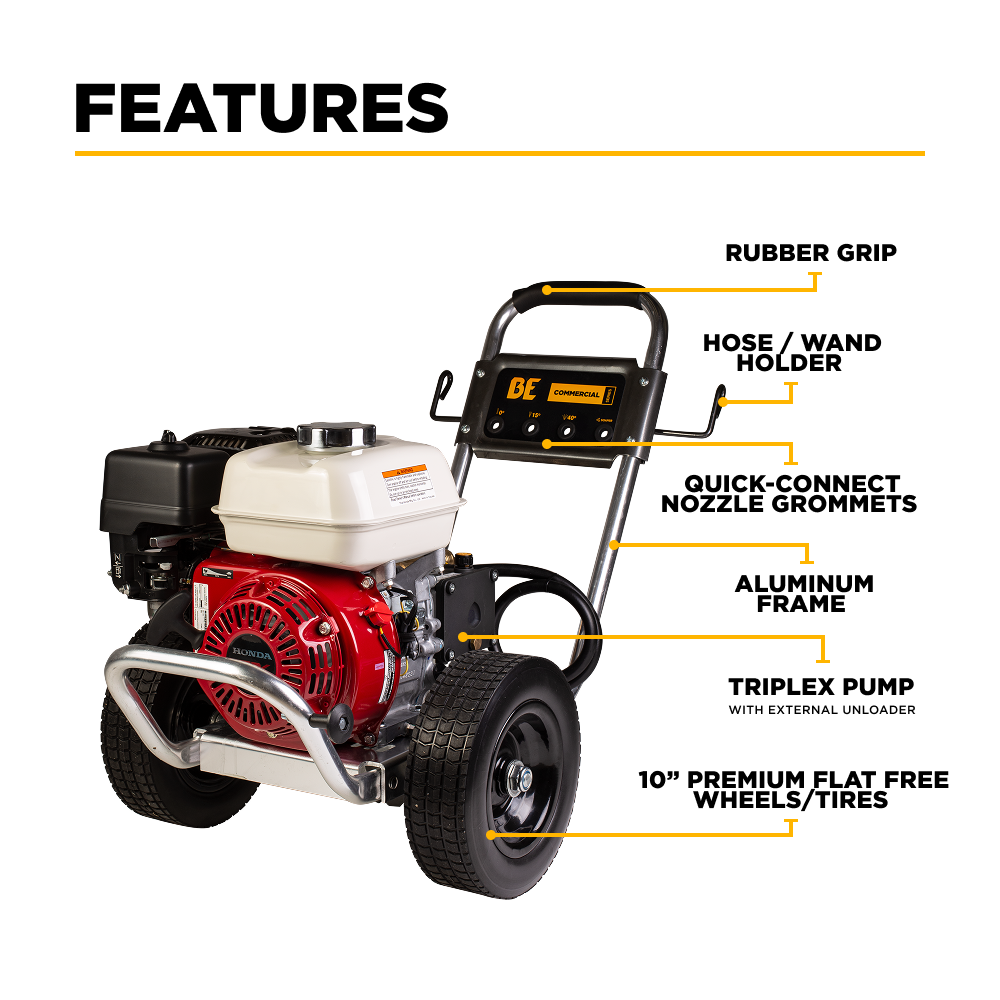

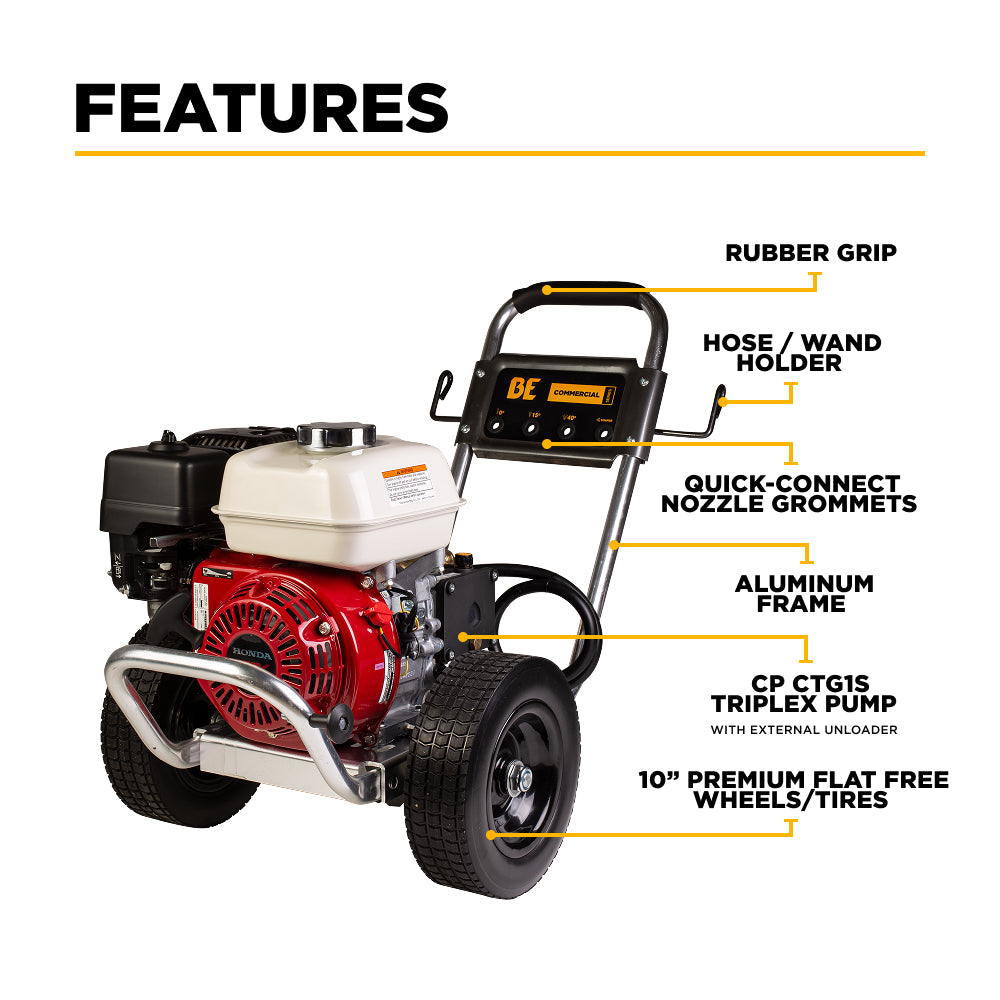

Features

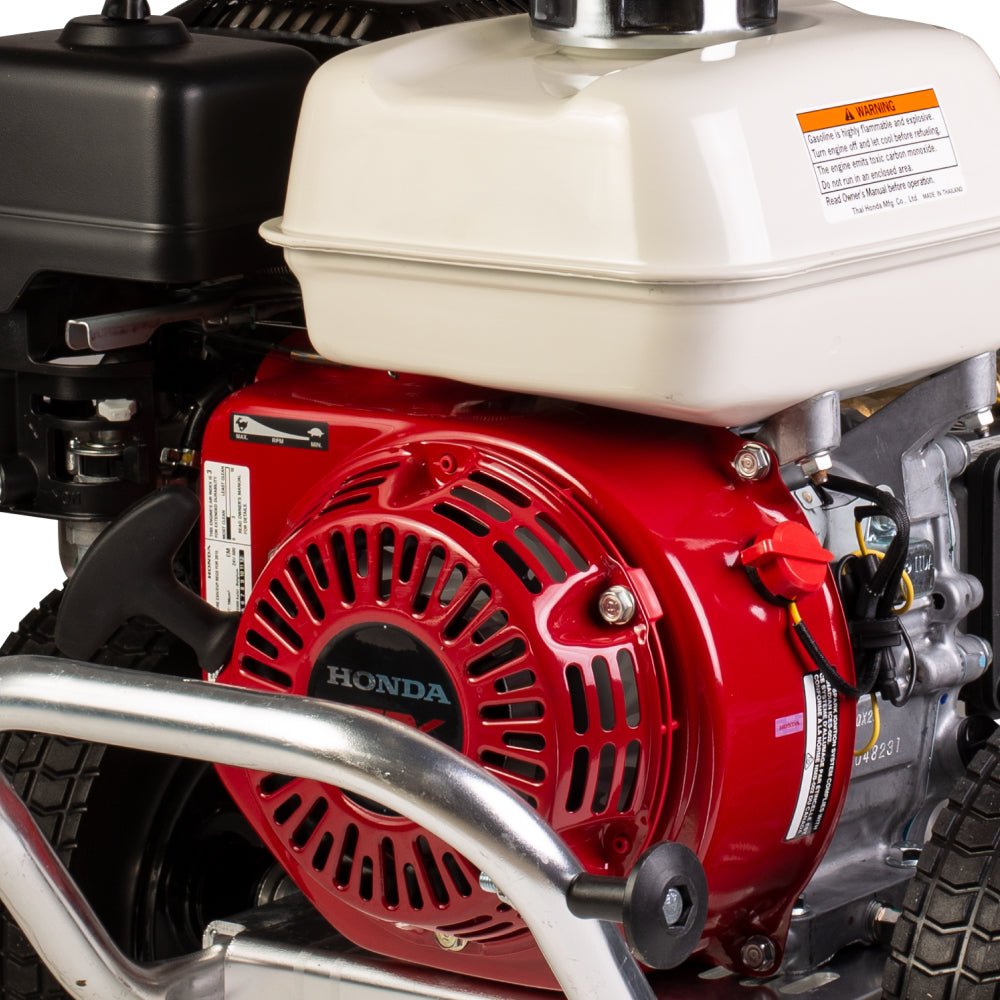

Honda GX200 Engine
The B3165HAAS is powered by the Honda GX200 196cc OHV recoil start engine, a commercial-grade engine known for reliable starting, fuel efficiency, and long service life. Key engine features include:
- Reliable recoil start in all weather conditions
- High output with low vibration
- Fuel-efficient OHV design for longer run times
- Automatic low-oil shutdown to protect the engine from damage
- 3.1 L / 0.8 GAL fuel tank for extended operation between refueling
The Honda GX200 engine is covered under Honda's separate engine warranty program.

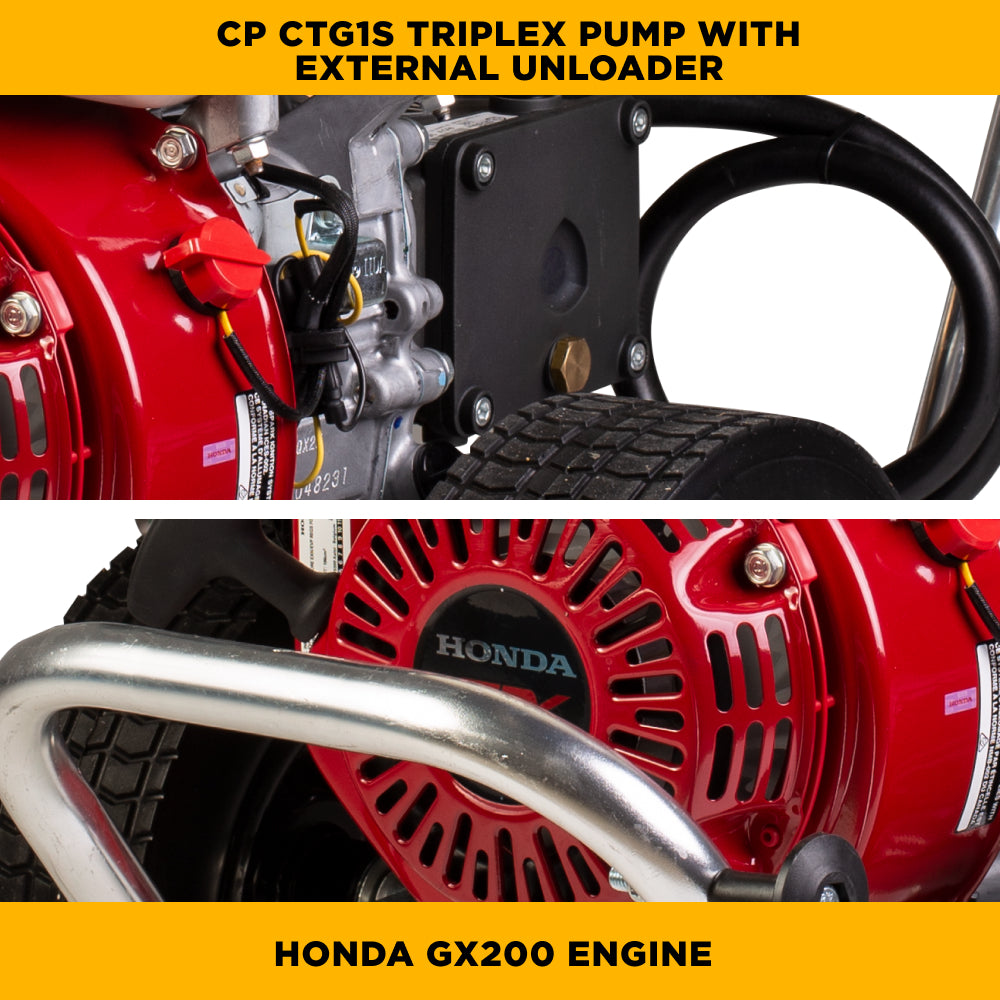

Commercial-Grade CP CTG1S Triplex Pump with External Unloader
Paired with the Honda engine is a commercial-grade CP CTG1S P3+ triplex pump with external unloader and adjustable injector. The triplex design delivers smoother pressure output and longer service life than axial pump configurations, making the B3165HAAS well suited for regular commercial cleaning use. Key pump features include:
- P3+ commercial pump class for high-frequency cleaning applications
- Thermal relief valve to prevent pump damage during extended idle periods
- Smooth, consistent pressure delivery at 3,100 PSI
External Unloader with Adjustable Injector
The external unloader regulates water pressure and keeps the pump cool in bypass mode, extending component life and performance. The adjustable injector allows detergent concentration to be set to match different surfaces and cleaning products, giving you greater flexibility than a fixed injector configuration.
116 Aluminum Dealer Frame
The B3165HAAS is built on the 116 Aluminum Dealer Frame — a hand-truck style platform constructed from aluminum rather than powder-coated carbon steel. Aluminum provides superior corrosion resistance in environments with regular water exposure, chemical contact, or high humidity, and reduces overall machine weight. The frame includes onboard storage for the hose, wand, and nozzles, with stabilizing feet for steady operation.
50-Foot x 3/8" Steel Braided High-Pressure Hose
The included 50' x 3/8" QC single wire braided rubber hose provides durability and extended reach for cleaning large areas without repositioning the machine. The 3/8" diameter supports the full 3.1 GPM flow rate of this unit.
36" Insulated Spray Wand and Trigger Gun
The included 36" QC insulated spray wand provides reach and control for high, low, and hard-to-reach cleaning angles. The insulated design reduces heat transfer to the operator during prolonged use, and the quick-connect system makes nozzle changes fast and straightforward.

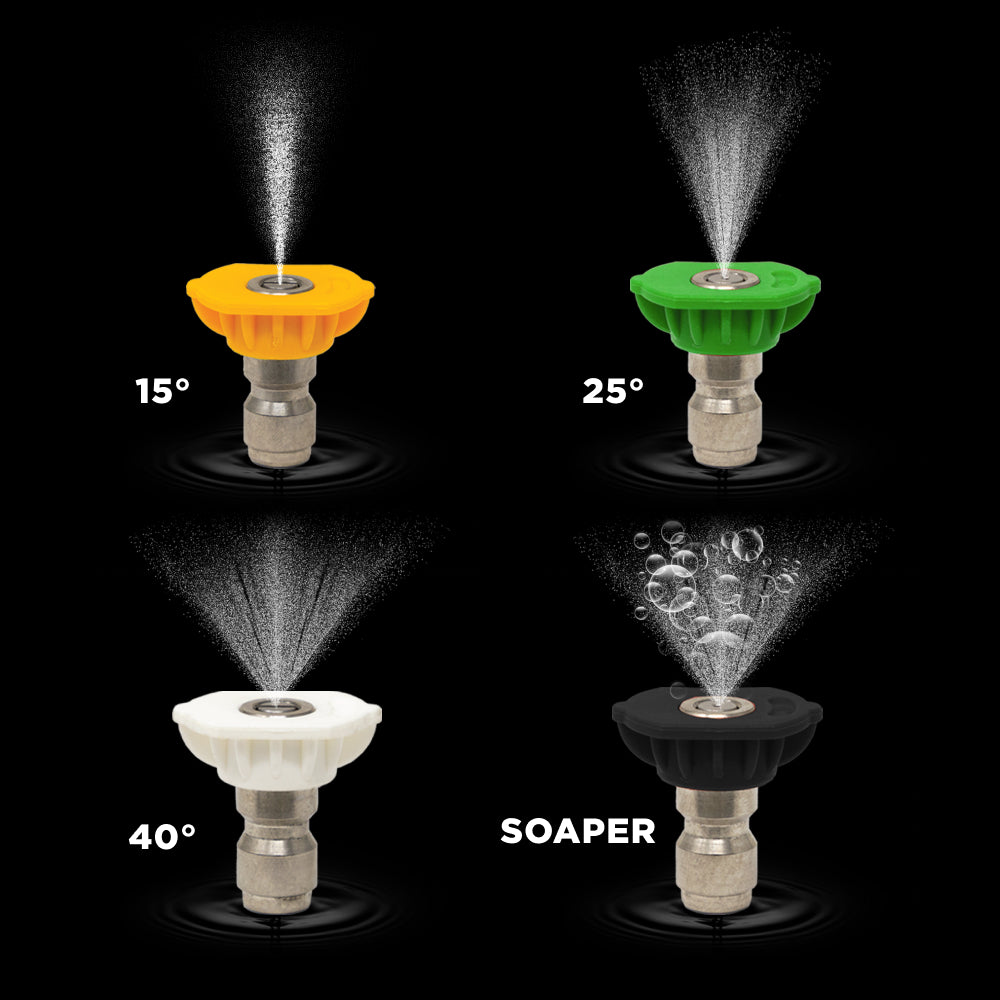

4 Quick-Connect Spray Nozzles
Four quick-connect nozzles cover a full range of cleaning applications:
- 15°: Heavy-duty cleaning and surface stripping
- 25°: General-purpose washing
- 40°: Rinsing or cleaning delicate surfaces
- Soap: Applying detergents and degreasers through the adjustable injector
10" Premium Flat-Free Tires
The 10" Premium flat-free tires are designed to roll over rough terrain, gravel, and jobsite debris without requiring air inflation — no flats, no downtime.
Safety Features
- Automatic low-oil shutdown: Turns off the engine if oil drops below a safe operating level
- Thermal relief valve: Releases built-up heat from the pump during extended idle periods
Warranty and Factory Testing
The B3165HAAS is backed by a 3-year limited warranty from BE Power Equipment. The Honda GX200 engine is covered separately under Honda's manufacturer warranty program.
Each unit is functionally tested at the factory before shipping. Your pressure washer may arrive with minimal residual oil or fuel odor, which confirms the unit has passed quality testing and is ready for use.
Product Specifications

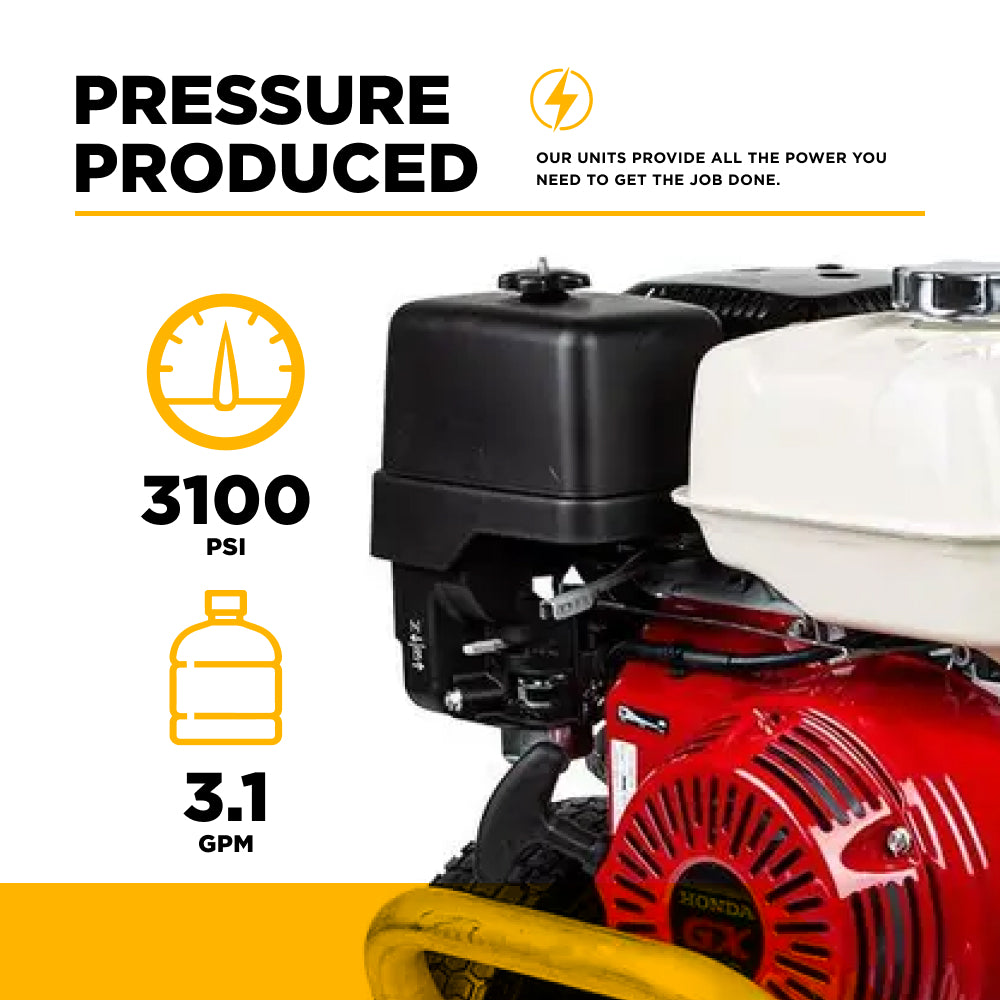

- Pressure: 3,100 PSI
- Flow Rate: 3.1 GPM
- Engine: Honda GX200 196cc OHV, Recoil Start
- Pump: CP CTG1S Triplex, P3+ Class, External Unloader, Adjustable Injector
- Drive Type: Gas Direct Drive
- RPM: 3,450
- Frame: 116 Aluminum Dealer Frame with Onboard Accessory Storage
- Hose: 50' x 3/8" QC Single Wire Braided Rubber Hose
- Spray Wand: 36" QC Insulated Gun/Wand Assembly
- Nozzles: 4 Quick-Connect, 15°, 25°, 40°, and Soap
- Wheels: 10" Premium Flat-Free Tires
- Fuel Tank: 3.1 L / 0.8 GAL
- Engine Oil Type: 10W-30
- Pump Oil Type: 30W Non-Detergent
- Unit Weight: 105 lbs / 47.6 kg
- Unit Dimensions: 21.0" x 21.0" x 36.0"
- Series: Commercial
- Safety Features: Automatic low-oil shutdown, thermal relief valve
- Warranty: 3-year limited (Honda GX200 engine covered separately by Honda)
- Factory Testing: Each unit is functionally tested before shipment. Minimal residual oil or fuel odor upon delivery is normal and confirms quality testing has been completed.

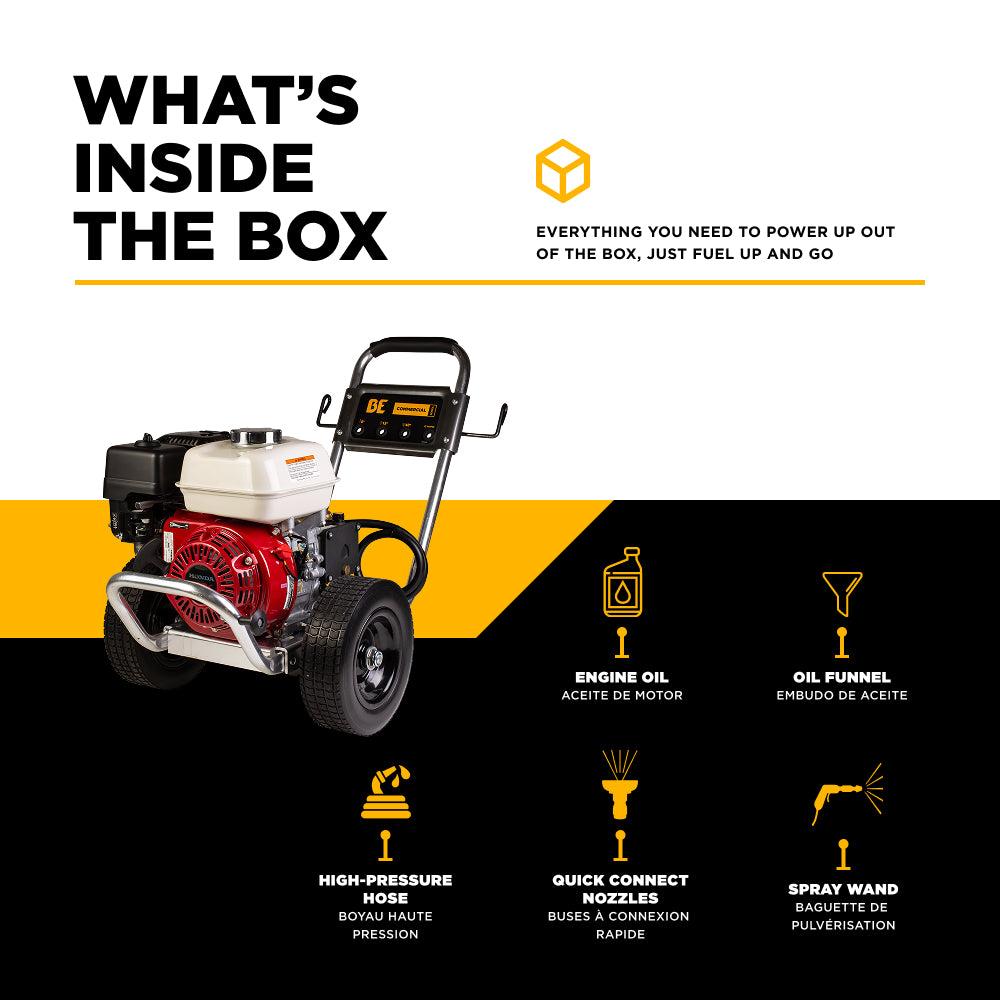

Included in the Box
- 50' x 3/8" QC Single Wire Braided Rubber Hose
- 36" QC Insulated Gun/Wand Assembly
- 15°, 25°, 40°, and Soaper QC Nozzles
- Engine Oil, Funnel, and Spark Plug Wrench
Built to Last — Trusted by Professionals
The BE Power Equipment B3165HAAS combines a proven Honda GX200 196cc engine, a commercial-grade CP CTG1S P3+ triplex pump with external unloader and adjustable injector, and a corrosion-resistant aluminum frame into a reliable, mobile cleaning platform. Whether you're maintaining your own property or running a mobile pressure washing operation, the B3165HAAS is built for the demands of regular commercial use.
B3165HAAS — 3,100 PSI 3.1 GPM Cold Water Gas Pressure Washer with Honda GX200 Engine and CP Triplex Pump on Aluminum Frame.
Help me Choose
|
Frame
|
116 Aluminum Dealer Frame | - | - |
|
Engine
|
Honda GX200 | - | - |
|
Pump Model
|
CP CTG1S | - | - |
|
Pump Type
|
Triplex | - | - |
|
Pump Oil Type
|
30W (Non-Detergent) | - | - |
|
CC
|
196 | - | - |
|
PSI
|
3,100 | - | - |
|
GPM
|
3.1 | - | - |
|
Unloader
|
External | - | - |
|
Series
|
Commercial | - | - |
|
Warranty
|
3 Years | - | - |
|
Engine Start
|
Recoil | - | - |
|
Hose Length
|
50' x 3/8" QC Single Wire Braided Rubber Hose | - | - |
|
Tires
|
10" Premium Flat-Free Wheels/Tires | - | - |
Frequently Asked Questions about Pressure Washers
How to store a pressure washer?
To ensure the durability of your heavy duty pressure washer:
- Empty the gas tank to prevent fuel from degrading or clogging the engine.
- Empty the pump and hoses of any remaining water.
- Perform necessary maintenance before storage.
- Store in a dry area.
- Cover.
What is a pressure washer?
A power washer is a cleaning machine that uses a gasoline engine to power a high pressure water pump and nozzle. It’s used to clean driveways, decks, vehicles, outdoor furniture and more by spraying water at high PSI to remove dirt, grime, mold and other debris.Many models also come with a detergent tank for added cleaning power.
How does a power washer work?
A power washer works by drawing water from a connected hose and pumping it through a high pressure nozzle. The gas engine powers the pump which pressurizes the water and then expels it through the nozzle at high speed to clean the surface. The water pressure is measured in PSI (pounds per square inch) and the flow rate is measured in GPM (gallons per minute).Many models also feature adjustable water pressure settings to cater to different cleaning needs. BE makes pressure washing easy with models available for light jobs and heavy duty commercial cleaning projects.
Gas vs Electric power washers?
The main difference is that a gas pressure washer, known for its cleaning power, is powered by a gasoline engine, making it more powerful and portable, while an electric pressure washer is powered by electricity and is generally quieter and lighter.
Gas pressure washers are for heavy duty and large areas due to their durability, whereas electric pressure washers are for smaller jobs.
Your BE electric pressure washer is perfect for smaller jobs and built for portability, and we offer a wide range of electric models. Included with our electric models is a long extension cord for use anywhere around your house.
What to consider?
When choosing a gas pressure washer consider:
- Pressure (PSI): More PSI means more cleaning power but also more potential for damaging delicate surfaces.
- Flow Rate (GPM): More GPM means faster cleaning as more water is dispensed.
- Engine Power: Bigger engines mean more durability and power.
- Portability: Weight, handle design and wheel size for easier to move.
- Nozzles: Multiple spray nozzles to adjust the spray pattern for different tasks.
- Adjustable Nozzle: Allows for fine-tuning the spray intensity and pattern for various cleaning needs.
How much pressure do I need for?
The required pressure (PSI) and cleaning power depend on the surface you’re cleaning:
- Light duty (car washing, outdoor furniture): 1,300-1,800 PSI.
- Medium duty (patios, fences, decks): 2,000-3,000 PSI.
- Heavy duty (driveways, brick walls, large equipment): 3,000+ PSI.
Many pressure washers come with adjustable pressure settings to handle different cleaning tasks effectively.
Can a pressure washing damage surfaces?
Yes, a power washer can damage surfaces if used incorrectly. High pressure water can strip paint, dent soft surfaces or even cause structural damage if the pressure is too high or the nozzle is held too close to the surface. Always use the right PSI for the material you’re cleaning and keep a safe distance from delicate surfaces.
To prevent damage, consider using a model with adjustable pressure settings.
How to maintain your pressure washer?
To ensure the durability and smooth operation of a pressure washer:
- Change the oil as per manufacturer’s instructions.
- Clean or replace the air filter to ensure good airflow.
- Inspect and clean the nozzle regularly to prevent clogs.
- Drain the gas tank if you’re storing the washer for a long time.
- Check the hoses for leaks or damage and replace them if needed.
- Follow regular maintenance requirements to keep the washer in optimal condition.
Can I use a pressure washer in cold weather and low water temperature?
You can use a pressure washer in cold weather but it’s more difficult. The water flow rate in the hoses and pump can freeze and damage the equipment. If you plan to use your pressure washer in cold temperatures make sure to winterize it and store it in a warm area when not in use. You can also use anti-freeze solutions for pressure washers.
Some models are designed to use hot water, which can be particularly effective for cleaning in cold weather.
Do I need any accessories?
Common accessories for power washers:
- Different nozzles (0°, 15°, 25°, 40°, and soap nozzle) to adjust spray patterns.
- Extension wands for hard to reach areas.
- Surface cleaners for large flat areas like driveways and decks.
- Hose reels to store hoses neatly and prevent tangling.
- Foam cannon or detergent bottles for soap or cleaning solutions.
- Detergents for cleaning a wide variety of surfaces.
