PRODUCT
DESCRIPTION
Heavy Duty Power You Can Count On

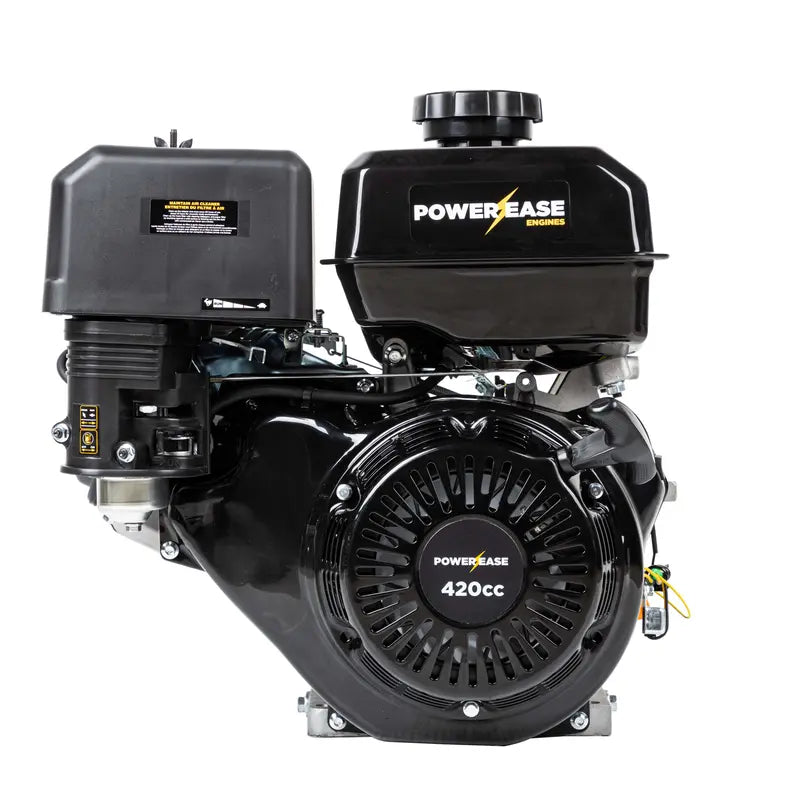

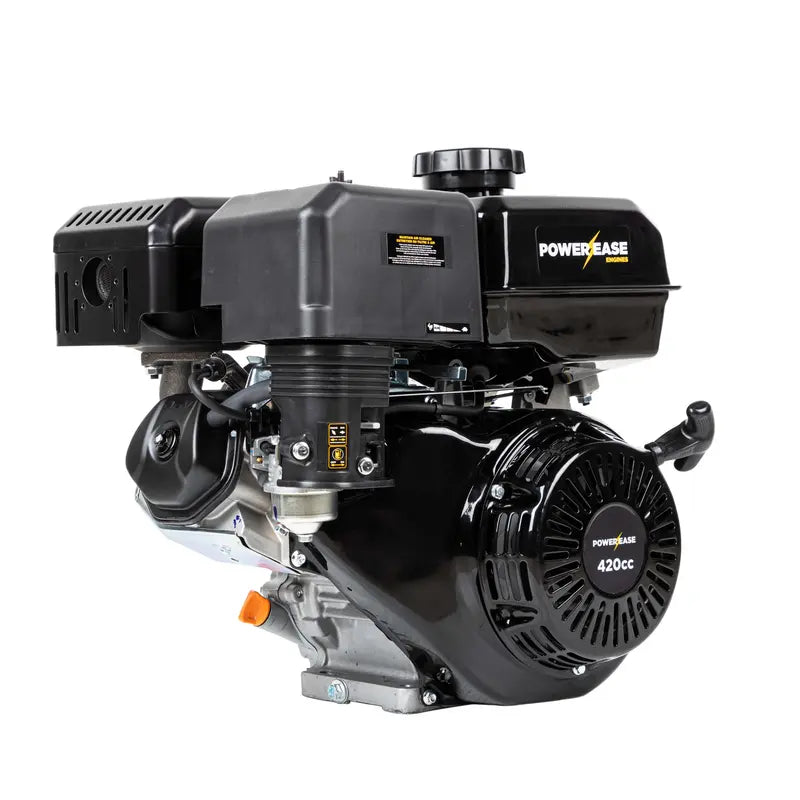

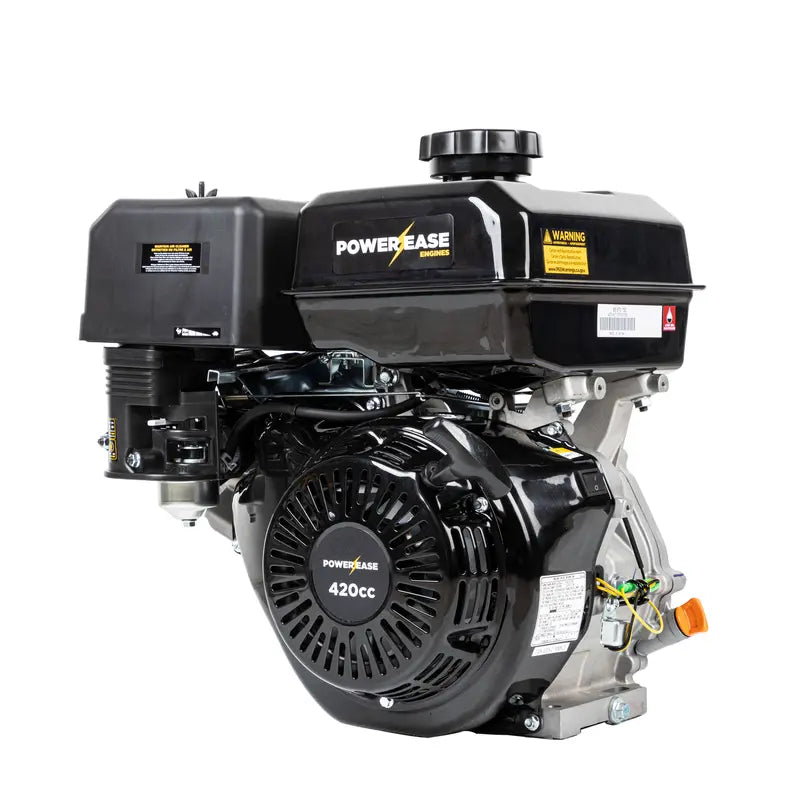

The Powerease R420 Engine is a tough, high displacement motor for equipment that needs strong and steady power. With a 420cc displacement and 12.6 horsepower, this engine is built to perform in professional and industrial applications. From construction sites to farm fields, the R420 has the torque, durability and dependability to keep your equipment running smooth.
For over a decade Powerease engines have powered BE Power Equipment products and have earned a reputation for reliability and efficiency. Built with a robust OHV (Over Head Valve) design, large capacity fuel tank and simple maintenance layout the R420 continues this legacy as a trusted engine replacement or upgrade option across multiple industries.
Features
-
Model: 420
-
Engine Type: Air Cooled, 4 Stroke OHV
-
Displacement: 420cc
-
Net Power Output: 12.6 HP (9.4 kW) @ 3,600 RPM
-
Net Torque: 17.8 lb-ft (24 Nm) @ 2,500 RPM
-
Starting System: Recoil
-
Ignition System: Transistorized Magneto
-
Compression Ratio: 8.2:1
-
Fuel Tank Capacity: 6.7 L (1.77 gal)
-
Fuel Type: Regular unleaded 86 octane or higher (ethanol blends up to 15% acceptable)
-
Carburetor: Horizontal type butterfly valve
-
Lubrication System: Splash
-
Oil Capacity: 1.1 L (1.16 US qts)
-
Low Oil Shutdown: Yes, automatic protection
-
Shaft Size: 1" keyed, horizontal orientation
-
Key Way Size: 1/4" x 2.2"
-
Shaft Rotation: Counterclockwise
-
Air Cleaner: Dual-element filtration system
-
Dry Weight: 68 lbs
Built for Tough Applications
The R420’s 12.6 HP and 17.8 lb-ft make it a heavy duty engine for machines that need continuous power. The air cooled, 4 stroke OHV design runs cooler and more efficient, extending overall life and reducing fuel consumption.
The 1” keyed horizontal shaft fits most equipment, making this engine a replacement option for many machines in the field. Whether you need to restore old equipment or power new builds the R420’s power will run smooth in any condition.
Field Serviceable
The R420 was designed with user serviceability in mind. Key service parts like the air filter, spark plug and carburetor are located for quick and easy access so you can service in the field without down time.
The dual-element air cleaner provides better filtration in dusty environments, protects the engine from debris and extends operating life. With the splash lubrication system and automatic low oil shutdown this engine is built to run safe and reliable with minimal risk of damage.
Fuel and Oil
The Powerease R420 runs on regular unleaded gasoline 86 octane or higher. For best performance and longevity use ethanol free fuel but ethanol blends up to 15% are acceptable.
The oil system takes 1.1 L (1.16 US qts) of oil. The integrated low oil sensor will shut down the engine when oil levels get too low preventing costly repairs and extending the engine’s life.
Applications
The R420 is designed for versatility and high performance across multiple industries. Its size, torque and power make it a great choice for:
-
Pressure Washers – High output cleaning machines that need continuous and stable power.
-
Water Pumps – For irrigation, flood control or construction dewatering.
-
Air Compressors – For shop and field work.
-
Lawn & Garden Equipment – Strong enough to power large tillers, mowers and other heavy duty tools.
-
Construction Equipment – For generators, compactors and job site machinery where power is a must.
Specifications
-
Model: Powerease R420
-
Displacement: 420cc* Bore x Stroke: 88 mm x 64 mm
-
Compression Ratio: 8.2:1
-
Net Power Output: 12.6 HP @ 3,600 RPM
-
Net Torque: 17.8 lb-ft @ 2,500 RPM
-
Fuel Tank Capacity: 6.7 L (1.77 gal)
-
Oil Capacity: 1.1 L (1.16 US qts)
-
Air Cleaner: Dual-element
-
Dry Weight: 68 lbs
-
Shipping Weight: 77 lbs
-
Unit Dimensions (LxWxH): 17" x 18" x 18"
-
Shipping Dimensions (LxWxH): 20" x 17" x 20"
The product may vary from the images on the website.
Professional Grade
Powerease engines have powered BE Power Equipment machines for over 10 years, earning a reputation for power, reliability and cost effectiveness. The R420 continues this legacy, with the kind of horsepower and torque professionals demand every day.
Whether you’re running commercial grade pressure washers, keeping construction equipment running or driving large agricultural tools the Powerease R420 Engine is built to perform. Reliable, serviceable and strong the R420 will get the job done.
