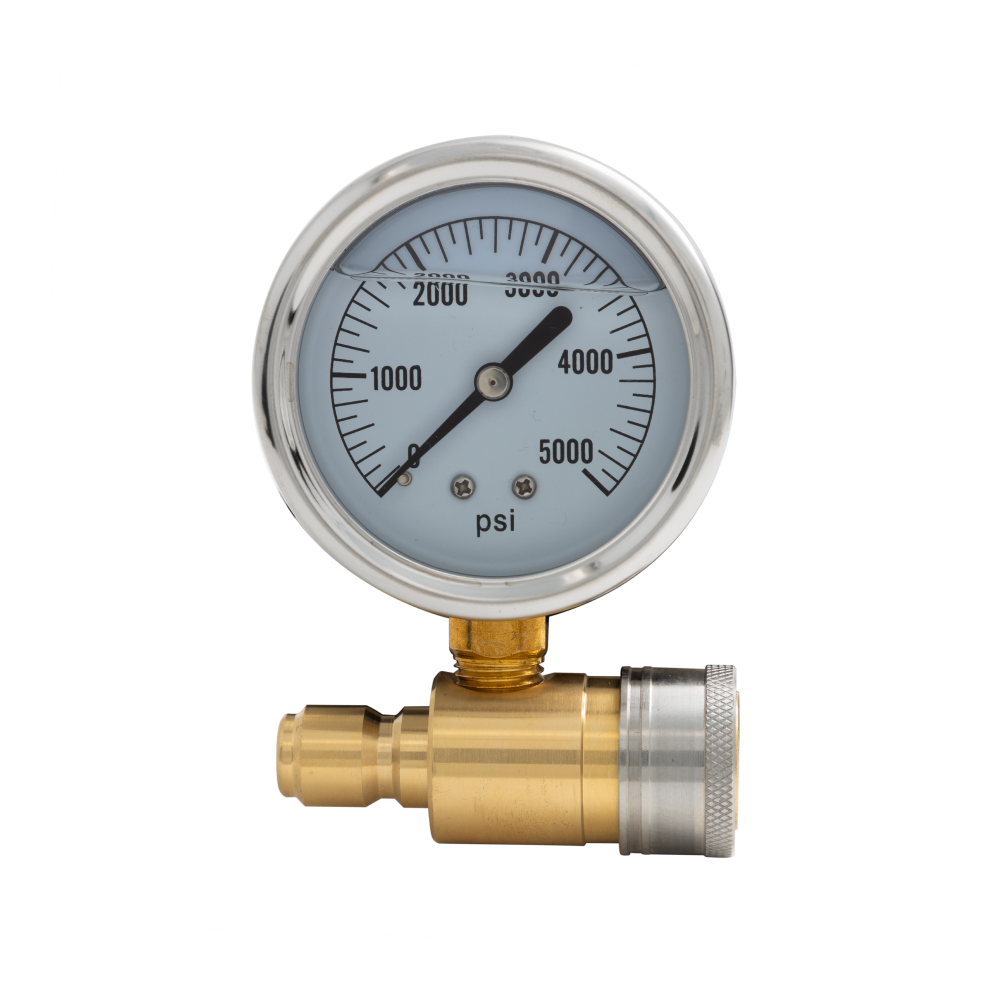

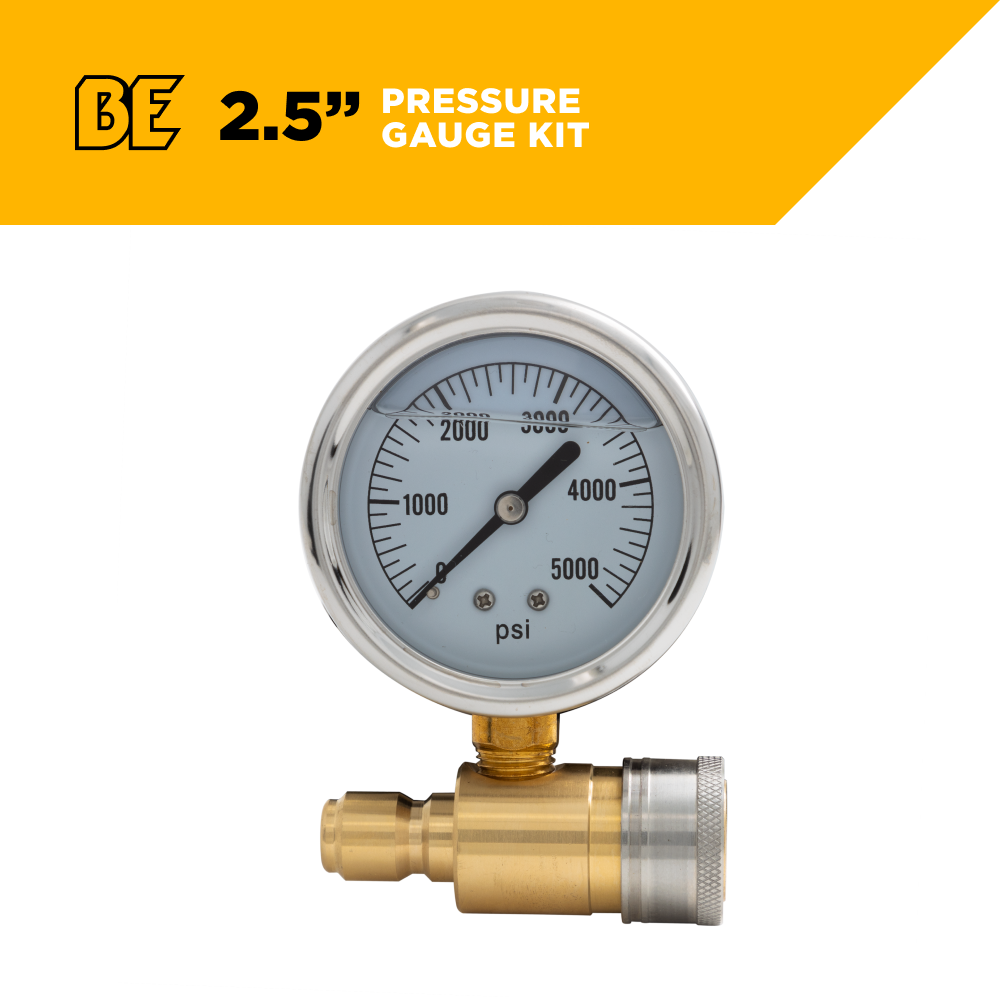

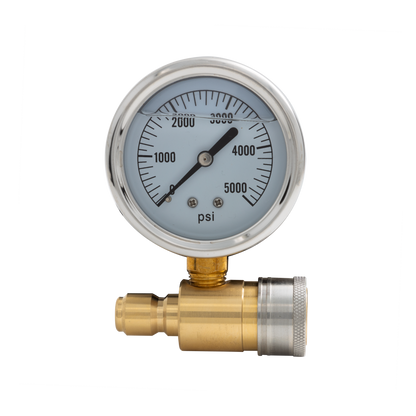

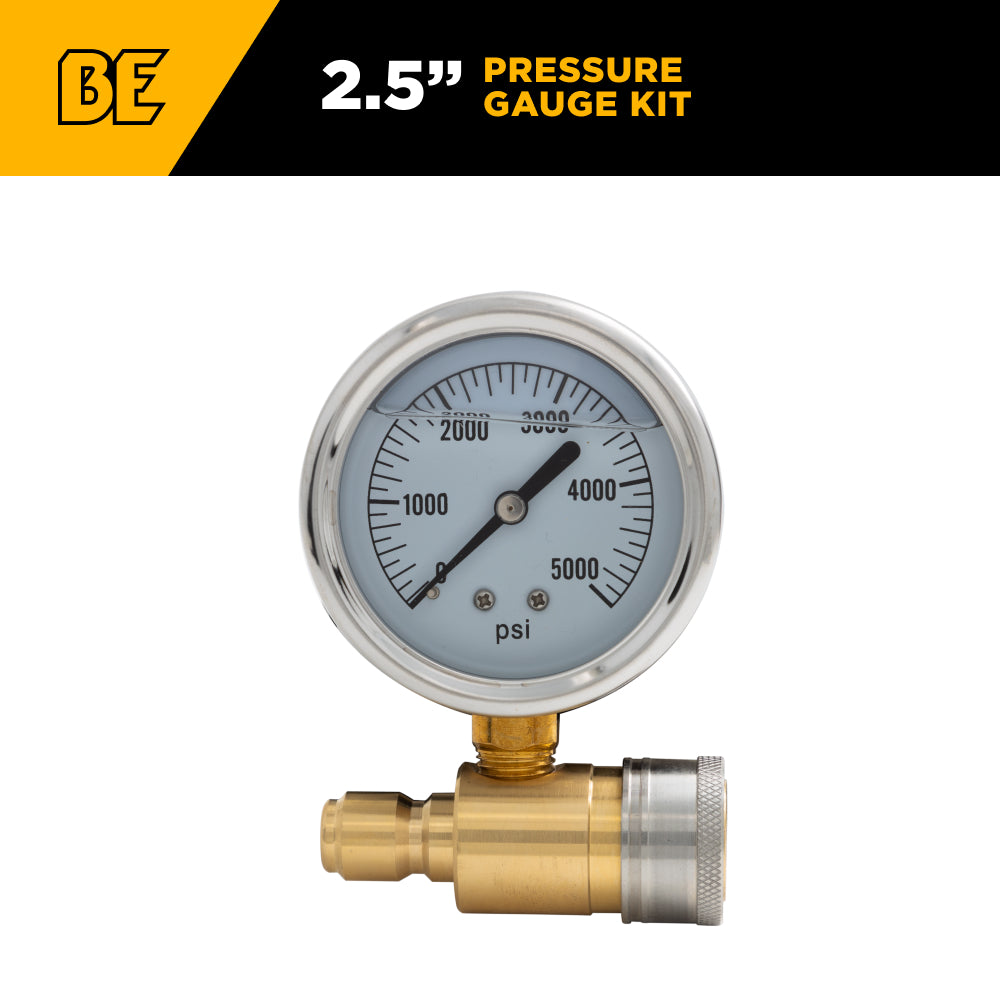

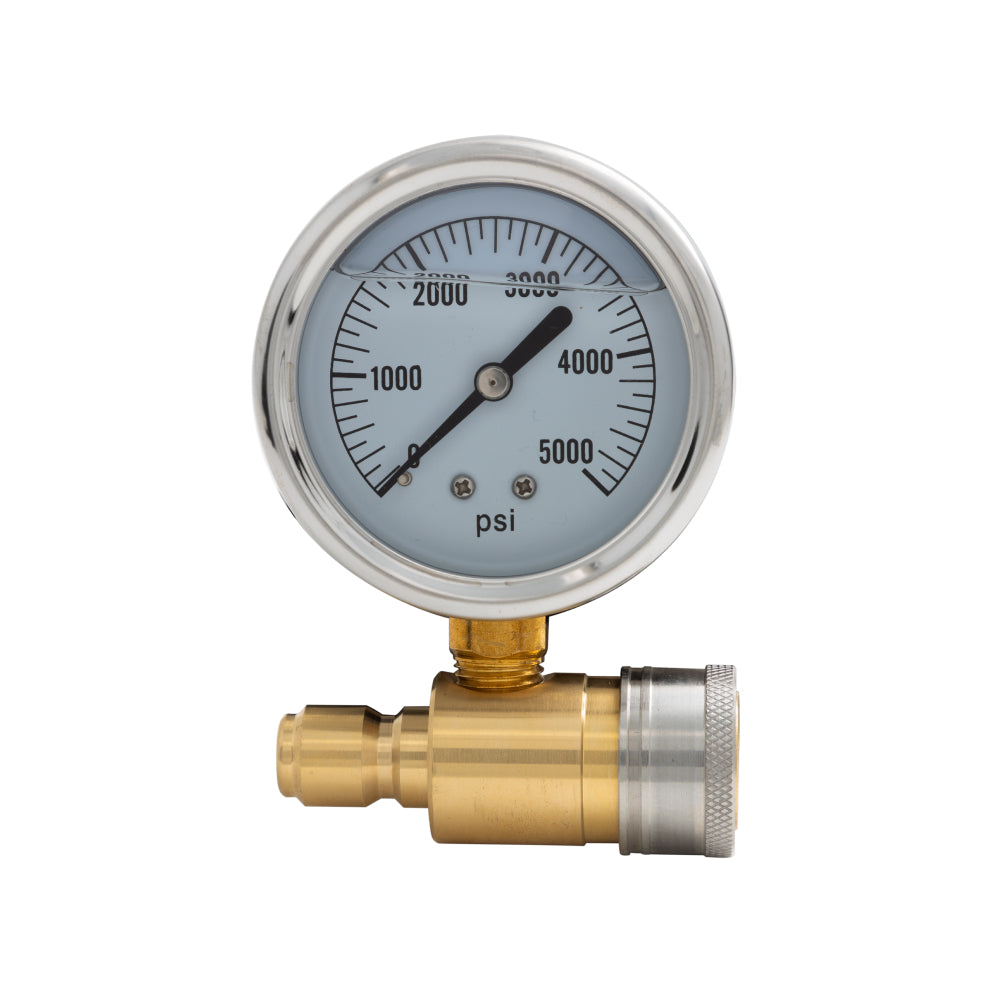

5000PSI 2.5" Pressure Gauge Kit with 3/8" Quick Connect

5000PSI 2.5" Pressure Gauge Kit with 3/8" Quick Connect

View full details

Product

Description

Precision Monitoring for Maximum Pressure Performance

You need precise pressure measurement to optimize your pressure washer system—and the 5000 PSI 2.5” Pressure Gauge Kit with 3/8” Quick Connect delivers. Pressure monitoring is critical for diagnosing pressure fluctuations and testing system efficiency. Whether you’re diagnosing pressure fluctuations, testing system efficiency or calibrating pump output this easy to use pressure gauge kit gives you instant and accurate readings in high pressure applications.

Designed for gas powered and commercial grade pressure washers this kit is rated for systems up to 5000 PSI and has a large 2.5” gauge face that displays pressure at a glance. Built with rugged components corrosion resistant materials and 3/8” quick connect fittings it installs and removes in seconds – no tools or hassle.

If you’re a contractor, maintenance tech or pressure washer enthusiast this pressure gauge kit is the must have diagnostic tool for keeping your equipment running at peak performance.

Key Features of Pressure Gauges

  • Max Pressure Rating: 5000 PSI – Built for high pressure cleaning systems and professional use

  • 2.5” Diameter Analog Gauge – Easy to read face with PSI scale and precision needle movement

  • Quick Connect Inlet & Outlet – 3/8” brass male/female couplers for tool free installation

  • Rugged, Weather Resistant Housing – Metal casing with impact protection for jobsite reliability

  • Compatible with Most Pressure Washers – Fits between hose and spray gun on most gas powered models

  • Great for Troubleshooting and Calibration – Monitor real time system pressure, diagnose issues and test pump performance

  • Factory Calibrated – Provides accurate readings right out of the box

  • Enhanced Pressure Control – Optimal system performance through precise pressure adjustments

Why Use a Pressure Gauge Kit?

Every pressure washer relies on system pressure to function properly. Too much pressure can damage seals, hoses and nozzles. Too little pressure can result in poor cleaning performance and wasted time.

Proper pressure regulation is key to preventing damage and efficient operation.

This 5000 PSI Pressure Gauge Kit lets you:* Troubleshoot performance issues like loss of pressure, cavitation or worn pump seals

  • Check unloader valve settings for optimal PSI control

  • Verify pressure consistency when switching nozzles or accessories

  • Monitor your system’s health during routine maintenance

  • Prevent damage from running your system over or under spec

Whether you’re maintaining your own machine or servicing customer equipment this kit gives you the insight you need to keep everything running safely and efficiently.

Easy to Use, Easy to Read

The 2.5” analog gauge is big enough to see from a distance and has a bold high contrast PSI scale for fast pressure confirmation. The smooth sweep needle is built to handle pressure surges and pulsation without bouncing or sticking – so you get precise readings every time.

The gauge gives you a clear and precise pressure reading so you can confirm system pressure at a glance.

No electronics. No calibration required. Just reliable analog pressure you can trust.

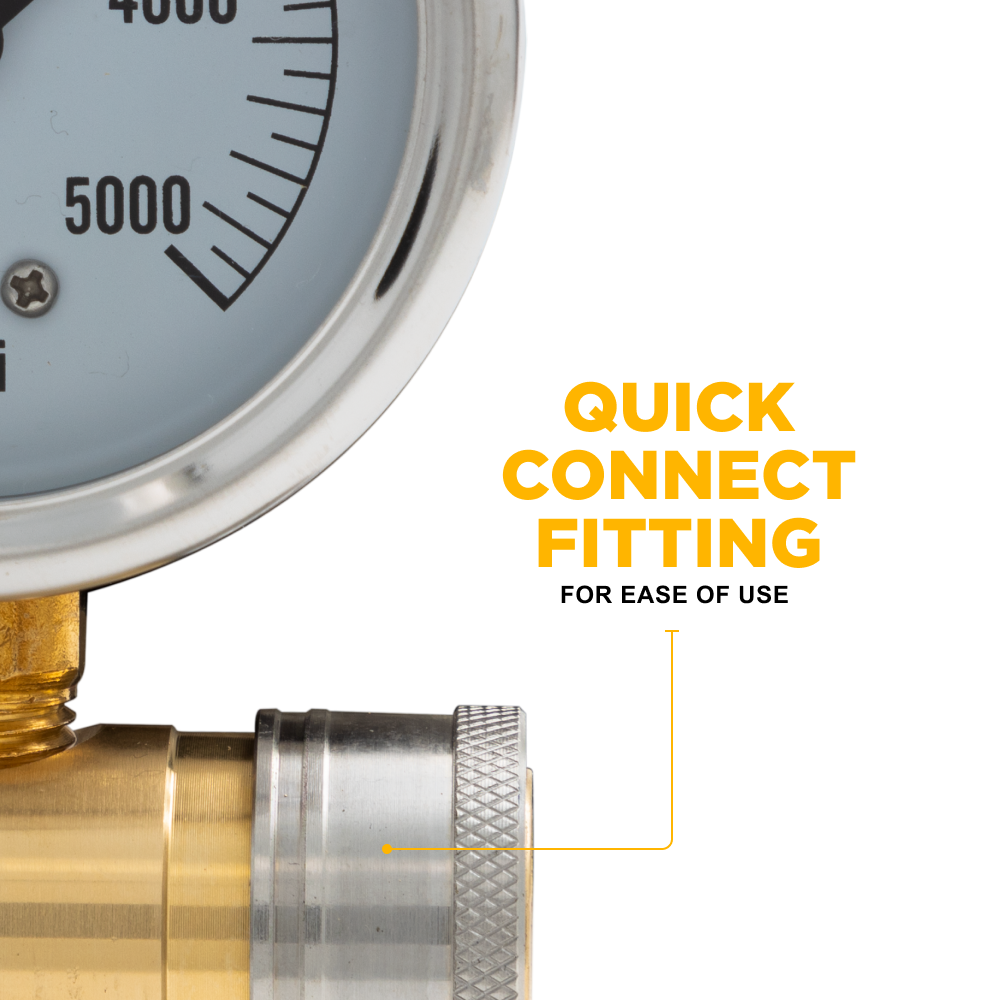

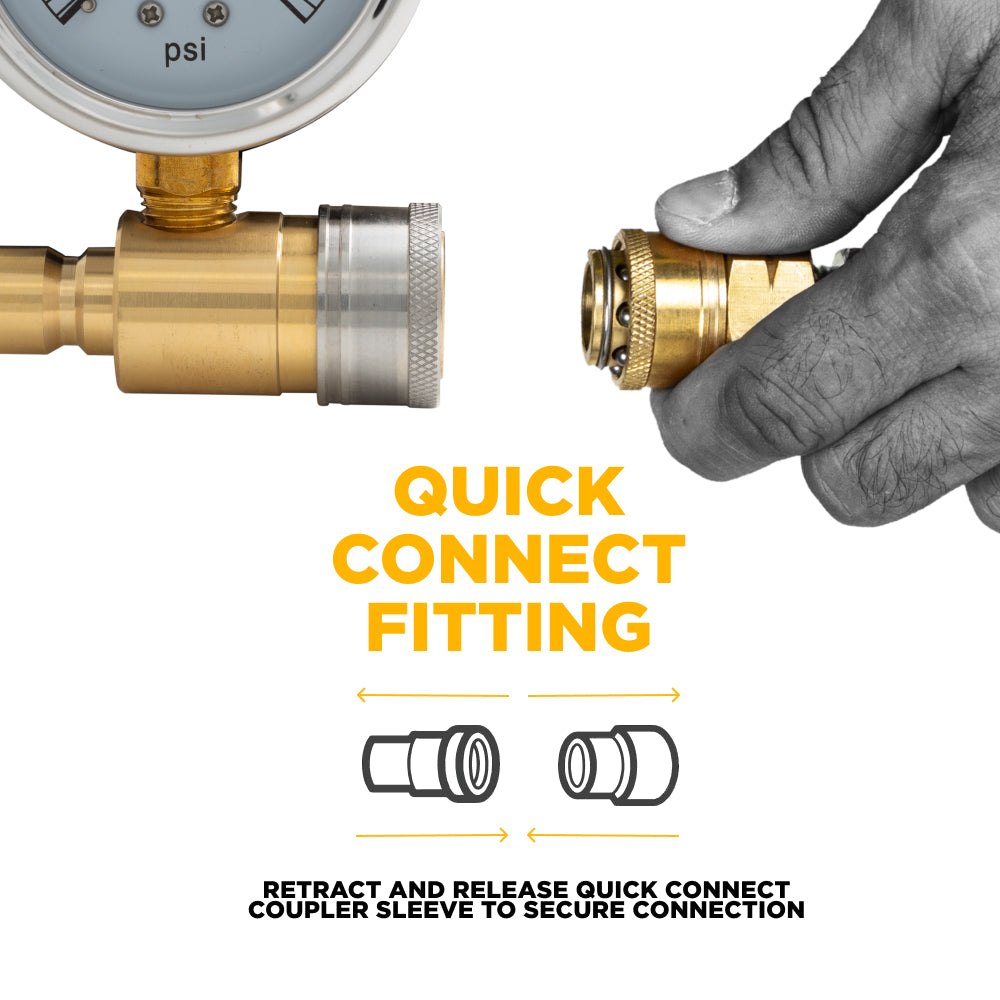

Quick Connect Convenience

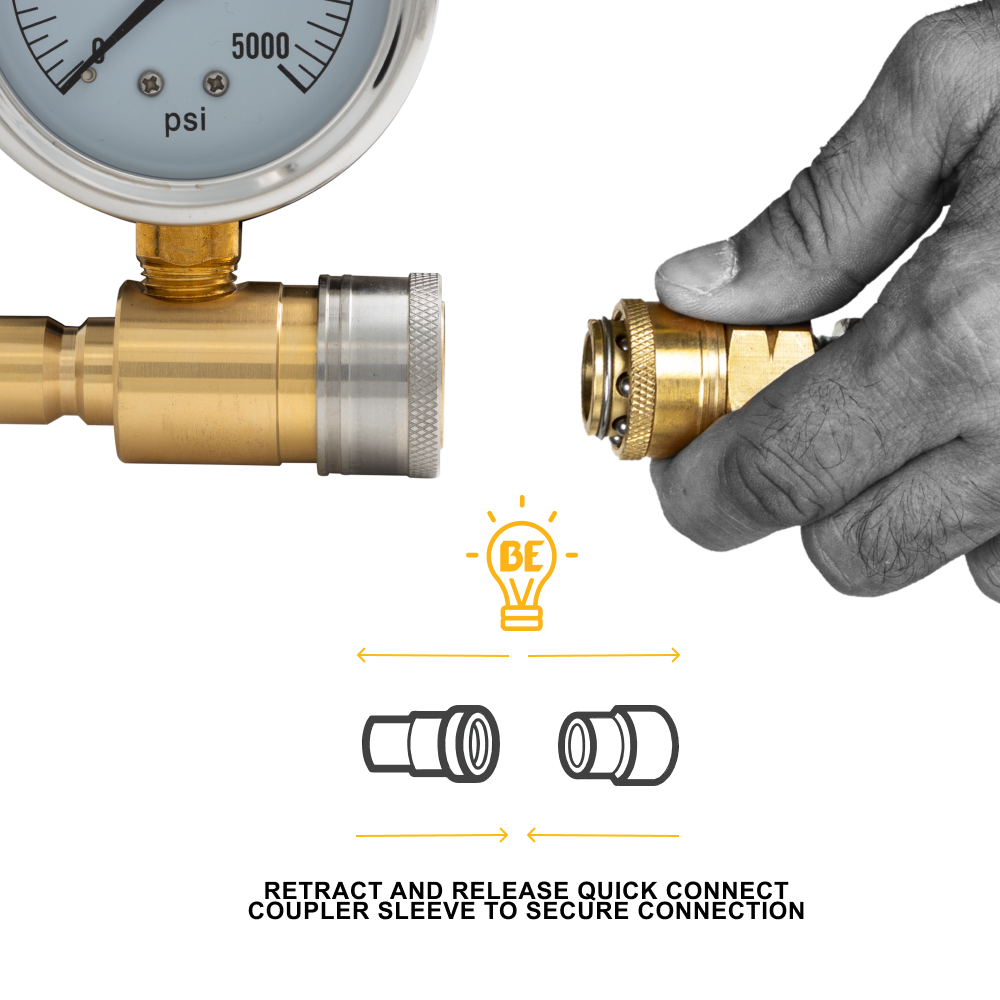

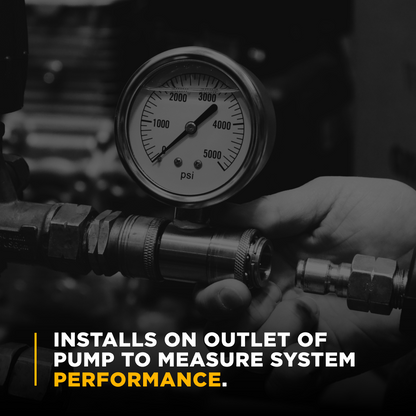

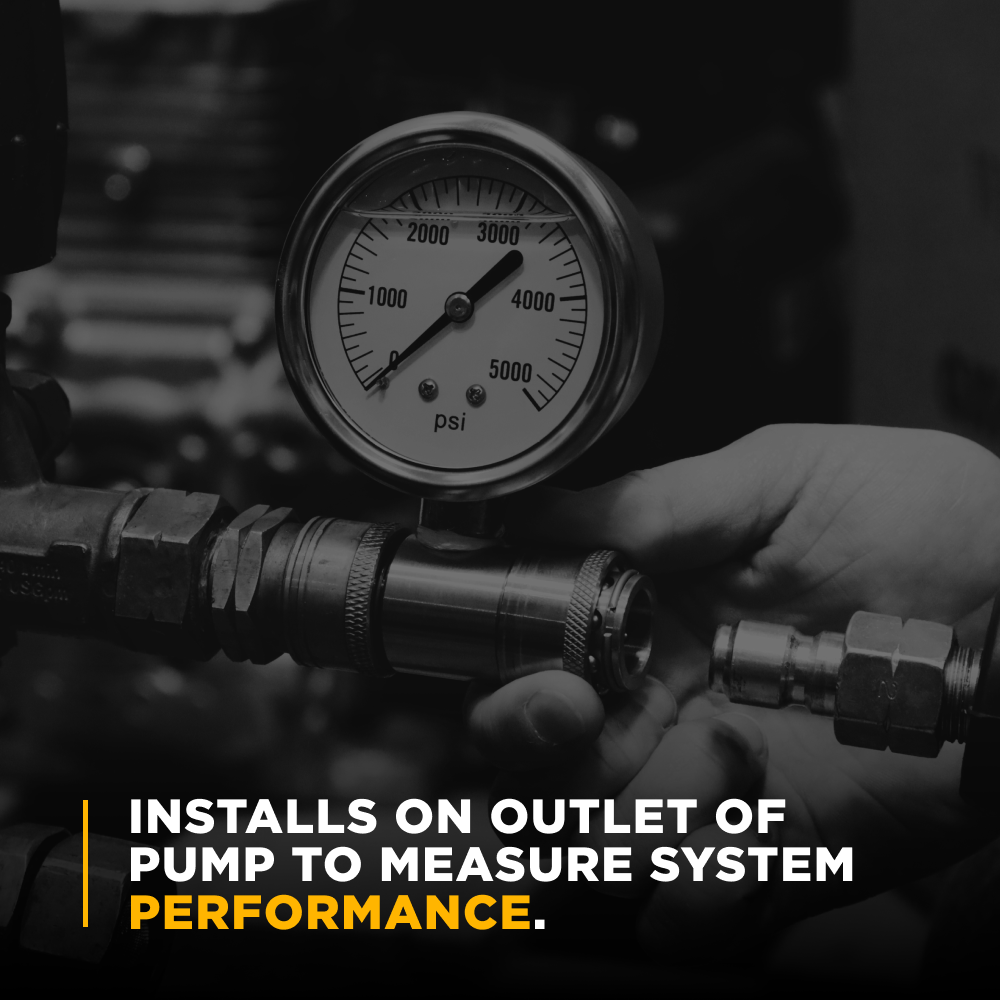

With 3/8” quick connect fittings this kit installs between your spray gun and high pressure hose in seconds. Simply:

  1. Disconnect your high pressure hose from your spray gun

  2. Snap the male end of the gauge into the gun

  3. Snap your hose into the female end of the gauge

  4. Power on your pressure washer and watch real time pressure readings

This quick connect feature makes pressure testing fast and easy.

It’s that simple. When you’re done testing or calibrating disconnect just as easy and go back to cleaning.

Built for the Jobsite

This is not a fragile bench top gauge. It’s designed for rugged outdoor use whether you’re on a driveway, farm, jobsite or commercial facility.

  • Steel and brass components resist vibration, corrosion and impact

  • Protective rubber or metal housing shields the gauge body

  • Sealed lens prevents water and dust intrusion

  • Pressure tested connections eliminate leaks under load

Regular pressure calibration ensures the gauge stays accurate even in harsh environments.

From weather to wear this gauge kit is built to withstand real world use.

Ideal for a Wide Range of Applications

Whether you have one pressure washer or manage a fleet this gauge ensures your equipment is running as intended. Add this gauge to your pressure monitoring system and get reliable performance across all applications. It’s a must have for:

  • Professional pressure washing contractors

  • Maintenance crews and equipment rental companies

  • Fleet managers and industrial cleaning teams

  • DIY users with high performance gas washers

  • Technicians troubleshooting pump and unloader valve issues

Compatible with all 3/8” quick connect systems it’s an easy addition to your toolbox.

Differential Pressure

Measuring differential pressure is a key part of pressure gauge applications. Differential pressure is the difference in pressure between two points in a system and is used for process control and safety management. Pressure gauges for differential pressure measurement have various measuring ranges and are available in units of PSI, bar and kPa.

To find differential pressure measurement options visit the websites of reputable manufacturers like WIKA or Blue Ribbon Corp. They offer a range of products such as the Model BR100D Steel Utility Gauge and the Model BR200 Liquid Filled Gauge that are suitable for different applications. Check out these options to find the right gauge for your needs and get accurate and reliable pressure monitoring.

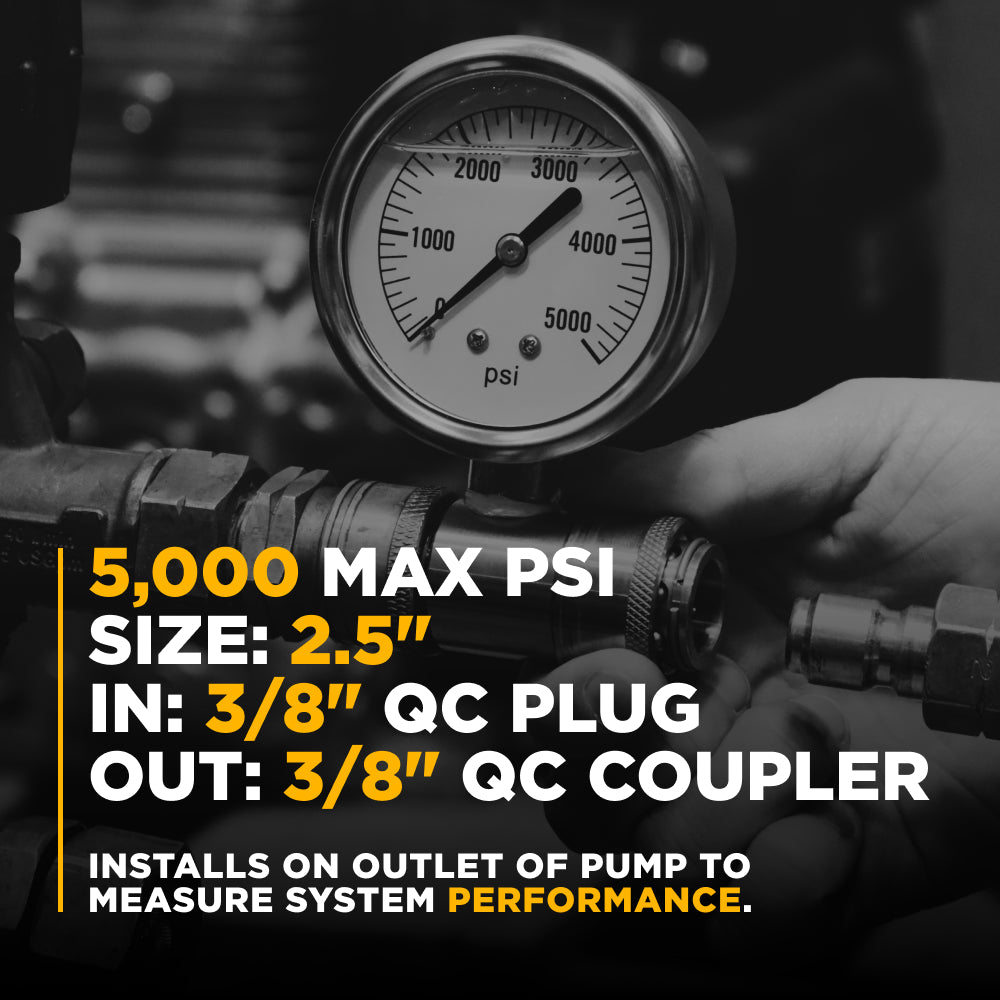

Specifications

  • Gauge Face Size: 2.5”

  • Max Pressure: 5000 PSI

  • Connection Type: 3/8” quick-connect male and female couplers

  • Construction: Stainless steel or brass body (varies by model); sealed housing

  • Scale: PSI (pounds per square inch)

  • Reading Type: Analog dial with pressure sweep needle

  • Temperature Range: Up to 60°C / 140°F (check specific product label)

  • Weight: Lightweight and portable – approx. 1–2 lbs

  • Compatibility: All major pressure washer brands with 3/8” hose/gun fittings (BE, Simpson, Generac, DeWalt, etc.)

  • Sensor: High precision pressure sensor for accurate measurements

Installation

Pressure gauge installation requires careful consideration to get accurate and reliable measurements. Before installing a pressure gauge you must have permission to access the system and ensure the gauge is compatible with the existing equipment. The gauge should be installed in a location that is easily accessible for maintenance and calibration.Follow the manufacturer’s instructions and guidelines for installation. These can be found on the manufacturer’s website or by contacting their customer support. Also consider the frequency of calibration and maintenance required for the gauge to get optimal performance. For example a brass constructed gauge may need more frequent calibration than a stainless steel one.

By following proper installation procedures and considering factors like edgesuite and server requirements you can ensure your pressure gauge gives accurate and reliable measurements. You can also add the pressure gauge to your cart and proceed to checkout where shipping, taxes and discount codes will be calculated and the subtotal will be displayed. This will make the purchasing process smooth and help to maintain the longevity and accuracy of the pressure gauge.

How to Use

Step 1: Turn off your pressure washer and disconnect the high pressure hose from the spray gun.

Step 2: Insert the pressure gauge between the spray gun and the hose using the quick-connect fittings. This pressure measurement device is designed to be easy to integrate into your existing system.

Step 3: Reconnect your system, turn on the pressure washer and monitor the reading while the spray gun is engaged.

Step 4: Make any needed adjustments to the unloader valve or troubleshoot based on pressure inconsistencies.

Step 5: When finished remove the gauge and reattach your standard fittings.

Always follow safety protocols when operating under high pressure.

Maintenance Tips

  • Rinse the gauge with fresh water after chemical use

  • Store in a dry, protected area between uses

  • Do not exceed rated PSI limits

  • Inspect couplers and seals periodically

  • Avoid dropping or subjecting the gauge to mechanical shock

  • Schedule regular pressure gauge calibration to ensure ongoing accuracy

Regular care will ensure years of use.

The 5000 PSI 2.5” Pressure Gauge Kit with 3/8” Quick Connect is a must have for anyone serious about pressure washing. With accurate pressure monitoring, rugged construction and easy installation this kit makes it easier to fine tune your system, troubleshoot issues and ensure your pressure washer is running at peak performance.

Product Overview

Pressure gauges are measuring instruments used to measure the pressure of a fluid (liquid or gas) in a system. Available in dial and digital displays they cater to different applications and user preferences. Pressure gauges can measure different types of pressure such as absolute pressure, gauge pressure and differential pressure making them a versatile tool in many industries.

The reliability and accuracy of pressure gauges is critical to prevent equipment failure and ensure operational safety. With options for different pressure ranges, materials and connection types pressure gauges can be customized to meet specific requirements. For example a 5000 PSI gauge is for high pressure applications while gauges with 0 to 10,000 PSI measuring range can accommodate different needs. Whether you have a 5000 PSI hose or a lower pressure system there’s a pressure gauge that can give you precise measurements and enhance your system’s performance.

Stay informed. Stay safe. Clean with confidence. Get this pressure gauge kit today.

Compare Pressure Washer

Frequently Asked Questions about Pressure Washers

How to store a pressure washer?

To ensure the durability of your heavy duty pressure washer:

  • Empty the gas tank to prevent fuel from degrading or clogging the engine.
  • Empty the pump and hoses of any remaining water.
  • Perform necessary maintenance before storage.
  • Store in a dry area.
  • Cover.

What is a pressure washer?

A power washer is a cleaning machine that uses a gasoline engine to power a high pressure water pump and nozzle. It’s used to clean driveways, decks, vehicles, outdoor furniture and more by spraying water at high PSI to remove dirt, grime, mold and other debris.Many models also come with a detergent tank for added cleaning power.

How does a power washer work?

A power washer works by drawing water from a connected hose and pumping it through a high pressure nozzle. The gas engine powers the pump which pressurizes the water and then expels it through the nozzle at high speed to clean the surface. The water pressure is measured in PSI (pounds per square inch) and the flow rate is measured in GPM (gallons per minute).Many models also feature adjustable water pressure settings to cater to different cleaning needs. BE makes pressure washing easy with models available for light jobs and heavy duty commercial cleaning projects.

Gas vs Electric power washers?

The main difference is that a gas pressure washer, known for its cleaning power, is powered by a gasoline engine, making it more powerful and portable, while an electric pressure washer is powered by electricity and is generally quieter and lighter.

Gas pressure washers are for heavy duty and large areas due to their durability, whereas electric pressure washers are for smaller jobs.

Your BE electric pressure washer is perfect for smaller jobs and built for portability, and we offer a wide range of electric models. Included with our electric models is a long extension cord for use anywhere around your house.

What to consider?

When choosing a gas pressure washer consider:

  • Pressure (PSI): More PSI means more cleaning power but also more potential for damaging delicate surfaces.
  • Flow Rate (GPM): More GPM means faster cleaning as more water is dispensed.
  • Engine Power: Bigger engines mean more durability and power.
  • Portability: Weight, handle design and wheel size for easier to move.
  • Nozzles: Multiple spray nozzles to adjust the spray pattern for different tasks.
  • Adjustable Nozzle: Allows for fine-tuning the spray intensity and pattern for various cleaning needs.

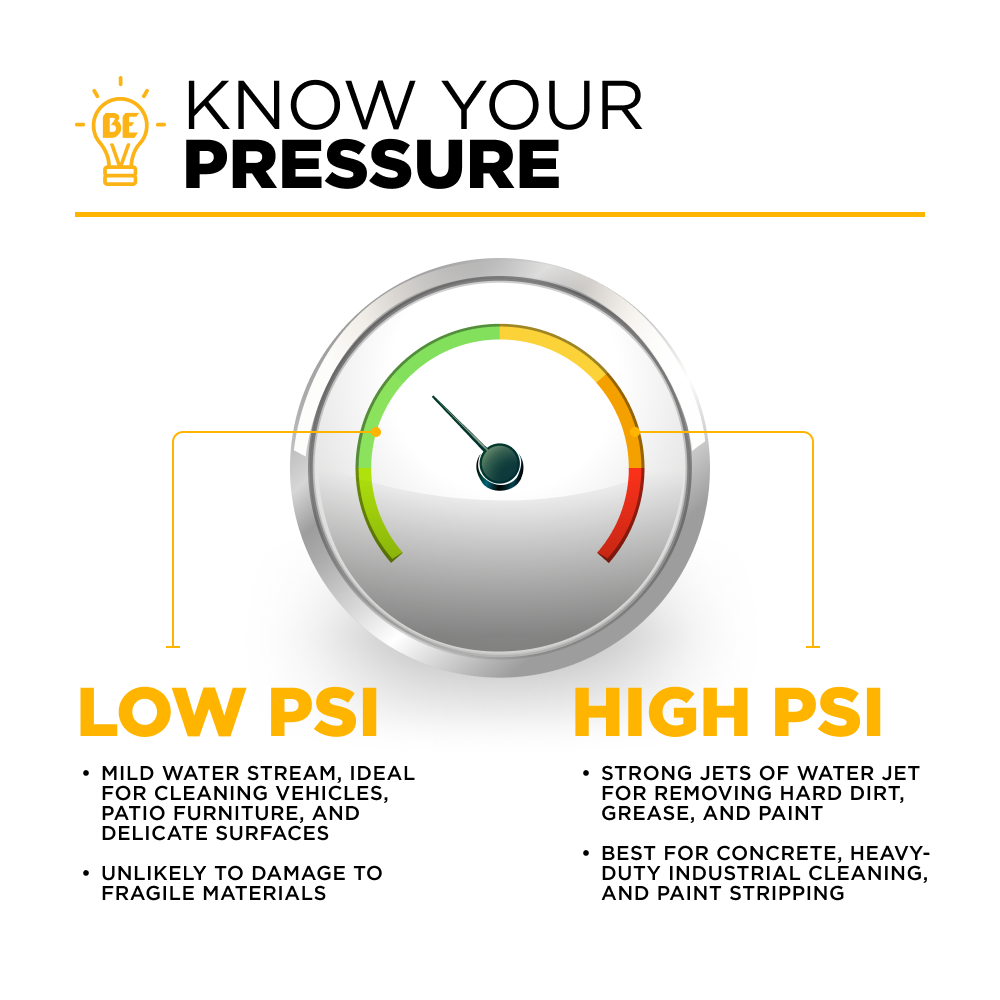

How much pressure do I need for?

The required pressure (PSI) and cleaning power depend on the surface you’re cleaning:

  • Light duty (car washing, outdoor furniture): 1,300-1,800 PSI.
  • Medium duty (patios, fences, decks): 2,000-3,000 PSI.
  • Heavy duty (driveways, brick walls, large equipment): 3,000+ PSI.

Many pressure washers come with adjustable pressure settings to handle different cleaning tasks effectively.

Can a pressure washing damage surfaces?

Yes, a power washer can damage surfaces if used incorrectly. High pressure water can strip paint, dent soft surfaces or even cause structural damage if the pressure is too high or the nozzle is held too close to the surface. Always use the right PSI for the material you’re cleaning and keep a safe distance from delicate surfaces.

To prevent damage, consider using a model with adjustable pressure settings.

How to maintain your pressure washer?

To ensure the durability and smooth operation of a pressure washer:

  • Change the oil as per manufacturer’s instructions.
  • Clean or replace the air filter to ensure good airflow.
  • Inspect and clean the nozzle regularly to prevent clogs.
  • Drain the gas tank if you’re storing the washer for a long time.
  • Check the hoses for leaks or damage and replace them if needed.
  • Follow regular maintenance requirements to keep the washer in optimal condition.

Can I use a pressure washer in cold weather and low water temperature?

You can use a pressure washer in cold weather but it’s more difficult. The water flow rate in the hoses and pump can freeze and damage the equipment. If you plan to use your pressure washer in cold temperatures make sure to winterize it and store it in a warm area when not in use. You can also use anti-freeze solutions for pressure washers.

Some models are designed to use hot water, which can be particularly effective for cleaning in cold weather.

Do I need any accessories?

Common accessories for power washers:
