Product / Pressure Washers / 85.139.026B

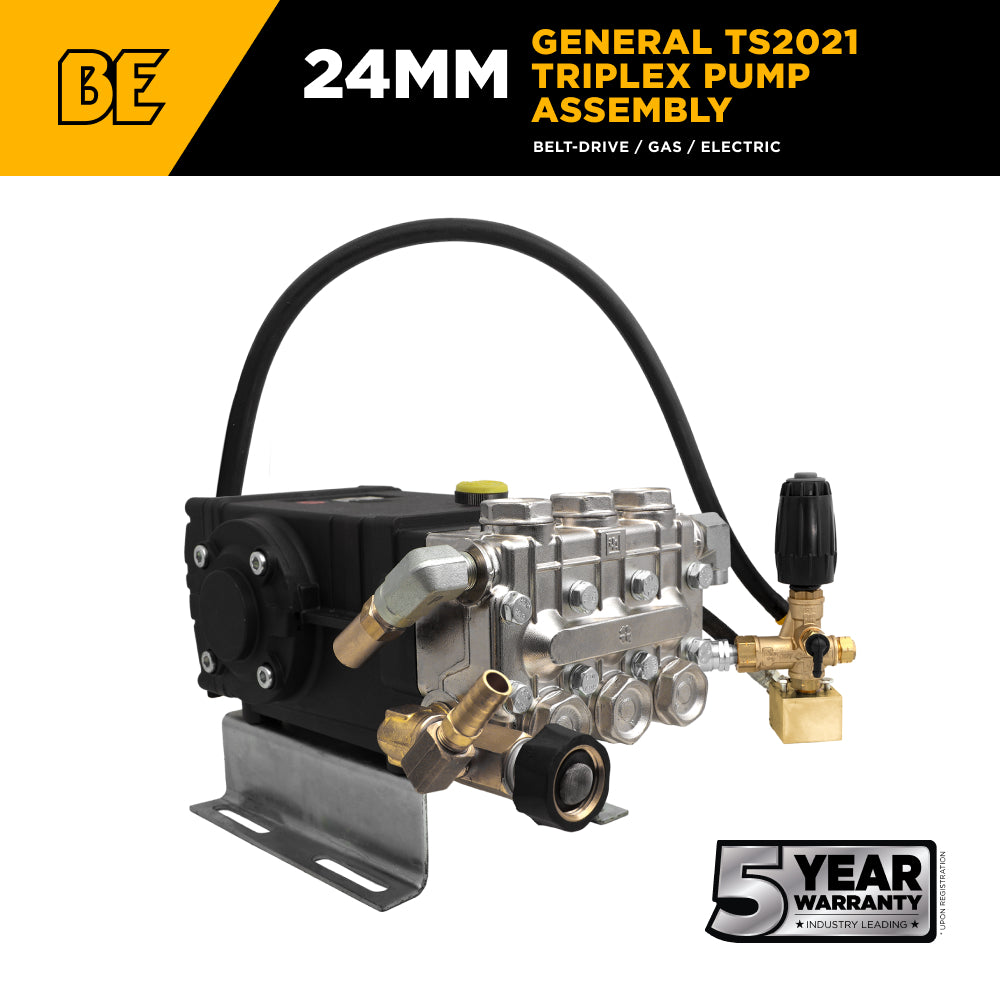

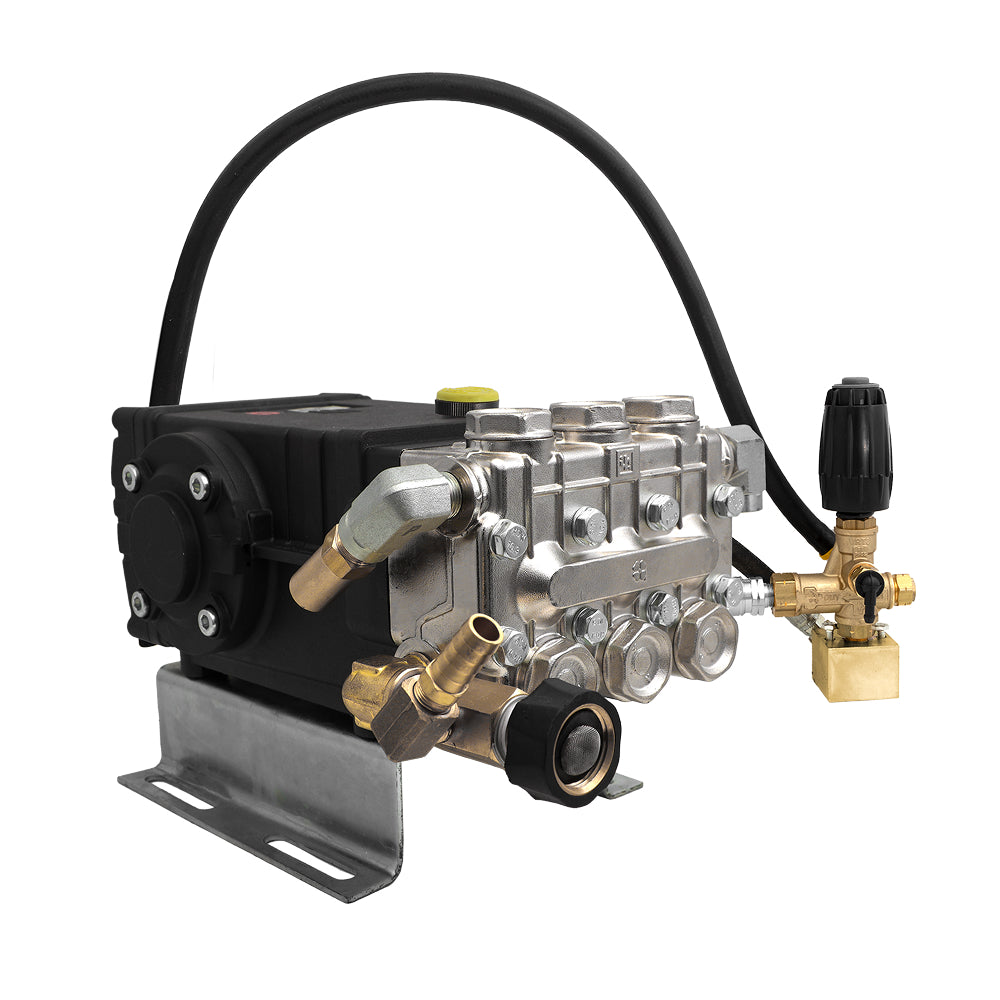

General Pump TS2021 Triplex Pump Assembly – 5.6 GPM, 3,500 PSI

General Pump TS2021 Triplex Pump Assembly – 5.6 GPM, 3,500 PSI

Specifications

UNLOADER

External AL607

WARRANTY

5 Years

RPM

1,450

PUMP MODEL

GP TS2021

PUMP TYPE

Triplex

Oil Type

30W Non Detergent

Oil Capacity

37 oz

Thermal Relief Value

85.300.023

Max Inlet Temperature

74°C / 165°F

Manifold Type

Nickel Plated Brass

Soap Injector

Adjustable 85.400.000 (Optional)

Discharge Size

3/8" Stainless Steel QC 85.300.108S

Inlet Size

3/4" GHF

Plunger Piston

Ceramic

Unloader Type

External AL607

Max GPM

5.6

Shaft Size

24 mm

Weight

32 lbs

Belt Drive

Gas / Electric

View full details

PRODUCT

DESCRIPTION

High-Performance Belt Drive Pump for Professional Applications

The General Pump TS2021 Triplex Pump Assembly (Bare Pump Part #85.130.026) is a professional-grade, belt-drive triplex plunger pump engineered for heavy-duty cleaning applications that require both high water volume and strong pressure. Delivering up to 5.6 GPM at 3,500 PSI, this pump is designed for contractors, industrial users, and commercial operators who demand efficiency, durability, and reliability.

Manufactured by General Pump (GP), one of the industry’s most trusted names, the TS2021 features a nickel-plated brass manifold, ceramic plungers, and a low-RPM belt-drive design to ensure long life and smooth operation. With its external unloader system (AL607), adjustable detergent injection, and stainless steel quick-connect discharge fitting, this pump is built to deliver consistent performance and withstand the rigors of daily professional use.

Key Features

  • Bare Pump Part #: 85.130.026

  • Pump Manufacturer: General Pump (GP)

  • Model: TS2021

  • Pump Style: Triplex, belt drive

  • Drive Type: Gas/Electric compatible

  • Max Pressure: 3,500 PSI

  • Max Flow Rate: 5.6 GPM

  • Shaft Size: 24 mm

  • Unloader Type: External (AL607)

  • Plunger Material: Ceramic

  • Inlet Size: 3/4" GHF (garden hose fitting)

  • Discharge Size: 3/8" Stainless Steel QC (85.300.108S)

  • Soap Injector: Adjustable (85.400.000 – optional)

  • Manifold Type: Nickel-plated brass

  • RPM: 1,450

  • Max Inlet Temp: 74°C / 165°F

  • Thermal Relief Valve: 85.300.023

  • Oil Capacity: 37 oz

  • Oil Type: 30W non-detergent oil

  • Weight: 32 lbs

  • Warranty: 5 Years

Professional Triplex Pump Design

At the heart of the TS2021 is its triplex plunger design, which provides smooth, efficient, and reliable operation. The use of three ceramic plungers enhances durability by resisting heat and wear, helping to extend seal life and reduce maintenance costs over time.

With a flow capacity of 5.6 gallons per minute, the TS2021 excels at jobs that require covering large areas quickly without sacrificing cleaning pressure. Its maximum 3,500 PSI rating ensures that it has the muscle to cut through dirt, grease, and debris, making it suitable for everything from industrial machinery washdowns to large-scale surface preparation.

Built to Last

Durability and longevity are central to the TS2021’s design:

  • Nickel-plated brass manifold offers superior corrosion resistance and excellent heat dissipation, making it ideal for professional use.

  • Ceramic plungers withstand high temperatures and abrasion for extended service life.

  • Belt-drive system reduces pump speed to just 1,450 RPM, lowering wear and extending the lifespan of internal components.

  • Stainless steel quick-connect discharge (85.300.108S) ensures strong, leak-free connections under high pressure.

At 32 lbs, this pump offers a solid, durable build that can withstand tough daily use in demanding applications.

Operator-Friendly Features

The TS2021 includes features that make operation safer and more efficient:

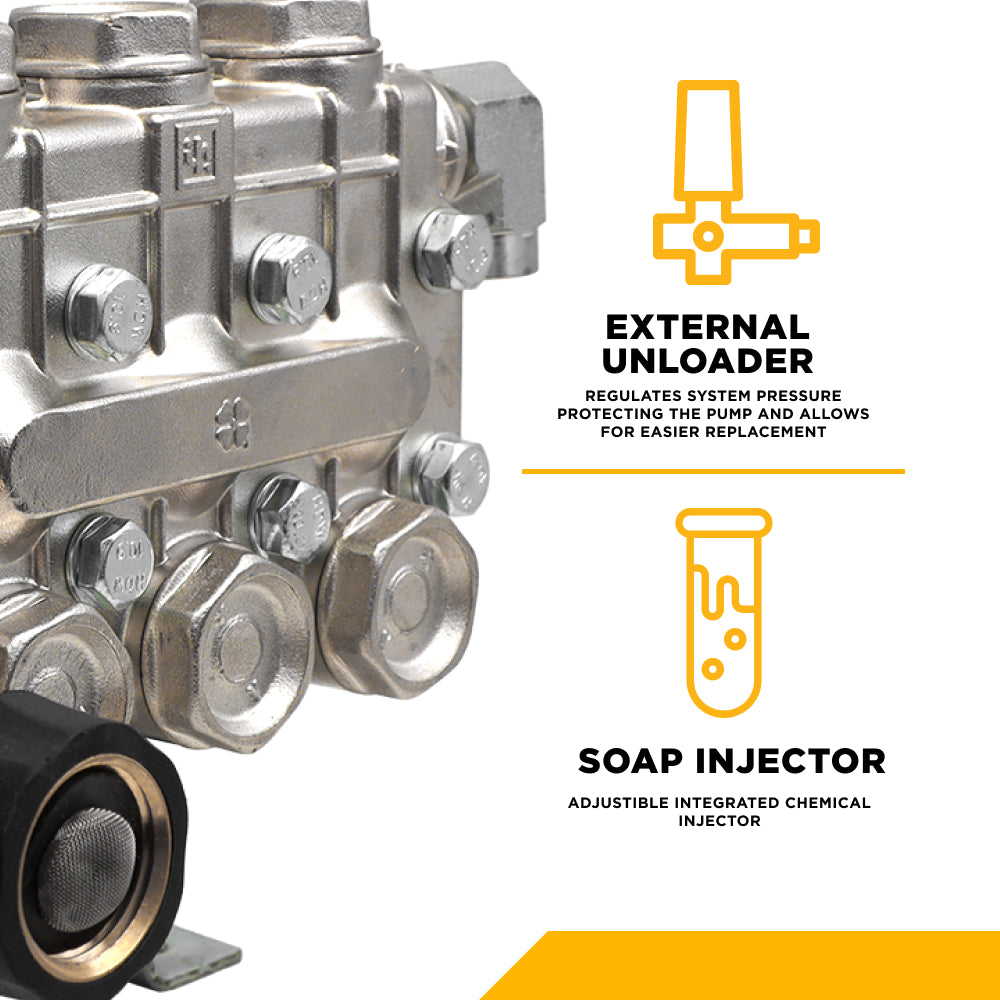

  • External unloader (AL607): Provides precise control of output pressure and simplifies servicing.

  • Adjustable soap injector (optional, 85.400.000): Allows controlled detergent application for better cleaning results.

  • Thermal relief valve (85.300.023): Protects the pump from overheating during bypass conditions.

  • Stainless steel discharge connection: Provides secure, rust-resistant durability for high-pressure hose attachment.

These details make the TS2021 easier to use and maintain, reducing downtime and improving reliability on the job.

Low-RPM Advantage

Unlike direct-drive pumps, the belt-drive design of the TS2021 allows it to operate at just 1,450 RPM. This lower speed reduces heat, vibration, and stress on seals and bearings, leading to longer pump life and quieter operation.

The pump also handles water inlet temperatures up to 165°F (74°C), making it suitable for hot water applications where enhanced cleaning performance is required.

Easy Maintenance

Keeping the pump in top working order is simple:

  • Requires 37 oz of 30W non-detergent oil for proper lubrication.

  • Oil checks and changes are quick, ensuring smooth operation.

  • The robust construction and replaceable components make long-term service straightforward.

Routine maintenance will keep this pump running efficiently for years, even under daily heavy-duty use.

Common Applications

The General Pump TS2021 is a versatile pump that thrives in demanding settings:

  • Industrial Cleaning – Heavy equipment, factory floors, and machinery.

  • Fleet Washing – Semi-trucks, buses, and service vehicles.

  • Agriculture – Tractors, harvesters, and farm machinery cleaning.

  • Construction – Job site cleanup and equipment maintenance.

  • Surface Preparation – Stripping paint, coatings, mold, and mildew.

  • Commercial Property Maintenance – Parking lots, sidewalks, siding, and building exteriors.

With its high flow rate and strong PSI, this pump is designed to tackle the largest and toughest jobs efficiently.

Product Specifications

  • Part #: 85.130.026

  • Manufacturer: General Pump (GP)

  • Model: TS2021

  • Pump Style: Triplex, belt drive

  • Drive Type: Gas/Electric compatible

  • Max PSI: 3,500

  • Max Flow: 5.6 GPM

  • Shaft Size: 24 mm

  • RPM: 1,450

  • Unloader: External (AL607)

  • Soap Injector: Adjustable, optional (85.400.000)

  • Manifold: Nickel-plated brass

  • Plungers: Ceramic

  • Inlet: 3/4" GHF

  • Discharge: 3/8" Stainless Steel QC (85.300.108S)

  • Oil Capacity: 37 oz

  • Oil Type: 30W non-detergent oil

  • Thermal Relief Valve: 85.300.023

  • Max Inlet Temp: 74°C / 165°F

  • Weight: 32 lbs

  • Warranty: 5 Years

General Pump Quality

As part of the renowned General Pump TS Series, the TS2021 embodies professional reliability and performance. With its nickel-plated brass manifold, ceramic plungers, low-RPM belt drive, and high GPM output, it provides a powerful and durable solution for industrial cleaning.

Backed by a 5-year warranty, this pump is built to handle the toughest jobs while minimizing downtime. When you need a pump that combines strength, volume, and long-lasting reliability, the General Pump TS2021 is the professional’s choice.

Frequently Asked Questions about Pressure Washers

How to store a pressure washer?

To ensure the durability of your heavy duty pressure washer:

  • Empty the gas tank to prevent fuel from degrading or clogging the engine.
  • Empty the pump and hoses of any remaining water.
  • Perform necessary maintenance before storage.
  • Store in a dry area.
  • Cover.

What is a pressure washer?

A power washer is a cleaning machine that uses a gasoline engine to power a high pressure water pump and nozzle. It’s used to clean driveways, decks, vehicles, outdoor furniture and more by spraying water at high PSI to remove dirt, grime, mold and other debris.Many models also come with a detergent tank for added cleaning power.

How does a power washer work?

A power washer works by drawing water from a connected hose and pumping it through a high pressure nozzle. The gas engine powers the pump which pressurizes the water and then expels it through the nozzle at high speed to clean the surface. The water pressure is measured in PSI (pounds per square inch) and the flow rate is measured in GPM (gallons per minute).Many models also feature adjustable water pressure settings to cater to different cleaning needs. BE makes pressure washing easy with models available for light jobs and heavy duty commercial cleaning projects.

Gas vs Electric power washers?

The main difference is that a gas pressure washer, known for its cleaning power, is powered by a gasoline engine, making it more powerful and portable, while an electric pressure washer is powered by electricity and is generally quieter and lighter.

Gas pressure washers are for heavy duty and large areas due to their durability, whereas electric pressure washers are for smaller jobs.

Your BE electric pressure washer is perfect for smaller jobs and built for portability, and we offer a wide range of electric models. Included with our electric models is a long extension cord for use anywhere around your house.

What to consider?

When choosing a gas pressure washer consider:

  • Pressure (PSI): More PSI means more cleaning power but also more potential for damaging delicate surfaces.
  • Flow Rate (GPM): More GPM means faster cleaning as more water is dispensed.
  • Engine Power: Bigger engines mean more durability and power.
  • Portability: Weight, handle design and wheel size for easier to move.
  • Nozzles: Multiple spray nozzles to adjust the spray pattern for different tasks.
  • Adjustable Nozzle: Allows for fine-tuning the spray intensity and pattern for various cleaning needs.

How much pressure do I need for?

The required pressure (PSI) and cleaning power depend on the surface you’re cleaning:

  • Light duty (car washing, outdoor furniture): 1,300-1,800 PSI.
  • Medium duty (patios, fences, decks): 2,000-3,000 PSI.
  • Heavy duty (driveways, brick walls, large equipment): 3,000+ PSI.

Many pressure washers come with adjustable pressure settings to handle different cleaning tasks effectively.

Can a pressure washing damage surfaces?

Yes, a power washer can damage surfaces if used incorrectly. High pressure water can strip paint, dent soft surfaces or even cause structural damage if the pressure is too high or the nozzle is held too close to the surface. Always use the right PSI for the material you’re cleaning and keep a safe distance from delicate surfaces.

To prevent damage, consider using a model with adjustable pressure settings.

How to maintain your pressure washer?

To ensure the durability and smooth operation of a pressure washer:

  • Change the oil as per manufacturer’s instructions.
  • Clean or replace the air filter to ensure good airflow.
  • Inspect and clean the nozzle regularly to prevent clogs.
  • Drain the gas tank if you’re storing the washer for a long time.
  • Check the hoses for leaks or damage and replace them if needed.
  • Follow regular maintenance requirements to keep the washer in optimal condition.

Can I use a pressure washer in cold weather and low water temperature?

You can use a pressure washer in cold weather but it’s more difficult. The water flow rate in the hoses and pump can freeze and damage the equipment. If you plan to use your pressure washer in cold temperatures make sure to winterize it and store it in a warm area when not in use. You can also use anti-freeze solutions for pressure washers.

Some models are designed to use hot water, which can be particularly effective for cleaning in cold weather.

Do I need any accessories?

Common accessories for power washers:
