PRODUCT
DESCRIPTION

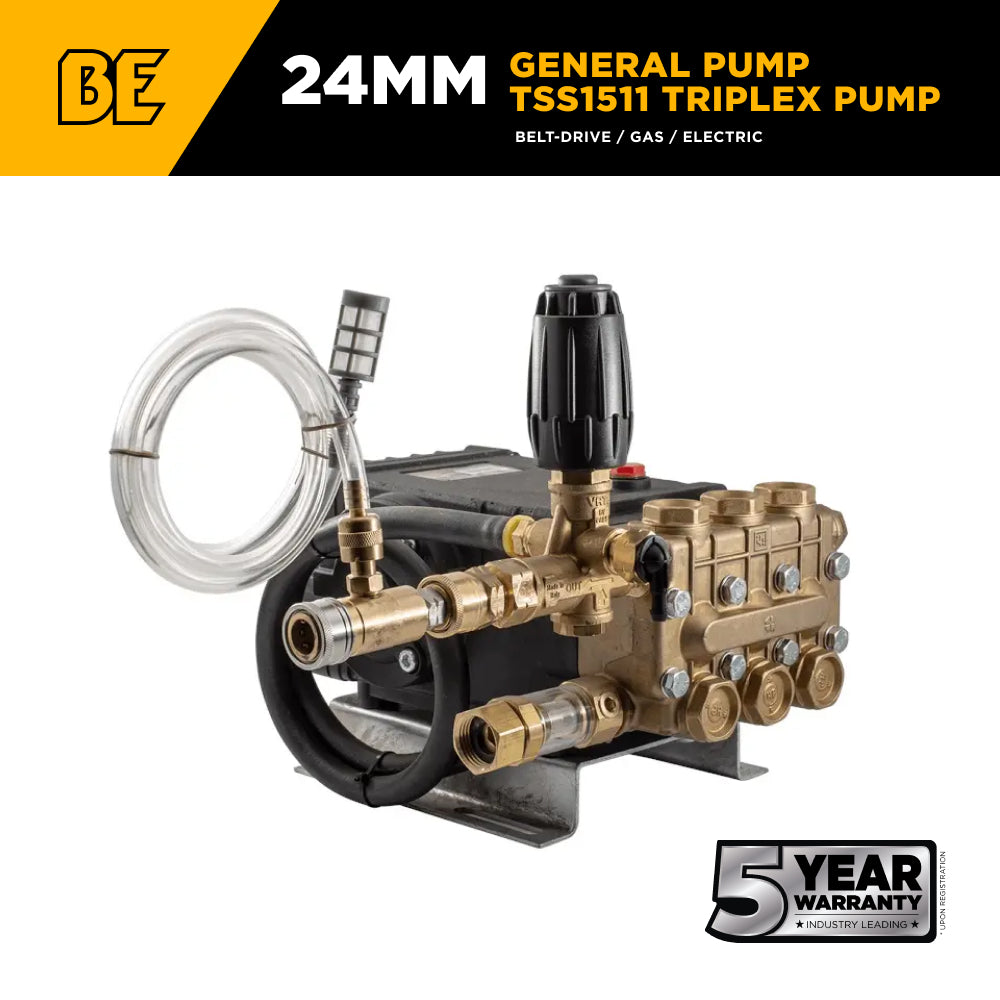

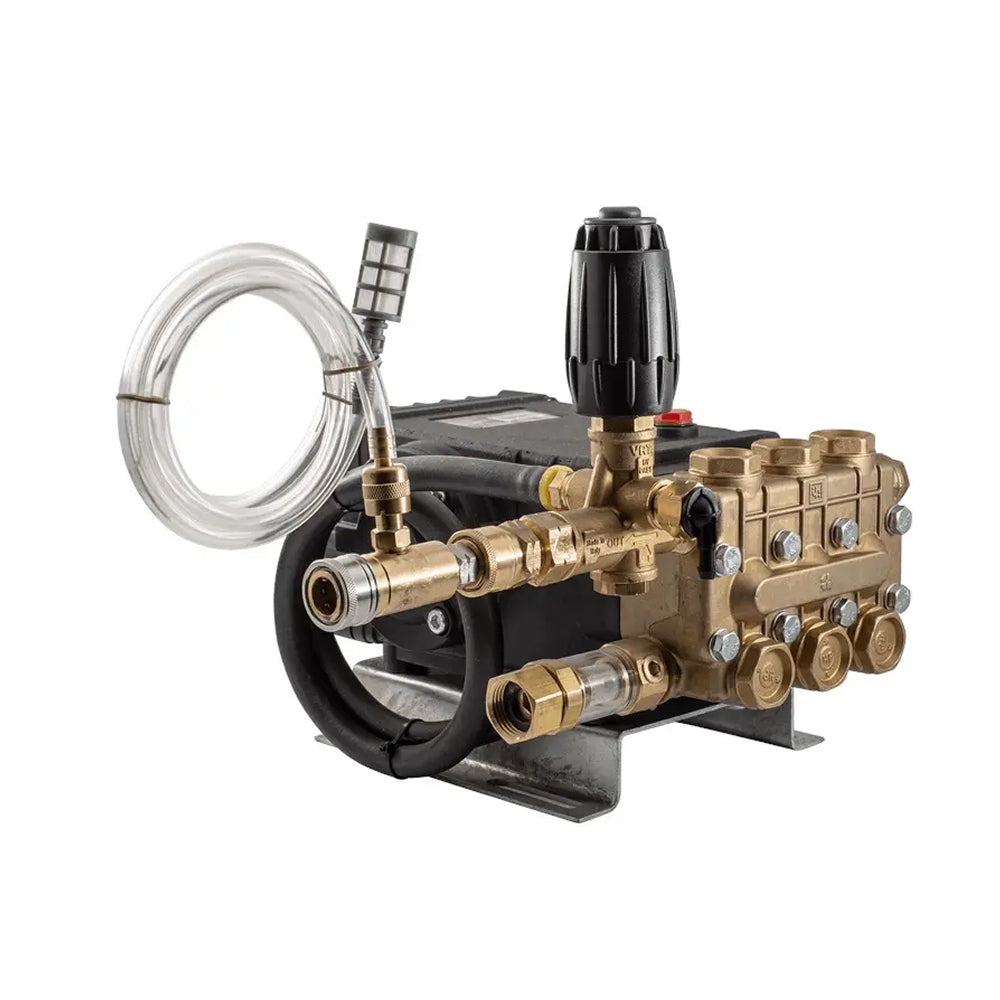

Heavy Duty Belt Drive Pump for Pro Use
The General Pump TSS1511 Triplex Pump Assembly (Bare Pump Part #85.130.005) is a pro grade belt drive triplex plunger pump built for maximum durability, smooth performance and reliable output. Up to 4,000 PSI at 4.0 GPM this pump is for contractors, commercial operators and industrial users who need high cleaning power and steady water flow.
Built by General Pump (GP) one of the most respected manufacturers in the industry the TSS1511 is engineered with a brass manifold, ceramic plungers and an external unloader for long lasting reliability, corrosion resistance and precise pressure control. Runs at low RPM (1,450) for extended life and backed by a 5 year warranty it’s the pro’s choice for tough cleaning jobs.
Features
-
Bare Pump Part #: 85.130.005
-
Manufacturer: General Pump (GP)
-
Model: TSS1511
-
Pump Style: Triplex, belt drive
-
Drive Type: Gas/Electric compatible
-

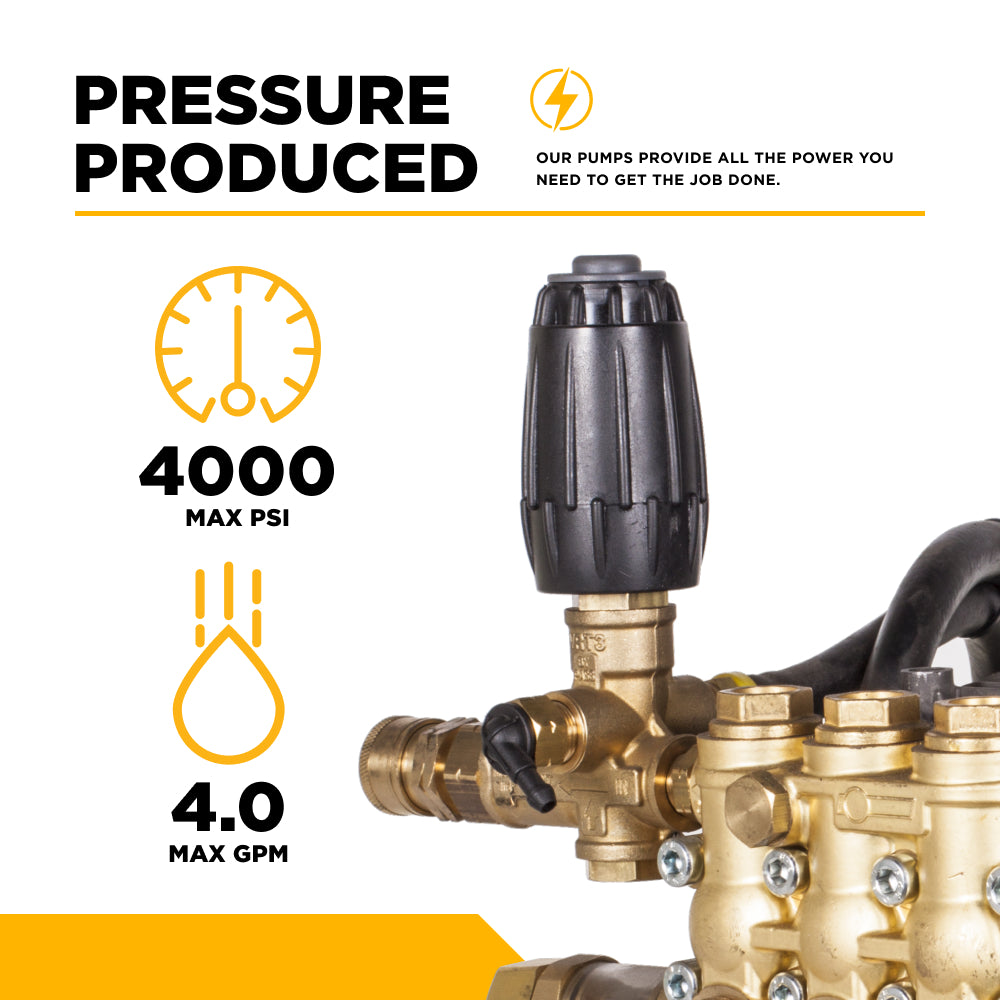

Max Pressure: 4,000 PSI
-
Max Flow Rate: 4.0 GPM
-
Shaft Size: 24 mm
-
Unloader Type: External (85.300.037)
-
Plunger (Piston): Ceramic for durability and heat resistance
-
Inlet Size: 3/4" GHF (garden hose fitting)
-
Discharge Size: 3/8" Brass QC (85.300.108)
-
Soap Injector: Adjustable (85.400.000)
-
Manifold Type: Brass
-

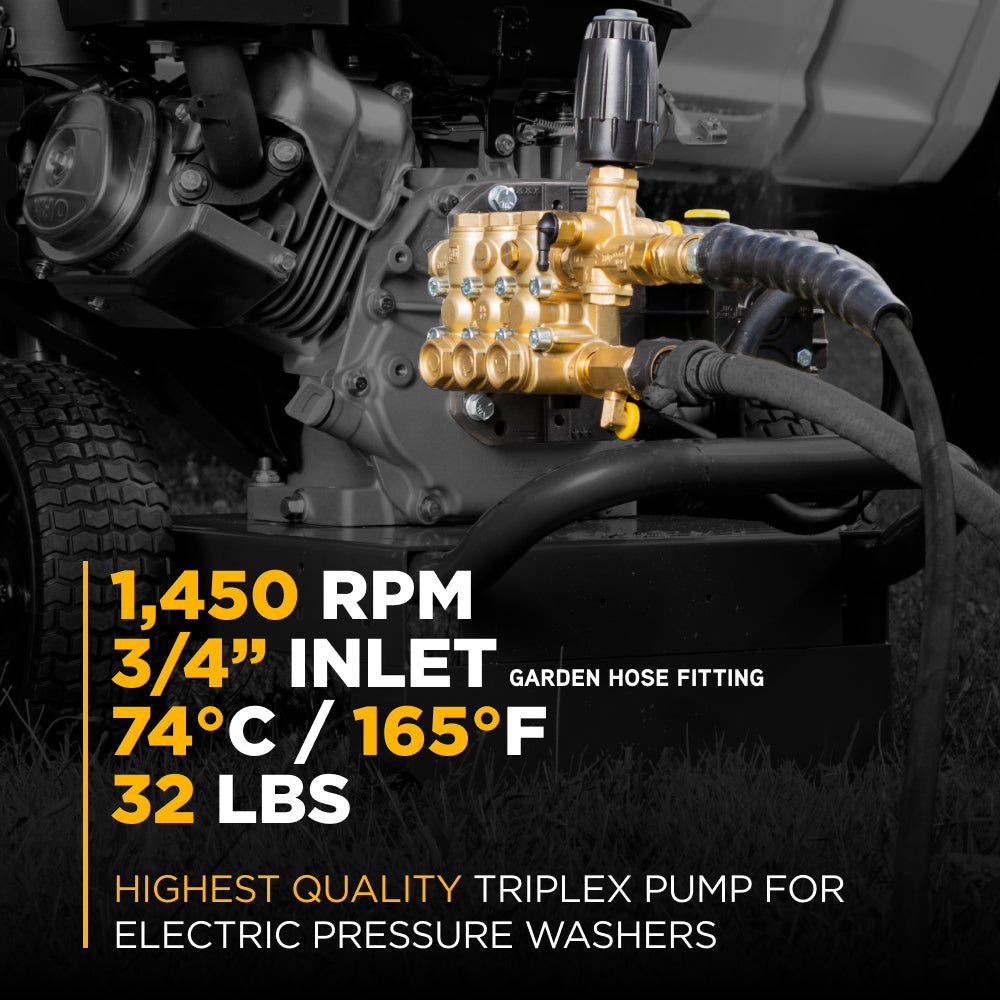

RPM: 1,450
-
Max Inlet Temp: 74°C / 165°F
-
Thermal Relief Valve: 85.300.022
-
Oil Capacity: 37 oz
-
Oil Type: 30W non-detergent oil
-
Weight: 32 lbs
-
Warranty: 5 Years
Pro Built
The triplex plunger design is smoother, more efficient and longer lasting than axial pumps. With three ceramic plungers the TSS1511 can withstand high temperatures and abrasion, protecting seals and internal components during extended use.
Rated for 4,000 PSI and 4.0 GPM this pump has the power for tough industrial cleaning and the efficiency for covering large areas. The belt drive system runs slower, wears less and is quieter than other pumps for heavy duty continuous use.
Built Tough
The TSS1511 is built with rugged materials for professional use:
-
Brass manifold for excellent corrosion resistance and heat dissipation.
-
Ceramic plungers for long life and seal life under high pressure.
-
24 mm solid shaft for strong and secure compatibility with belt driven systems powered by gas or electric motors.
-
Weighs 32 lbs for long term stability and reliability.
This is why the TSS1511 is the choice for industrial cleaning, commercial car wash systems and agricultural applications.
Operator Friendly
General Pump designed the TSS1511 with operator convenience and system safety in mind:
-

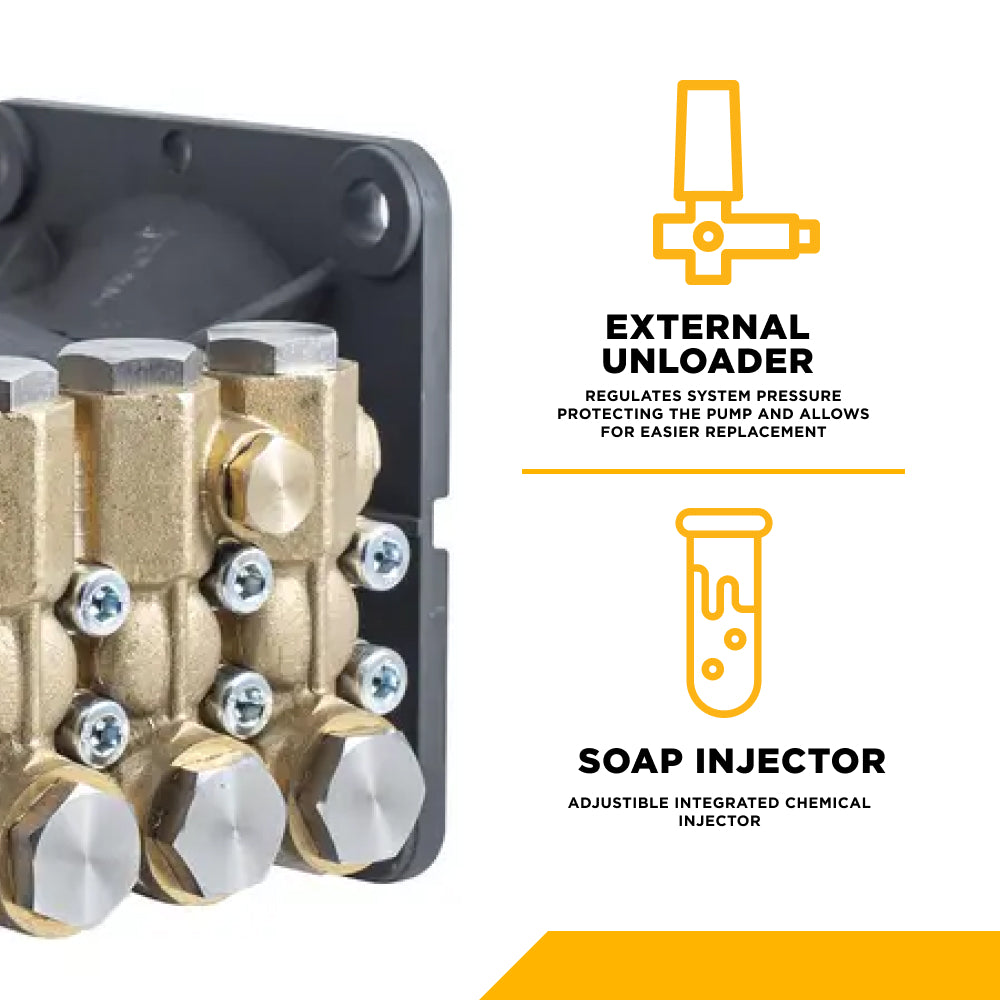

External unloader (85.300.037) for precise pressure control and easy servicing.
-
Adjustable soap injector (85.400.000) for flexible detergent application.
-
Thermal relief valve (85.300.022) to release overheated water during bypass operation.
-
Quick connect brass discharge (3/8” – 85.300.108) for secure and leak free hose connections.
These features ensure safe and efficient operation and reduce downtime in the field.
Low RPM Advantage
Runs at 1,450 RPM cooler, quieter and with less wear than high speed pumps. Lower RPM operation extends the life of seals, bearings and plungers making the TSS1511 a great investment for long term heavy duty use.
Also with a maximum inlet water temperature of 165°F (74°C) it can handle hot water applications for better cleaning.
Maintenance
Easy service for years to come:* Requires 37 oz of 30W non-detergent oil.
-
Oil changes and checks are easy.
-
Equipped with thermal relief valve for automatic overheating protection.
With proper maintenance the TSS1511 will perform and last.
Applications
The General Pump TSS1511 Triplex Pump Assembly is for:
-
Industrial Cleaning – Degreasing and heavy duty wash-down.
-
Fleet Washing – Trucks, trailers, buses and heavy duty vehicles.
-
Car Wash Systems – Belt drive systems that require high PSI operation.
-
Agriculture – Tractors, combines and farm equipment.
-
Commercial Property Maintenance – Parking lots, sidewalks, siding and exterior surfaces.
-
Surface Preparation – Stripping paint, mold and coatings prior to refinishing.
With high PSI, steady water flow and low-RPM durability it’s one of the most versatile belt drive pumps available.
Product Information
-
Part#: 85.130.005
-
Manufacturer: General Pump (GP)
-
Model: TSS1511
-
Style: Triplex, belt drive
-
Drive Type: Gas/Electric compatible
-
Max Pressure: 4,000 PSI
-
Max Flow Rate: 4.0 GPM
-
Shaft Size: 24 mm
-
RPM: 1,450
-
Unloader: External (85.300.037)
-
Soap Injector: Adjustable (85.400.000)
-
Manifold Material: Brass
-
Plunger Material: Ceramic
-
Inlet Connection: 3/4” GHF
-
Discharge Connection: Brass QC 3/8" (85.300.108)
-
Oil Capacity: 37 oz (30W non-detergent oil)
-
Thermal Relief Valve: 85.300.022
-
Max Inlet Temp: 74°C / 165°F
-
Weight: 32 lbs
-
Warranty: 5 Years
General Pump
General Pump is known worldwide for its solid engineering and quality. The TSS1511 Triplex Pump Assembly continues that tradition with low-RPM belt drive, brass manifold, ceramic plungers and external unloader for maximum durability and performance.
With 5 year warranty the TSS1511 is a long term solution for professionals who need big cleaning power and rugged reliability.
When you need maximum power, smooth operation and long life the General Pump TSS1511 is built to deliver—every day, every job.
