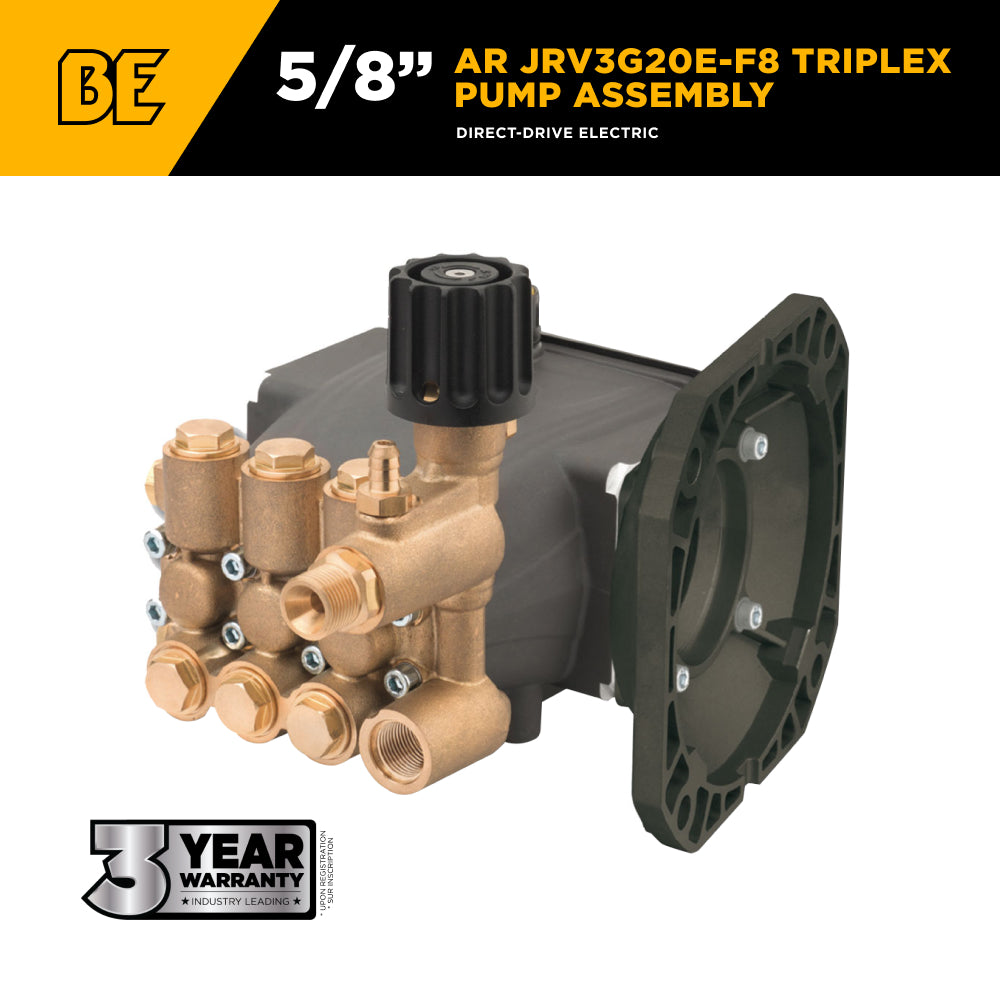

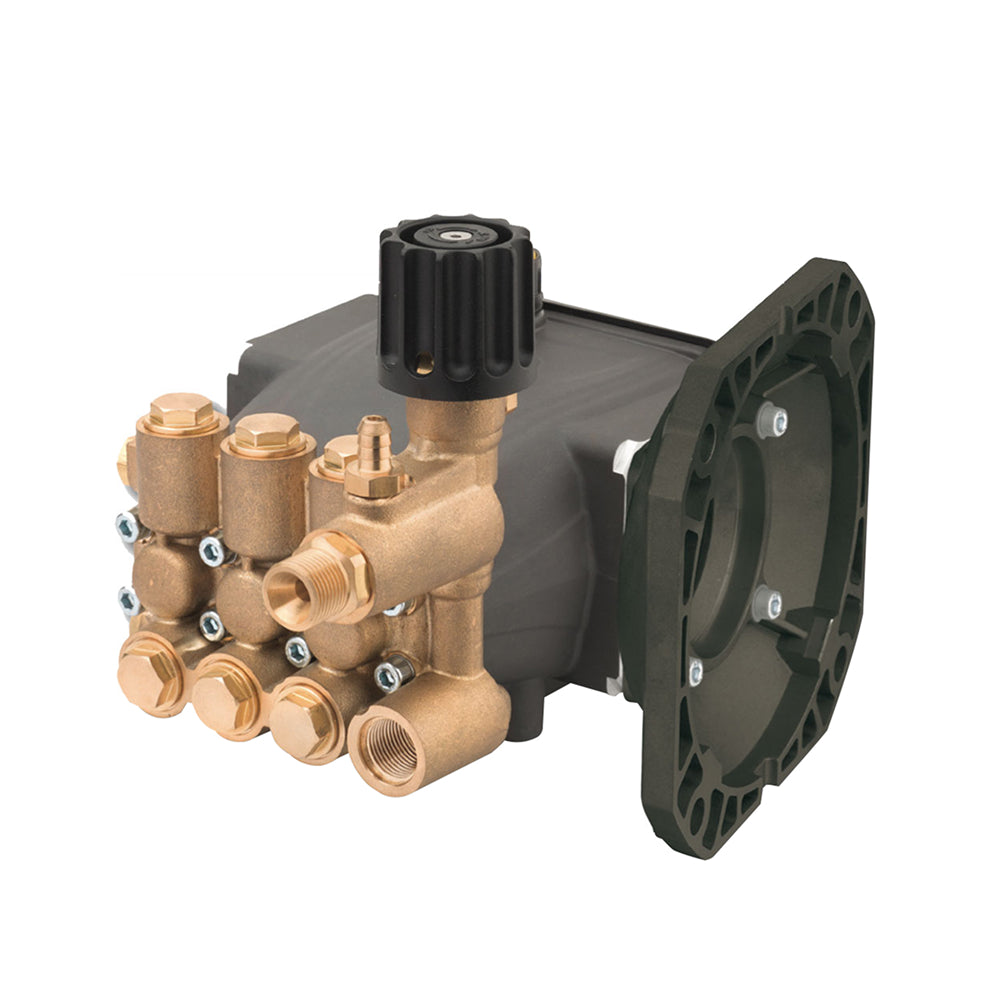

AR JRV3G20E-F8 Pump Assembly – 3.0 GPM, 2,000 PSI, 5/8” Shaft

AR JRV3G20E-F8 Pump Assembly – 3.0 GPM, 2,000 PSI, 5/8” Shaft

Specifications

UNLOADER

Built-In

WARRANTY

3 Years

RPM

3,450

PUMP MODEL

AR JRV3G20E

PUMP TYPE

Triplex

Oil Type

30W Non Detergent

Oil Capacity

5.5 oz

Thermal Relief Value

85.300.022

Max Inlet Temperature

60°C / 140°F

Manifold Type

Brass

Soap Injector

Fixed

Discharge Size

3/8" Brass QC 85.300.103

Inlet Size

3/4" GHF

Plunger Piston

Ceramic

Unloader Type

Built-In

Max GPM

3.0

Shaft Size

5/8"

Direct Drive

Electric

Weight

8.8 lbs

View full details

PRODUCT

DESCRIPTION

Compact Triplex Pump for Electric Pressure Washers

The AR JRV3G20E-F8 Pump Assembly (Bare Pump Part #85.120.089) is a triplex direct-drive pump designed for electric pressure washers that need reliable cleaning performance in a compact package. 2,000 PSI at 3.0 GPM, perfect for light commercial and serious residential users who want professional results without the bulk of gas powered systems.

Built by Annovi Reverberi (AR), a global leader in pump technology, the JRV3G20E-F8 has a brass manifold, ceramic plungers and built-in unloader for long life. 3 year warranty, great cleaning power in a lightweight package.

Features

  • Bare Pump Part #: 85.120.089

  • Pump Manufacturer: Annovi Reverberi (AR)

  • Pump Model: JRV3G20E

  • Pump Style: Triplex, direct-drive electric

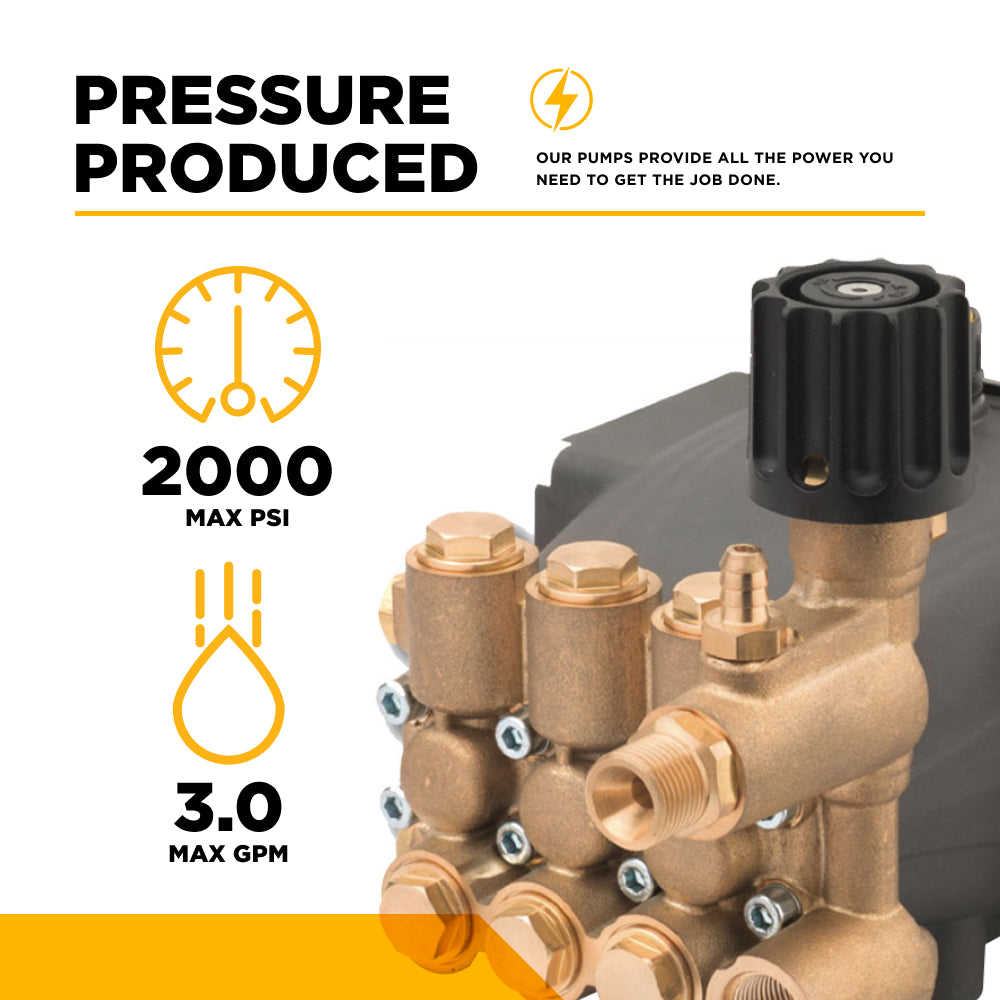

  • Max PSI: 2,000

  • Max GPM: 3.0

  • Shaft Size: 5/8”

  • Unloader Type: Built-In

  • Plunger (Piston): Ceramic for maximum durability

  • Inlet Size: 3/4” GHF (garden hose fitting)

  • Discharge Size: 3/8” Brass QC (85.300.103)

  • Soap Injector: Fixed for detergent application

  • Manifold Type: Brass

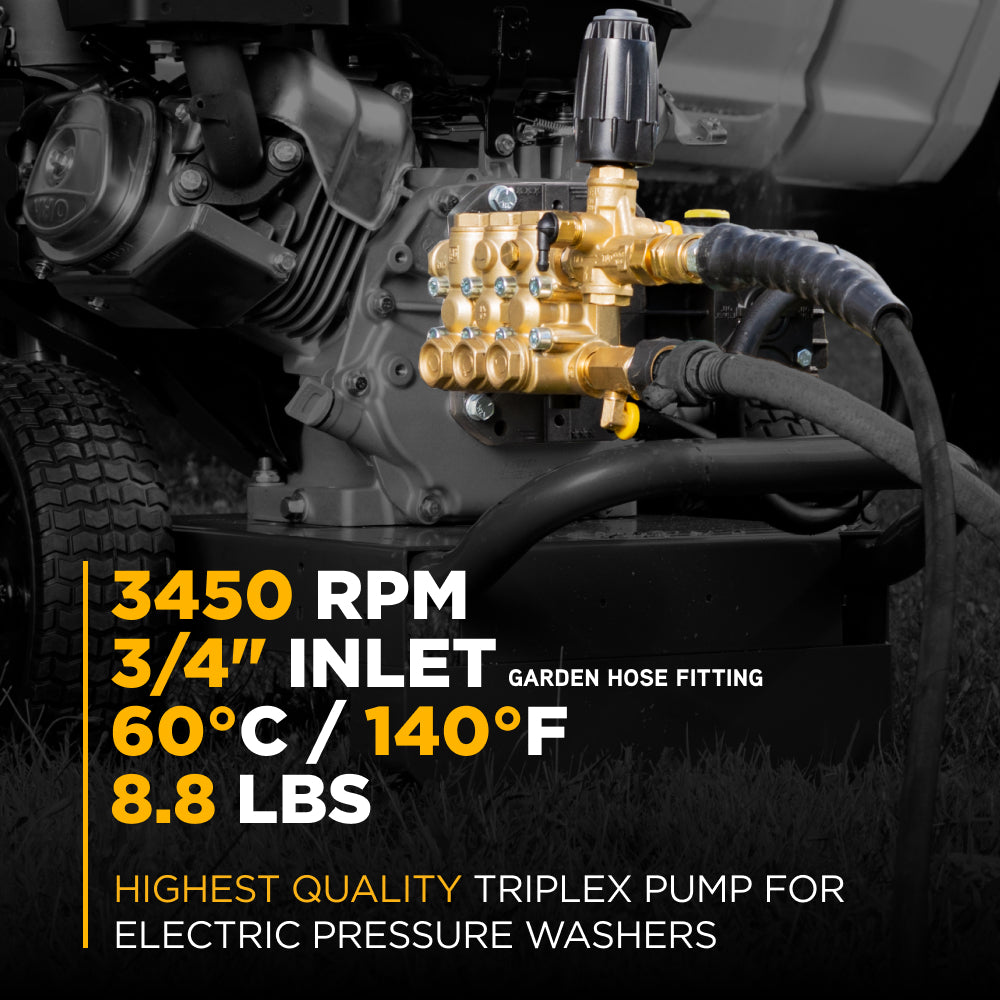

  • RPM: 3,450

  • Max Inlet Temp: 60°C / 140°F

  • Thermal Relief Valve: 85.300.022

  • Oil Capacity: 5.5 oz

  • Oil Type: 30W non-detergent oil

  • Weight: 8.8 lbs

  • Warranty: 3 Years

For Electric SystemsThe triplex plunger design of the JRV3G20E-F8 is what sets it apart from entry level axial pumps. Smoother operation, higher efficiency and longer life. Three ceramic plungers resist heat and wear for continuous use.

2,000 PSI and 3.0 GPM, the right balance of pressure and flow for most cleaning applications. Siding, fences, vehicles, outdoor equipment, professional results in a electric powered package.

Rugged and Durable Construction

The AR JRV3G20E-F8 Pump is built tough:

  • Brass manifold resists corrosion and dissipates heat to protect seals and internal components.

  • Ceramic plungers withstand high heat and abrasion, reducing wear and extending pump life.

  • 5/8” shaft for seamless compatibility with many electric drive systems.

Only 8.8 lbs, lightweight and rugged, easy to install and service.

Integrated Features for Ease of Use

Everything you need for reliable operation and operator convenience:

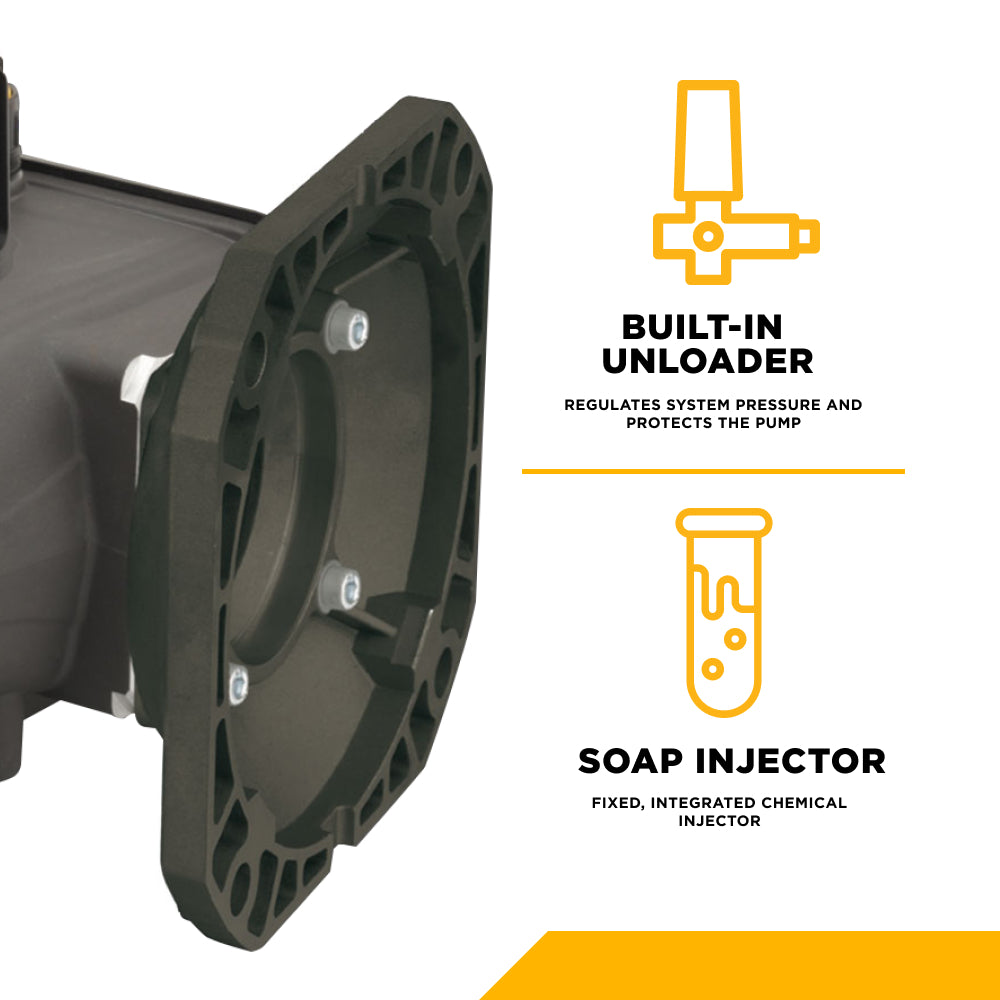

  • Built-in unloader: Regulates system pressure and prevents overloading.

  • Fixed soap injector: Simple detergent application with low pressure nozzle.

  • Brass quick-connect discharge (3/8” – 85.300.103): Leak free hose connection.

  • Thermal relief valve (85.300.022): Protects the pump from overheating during bypass operation.

All the features you need for user friendly and maintenance friendly.

Simple Maintenance

Low maintenance, perfect for homeowners and light commercial operators:

  • 5.5 oz of 30W non-detergent oil for proper lubrication.

  • Oil checks and changes are quick and inexpensive.

  • Handles water inlet temperatures up to 140°F (60°C) for versatility.

Proper maintenance extends pump life and years of service.

Applications

For many cleaning jobs:* Residential – For decks, driveways, patios, siding and fencing.

  • Vehicle Washing – Cars, trucks, motorcycles, boats.

  • Light Commercial – Workshops, small business storefronts, maintenance teams.

  • Equipment Maintenance – Lawn mowers, ATVs, bicycles, equipment.

  • Property Upkeep – Outdoor furniture, brickwork, stone surfaces.

2,000 PSI is strong enough to tackle tough grime but safe for delicate surfaces with the right nozzle.

Product Details

  • Part#: 85.120.089

  • Manufacturer: Annovi Reverberi (AR)

  • Model: JRV3G20E-F8

  • Style: Triplex, direct-drive electric

  • Max Pressure: 2,000 PSI

  • Max Flow Rate: 3.0 GPM

  • Shaft Size: 5/8”

  • RPM: 3,450

  • Unloader: Built-In

  • Soap Injector: Fixed

  • Manifold Material: Brass

  • Plunger Material: Ceramic

  • Inlet Connection: 3/4” GHF

  • Discharge Connection: Brass QC 3/8” (85.300.103)

  • Oil Capacity: 5.5 oz (30W non-detergent oil)

  • Thermal Relief Valve: 85.300.022

  • Max Inlet Temp: 60°C / 140°F

  • Weight: 8.8 lbs

  • Warranty: 3 Years

AR Built to Last

With decades of engineering expertise, Annovi Reverberi (AR) sets the standard in pump design and performance. The JRV3G20E-F8 Pump Assembly is a prime example of that legacy, triplex design, brass manifold, ceramic plungers and built-in unloader for consistent results.

3 year warranty and AR quality, perfect for upgrading or replacing electric pressure washer pumps.

When you need a compact, efficient and professional grade pump, the AR JRV3G20E-F8 is built to perform and designed to last.

Frequently Asked Questions about Pressure Washers

How to store a pressure washer?

To ensure the durability of your heavy duty pressure washer:

  • Empty the gas tank to prevent fuel from degrading or clogging the engine.
  • Empty the pump and hoses of any remaining water.
  • Perform necessary maintenance before storage.
  • Store in a dry area.
  • Cover.

What is a pressure washer?

A power washer is a cleaning machine that uses a gasoline engine to power a high pressure water pump and nozzle. It’s used to clean driveways, decks, vehicles, outdoor furniture and more by spraying water at high PSI to remove dirt, grime, mold and other debris.Many models also come with a detergent tank for added cleaning power.

How does a power washer work?

A power washer works by drawing water from a connected hose and pumping it through a high pressure nozzle. The gas engine powers the pump which pressurizes the water and then expels it through the nozzle at high speed to clean the surface. The water pressure is measured in PSI (pounds per square inch) and the flow rate is measured in GPM (gallons per minute).Many models also feature adjustable water pressure settings to cater to different cleaning needs. BE makes pressure washing easy with models available for light jobs and heavy duty commercial cleaning projects.

Gas vs Electric power washers?

The main difference is that a gas pressure washer, known for its cleaning power, is powered by a gasoline engine, making it more powerful and portable, while an electric pressure washer is powered by electricity and is generally quieter and lighter.

Gas pressure washers are for heavy duty and large areas due to their durability, whereas electric pressure washers are for smaller jobs.

Your BE electric pressure washer is perfect for smaller jobs and built for portability, and we offer a wide range of electric models. Included with our electric models is a long extension cord for use anywhere around your house.

What to consider?

When choosing a gas pressure washer consider:

  • Pressure (PSI): More PSI means more cleaning power but also more potential for damaging delicate surfaces.
  • Flow Rate (GPM): More GPM means faster cleaning as more water is dispensed.
  • Engine Power: Bigger engines mean more durability and power.
  • Portability: Weight, handle design and wheel size for easier to move.
  • Nozzles: Multiple spray nozzles to adjust the spray pattern for different tasks.
  • Adjustable Nozzle: Allows for fine-tuning the spray intensity and pattern for various cleaning needs.

How much pressure do I need for?

The required pressure (PSI) and cleaning power depend on the surface you’re cleaning:

  • Light duty (car washing, outdoor furniture): 1,300-1,800 PSI.
  • Medium duty (patios, fences, decks): 2,000-3,000 PSI.
  • Heavy duty (driveways, brick walls, large equipment): 3,000+ PSI.

Many pressure washers come with adjustable pressure settings to handle different cleaning tasks effectively.

Can a pressure washing damage surfaces?

Yes, a power washer can damage surfaces if used incorrectly. High pressure water can strip paint, dent soft surfaces or even cause structural damage if the pressure is too high or the nozzle is held too close to the surface. Always use the right PSI for the material you’re cleaning and keep a safe distance from delicate surfaces.

To prevent damage, consider using a model with adjustable pressure settings.

How to maintain your pressure washer?

To ensure the durability and smooth operation of a pressure washer:

  • Change the oil as per manufacturer’s instructions.
  • Clean or replace the air filter to ensure good airflow.
  • Inspect and clean the nozzle regularly to prevent clogs.
  • Drain the gas tank if you’re storing the washer for a long time.
  • Check the hoses for leaks or damage and replace them if needed.
  • Follow regular maintenance requirements to keep the washer in optimal condition.

Can I use a pressure washer in cold weather and low water temperature?

You can use a pressure washer in cold weather but it’s more difficult. The water flow rate in the hoses and pump can freeze and damage the equipment. If you plan to use your pressure washer in cold temperatures make sure to winterize it and store it in a warm area when not in use. You can also use anti-freeze solutions for pressure washers.

Some models are designed to use hot water, which can be particularly effective for cleaning in cold weather.

Do I need any accessories?

Common accessories for power washers:
