Professional Triplex Pump for Extreme Cleaning Power

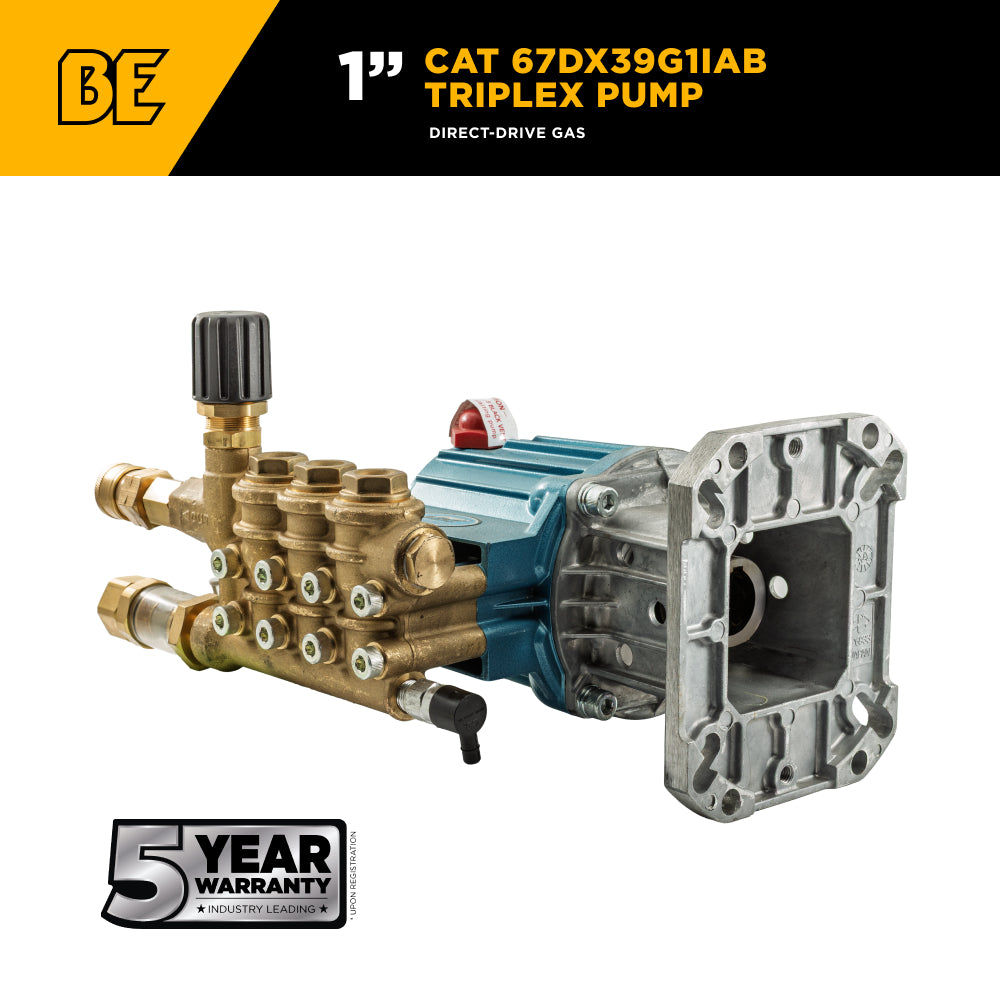

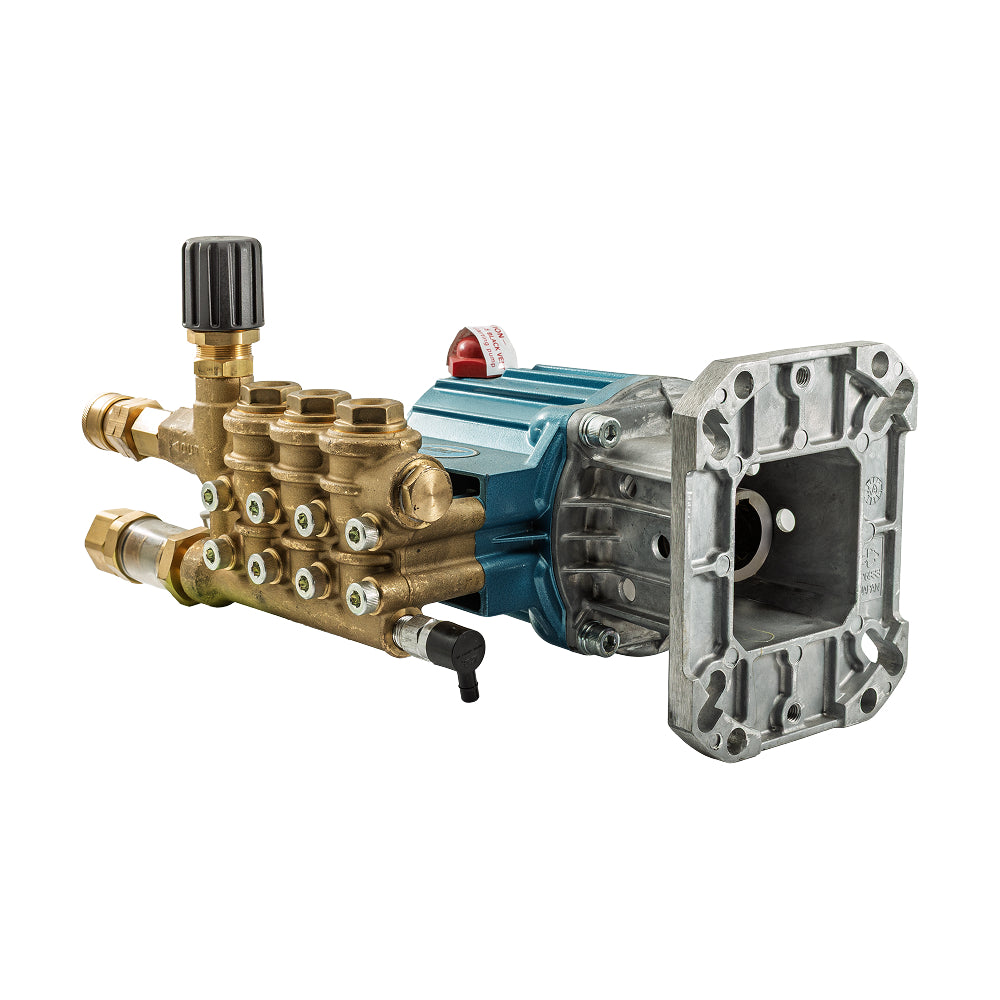

The CAT 67DX39G1IAB Pump Assembly (Bare Pump Part #85.110.031) is a high-performance triplex direct-drive gas pump for professionals who need maximum power, efficiency and long lasting reliability. With up to 4,400 PSI at 3.9 GPM this pump is perfect for industrial, commercial and demanding residential cleaning applications.
Built by CAT Pumps, a global leader in durability and precision engineering, the 67DX39G1IAB has a brass manifold, ceramic plungers and built-in unloader in a rugged design that performs consistently under pressure. Backed by a 5 year warranty it has the professional grade dependability CAT is known for worldwide.
Features
-
Bare Pump Part #: 85.110.031
-
Pump Manufacturer: CAT Pumps
-
Pump Model: 67DX39G1
-
Pump Style: Triplex, direct-drive gas
-
Max PSI: 4,400
-
Max GPM: 3.9
-
Shaft Size: 1" horizontal shaft
-
Unloader Type: Built-in
-
Plunger (Piston): Ceramic for maximum heat resistance
-
Inlet Size: 3/4" GHF (garden hose fitting)
-
Discharge Size: 3/8" Brass QC (85.300.103)
-
Soap Injector: Fixed
-
Manifold Type: Brass
-

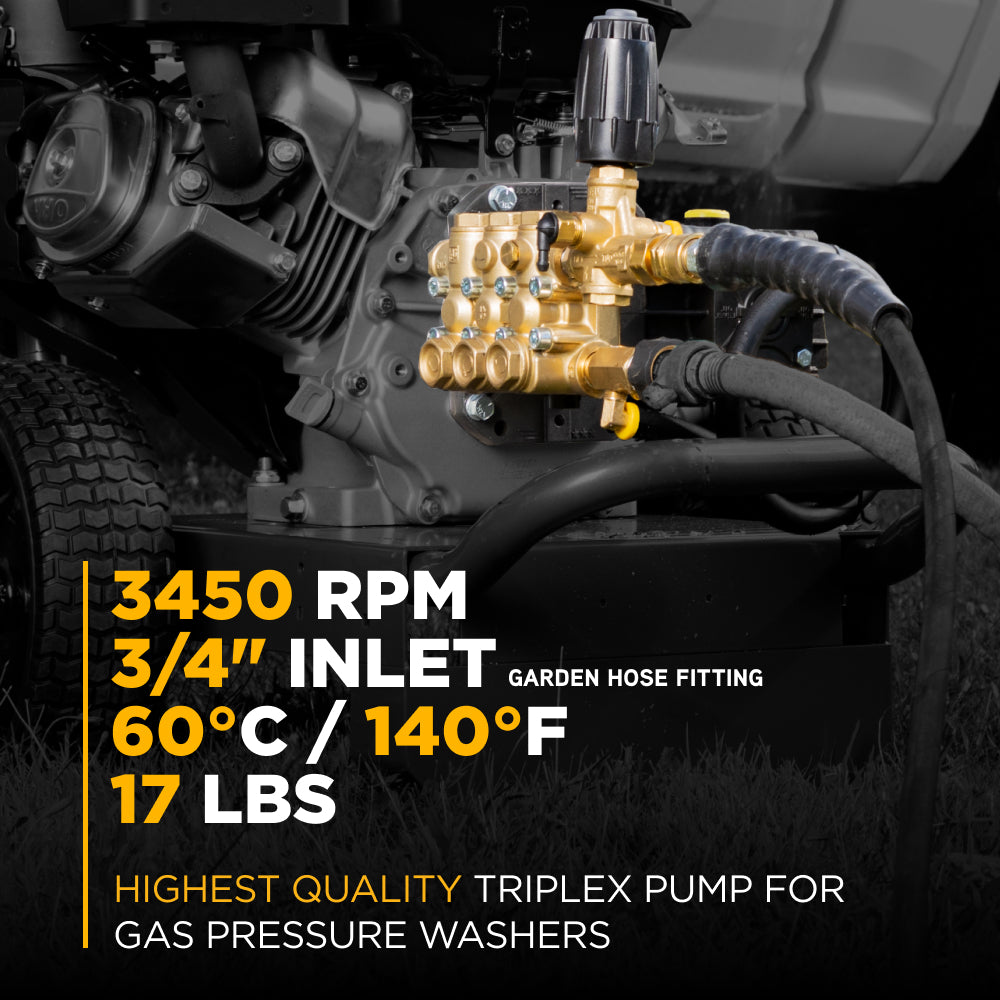

RPM: 3,450
-
Max Inlet Temp: 60°C / 140°F
-
Thermal Relief Valve: 85.300.024 included
-
Oil Capacity: 13.5 oz
-
Oil Type: 30W non-detergent oil
-
Weight: 17 lbs
-
Warranty: 5 Years
Built for Maximum Performance
The triplex plunger design is the professional standard for high-performance pumps. With three ceramic plungers the 67DX39G1IAB reduces vibration, smooths out operation and increases efficiency compared to axial pumps.Delivers 4,400 PSI of pressure and 3.9 GPM of water flow. The best of both worlds: cutting power for tough grime and plenty of water for fast coverage. Perfect for heavy-duty jobs like construction cleaning, industrial equipment maintenance and fleet washing.
Durable
Every part of the 67DX39G1IAB is built to last:
-
Ceramic plungers for maximum heat and abrasion resistance, longer service intervals and longer pump life.
-
Brass manifold for corrosion resistance and heat dissipation, protects internal components.
-
1” horizontal shaft for compatibility with most professional grade gas engines.
Weighs 17 lbs so it’s rugged but manageable for installation and maintenance.
Integrated Protection and Convenience
Engineered for operator convenience and system protection:
-

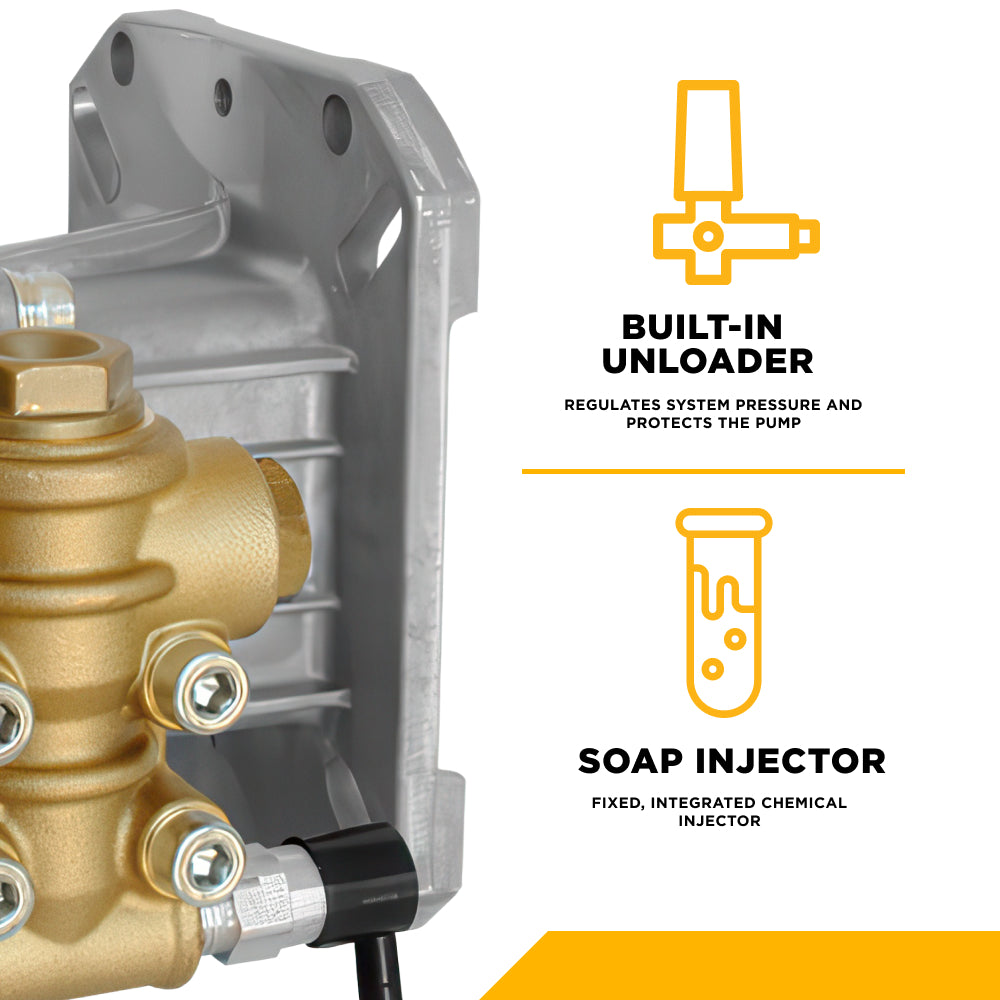

Built-in unloader regulates system pressure and protects against overpressurization.
-
Fixed soap injector for easy detergent application with a low-pressure nozzle.
-
Brass quick-connect discharge (3/8”) for a leak-free hose connection.
-
Thermal relief valve (85.300.024) prevents damage during extended bypass cycles by releasing overheated water and refreshing it with cooler water.
Maintenance
Easy maintenance schedule to maximize pump life with minimal downtime:
-
13.5 oz of 30W non-detergent oil for lubrication.
-
Regular oil checks and scheduled oil changes for peak performance.
-
Inlet water temperature up to 140°F (60°C) for flexibility in various operating environments.
These simple maintenance tasks will extend service life and performance.
Applications
The power and reliability of the CAT 67DX39G1IAB Pump Assembly makes it suitable for many demanding cleaning applications:
-
Construction Sites – Remove mud, concrete dust and grease from tools and heavy equipment.
-
Fleet Maintenance – Wash large vehicles like trucks, trailers and buses.
-
Agriculture – Clean tractors, harvesters and other farm machinery.
-
Industrial Cleaning – Clean grease, oil and grime on large equipment and workspaces.* Property Maintenance – Remove mold, mildew and stains from decks, siding and concrete surfaces.
-
Surface Preparation – Strip paint, coatings and buildup before refinishing or repainting.
It’s high PSI and flow rate makes it suitable for both precision cleaning and broad coverage tasks.
Product Details
-
Part #: 85.110.031
-
Manufacturer: CAT Pumps
-
Model: 67DX39G1
-
Style: Triplex, direct-drive gas
-
Max Pressure: 4,400 PSI
-
Max Flow Rate: 3.9 GPM
-
Shaft Size: 1” horizontal shaft
-
RPM: 3,450
-
Unloader: Built-in
-
Soap Injector: Fixed
-
Manifold Material: Brass
-
Plunger Material: Ceramic
-
Inlet Connection: 3/4” GHF
-
Discharge Connection: Brass QC 3/8" (85.300.103)
-
Oil Capacity: 13.5 oz (30W non-detergent oil)
-
Thermal Relief Valve: 85.300.024
-
Max Inlet Temp: 60°C / 140°F
-
Weight: 17 lbs
-
Warranty: 5 Years
CAT Pumps Quality
CAT Pumps are known worldwide for their reliability and innovation in pressure washer pump technology. The 67DX39G1IAB Pump Assembly continues this tradition with triplex design, brass manifold, ceramic plungers and built-in unloader in a pump built for extreme performance.
With a 5 year warranty you get peace of mind, professional reliability and a proven return on investment.
When your job requires maximum pressure, long-term durability and professional grade performance trust the CAT 67DX39G1IAB Pump Assembly – engineered for results, built to last.
