Product / Pressure Washers / 643HD

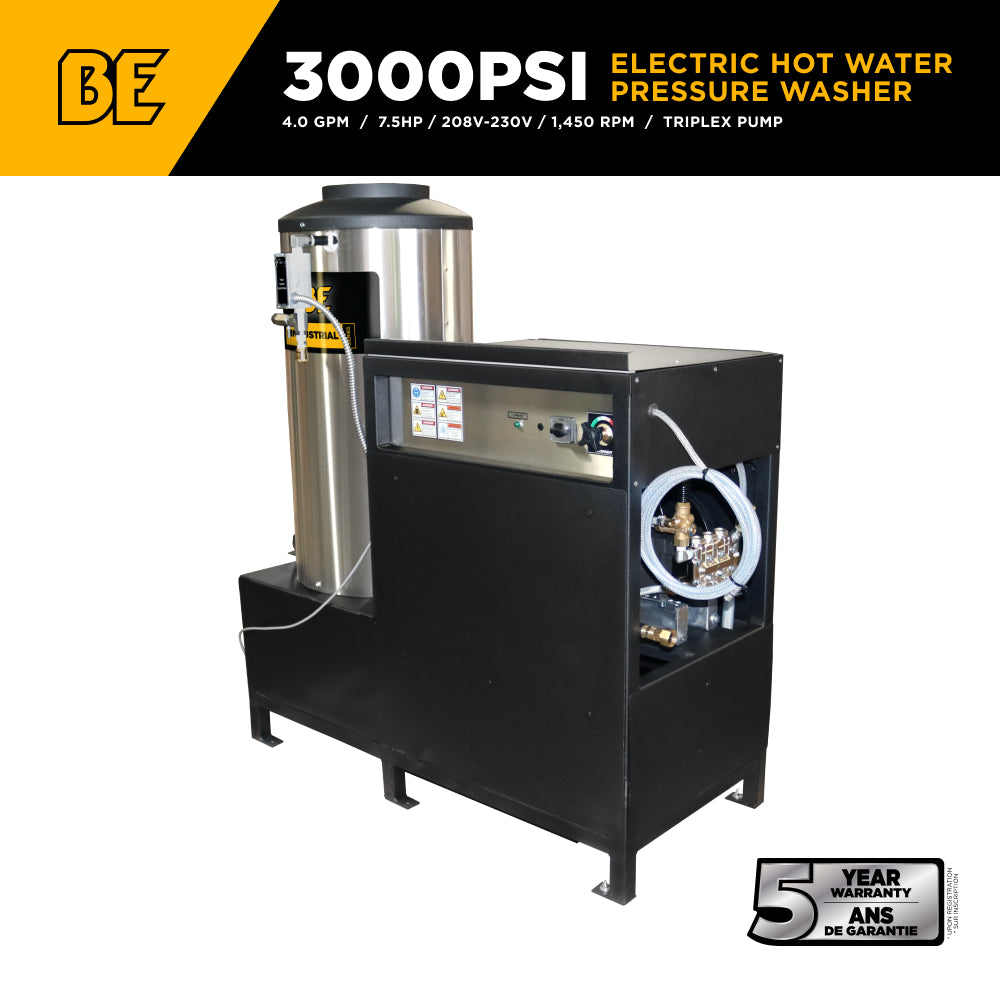

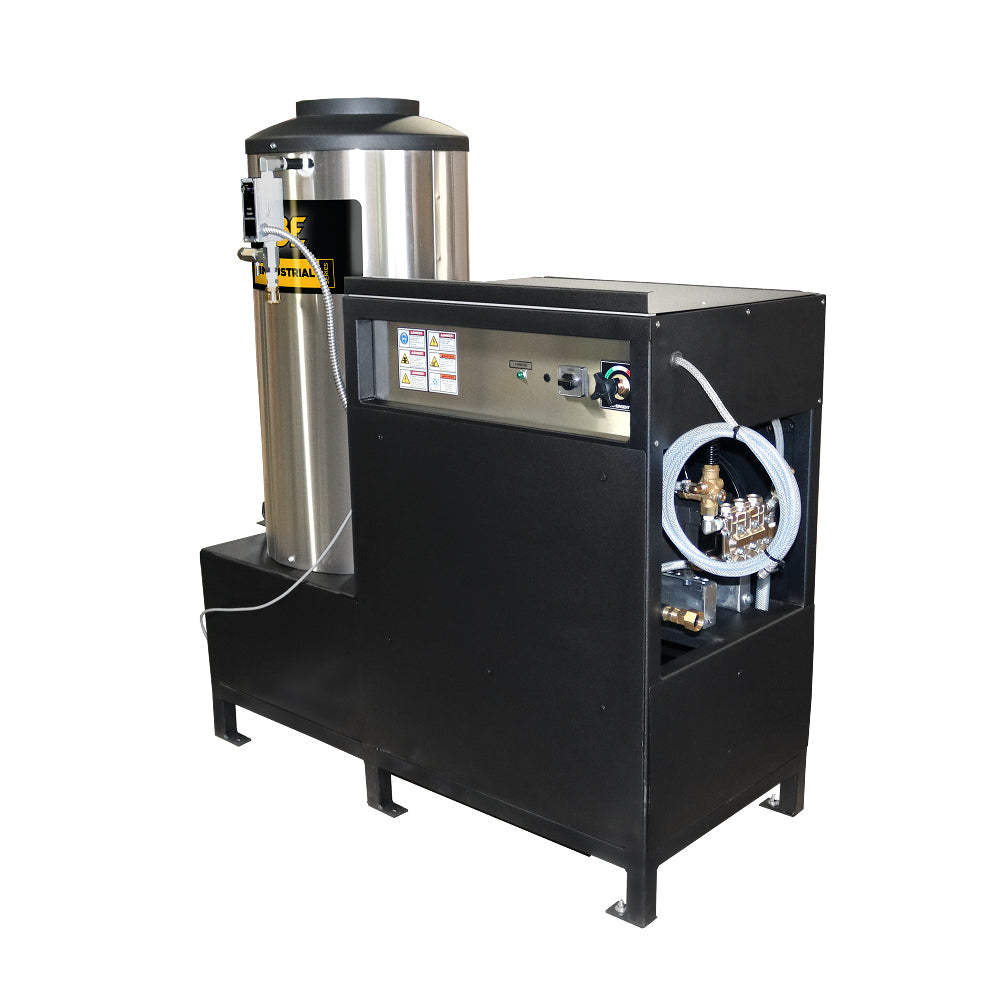

3,000 PSI 4.0 GPM Hot Water Electric Pressure Washer with 7.5 HP Baldor Motor and General Triplex Pump- 643HD

3,000 PSI 4.0 GPM Hot Water Electric Pressure Washer with 7.5 HP Baldor Motor and General Triplex Pump- 643HD

Specifications

FRAME

Powder Coated Steel Frame

PSI

3,000

GPM

4.0

UNLOADER

External

SERIES

Industrial

RPM

1,750

ENGINE START

Electric

MOTOR

Baldor 7.5HP / 1 Phase / 37-36 Amp

PUMP MODEL

General TSS1511

PUMP TYPE

Triplex

Hose Length

50'

VOLTS

230

CORD LENGTH

10'

MAX TEMPRATURE

93°C / 200°F

MATERIAL

Powder Coated

Nozzles Included

15° & 25°

Oil Type

30W Non-Detergent

Weight

700 lbs

View full details

PRODUCT

DESCRIPTION

Industrial-Grade Hot Water Cleaning Powered by Baldor and General Pump Performance

The BE Power Equipment 643HD Hot Water Pressure Washer is engineered for industrial environments where continuous-duty performance, high heat, and dependable power are essential. Delivering 3,000 PSI at 4.0 GPM, this unit provides the ideal balance of pressure, flow, and temperature for breaking down grease, oil, grime, and buildup in demanding cleaning applications.

Powered by a 7.5 HP Baldor single-phase electric motor operating on 208V–230V, the 643HD is built for reliability and long service life. The motor runs at 1,750 RPM, pairing with a belt-driven General TSS1511 triplex pump to reduce heat, vibration, and component wear while delivering smooth, consistent pressure. A high-output electronic-ignition burner system, compatible with natural gas or LP, produces up to 385,000 BTU, heating water to a maximum of 93°C / 200°F for superior industrial cleaning performance.

Designed for stationary industrial installations, the 643HD delivers professional hot water cleaning power with advanced controls that protect components and simplify operation.

Built for Industrial Hot Water Applications

The 643HD is purpose-built for facilities that require reliable hot water pressure washing, including:

  • Manufacturing and production facilities

  • Fleet and equipment maintenance shops

  • Food processing and sanitation environments

  • Industrial wash bays

  • Heavy equipment and parts cleaning

Hot water significantly improves cleaning efficiency by accelerating grease breakdown, reducing cleaning time, and minimizing chemical usage.

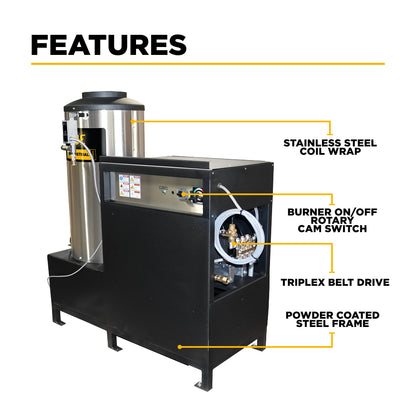

Features

Baldor Electric Motor

At the heart of the 643HD is a commercial-duty Baldor electric motor, engineered for industrial use.

Motor features include:

  • 7.5 HP output

  • Single-phase operation

  • 208V–230V (to be specified)

  • 37–36 amp draw

  • 1,750 RPM low-speed design

  • Quiet, emission-free electric operation

This motor provides dependable power for extended run times in industrial settings.

General Triplex Pump with Belt Drive

The General TSS1511 triplex pump is belt-driven for reduced stress and improved durability.

Pump features include:

  • Forged brass manifold

  • Solid ceramic plungers

  • Reinforced pump body

  • External unloader for improved cooling and serviceability

  • Adjustable high-pressure chemical metering valve

The belt drive system lowers pump RPM, minimizes heat transfer, and extends pump life under continuous use.

High-Output Gas-Fired Hot Water System

The hot water system is engineered for consistent, high-temperature operation.

Hot water system features include:

  • Electronic ignition burner system

  • Compatible with natural gas or LP

  • 385,000 BTU output

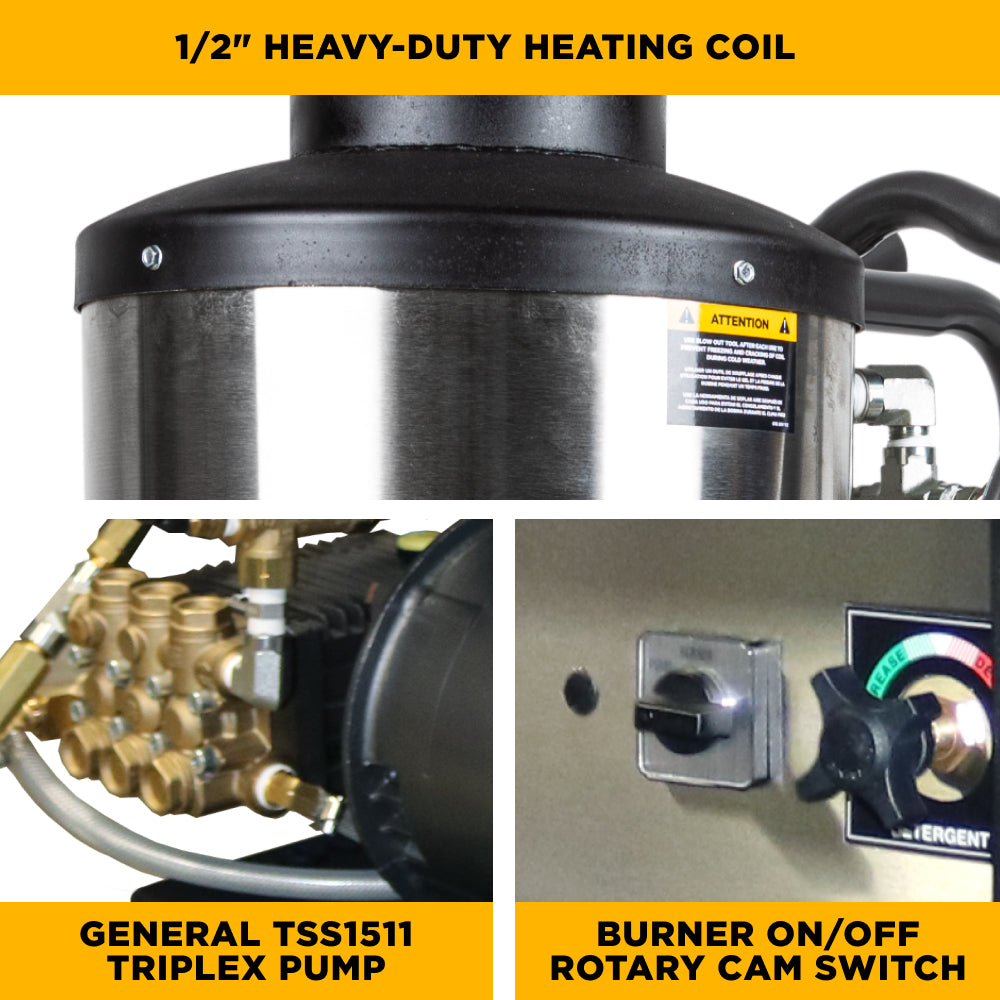

  • 147’ x 1/2” Schedule 80 cold-rolled steel heating coil

  • Maximum water temperature of 93°C / 200°F

  • Adjustable thermostat

  • Flow / pressure switch

  • Pressure relief valve

  • Rotary cam burner switch

This system delivers rapid heat recovery and stable temperature control during extended cleaning cycles.

Advanced Controls and Protection

The 643HD includes industrial safety and monitoring features designed to protect equipment and improve usability:

  • Time-delay shutdown for controlled cool-down

  • Hour meter for accurate maintenance tracking

  • External unloader for consistent pressure regulation

These features help extend component life while simplifying daily operation.

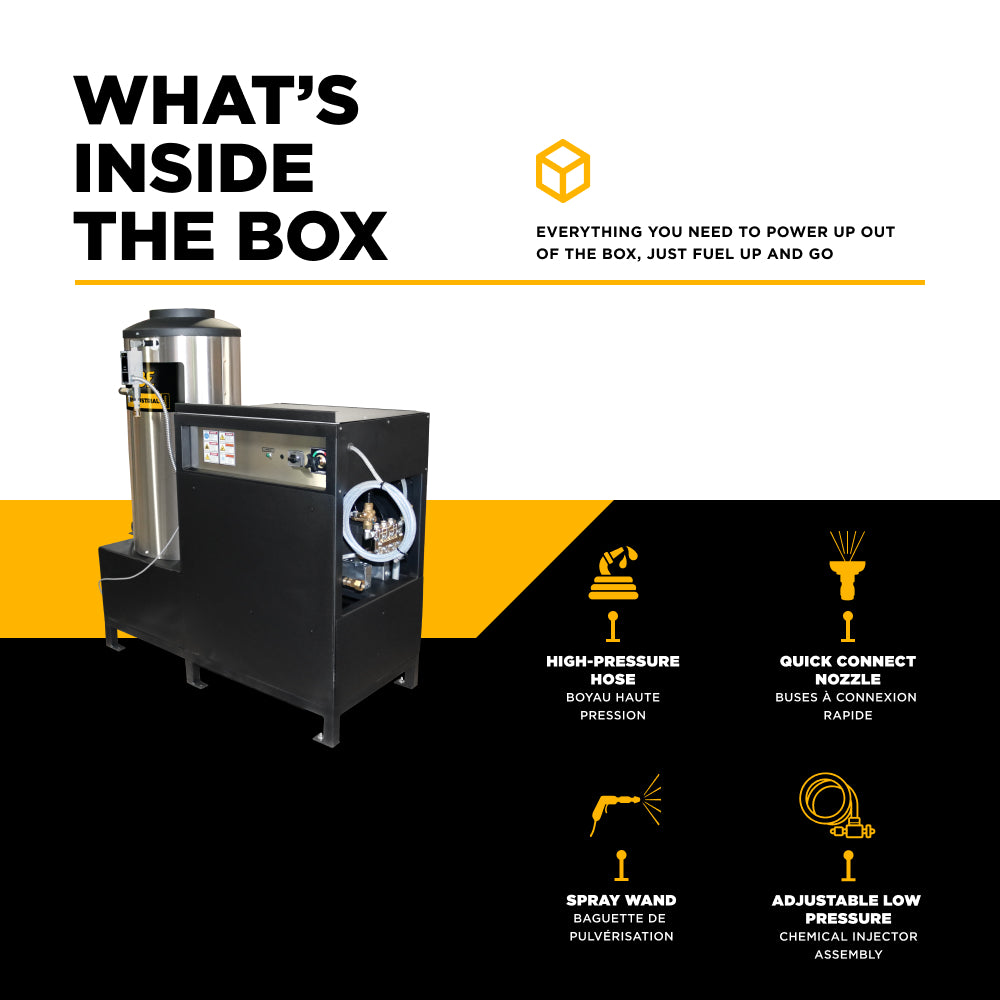

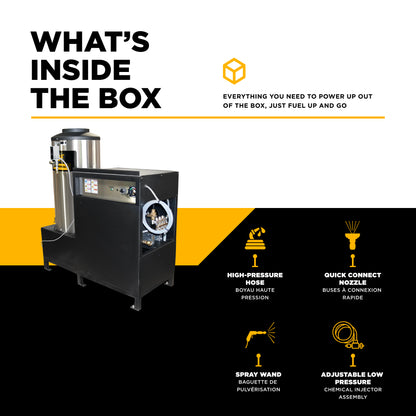

Accessories Included

The 643HD comes equipped with professional-grade accessories:

  • 50 ft. twin-wire braided high-pressure hose

  • Commercial insulated spray gun

  • 48” insulated spray wand with quick-connect fittings

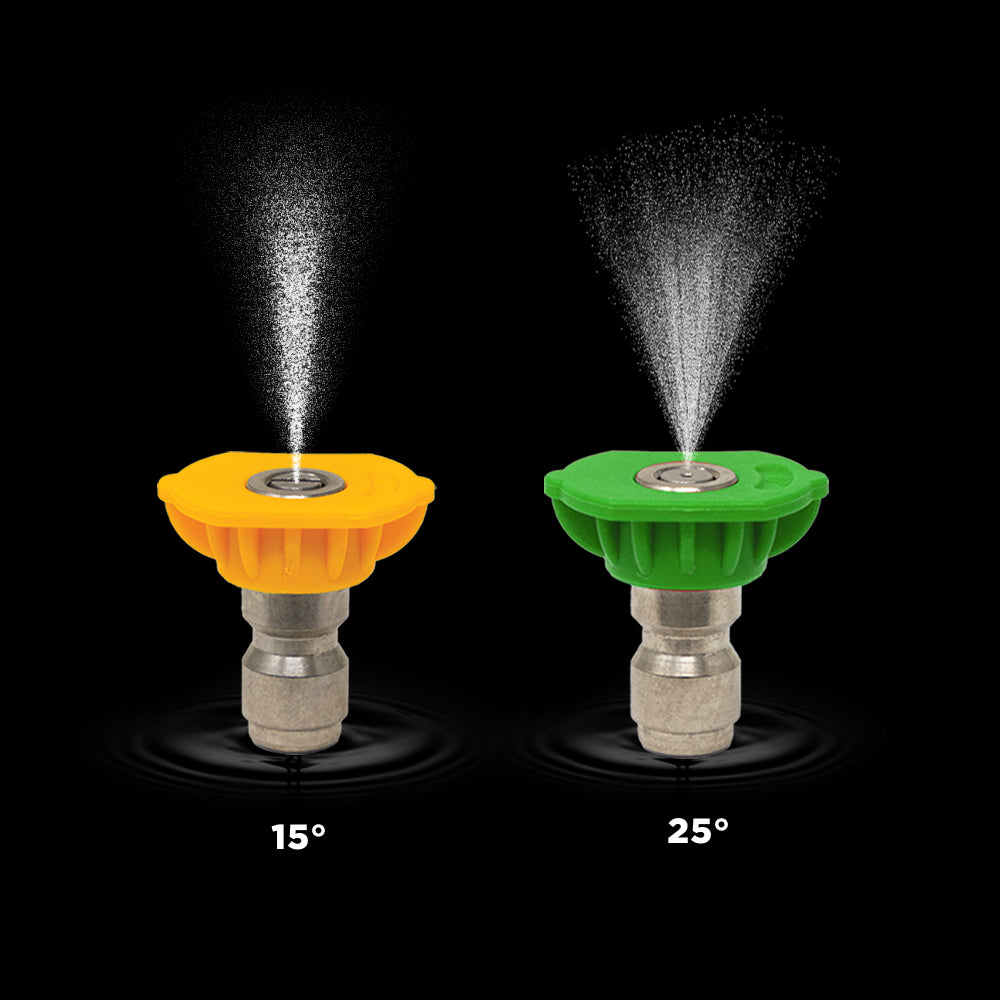

  • 2 quick-connect spray nozzles – 15° and 25°

All accessories are rated for hot water use and designed for industrial durability.

Available Options

Remote Station Control (Optional)
Includes:

  • Start / Stop / Restart

  • Burner On / Off

  • Detergent On / Off

A standard 10’ lead wire is included, with longer lengths available at additional cost.
Preferred coil position (Left / Right) must be specified at time of order.

Product Details

Model: 643HD
Pressure: 3,000 PSI
Flow Rate: 4.0 GPM
Motor: Baldor electric motor
Horsepower: 7.5 HP
Phase: Single-phase
Voltage: 208V–230V (to be specified)
Amperage: 37–36A
Motor Speed: 1,750 RPM
Pump: General Triplex TSS1511
Pump Class: P8
Unloader: External
Chemical Injection: Adjustable high-pressure metering valve
Burner: Electronic ignition natural gas or LP
BTU Output: 385,000
Maximum Temperature: 93°C / 200°F
Heating Coil: 147’ x 1/2” Schedule 80 cold-rolled steel
Thermostat: Adjustable
Time-Delay Shutdown: Yes
Hour Meter: Yes
Flow / Pressure Switch: Yes
Pressure Relief Valve: Yes
Burner Switch: Rotary cam
Power Cord / Plug: 10’ cord / no plug

Warranty Coverage

  • Motor: 2 Years

  • Pump: 5 Years

  • Burner: 3 Years

  • Coil: Lifetime

Shipping Information

Shipping Weight: 700 lbs

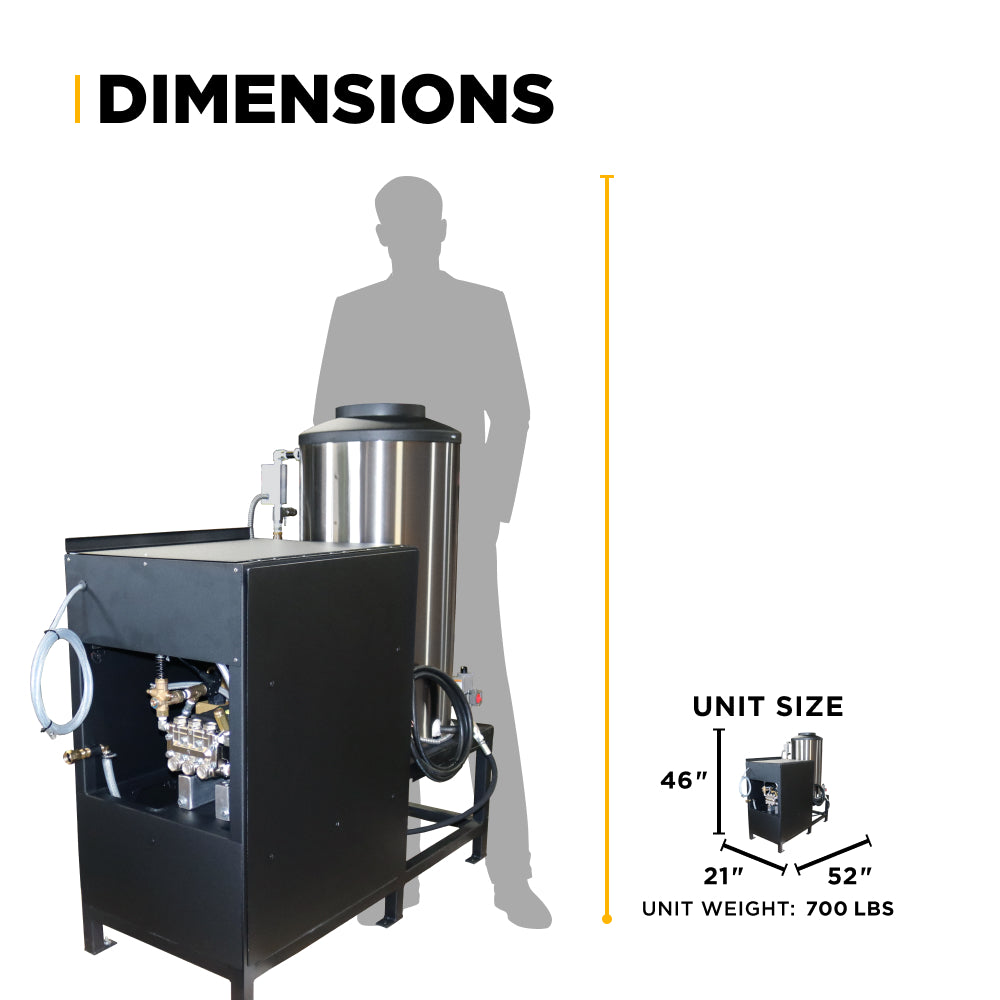

Shipping Dimensions (L × W × H): 60” × 40” × 67”

Factory Tested for Performance

Each BE Power Equipment hot water pressure washer is functionally tested at the factory prior to shipping. Units may contain residual oil or fuel odor, confirming quality inspection and readiness for operation.

Industrial Heat. Proven Power. Built to Perform.

For industrial operators who demand consistent hot water output, durable construction, and reliable electric power, the 643HD Hot Water Pressure Washer delivers. Built with a Baldor motor, General triplex pump, and high-output gas-fired burner system, it’s designed to clean smarter, faster, and hotter — day after day.

643HD — industrial hot water performance without compromise.
