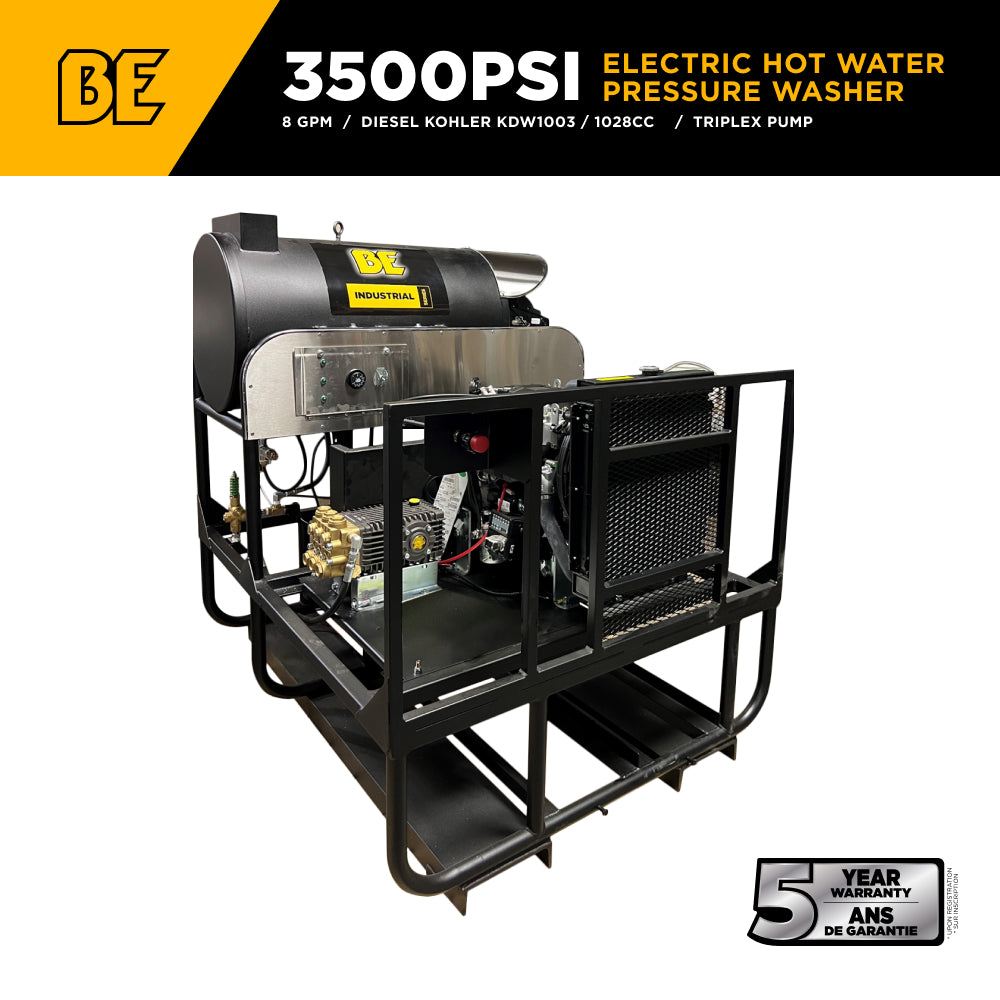

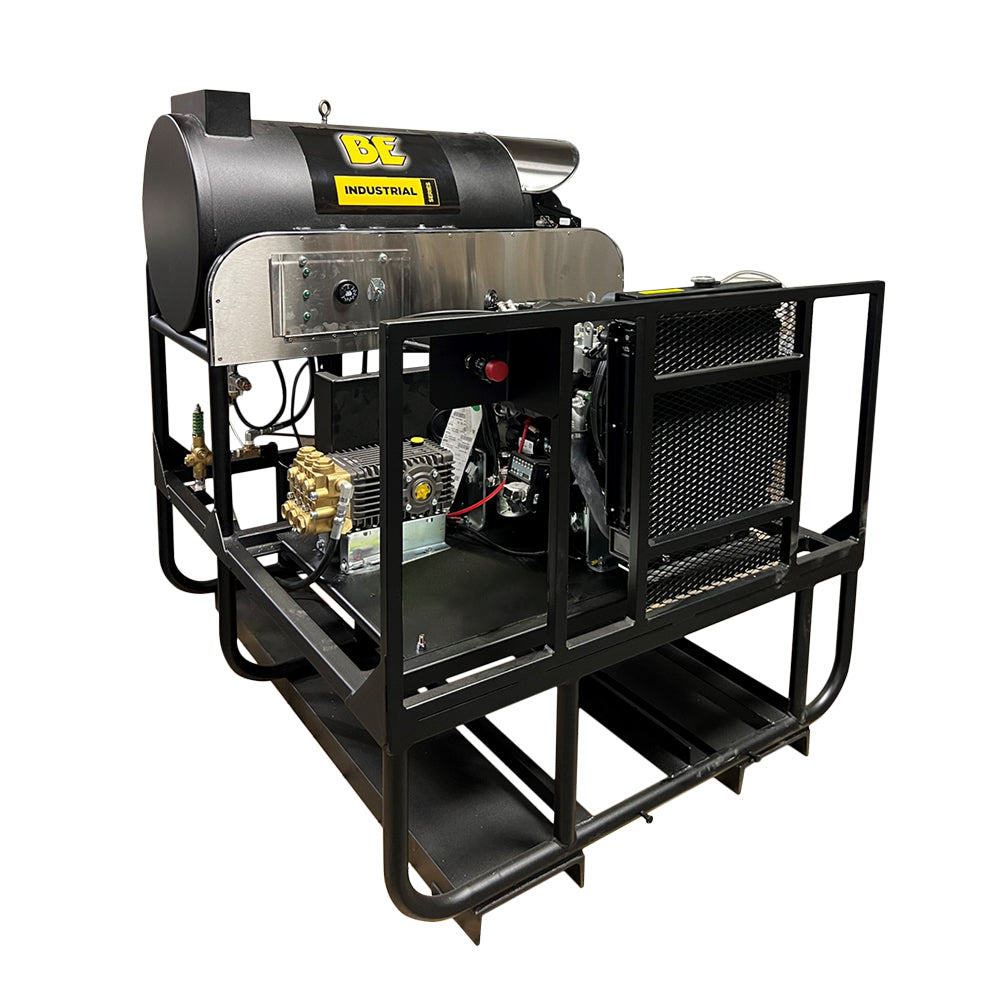

3,500 PSI 8 GPM Hot Water Diesel Pressure Washer Skid with General Triplex Pump - 5835DG

3,500 PSI 8 GPM Hot Water Diesel Pressure Washer Skid with General Triplex Pump - 5835DG

Specifications

FRAME

Built-In Truck Mount Brackets

ENGINE

Diesel Kohler KDW1003

CC

1028CC

PSI

3,500

GPM

8

UNLOADER

External

SERIES

Industrial

WARRANTY

Engine: 2 Years / Pump: 5 Years / Burner: 3 Years

ENGINE START

Electric

PUMP MODEL

General TSF2021

PUMP TYPE

Triplex

Hose Length

50'

MAX TEMPRATURE

93°C / 200°F

MATERIAL

Powder Coated

Nozzles Included

25° & 40°

Oil Type

30W Non-Detergent

View full details

PRODUCT

DESCRIPTION

Industrial Hot Water Cleaning Power with Diesel Kohler KDW1003 and Belt-Driven Triplex Pump

The BE Power Equipment 5835DG Hot Water Pressure Washer Skid is engineered for professionals who demand powerful heat, high flow, and long-term durability in the most demanding industrial environments. Delivering 3,500 PSI at 8.0 GPM, this hot water pressure washer provides the pressure, flow, and temperature required to cut through grease, oil, and heavy buildup faster than cold water systems.

Powered by a diesel Kohler KDW1003 engine and paired with an industrial-grade belt-driven General triplex pump, the 5835DG is built for continuous-duty operation. A 12V Beckett burner, high-capacity heating coil, and adjustable thermostat allow this unit to deliver hot water up to 93°C / 200°F, significantly improving cleaning efficiency and reducing chemical use.

Mounted on a heavy-duty powder-coated steel skid, this unit is designed for permanent truck or trailer installation and is plumbed for mobile water tank use with a bypass return—making it an ideal solution for mobile industrial cleaning operations.

Built for Serious Industrial and Mobile Cleaning

The 5835DG hot water pressure washer skid is purpose-built for commercial and industrial environments where heat, reliability, and performance are critical. It is ideal for:

  • Industrial plant and facility maintenance

  • Heavy equipment and machinery cleaning

  • Fleet, transport, and trailer washing

  • Oil, grease, and contaminant removal

  • Construction, agricultural, and municipal cleaning

With high GPM output and controlled heat, this hot water system reduces cleaning time, labor effort, and operating costs while delivering superior results.

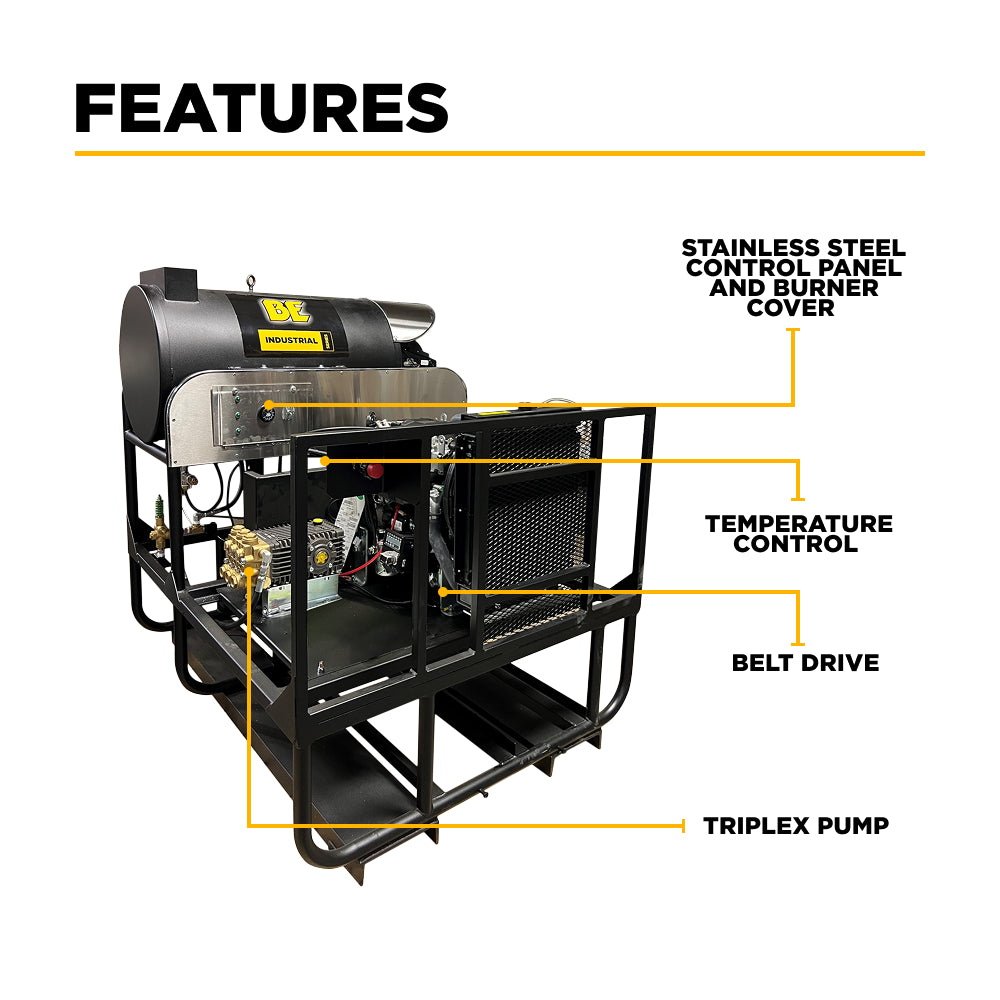

Features

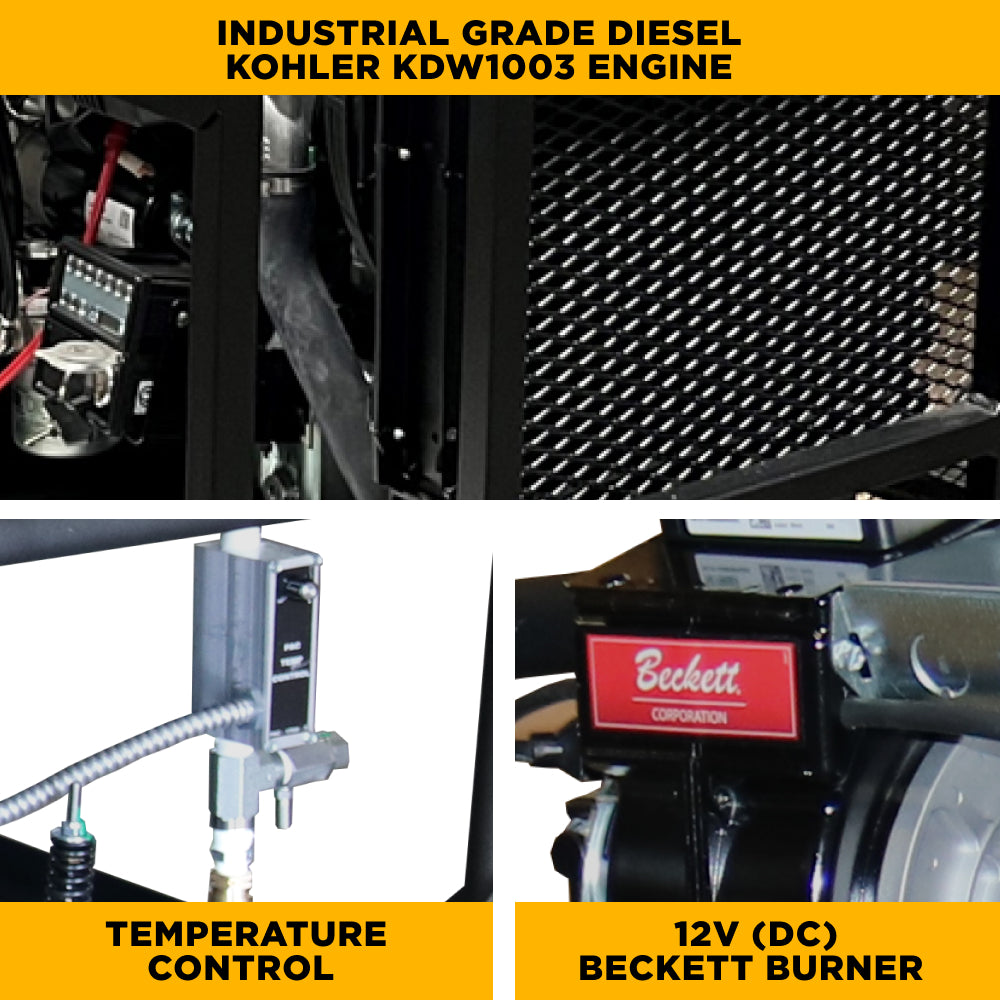

Diesel Kohler KDW1003 Electric Start Engine

At the core of this hot water pressure washer is the diesel Kohler KDW1003 1028cc engine, designed for maximum power, fuel efficiency, and long service life. Diesel power delivers excellent torque and runtime, making it ideal for extended industrial cleaning applications.

Engine features include:

  • Electric start for reliable operation

  • Excellent weight-to-power ratio

  • High fuel efficiency for long run times

  • Designed for continuous industrial use

Kohler diesel engines are trusted worldwide in demanding pressure washing and industrial power applications.

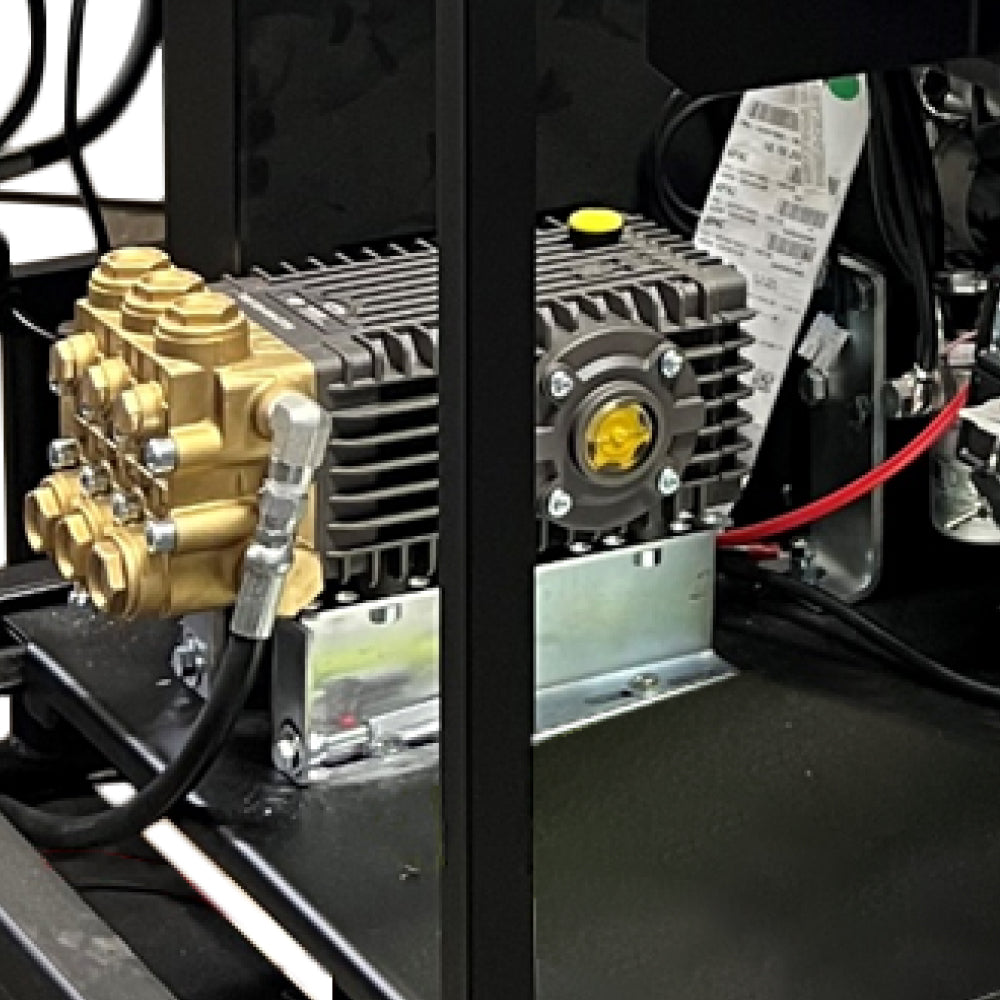

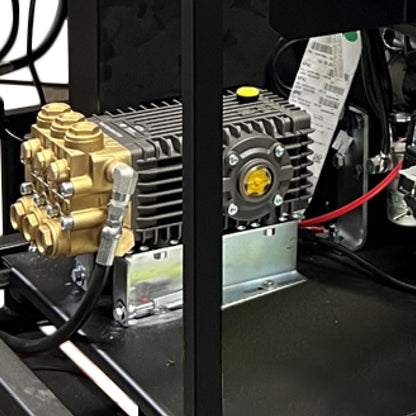

Industrial Grade Belt-Driven General Triplex Pump

Paired with the Kohler engine is an industrial-grade General triplex pump (TSF2021), built for high-flow, continuous-duty performance. The belt-drive system reduces pump RPM, vibration, and heat transfer—significantly extending pump life.

Pump features include:

  • Reinforced pump body

  • Forged brass manifold

  • Solid ceramic plungers

  • Stainless steel check valves

  • External unloader for precise pressure control

This belt-driven triplex pump configuration ensures stable pressure and dependable performance throughout long workdays.

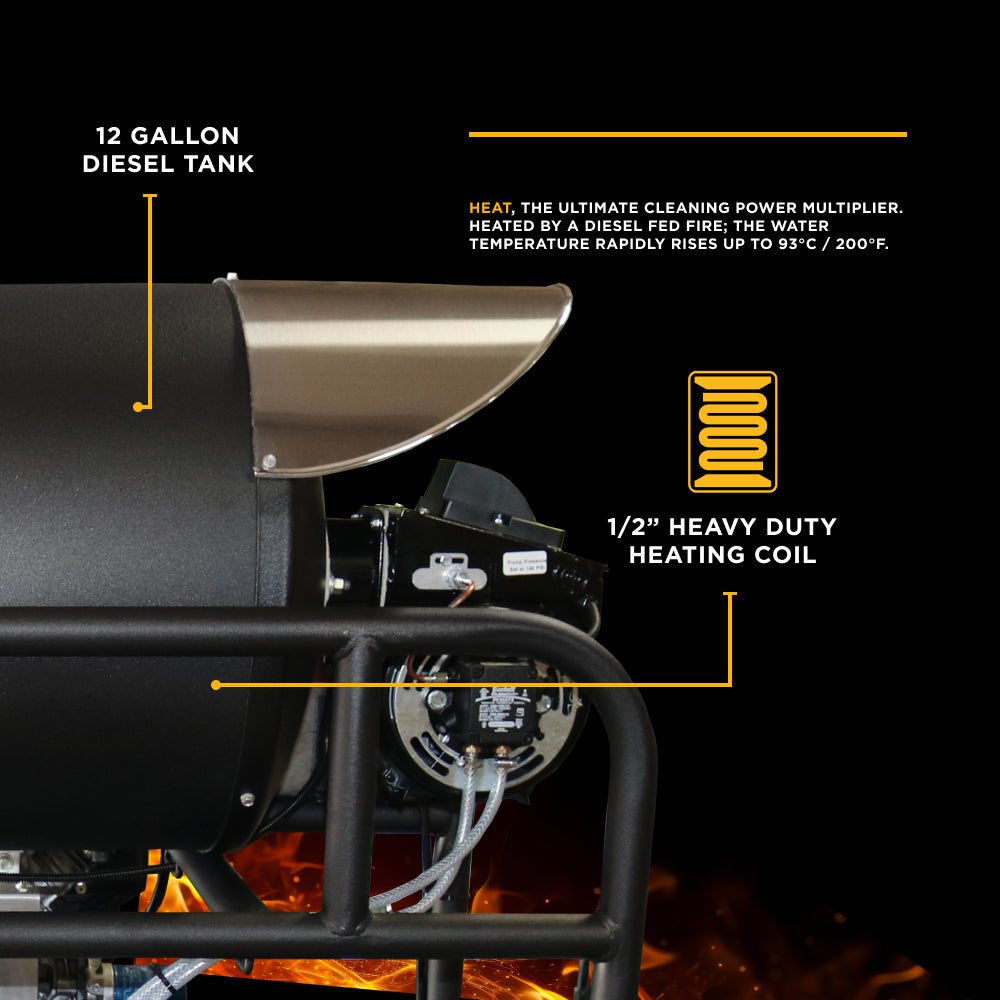

High-Efficiency Hot Water System

The 5835DG features a powerful hot water system designed to deliver consistent, high-temperature output for industrial cleaning.

Hot water system features include:

  • 12V Beckett burner

  • 420,000 BTU output

  • 238’ x 1/2” Schedule 80 cold-rolled steel heating coil

  • Adjustable thermostat for temperature control

  • Maximum temperature of 93°C / 200°F

  • Stainless steel control panel and burner cover

  • Painted coil cover for durability

Hot water dramatically improves cleaning effectiveness when removing oil, grease, and heavy contaminants.

External High-Flow Unloader and Safety Systems

A heavy-duty external unloader regulates system pressure and can be plumbed to bypass back into a mobile water tank—ideal for truck-mounted applications. Integrated safety systems include:

  • Pressure relief valve

  • Safety and thermal relief valve

  • Flow and pressure switch

  • Diagnostic indicator lights

  • Toggle burner switch

  • Inline fuel filter

These systems protect critical components and ensure safe, reliable operation.

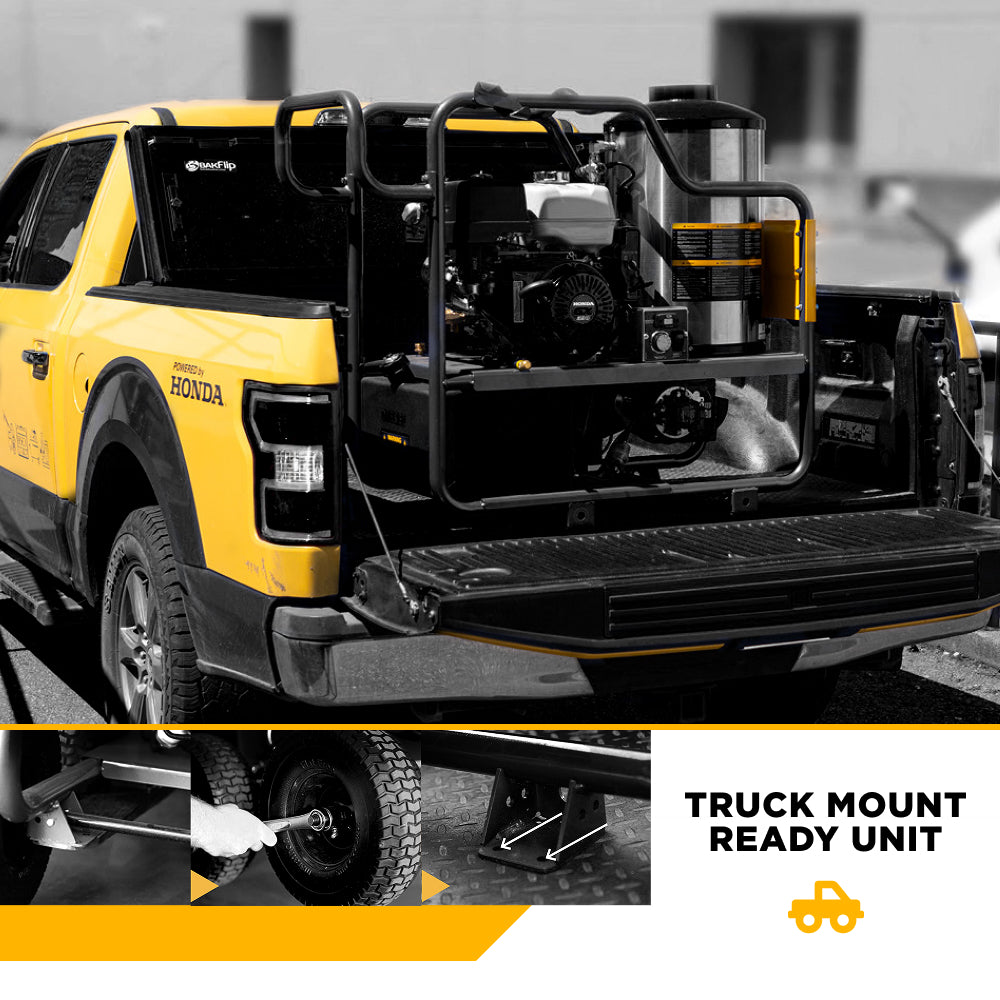

Heavy-Duty Skid Frame for Truck or Trailer Mounting

The unit is built on a heavy-duty powder-coated steel skid frame, designed for long service life and easy mounting to a truck or trailer. This skid configuration provides stability, durability, and a compact footprint for professional mobile cleaning setups.

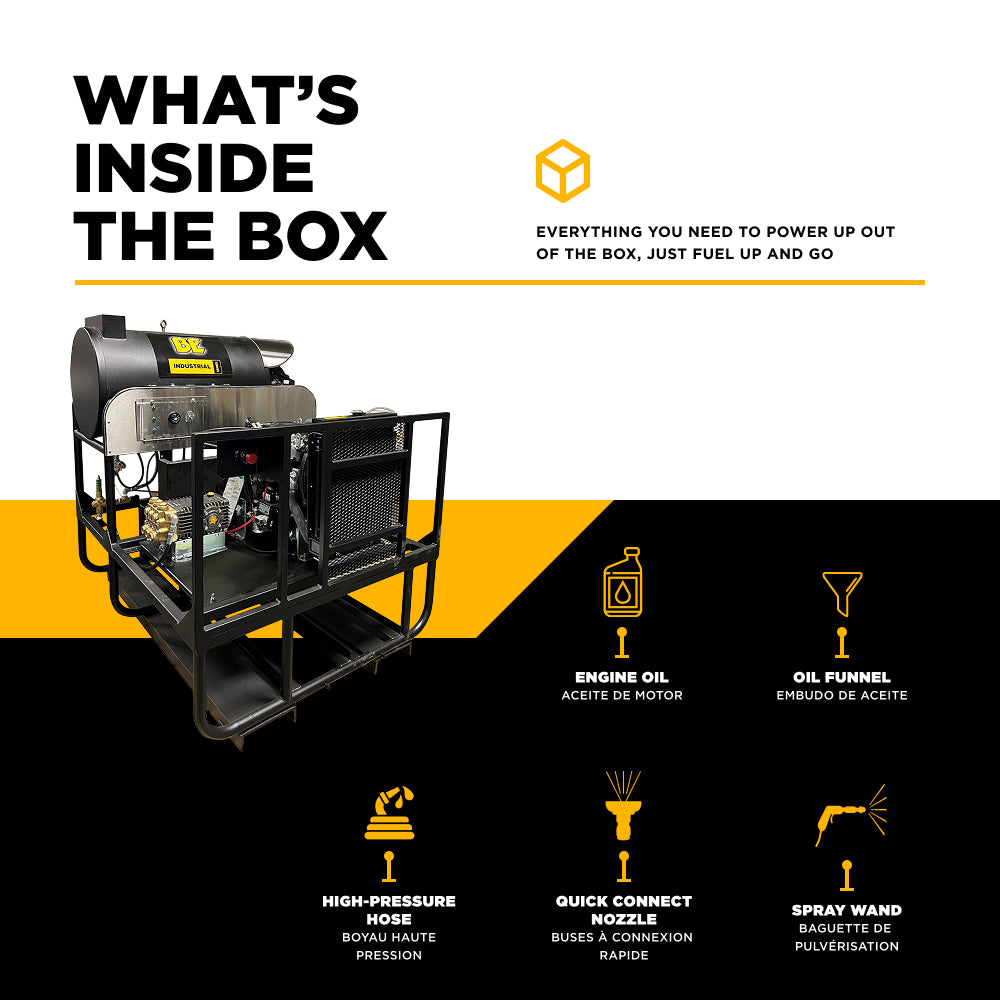

Accessories Included

The 5835DG comes equipped with professional-grade accessories to get you working immediately:

  • 50 ft. high-pressure hose – Twin-wire braided for strength and flexibility

  • Commercial spray gun with 48” insulated wand – Quick-connect fittings for ease of use

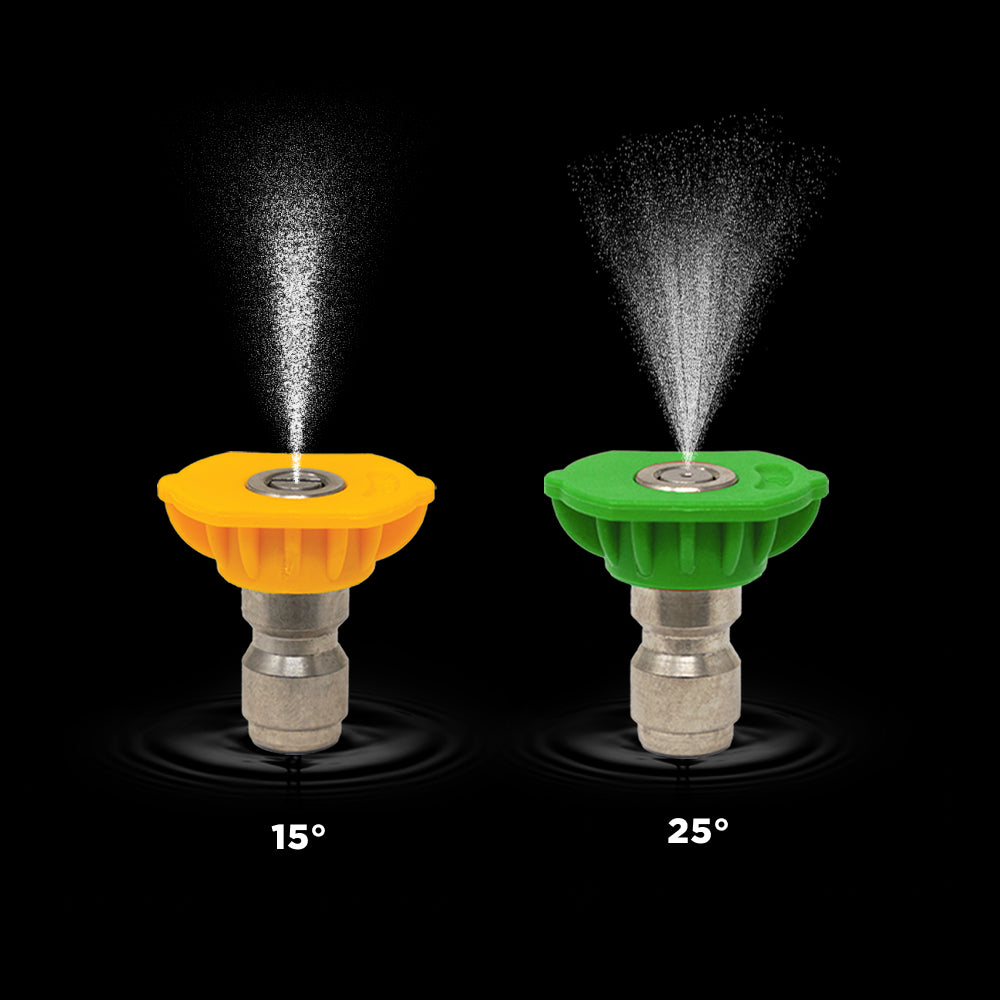

  • 2 quick-connect spray nozzles – 15° and 25° for versatile cleaning tasks

These accessories are built to withstand extended use in demanding environments.

Product Details

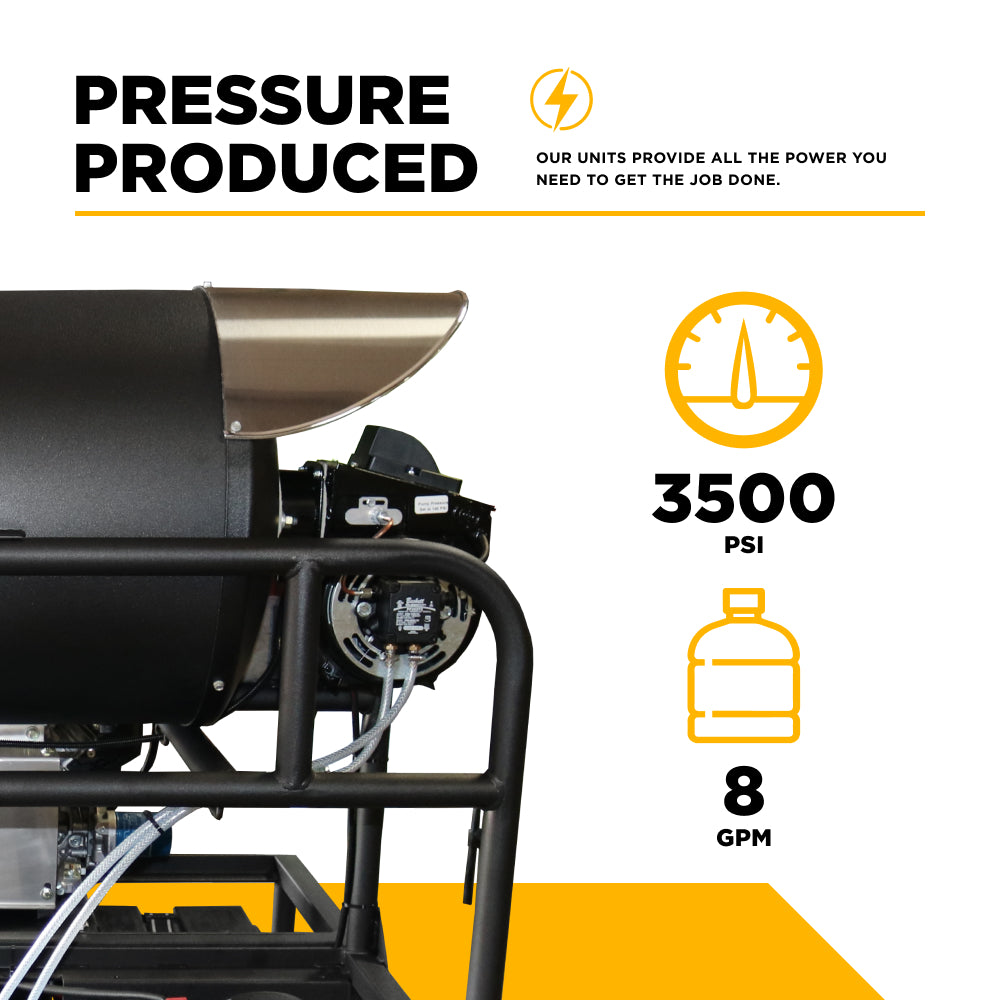

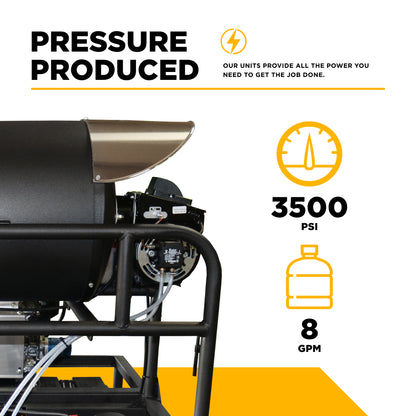

Pressure: 3,500 PSI
Flow Rate: 8.0 GPM
Engine: Diesel Kohler KDW1003, 1028cc
Start Type: Electric
Pump: General Triplex Pump TSF2021
Pump Class: P10
Burner: 12V Beckett
Maximum Temperature: 93°C / 200°F
BTU Output: 420,000
Heating Coil: 238’ x 1/2” Schedule 80 cold-rolled steel
Burner Fuel Tank: 45.42 L / 12 gal black poly
Engine Fuel Tank: 45.42 L / 12 gal
Thermostat: Adjustable
Hour Meter: Yes
Flow / Pressure Switch: Yes
Pressure Relief Valve: Yes
Diagnostic Lights: Yes
Burner Switch: Toggle
Inline Fuel Filter: Yes
Oil Drain Hoses: Engine: No • Pump: No
Adjustable Injector: Optional
Unloader: External

Warranty Coverage

  • Engine: 3 Years

  • Pump: 5 Years

  • Burner: 3 Years

  • Coil: Lifetime

Shipping Information

Shipping Weight: 1,297 lbs

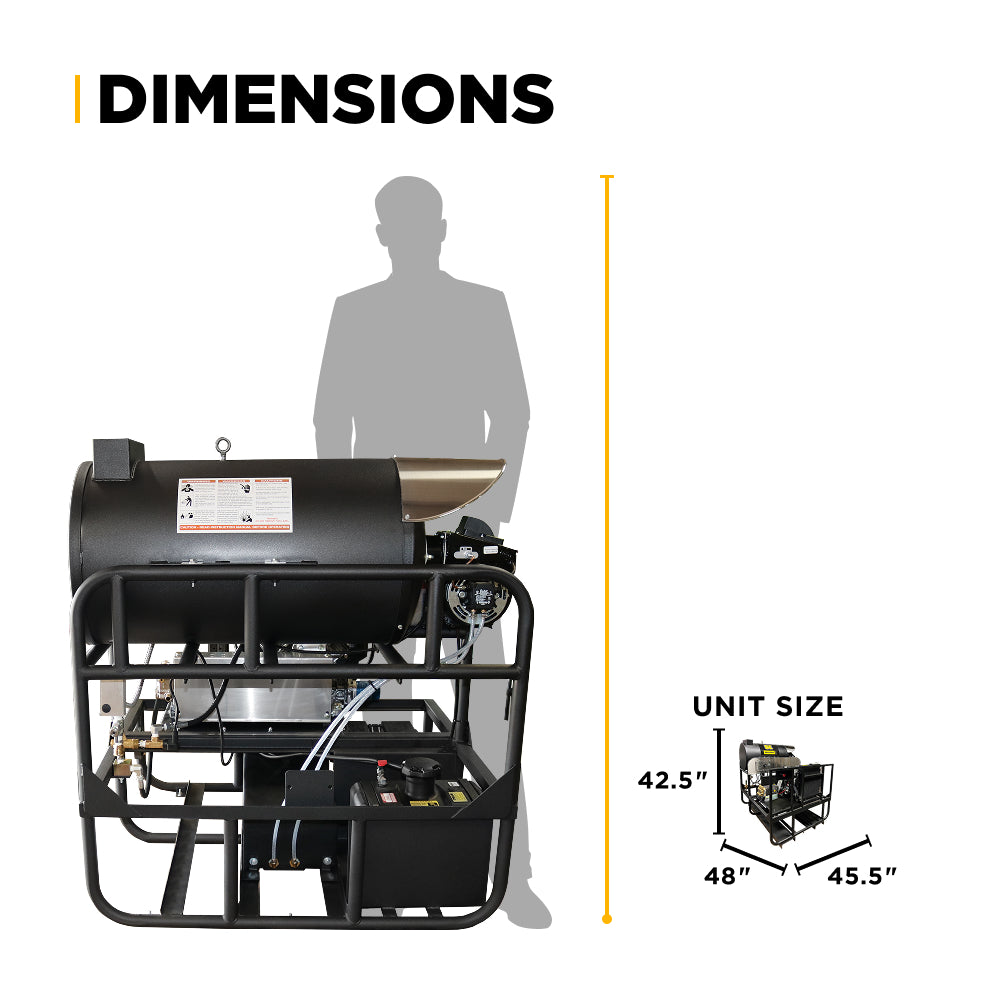

Shipping Dimensions (L × W × H): 60” × 52” × 64”

Factory Tested for Performance

Each BE Power Equipment hot water pressure washer is fully tested at the factory before shipping. Units may contain residual oil or fuel odor, confirming that the system has passed quality inspections and is ready for operation.

Built to Clean Hotter — Trusted by Professionals

For professionals who need to clean faster, smarter, and hotter, the 5835DG Hot Water Pressure Washer Skid delivers industrial-grade performance you can rely on. With a diesel Kohler engine, belt-driven General triplex pump, and high-output heating system, this unit is built to handle the toughest cleaning challenges.

5835DG — Industrial diesel power. Serious heat. Professional results.
