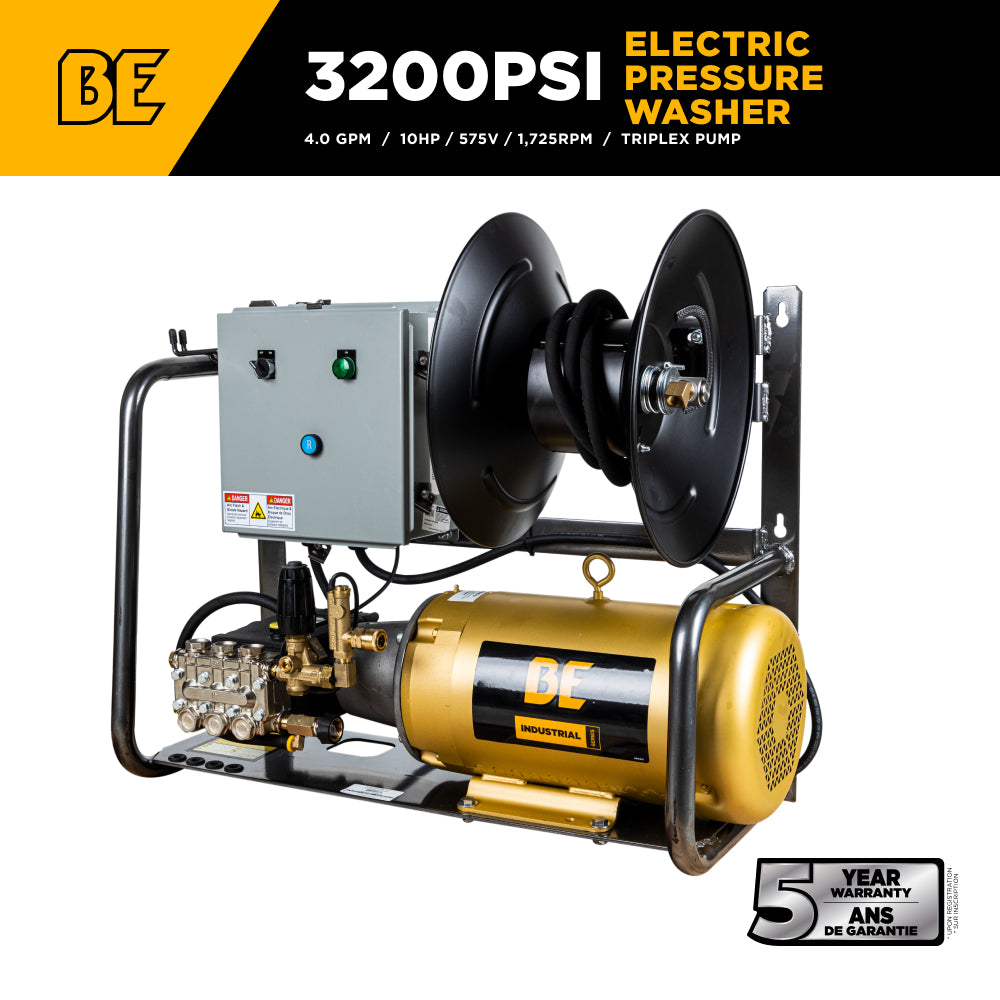

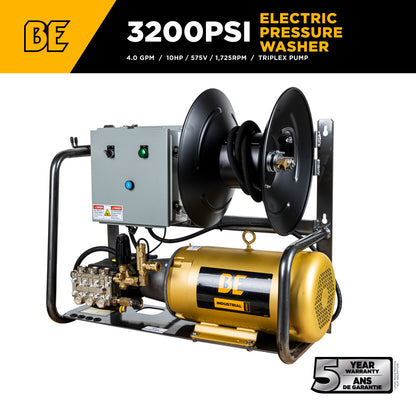

3,200 PSI 4.0 GPM 10 HP Electric Pressure Washer with 10 HP - 3 Phase Baldor Motor and General Triplex Pump - X-3010FW3GENHT

Most Power in a Permanent, High-Temperature Cleaning Station

The X-3010FW3GENHT is a high powered, commercial grade wall mount electric pressure washer designed for heavy industrial cleaning and daily use. Built for performance, durability and compact utility this machine delivers a consistent 3,200 PSI at 4.0 GPM (gallons per minute) for faster results.

The unit is equipped with advanced technology and features to enhance performance and usability making it the perfect solution for high-pressure wash bays, manufacturing floors, food production facilities, heavy equipment cleaning and industrial sanitation environments.

At the heart of this unit is a 10 HP, 3-phase, 575V Baldor motor for continuous-duty power with maximum energy efficiency. Paired with a General Pump commercial triplex plunger pump and high-temperature components this system can accept up to 73°C (165°F) external water – perfect for hot water cleaning setups that use pre-heated water supply.

Compact, powerful and with a powder-coated steel wall mount frame, hose reel and commercial-grade accessories the X-3010FW3GENHT is your all-in-one cleaning solution – mounted and ready to tackle tough jobs and easy to operate and store for the user.

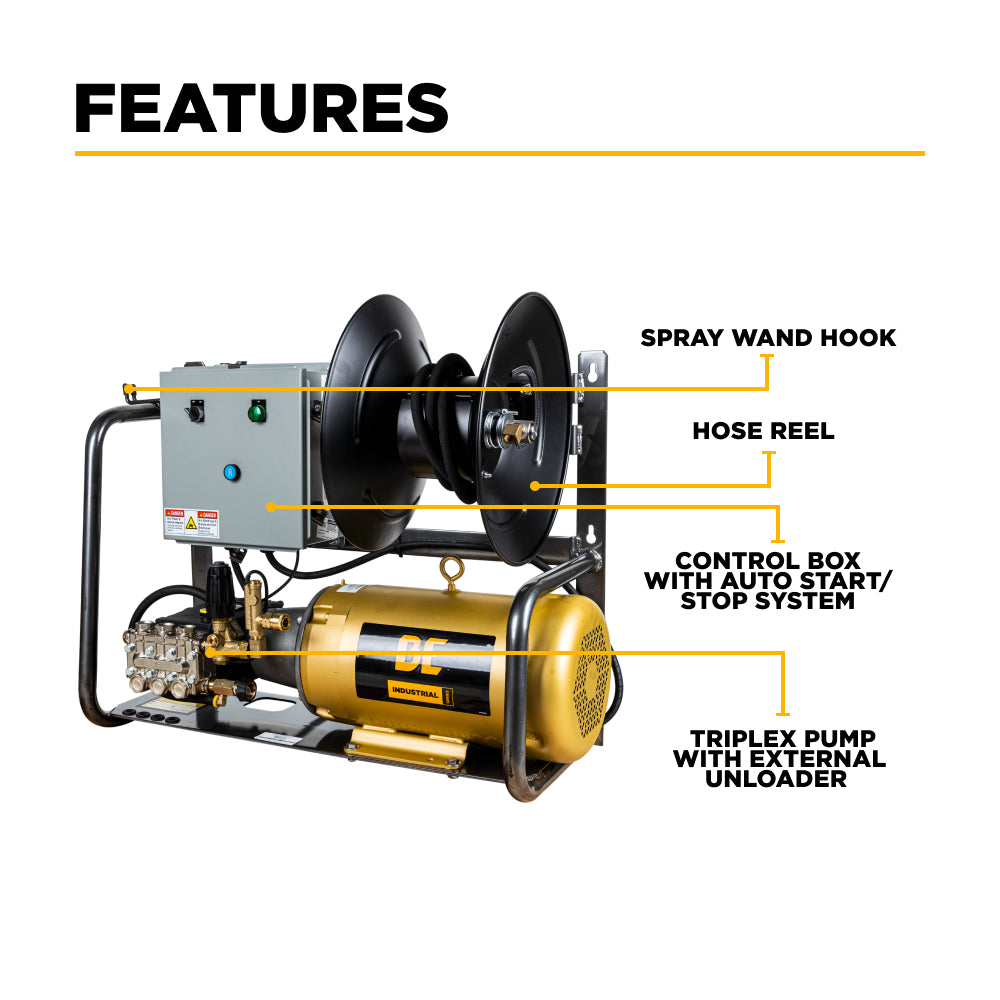

Features

• 3,200 PSI @ 4.0 GPM: High-demand, high-efficiency industrial cleaning

• High Temperature Ready: Accepts up to 73°C (165°F) external water

• 10 HP, 3 Phase, 575V Baldor Motor: Industrial-grade energy efficiency and longevity

• Direct Drive System: Compact, low-maintenance design connects motor to pump directly

• General Triplex Pump: Die-cast aluminum body, forged brass manifold, ceramic plungers and thermal protection

• High-Temp Seals and Plating: Designed to withstand high temperatures without compromising performance

• External Unloader Valve: Enhances pump cooling and dump-to-ground bypass

• Automatic Stop System (TSS): Stops the motor when the trigger is released to improve safety and save energy

• Wall-Mounted Powder-Coated Frame: Includes hose reel and storage for accessories

• Complete Accessory Kit: 50 ft. high-pressure hose, insulated wand and spray gun and 5 quick-connect nozzles

• Electrician Installation Required: Unit must be hardwired – no power plug or switch included

Industrial Hot Water for Tough Cleaning Jobs

Built to handle heat the X-3010FW3GENHT can accept up to 73°C (165°F) incoming water. This makes it perfect for cleaning systems with external hot water generation – for:

• Faster breakdown of grease, oil and proteins

• Sanitation in food and beverage facilities

• Washdown in equipment-heavy industries* No onboard burners or fuel systems required

The General Pump in this system is upgraded with special seals, plating and heat-resistant components to perform under high temperature conditions without compromising durability.

10 HP Baldor Motor – 3 Phase, 575V

For high-volume and continuous use this pressure washer features a 10 HP Baldor electric motor configured for 3-phase, 575-volt power. Baldor motors are built for harsh industrial environments and offer:

• Maximum energy efficiency

• Smooth, low-vibration operation

• Quiet operation

• Continuous-duty rating for long runtime

• Low maintenance requirements

Ideal for industrial users who need uninterrupted cleaning capability without downtime or overheating.

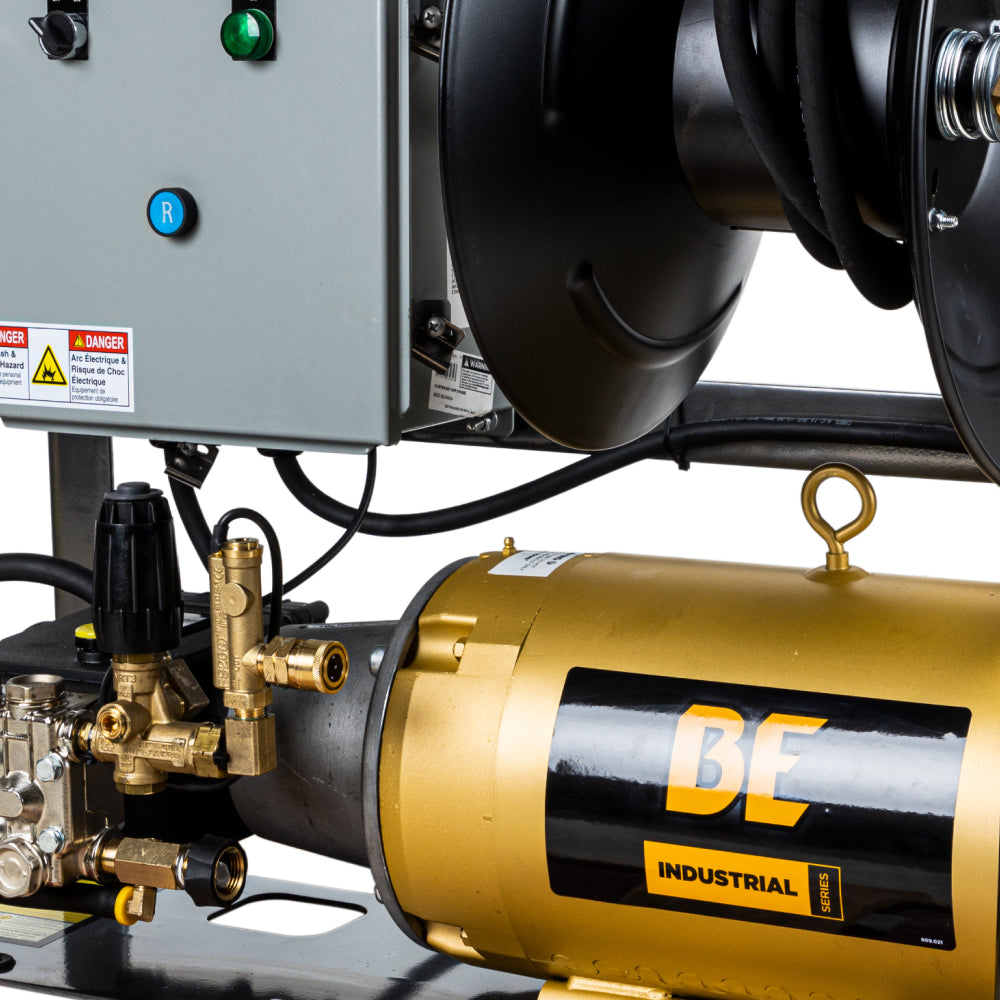

General Triplex Pump – Heavy Duty, Heat and Pressure Resistant

The General triplex plunger pump is the heart of this system’s pressure delivery. Designed for industrial use and engineered for high-temperature operation.

Pump features:

• Forged brass manifold to resist corrosion and pressure spikes

• Die-cast aluminum pump body for structural integrity and thermal stability

• Solid ceramic plungers that can withstand heat and abrasion

• High-temp seals and plating to prevent breakdown under hot water exposure

• Thermal relief valve for added pump protection

• External unloader for better cooling and dump-to-ground bypass

Built for reliability, minimal wear and peak performance – even under industrial washdown applications.

Direct Drive Powertrain – Simple and Space Saving

The direct drive system eliminates belts and pulleys for a cleaner, more efficient design. This means:

• Compact footprint for wall-mounting

• Reduced vibration during operation

• Fewer moving parts = lower maintenance requirements

• Higher mechanical efficiency from motor to pump

Direct drive systems are preferred in fixed installations where simplicity and long-term reliability matter most.

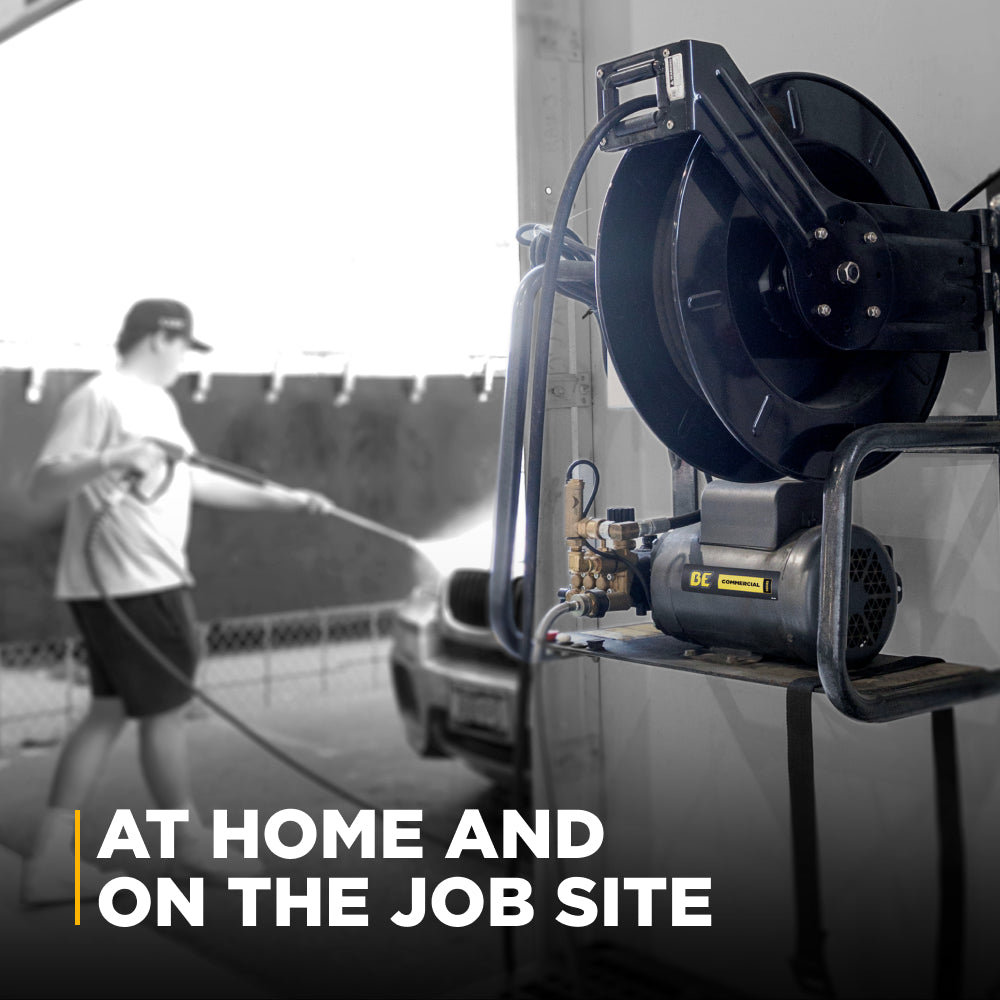

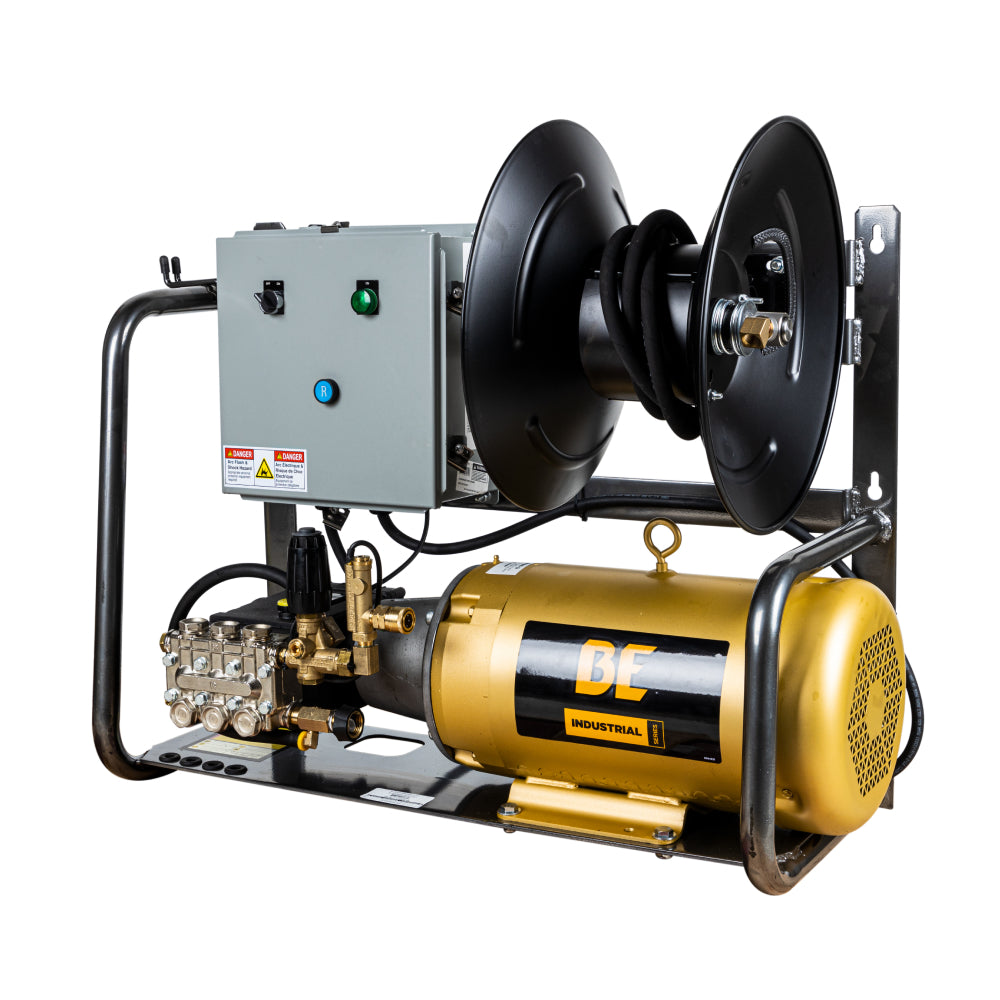

Wall-Mounted Powder-Coated Frame with Hose Reel

This unit is mounted to a durable powder-coated steel frame designed to be permanently fixed to a wall – saving floor space and improving operational safety and workflow. The frame includes:* Hose reel for 50 ft. high-pressure hose storage

• Accessory hooks and holders for wand, gun and nozzles

• Coating for corrosion, chemical and industrial resistance

• Compact design to fit in tight mechanical rooms, wash bays or processing areas

Ideal for industrial facilities, shops or cleaning rooms with limited space but high cleaning demands.

X-3010FW3GENHT Safety Features

Safety is paramount when working with high pressure equipment and the X-3010FW3GENHT electric pressure washer has multiple features to protect both the user and the machine. The wall mount keeps the unit off the floor, reducing trip hazards and keeping critical components out of harm’s way. The integrated storage for the trigger gun, wand and nozzles keeps accessories always within reach and safely stowed when not in use.

To prevent overheating and extend pump life the system has a thermal relief valve that releases excess heat. The external unloader valve enhances pump cooling and allows for safe pressure release, minimizing the risk of accidental high pressure discharge. The powder-coated steel frame is a protective cover for internal components, shielding them from accidental impact and environmental damage.

For added safety the X-3010FW3GENHT requires professional installation by a licensed electrician to ensure the high-voltage, 3-phase power supply is connected correctly and safely. These built-in safety features make this model a reliable choice for commercial cleaning jobs, so you can have peace of mind every time you turn it on.

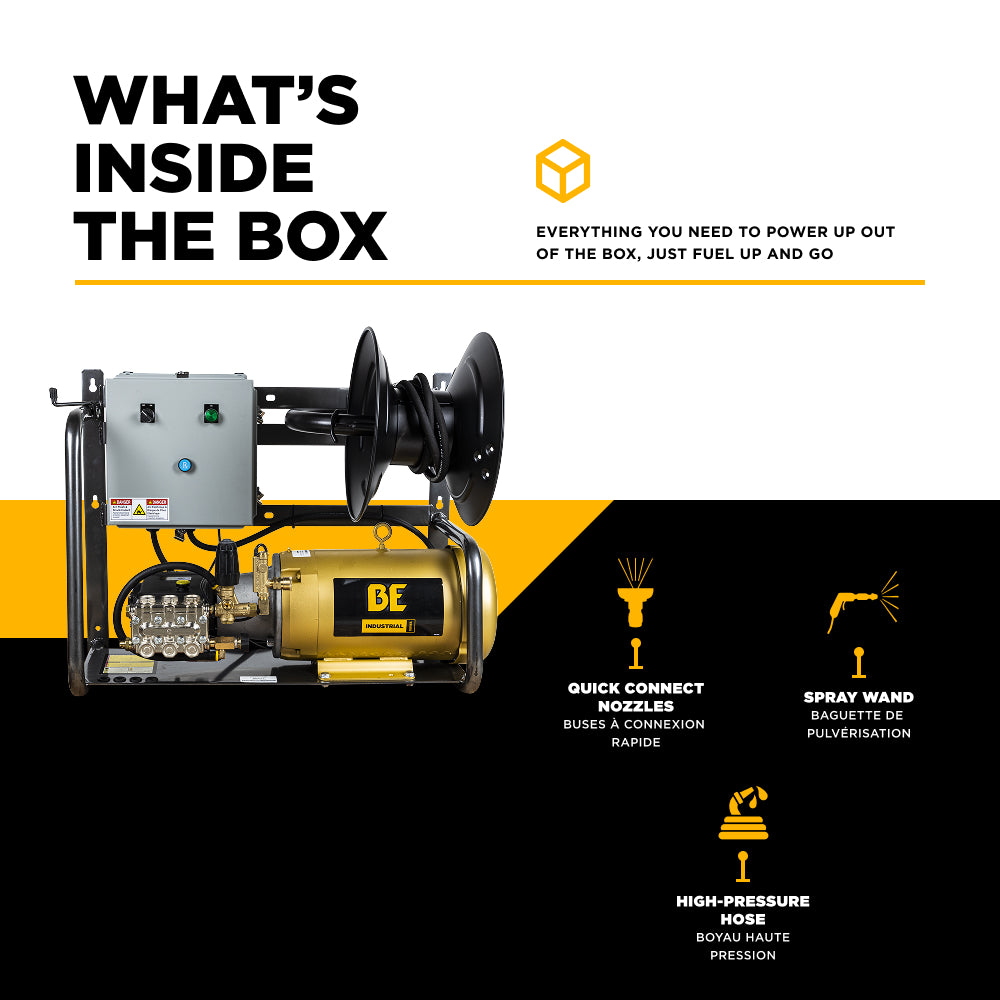

Complete Commercial Accessory Kit Included

Your wall-mounted pressure washer comes with everything you need to start cleaning (except electrical hookup):

• 50 ft. High-Pressure Hose: Twin-wire braided, hot-water rated, durable and flexible

• Commercial Spray Gun and 36” Wand: Insulated and ergonomic with quick-connect fittings

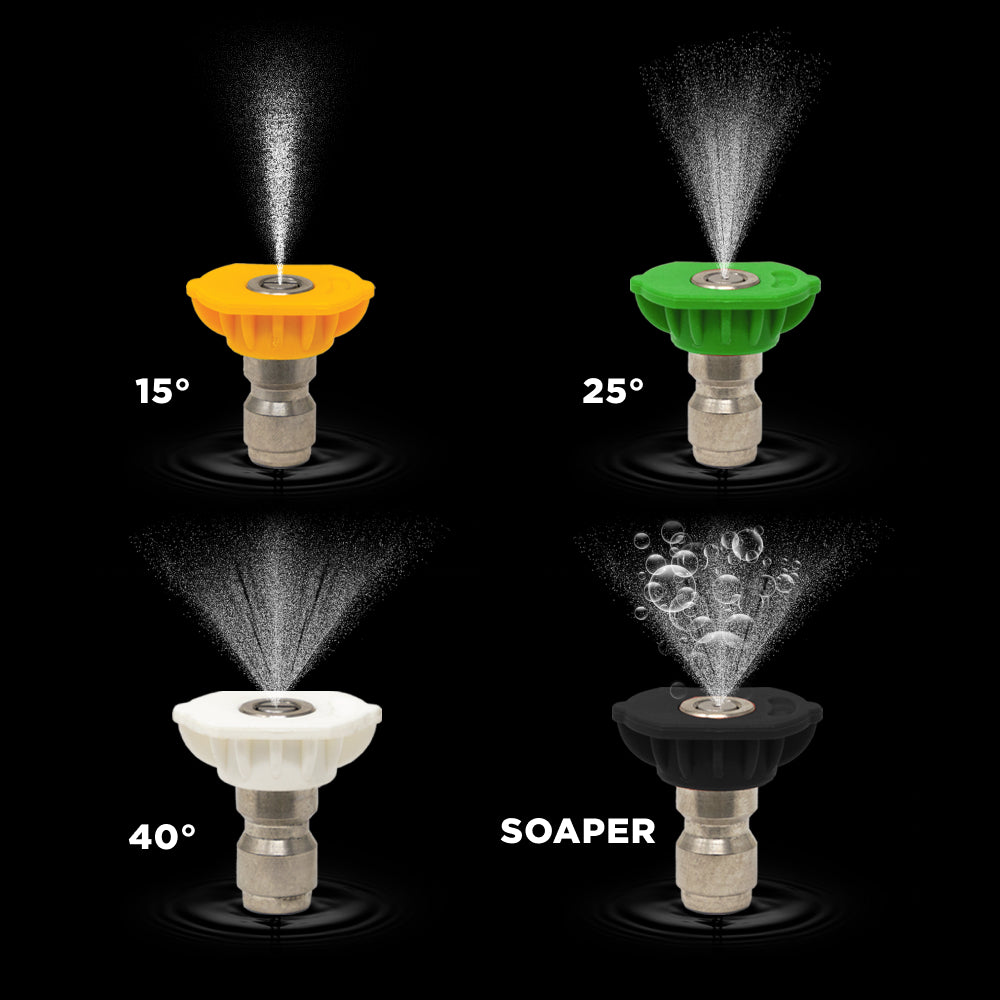

• Five Quick-Connect Nozzles: 0°, 15°, 25°, 40° and Soap — snap in the perfect spray angle for every task

All accessories are commercial-grade and built to perform under pressure, heat and regular use.

Additional products and replacement accessories are available to add to or maintain your pressure washer setup.

Electrician Installation Required

⚠️ Important: This unit does not come with a power cord or switch and must be hardwired by a licensed electrician to a 575V, 3-phase power supply.

This ensures a safe, code-compliant installation for continuous, reliable operation in high-demand environments.

Maintenance Schedule

To keep your X-3010FW3GENHT electric pressure washer running at its best, maintenance is key. Each day start by checking hoses, fittings and the trigger gun for leaks or wear. Check the power connections and make sure the wall mount is secure. After each use flush the system with clean water to remove detergent or debris and store accessories on the integrated holders.

Weekly inspect the pump and motor for unusual noise or vibration and the hose reel for smooth operation. Periodically inspect the high-temp seals and replace if you see any leaks or loss of pressure. The direct drive design and quality components mean maintenance is easy and requires minimal downtime.

If you notice a drop in pressure, inconsistent spray patterns or any warning signs from the motor or pump consult the user manual for troubleshooting or contact a service technician. By following a maintenance schedule and addressing minor issues promptly you can extend the life of your pressure washer and have reliable performance for all your cleaning tasks.

Product Details

Description: Below are the product details that summarize the unit’s features and performance. Understand how these details impact cleaning performance and suitability for different applications. Match these details to your specific cleaning needs for optimal results.

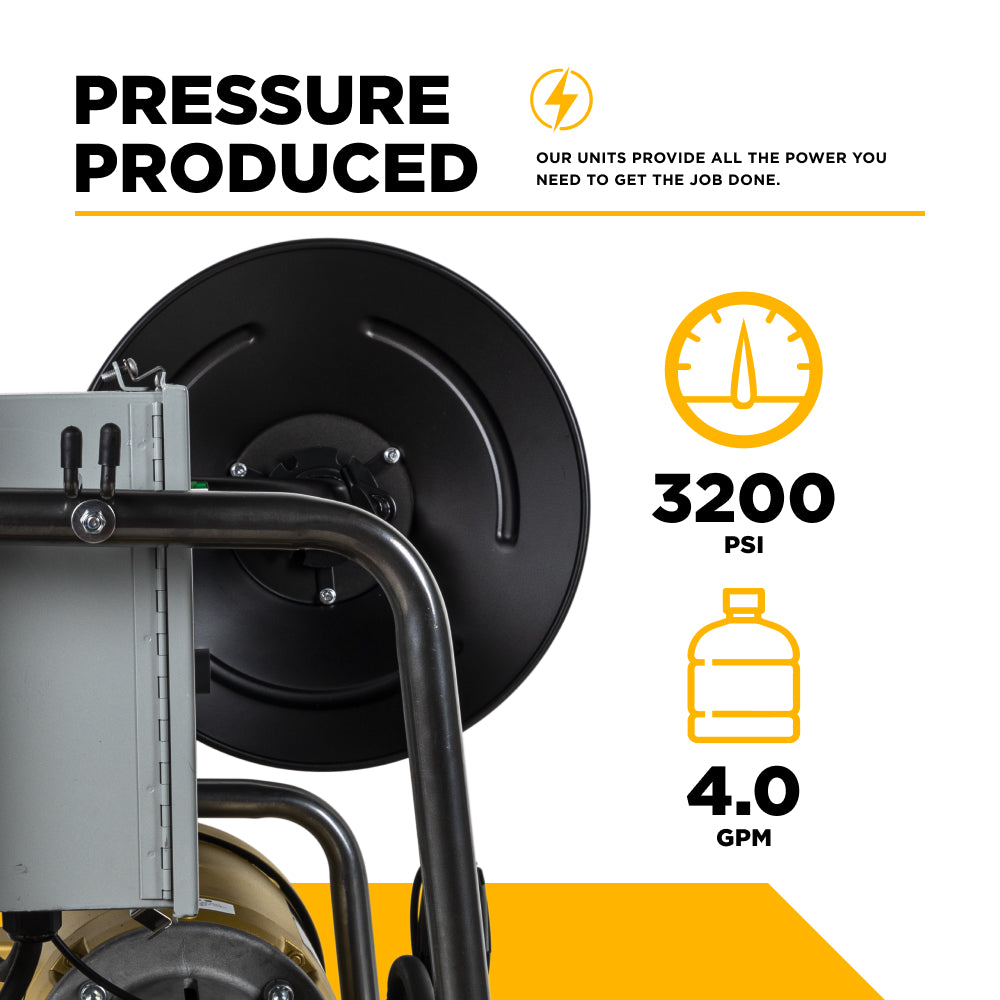

Performance

• Pressure: 3,200 PSI

• Flow Rate: 4.0 GPM

• Max Inlet Temperature: 73°C / 165°F

Motor

• Brand: Baldor

• Power: 10 HP

• Voltage: 575V

• Type: 3 Phase, Continuous-Duty

• Installation: Hardwired (no plug or switch included)

Pump

• Brand: General Pump

• Type: Triplex plunger

• Body: Die-cast aluminum

• Manifold: Forged brass

• Plungers: Solid ceramic

• Seals & Plating: High-temp rated

• Unloader: External with dump-to-ground capability

• Thermal Relief Valve: Included

Frame

• Material: Powder-coated steel* Mounting: Wall-mounted

• Storage: Integrated hose reel and accessory holders

Included Accessories

• Hose: 50 ft. high-pressure, twin-wire braided

• Gun & Wand: Insulated 36” commercial-grade

• Nozzles: 5 quick-connect spray tips (0°, 15°, 25°, 40°, Soap)

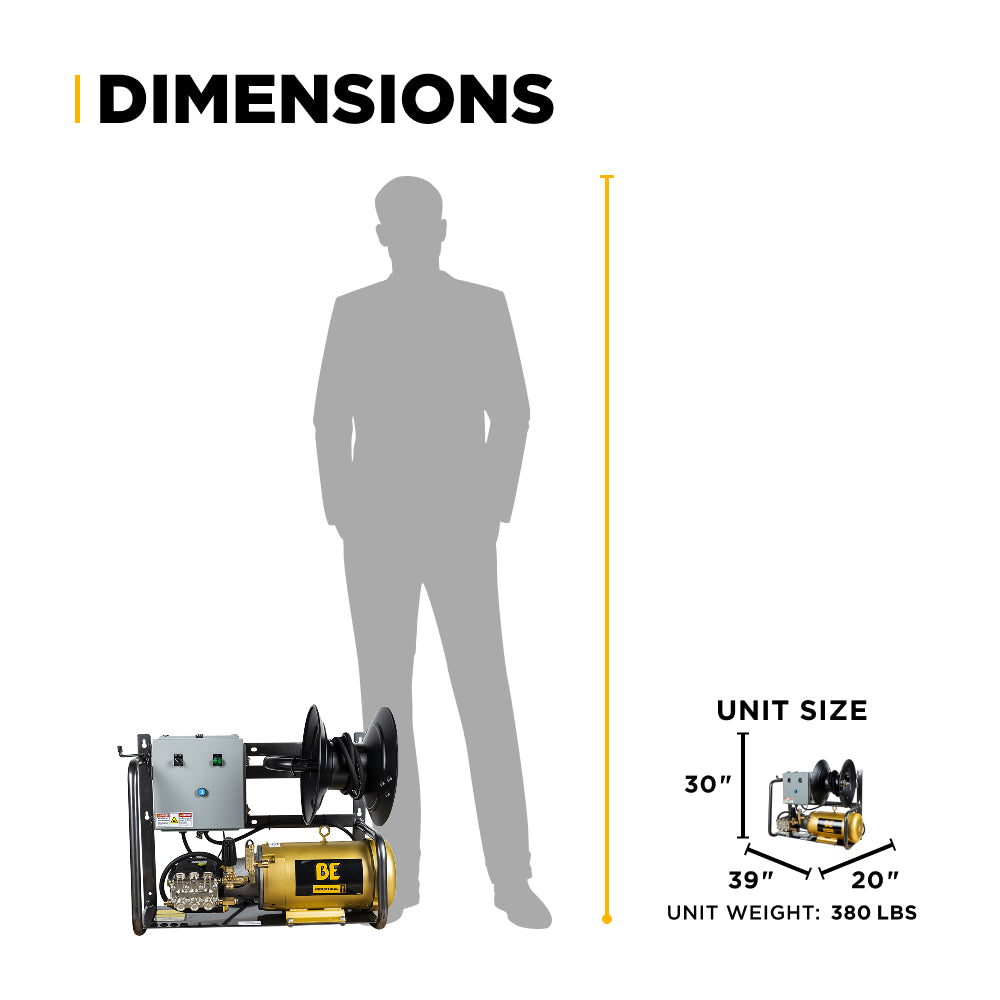

Shipping

• Weight: 203 lbs

• Dimensions (L x W x H): 40” x 21” x 31”

High Pressure Cleaning 101

High pressure cleaning has changed the way we approach tough cleaning jobs, fast and effective solution for removing dirt, grime and contaminants from many surfaces. At the heart of this cleaning revolution are electric pressure washers – versatile machines that deliver powerful cleaning for both commercial and residential use.

Electric pressure washers stand out for their high pressure and consistent flow rates making them perfect for heavy equipment washdowns to daily facility maintenance. Whether you need to clean industrial machinery, vehicles, floors or exterior surfaces these pressure washers are designed to handle tough cleaning jobs with ease.

When choosing the right electric pressure washer you need to consider flow rate, pressure output and compatibility with your existing cleaning equipment. The right model will meet your cleaning needs and enhance efficiency and safety on the job. With many models to choose from you can find an electric pressure washer that will tackle your specific cleaning tasks and give you the best results every time you start a new project.

By understanding the capabilities and features of electric pressure washers you can choose the equipment that will let you clean faster, more thorough and with less effort – high pressure cleaning is the smart way to maintain your facility or business.

Warranty and Support

The X-3010FW3GENHT electric pressure washer is warranted against defects in materials and workmanship for the major components, including the Baldor motor and General triplex pump. This warranty gives you peace of mind that your investment is protected.

In addition to warranty coverage you have access to product manuals, troubleshooting guides and customer service. Replacement parts and accessories are available to keep your pressure washer running. To get the best support register your product after purchase and keep all documentation for your model.

If you need help the manufacturer’s support team can assist with issues, warranty claims and repair options. With strong warranty and support you can focus on your cleaning tasks knowing help is always available if you need it.

Industrial Strength, Clean

The X-3010FW3GENHT is industrial strength cleaning in a smart, efficient and permanent wall-mounted package. Whether you’re running a 24/7 wash bay, maintaining sanitation standards in a food plant or cleaning commercial equipment this system provides hot water compatibility, high pressure and long life — all in one unit.

X-3010FW3GENHT — Wall-mounted. Hot water compatible. Built to run nonstop.
