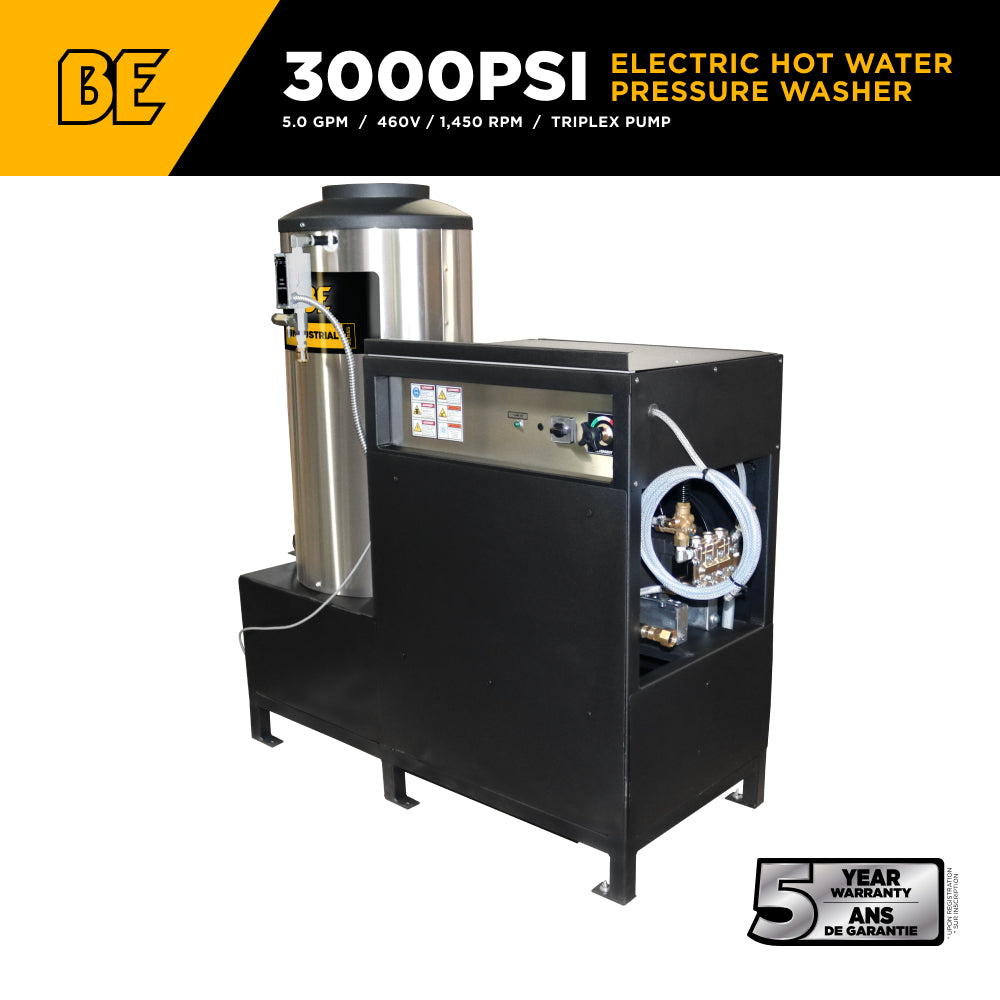

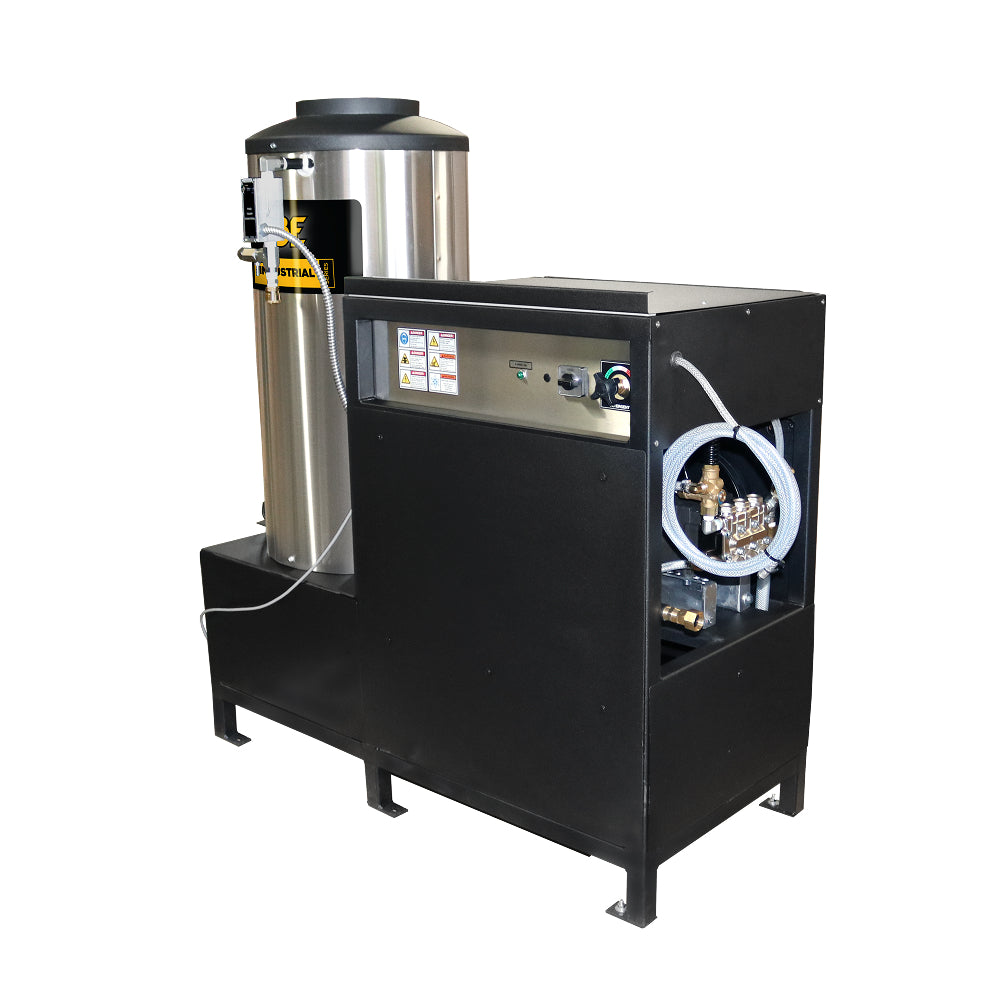

3,000 PSI 5.0 GPM Hot Water Electric Pressure Washer with 10 HP 460 Volt Baldor Motor and General Triplex Pump- 67HD-3-460

3,000 PSI 5.0 GPM Hot Water Electric Pressure Washer with 10 HP 460 Volt Baldor Motor and General Triplex Pump- 67HD-3-460

Specifications

FRAME

Powder Coated Steel Frame

PSI

3,000

GPM

5.0

UNLOADER

External

SERIES

Industrial

RPM

1,750

ENGINE START

Electric

MOTOR

Baldor 10HP / 3 Phase / 15 Amp

PUMP MODEL

General TS2021

PUMP TYPE

Triplex

Hose Length

50'

VOLTS

460

CORD LENGTH

10'

MAX TEMPRATURE

93°C / 200°F

MATERIAL

Powder Coated

Nozzles Included

15° & 25°

Oil Type

30W Non-Detergent

Weight

835 lbs

View full details

PRODUCT

DESCRIPTION

Industrial Strength Cleaning. Built to Endure. Designed to Perform.

The BE Power Equipment 67HD-3-460 Hot Water Pressure Washer is engineered for high-demand industrial environments where consistent heat, high flow, and long-duty reliability are essential. Delivering 3,000 PSI at 5.0 GPM, this unit provides the ideal combination of pressure, volume, and temperature to remove grease, oil, sludge, and stubborn industrial buildup efficiently.

Powered by a 10 HP Baldor electric motor, the 67HD-3-460 operates on 460V three-phase power and runs at a low 1,750 RPM, ensuring smooth operation, reduced electrical load, and extended component life. Power is transferred through a belt-drive system to a commercial-grade General TS2021 triplex pump, minimizing vibration, heat buildup, and mechanical stress during continuous operation.

An electronic-ignition burner system, compatible with natural gas or LP, delivers up to 440,000 BTU, heating water to a maximum of 93°C / 200°F. This high-output hot water system dramatically improves cleaning efficiency while reducing chemical use and labor time—making the 67HD-3-460 ideal for industrial wash bays and fixed cleaning installations.

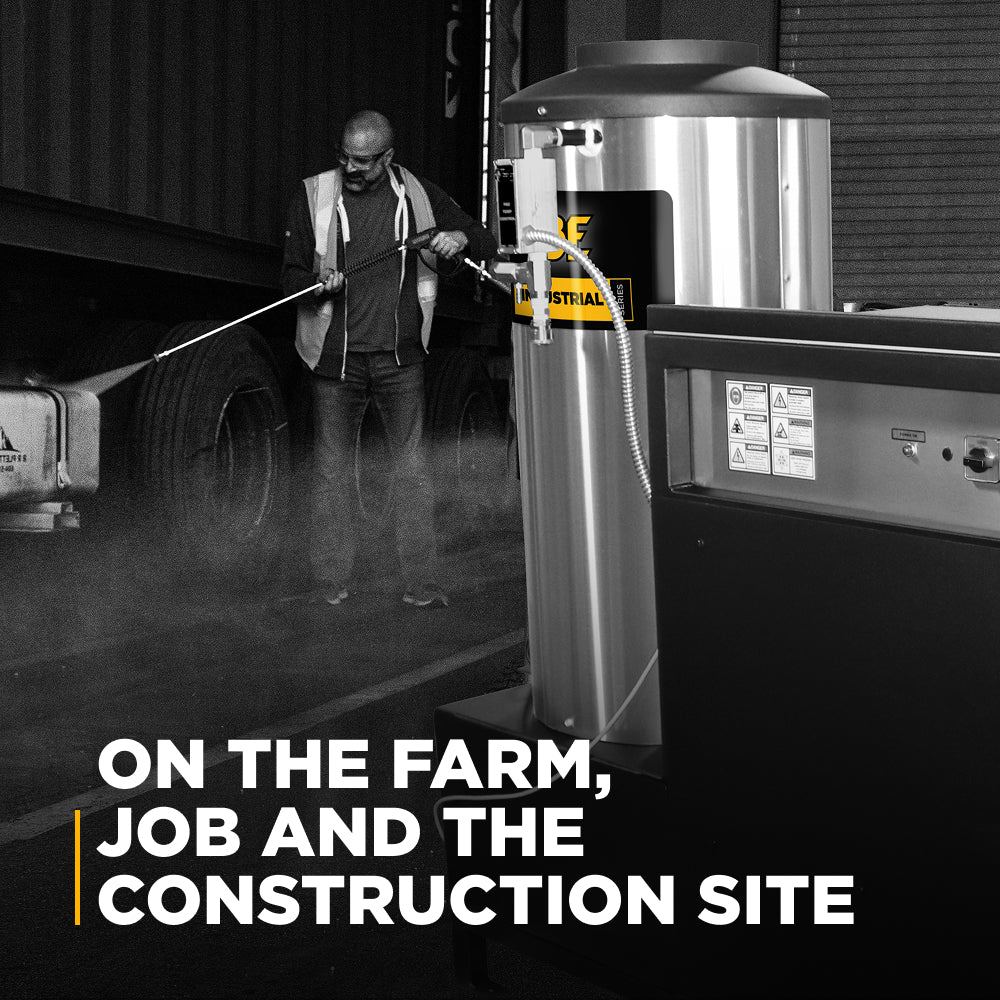

Built for Industrial Hot Water Cleaning

The 67HD-3-460 is designed for stationary industrial applications requiring dependable, high-temperature pressure washing, including:

  • Manufacturing and processing facilities

  • Fleet and heavy equipment maintenance bays

  • Industrial wash stations

  • Food processing and sanitation environments

  • Parts cleaning and degreasing operations

Hot water cleaning accelerates grease breakdown, improves sanitation, and shortens cleaning cycles—making this unit a reliable solution for high-volume industrial use.

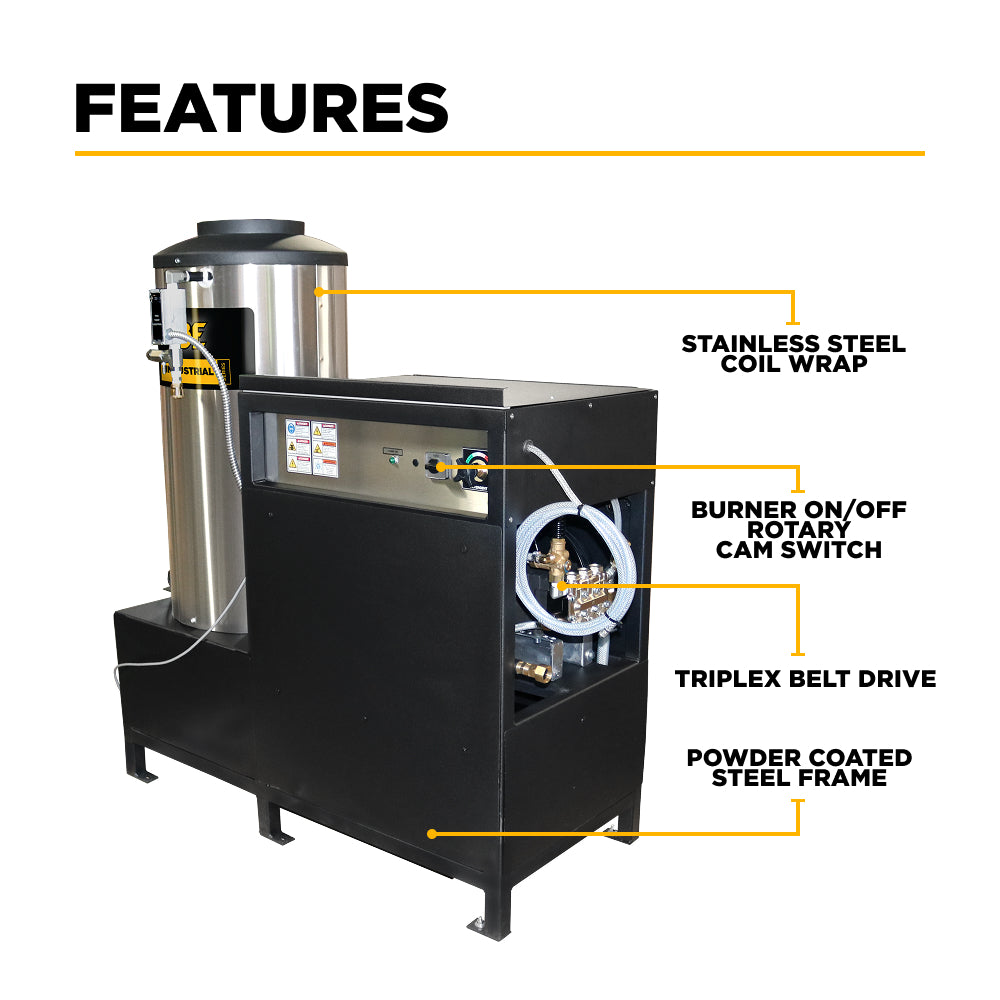

Features

Baldor Three-Phase Industrial Electric Motor

At the core of the 67HD-3-460 is a commercial-duty Baldor electric motor, engineered for continuous operation in industrial environments.

Motor specifications include:

  • 10 HP output

  • Three-phase operation

  • 460V

  • 15 amp draw

  • 1,750 RPM low-speed design

  • Quiet, emission-free electric operation

This motor delivers stable power for extended-duty hot water cleaning applications.

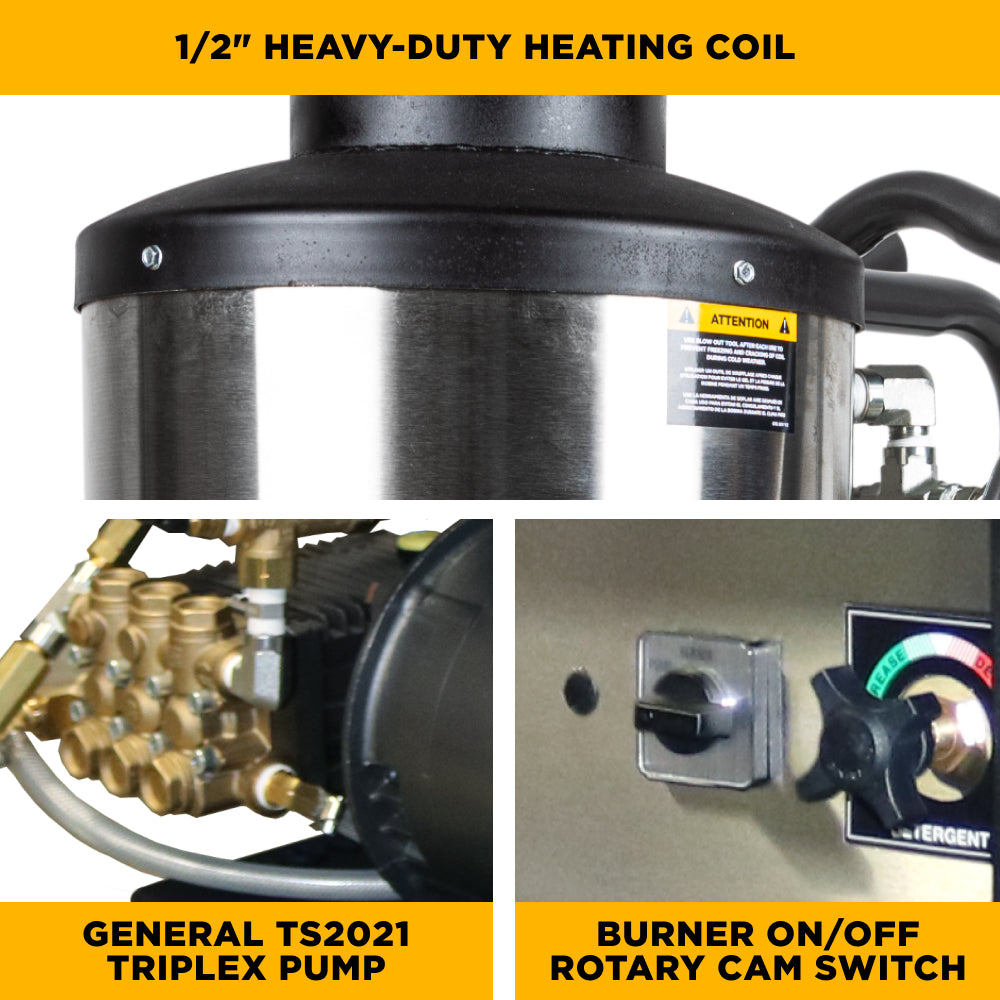

Belt-Driven General Triplex Pump

The General TS2021 triplex pump is belt-driven to maximize durability and long-term performance.

Pump features include:

  • Forged brass manifold

  • Solid ceramic plungers

  • Reinforced pump body

  • External unloader for improved cooling and serviceability

  • Adjustable chemical injector

The belt-drive configuration lowers operating RPM, reduces vibration, and extends pump life under continuous use.

High-Output Gas-Fired Hot Water System

The integrated hot water system is designed for sustained, high-temperature industrial operation.

Hot water system features include:

  • Electronic ignition burner system

  • Compatible with natural gas or LP

  • 440,000 BTU output

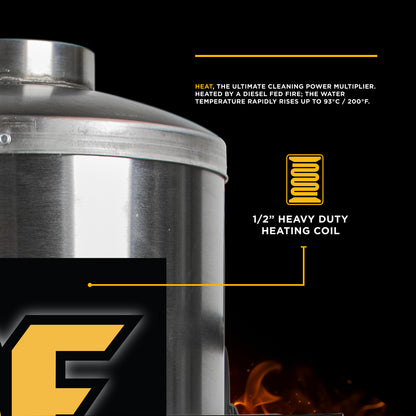

  • 230’ x 1/2” Schedule 80 cold-rolled steel heating coil

  • Maximum water temperature of 93°C / 200°F

  • Adjustable thermostat

  • Flow switch

  • Pressure relief valve

  • Rotary cam burner switch

  • Hour meter for service tracking

This system delivers fast heat recovery and consistent temperature control during extended cleaning cycles.

Advanced Controls and Protection

The 67HD-3-460 includes key operational and safety features to protect equipment and simplify maintenance:

  • Time-delay shutdown for controlled cool-down

  • Hour meter for accurate maintenance intervals

  • External unloader for stable pressure regulation

These features help extend component life and ensure safe, dependable operation.

Accessories Included

The 67HD-3-460 comes equipped with professional-grade accessories:

  • 50 ft. twin-wire braided high-pressure hose

  • Commercial insulated spray gun

  • 48” insulated spray wand with quick-connect fittings

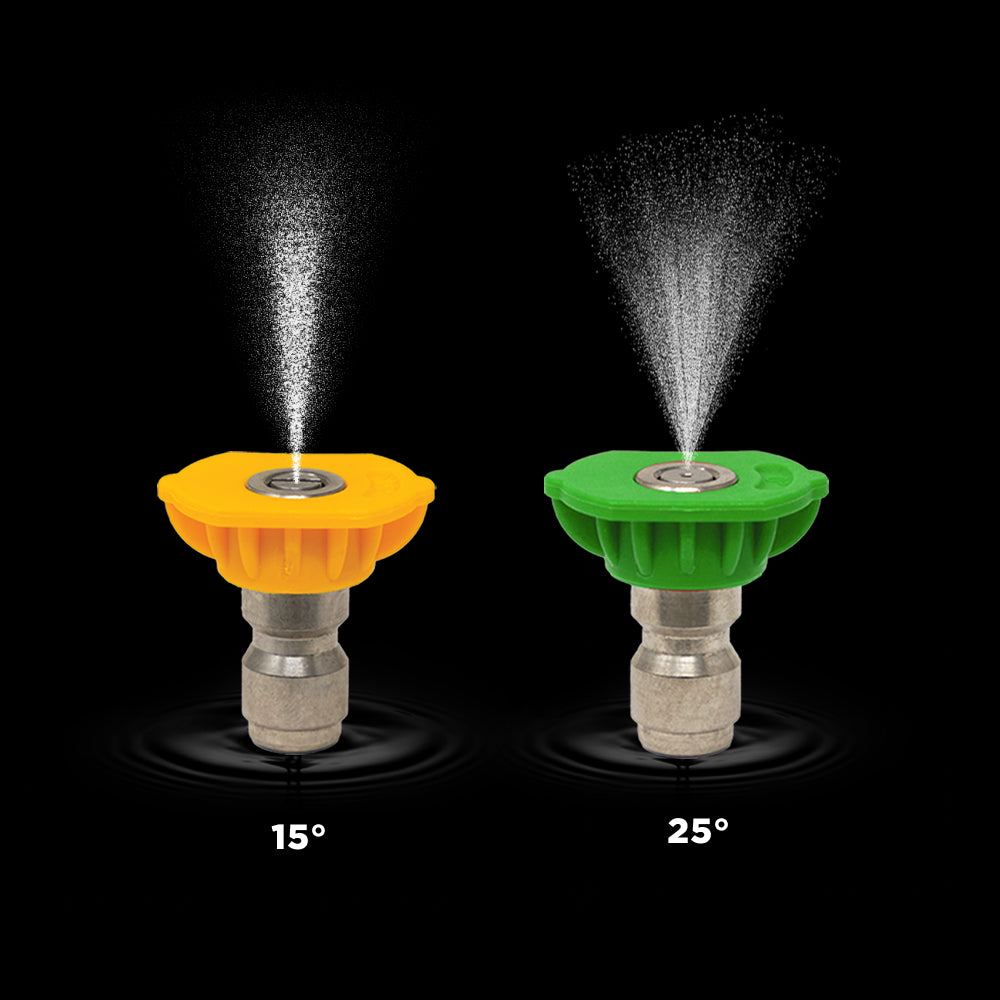

  • 2 quick-connect spray nozzles – 15° and 25°

All accessories are rated for hot water and industrial-duty use.

Available Options

Remote Station Control (Optional)
Includes:

  • Start / Stop / Restart

  • Burner On / Off

  • Detergent On / Off

A standard 10’ lead wire is included, with longer lengths available at additional cost.
Preferred coil position (Left / Right) must be specified at time of order.

Product Details

Model: 67HD-3-460

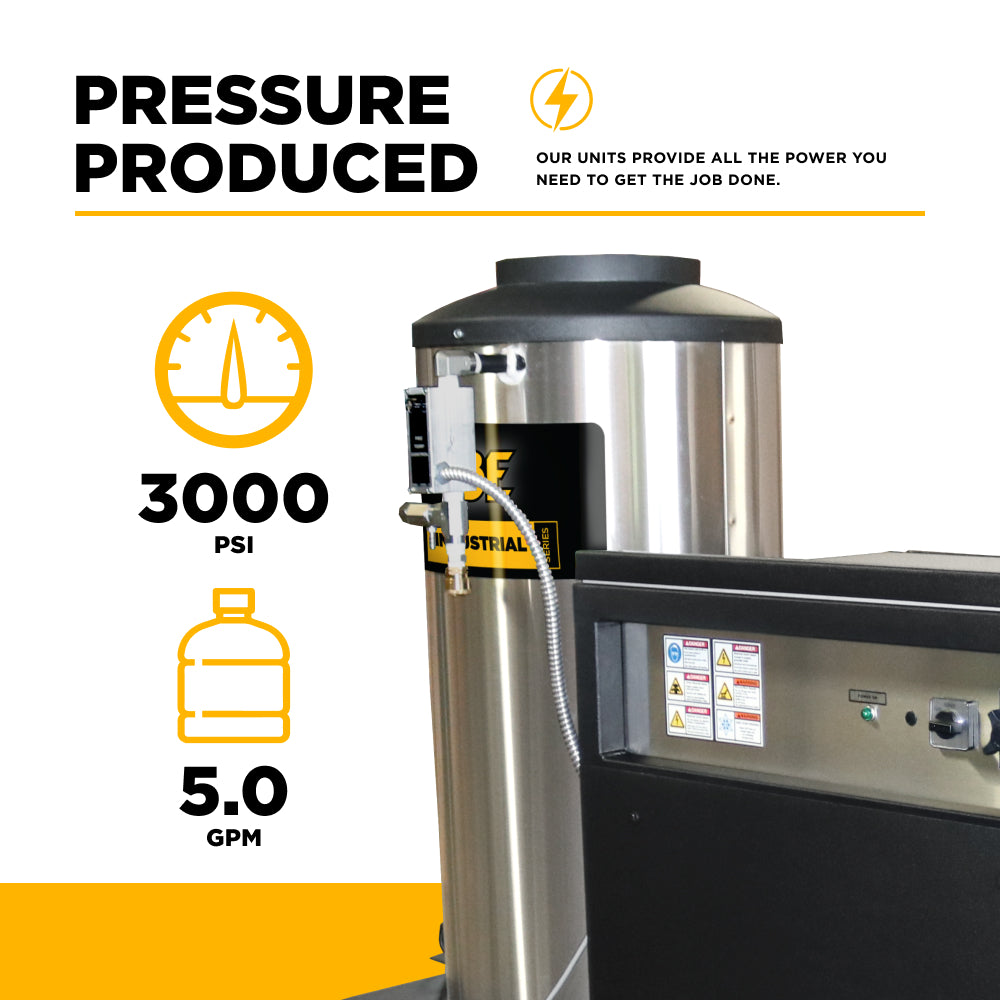

Pressure: 3,000 PSI
Flow Rate: 5.0 GPM
Motor: Baldor electric motor
Horsepower: 10 HP
Phase: Three-phase
Voltage: 460V
Amperage: 15A
Motor Speed: 1,750 RPM
Pump: General Triplex TS2021
Pump Class: P8
Unloader: External
Chemical Injection: Adjustable injector
Burner: Electronic ignition, natural gas or LP
BTU Output: 440,000
Maximum Temperature: 93°C / 200°F
Heating Coil: 230’ x 1/2” Schedule 80 cold-rolled steel
Thermostat: Adjustable
Time-Delay Shutdown: Yes
Hour Meter: Yes
Flow Switch: Yes
Pressure Relief Valve: Yes
Burner Switch: Rotary cam
Power Cord / Plug: 10’ cord / no plug

Warranty Coverage

  • Motor: 2 Years

  • Pump: 5 Years

  • Burner: 3 Years

  • Coil: Lifetime

Shipping Information

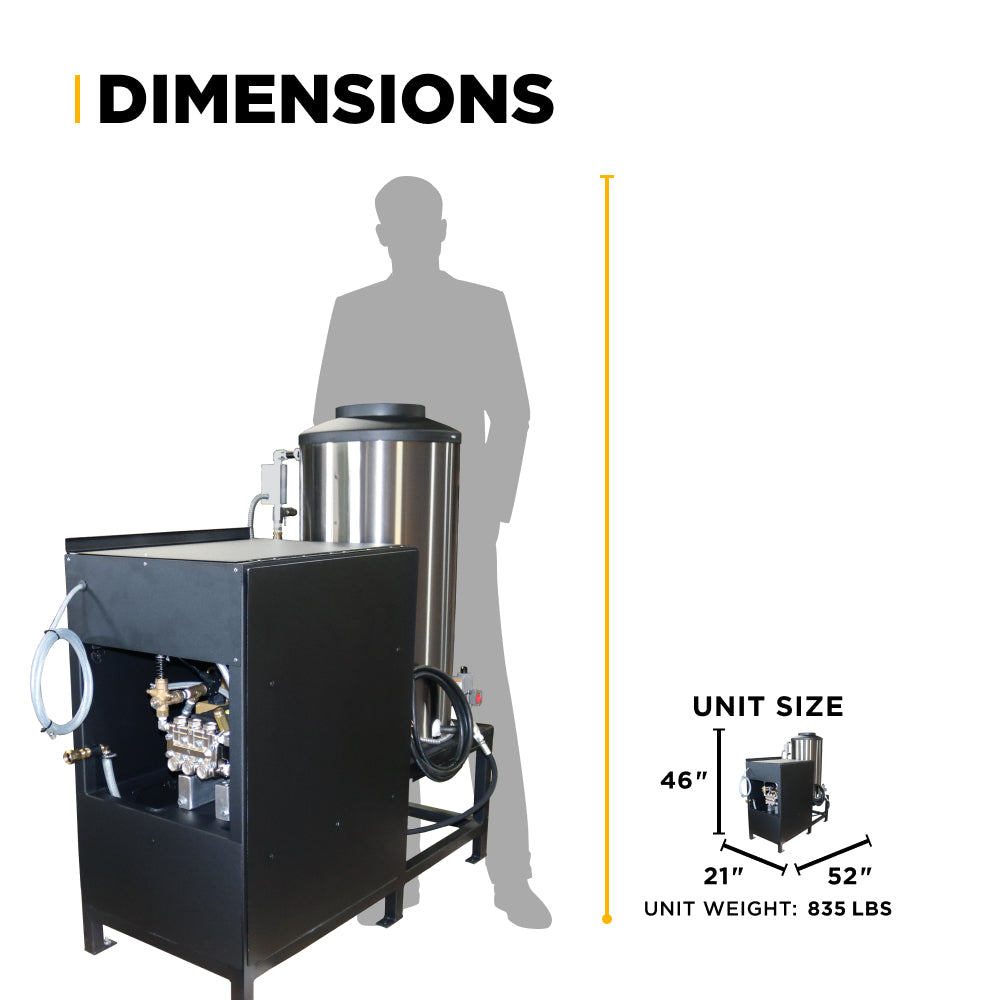

Shipping Weight: 835 lbs
Shipping Dimensions (L × W × H): 60” × 40” × 67”

Factory Tested for Performance

Each BE Power Equipment hot water pressure washer is functionally tested at the factory prior to shipping. Units may contain residual oil or fuel odor, confirming quality inspection and readiness for operation.

High Flow. High Heat. Industrial Reliability.

For industrial operators who require maximum cleaning efficiency, high-volume flow, and sustained hot water performance, the 67HD-3-460 Hot Water Pressure Washer delivers uncompromising results.

67HD-3-460 — engineered to clean harder, faster, and hotter.
