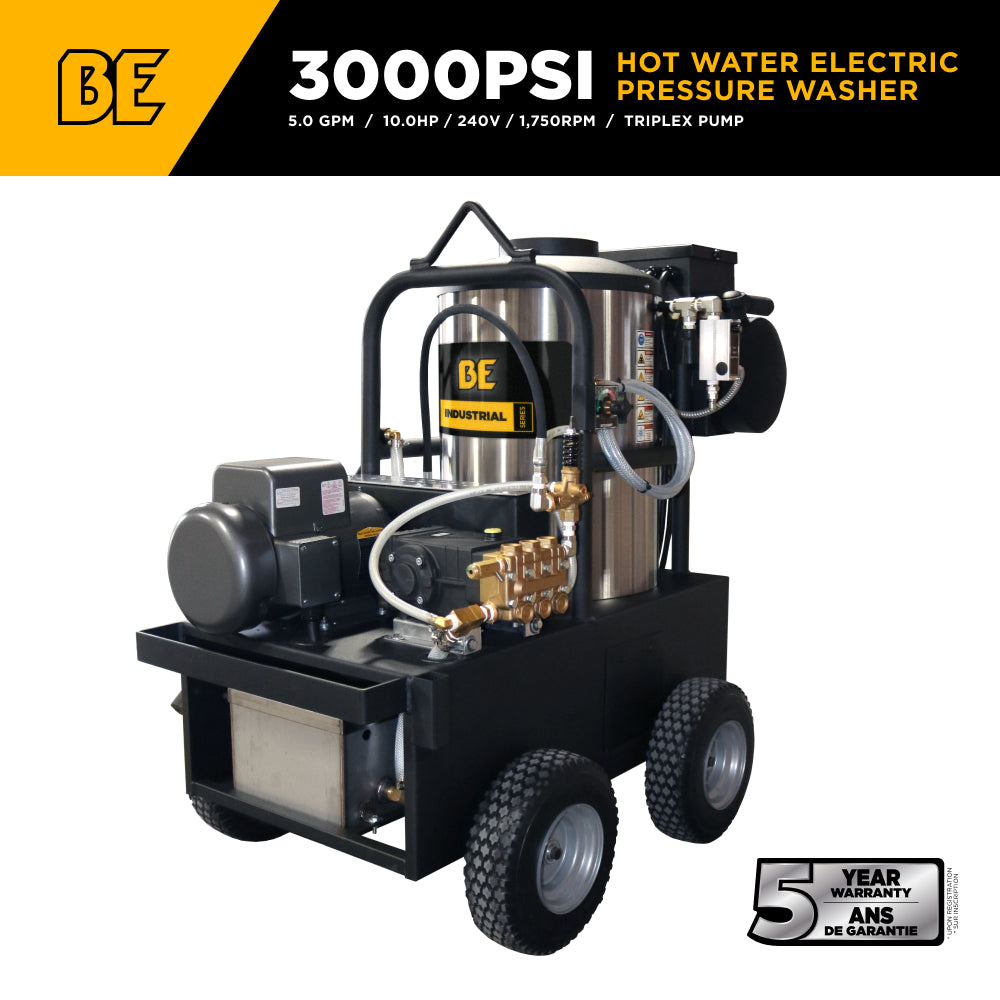

3,000 PSI 5.0 GPM Hot Water Electric Pressure Washer with General Triplex Pump - 15-530

3,000 PSI 5.0 GPM Hot Water Electric Pressure Washer with General Triplex Pump - 15-530

Specifications

FRAME

Reinforced Powder Coated Steel Frame

PSI

3,000

GPM

5.0

UNLOADER

External

SERIES

Industrial

WARRANTY

Engine: 2 Years / Pump: 5 Years / Burner: 3 Years

RPM

1,750

MOTOR

Baldor 10HP / 1 Phase / 46 Amp

PUMP MODEL

General TS2021

PUMP TYPE

Triplex

Hose Length

50'

VOLTS

240

CORD LENGTH

10'

MAX TEMPRATURE

93°C / 200°F

MATERIAL

Powder Coated

Horse Power

10

Nozzles Included

15° & 25°

Weight

715 lbs

View full details

PRODUCT

DESCRIPTION

Power + Heat + Volume

Unrivaled Hot Water Cleaning Performance

The BE Power Equipment 15-530 Electric Hot Water Pressure Washer is built for professionals who require high flow, consistent pressure, and serious heat to tackle the toughest commercial and industrial cleaning jobs. Delivering 3,000 PSI at 5.0 GPM, this unit combines volume, pressure, and temperature to cut through grease, oil, grime, and heavy buildup faster than cold water systems.

Powered by a 10.0 HP Baldor electric motor operating at 1,750 RPM, and paired with a General TS2021 triplex pump, the 15-530 is engineered for durability, smooth operation, and long service life. A 230V Beckett diesel-fired burner produces up to 315,000 BTU, heating water to a maximum of 93°C / 200°F for superior cleaning performance in demanding environments.

Built on a heavy-duty powder-coated steel frame with roll cage protection, flat-free wheels, and an integrated lift point, the 15-530 is designed for both stationary and mobile applications, including truck and trailer mounting.

Built for High-Demand Commercial and Industrial Cleaning

The 15-530 is designed for applications where cleaning speed, efficiency, and reliability are critical, including:

  • Fleet and transportation maintenance

  • Industrial equipment and machinery cleaning

  • Food processing and sanitation

  • Manufacturing and warehouse facilities

  • Property maintenance and service contractors

High GPM combined with hot water dramatically reduces cleaning time by breaking down grease and contaminants faster, minimizing chemical use and labor effort.

Features

Baldor Electric Motor

At the core of the 15-530 is a commercial-duty Baldor electric motor, engineered for continuous operation in industrial environments.

Motor features include:

  • 10.0 HP output

  • Single-phase 230V operation

  • 46 amp draw

  • Low-speed 1,750 RPM design for reduced wear

  • Smooth, quiet, emission-free electric performance

Optional auto start/stop and time delay shutdown features are available to further protect components and improve efficiency.

General Triplex Pump

Paired with the Baldor motor is a General TS2021 triplex pump, designed for high-flow hot water applications.

Pump features include:

  • Forged brass manifold

  • Solid ceramic plungers

  • Reinforced pump body

  • External unloader for improved cooling and serviceability

  • Adjustable high-pressure chemical metering valve

This pump delivers smooth, consistent pressure under continuous use.

High-Output Hot Water System

The 15-530 features a powerful hot water system designed for demanding commercial cleaning tasks.

Hot water system features include:

  • 230V Beckett diesel-fired burner

  • 315,000 BTU output

  • 147’ x 1/2” Schedule 80 cold-rolled steel heating coil

  • Maximum water temperature of 93°C / 200°F

  • Adjustable thermostat for precise temperature control

  • Flow switch

  • Pressure relief valve

  • Rotary cam burner switch

  • Inline fuel filter

This system delivers fast heat recovery and stable water temperature for extended cleaning cycles.

Heavy-Duty Frame and Mobility

The 15-530 is built on a black powder-coated industrial steel frame with roll cage protection. 12” flat-free wheels provide easy mobility across job sites, while the integrated lift point allows for simple loading and mounting. Wheels can be removed for bolt-down truck or trailer installation.

Accessories Included

The 15-530 comes equipped with professional-grade accessories for immediate use:

  • 50 ft. twin-wire braided high-pressure hose

  • Commercial insulated spray gun

  • 48” insulated spray wand with quick-connect fittings

  • 2 quick-connect spray nozzles – 15° and 25°

All accessories are rated for hot water use and built for industrial durability.

Product Details

Model: 15-530

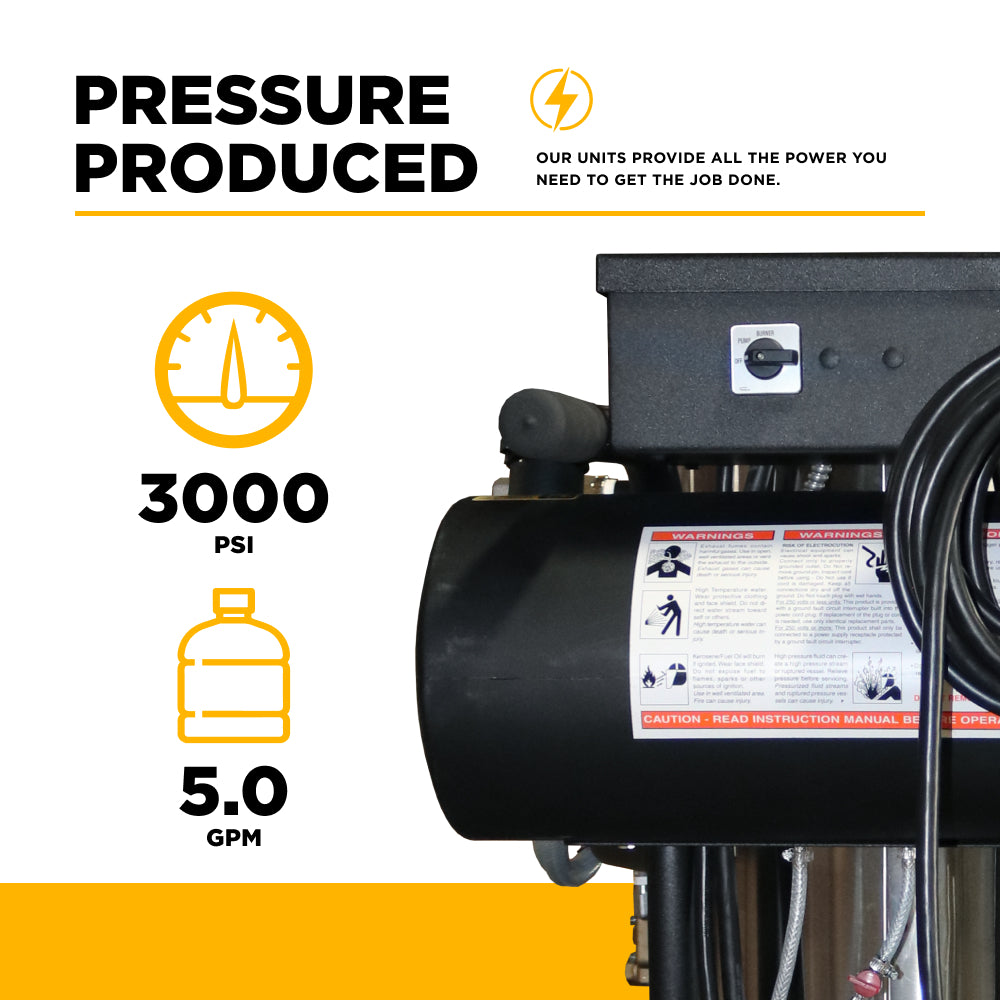

Pressure: 3,000 PSI
Flow Rate: 5.0 GPM
Motor: Baldor electric motor
Horsepower: 10.0 HP
Voltage: 230V
Phase: Single
Amperage: 46A
Motor Speed: 1,750 RPM
Pump: General Triplex TS2021
Pump Class: P8
Unloader: External
Chemical Injection: Adjustable high-pressure metering valve
Burner: 230V Beckett
BTU Output: 315,000
Maximum Temperature: 93°C / 200°F
Heating Coil: 147’ x 1/2” Schedule 80 cold-rolled steel
Burner Fuel Tank: 26.5 L / 7 gal black poly
Thermostat: Adjustable
Flow Switch: Yes
Pressure Relief Valve: Yes
Burner Switch: Rotary cam
Inline Fuel Filter: Yes
Power Cord / Plug: 10’ cord / no plug

Warranty Coverage

  • Motor: 2 Years

  • Pump: 5 Years

  • Burner: 3 Years

  • Coil: Lifetime

Shipping Information

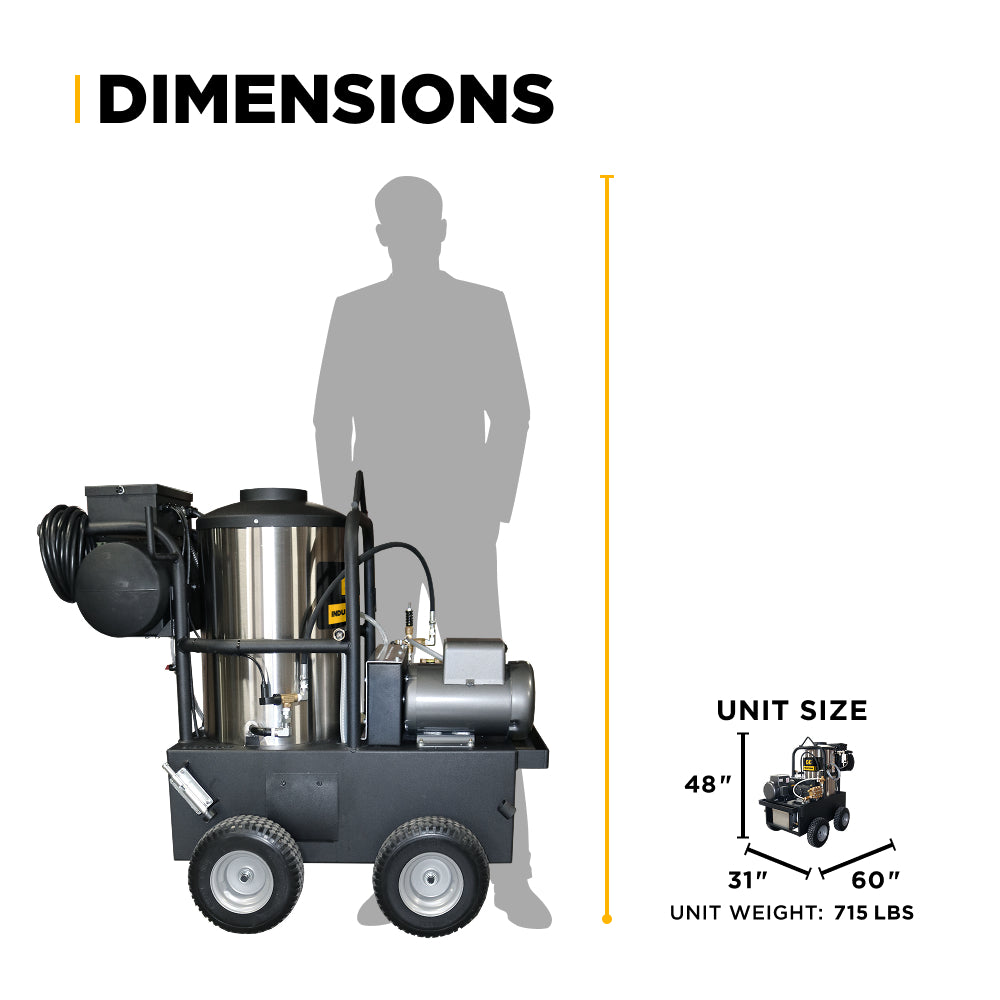

Shipping Weight: 715 lbs
Shipping Dimensions (L × W × H): 67” × 41” × 57”

Factory Tested for Performance

Each BE Power Equipment hot water pressure washer is fully tested at the factory prior to shipping. Units may contain residual oil or fuel odor, confirming that the machine has passed quality inspections and is ready for use.

Built for Professionals Who Need Heat, Flow, and Reliability

For professionals who demand high water volume, consistent pressure, and serious heat, the 15-530 Electric Hot Water Pressure Washer delivers. With a Baldor motor, General triplex pump, and high-output Beckett burner, this unit is engineered to clean faster, smarter, and hotter — job after job.

15-530 — electric power, industrial heat, uncompromising performance.

Help me Choose
my Pressure Washer.

Compare the specifications of your chosen pressure washers to determine the right fit for your application.

Download
15-530
--- Learn More
--- Learn More
Frame
Reinforced Powder Coated Steel Frame - -
Pump Model
General TS2021 - -
Pump Type
Triplex - -
PSI
3,000 - -
GPM
5.0 - -
Unloader
External - -
Series
Industrial - -
Warranty
Engine: 2 Years / Pump: 5 Years / Burner: 3 Years - -
RPM
1,750 - -
Motor
Baldor 10HP / 1 Phase / 46 Amp - -
Hose Length
50' - -
Volts
240 - -
Cord Length
10' - -
Max Temperature
93°C / 200°F - -
Material
Powder Coated - -
Horse Power
10 - -
Nozzles Included
15° & 25° - -

Frequently Asked Questions about Pressure Washers

How to store a pressure washer?

To ensure the durability of your heavy duty pressure washer:

  • Empty the gas tank to prevent fuel from degrading or clogging the engine.
  • Empty the pump and hoses of any remaining water.
  • Perform necessary maintenance before storage.
  • Store in a dry area.
  • Cover.

What is a pressure washer?

A power washer is a cleaning machine that uses a gasoline engine to power a high pressure water pump and nozzle. It’s used to clean driveways, decks, vehicles, outdoor furniture and more by spraying water at high PSI to remove dirt, grime, mold and other debris.Many models also come with a detergent tank for added cleaning power.

How does a power washer work?

A power washer works by drawing water from a connected hose and pumping it through a high pressure nozzle. The gas engine powers the pump which pressurizes the water and then expels it through the nozzle at high speed to clean the surface. The water pressure is measured in PSI (pounds per square inch) and the flow rate is measured in GPM (gallons per minute).Many models also feature adjustable water pressure settings to cater to different cleaning needs. BE makes pressure washing easy with models available for light jobs and heavy duty commercial cleaning projects.

Gas vs Electric power washers?

The main difference is that a gas pressure washer, known for its cleaning power, is powered by a gasoline engine, making it more powerful and portable, while an electric pressure washer is powered by electricity and is generally quieter and lighter.

Gas pressure washers are for heavy duty and large areas due to their durability, whereas electric pressure washers are for smaller jobs.

Your BE electric pressure washer is perfect for smaller jobs and built for portability, and we offer a wide range of electric models. Included with our electric models is a long extension cord for use anywhere around your house.

What to consider?

When choosing a gas pressure washer consider:

  • Pressure (PSI): More PSI means more cleaning power but also more potential for damaging delicate surfaces.
  • Flow Rate (GPM): More GPM means faster cleaning as more water is dispensed.
  • Engine Power: Bigger engines mean more durability and power.
  • Portability: Weight, handle design and wheel size for easier to move.
  • Nozzles: Multiple spray nozzles to adjust the spray pattern for different tasks.
  • Adjustable Nozzle: Allows for fine-tuning the spray intensity and pattern for various cleaning needs.

How much pressure do I need for?

The required pressure (PSI) and cleaning power depend on the surface you’re cleaning:

  • Light duty (car washing, outdoor furniture): 1,300-1,800 PSI.
  • Medium duty (patios, fences, decks): 2,000-3,000 PSI.
  • Heavy duty (driveways, brick walls, large equipment): 3,000+ PSI.

Many pressure washers come with adjustable pressure settings to handle different cleaning tasks effectively.

Can a pressure washing damage surfaces?

Yes, a power washer can damage surfaces if used incorrectly. High pressure water can strip paint, dent soft surfaces or even cause structural damage if the pressure is too high or the nozzle is held too close to the surface. Always use the right PSI for the material you’re cleaning and keep a safe distance from delicate surfaces.

To prevent damage, consider using a model with adjustable pressure settings.

How to maintain your pressure washer?

To ensure the durability and smooth operation of a pressure washer:

  • Change the oil as per manufacturer’s instructions.
  • Clean or replace the air filter to ensure good airflow.
  • Inspect and clean the nozzle regularly to prevent clogs.
  • Drain the gas tank if you’re storing the washer for a long time.
  • Check the hoses for leaks or damage and replace them if needed.
  • Follow regular maintenance requirements to keep the washer in optimal condition.

Can I use a pressure washer in cold weather and low water temperature?

You can use a pressure washer in cold weather but it’s more difficult. The water flow rate in the hoses and pump can freeze and damage the equipment. If you plan to use your pressure washer in cold temperatures make sure to winterize it and store it in a warm area when not in use. You can also use anti-freeze solutions for pressure washers.

Some models are designed to use hot water, which can be particularly effective for cleaning in cold weather.

Do I need any accessories?

Common accessories for power washers:
