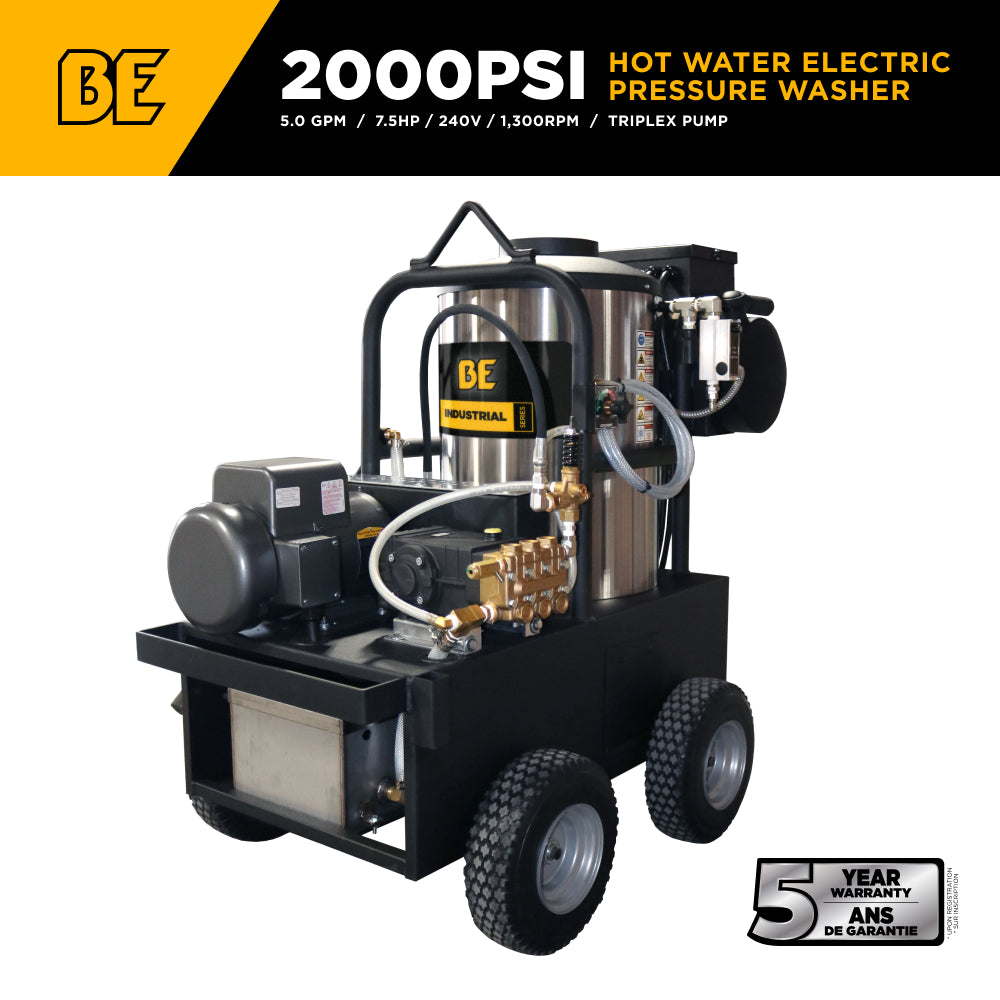

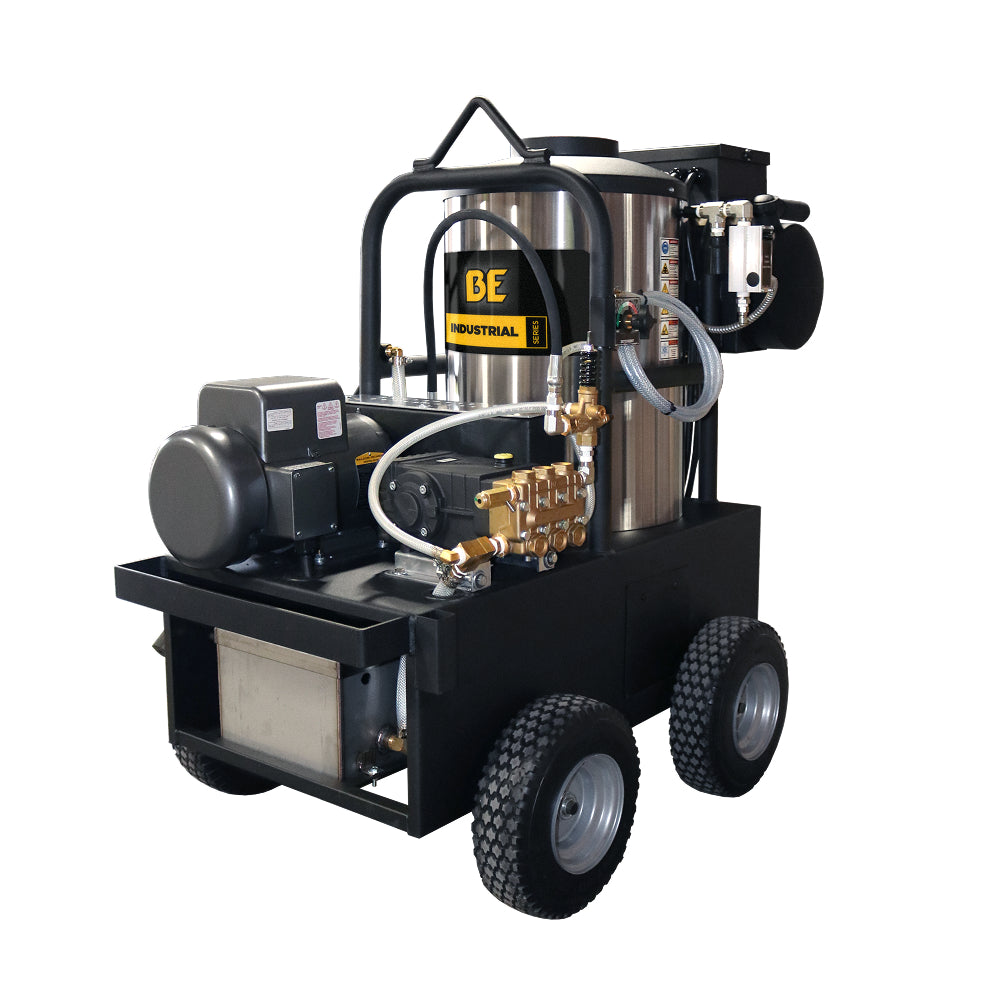

2,000 PSI 5.0 GPM Hot Water Electric Pressure Washer with General Triplex Pump - 15-520

2,000 PSI 5.0 GPM Hot Water Electric Pressure Washer with General Triplex Pump - 15-520

Specifications

FRAME

Reinforced Powder Coated Steel Frame

PSI

2,000

GPM

5.0

UNLOADER

External

SERIES

Industrial

WARRANTY

Engine: 2 Years / Pump: 5 Years / Burner: 3 Years

RPM

1,725

ENGINE START

Electric

MOTOR

Baldor 7.5HP / 1 Phase / 36 Amp

PUMP MODEL

General TS2021

PUMP TYPE

Triplex

Hose Length

50'

VOLTS

240

CORD LENGTH

10'

MAX TEMPRATURE

93°C / 200°F

MATERIAL

Powder Coated

Horse Power

7.5

Nozzles Included

15° & 25°

Oil Type

30W Non-Detergent

Weight

675 lbs

View full details

PRODUCT

DESCRIPTION

Power + Heat + Volume

Unrivaled Hot Water Cleaning Performance

The BE Power Equipment 15-520 Electric Hot Water Pressure Washer is engineered for professionals who require high water volume, controlled pressure, and reliable heat for demanding commercial and industrial cleaning applications. Delivering 2,000 PSI at 5.0 GPM, this unit combines flow, pressure, and temperature to remove grease, oil, and heavy buildup faster and more efficiently than cold water systems.

Powered by a 7.5 HP Baldor electric motor operating at 1,725 RPM, and paired with a General TS2021 triplex pump, the 15-520 is built for durability, smooth operation, and long service life. A 230V Beckett diesel-fired burner produces up to 315,000 BTU, heating water to a maximum of 93°C / 200°F for superior cleaning performance in tough environments.

Built on a rugged black powder-coated steel frame with roll cage protection, flat-free wheels, and an integrated lift point, the 15-520 is designed for both stationary and mobile applications, including truck and trailer mounting.

Built for High-Demand Commercial and Industrial Cleaning

The 15-520 is ideal for applications where flow rate and heat are critical, including:

  • Fleet and transportation maintenance

  • Industrial equipment and machinery cleaning

  • Food processing and sanitation

  • Manufacturing and warehouse facilities

  • Property maintenance and service contractors

High GPM paired with hot water significantly reduces cleaning time by breaking down grease and contaminants quickly, minimizing chemical usage and labor.

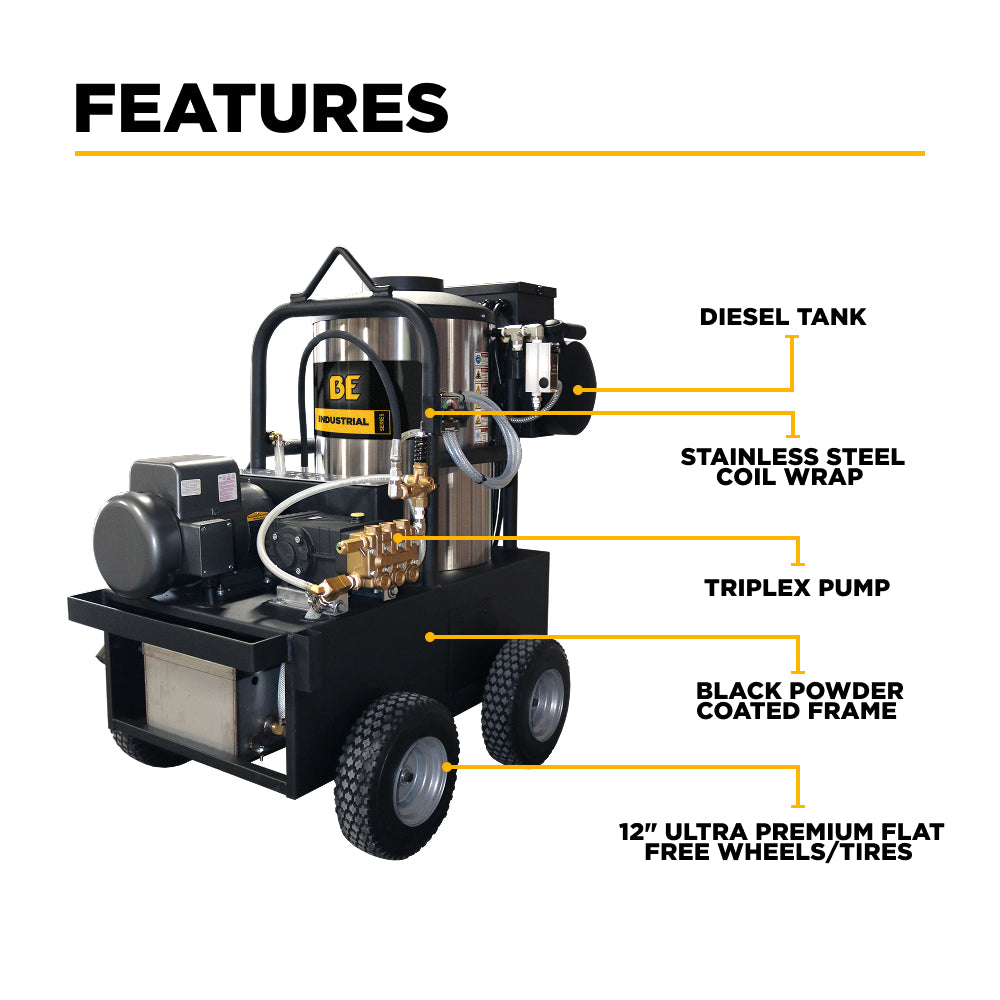

Features

Baldor Electric Motor

At the core of the 15-520 is a commercial-duty Baldor electric motor, designed for continuous operation in professional environments.

Motor features include:

  • 7.5 HP output

  • Single-phase 230V operation

  • 36 amp draw

  • Low-speed 1,725 RPM design for reduced wear

  • Quiet, emission-free electric performance

Optional auto start/stop and time delay shutdown features are available to further enhance efficiency and component protection.

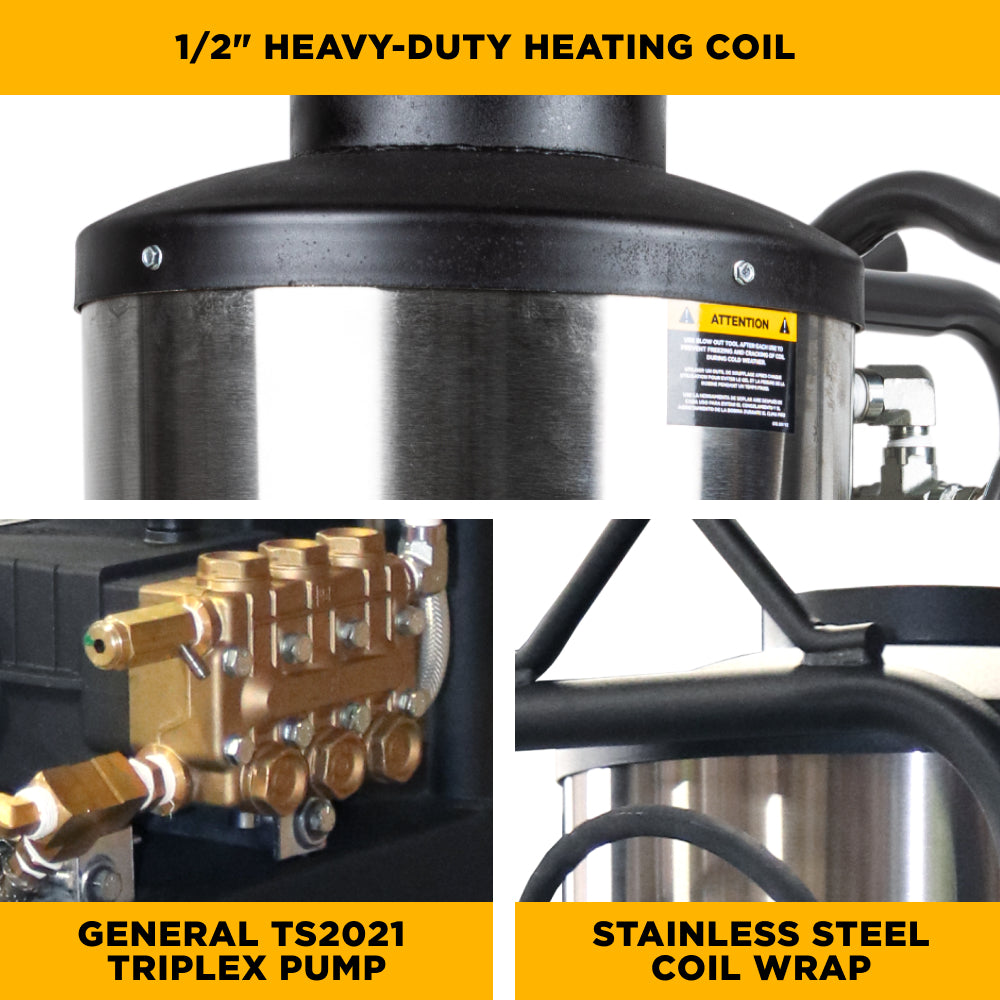

General Triplex Pump

Paired with the Baldor motor is a General TS2021 triplex pump, designed for high-flow hot water applications.

Pump features include:

  • Forged brass manifold

  • Solid ceramic plungers

  • Reinforced pump body

  • External unloader for improved cooling and serviceability

  • Adjustable high-pressure chemical metering valve

This pump delivers smooth, consistent pressure under extended use.

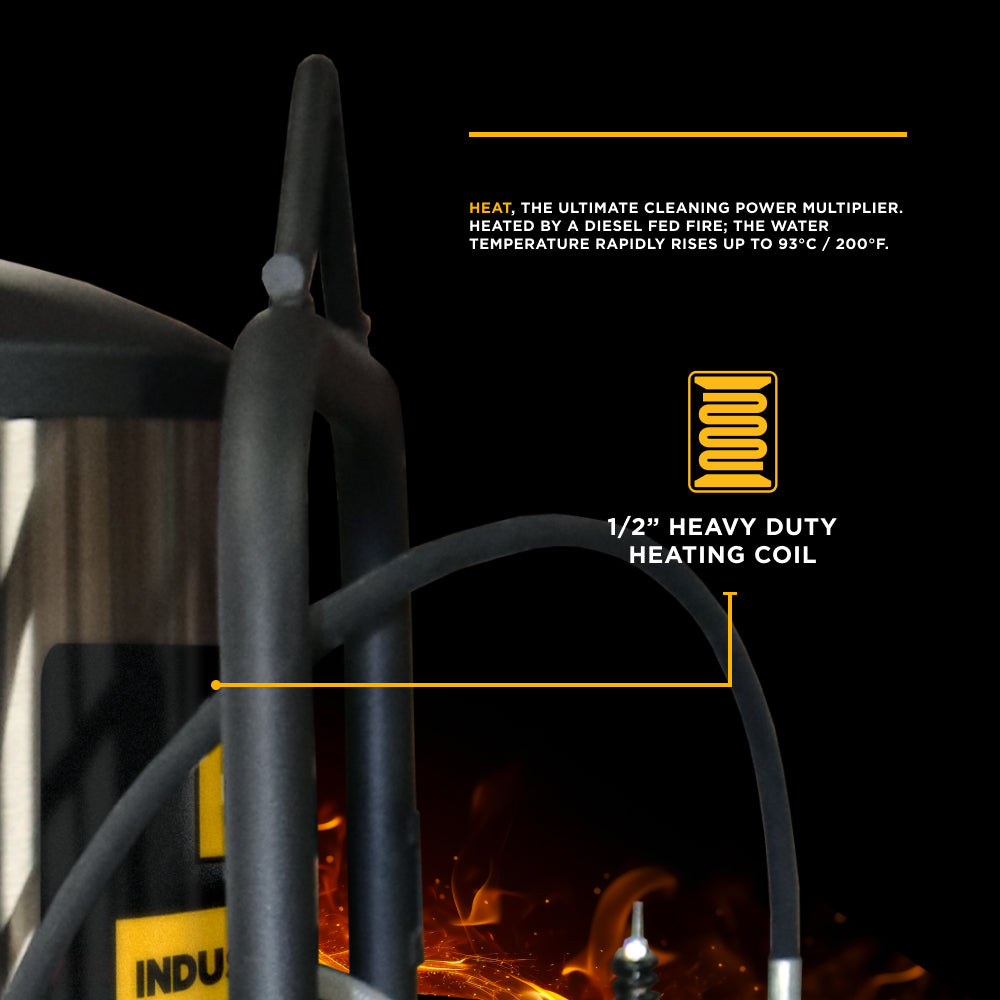

High-Output Hot Water System

The 15-520 features a powerful hot water system designed for demanding commercial cleaning tasks.

Hot water system features include:

  • 230V Beckett diesel-fired burner

  • 315,000 BTU output

  • 147’ x 1/2” Schedule 80 cold-rolled steel heating coil

  • Maximum water temperature of 93°C / 200°F

  • Adjustable thermostat for precise temperature control

  • Flow switch

  • Pressure relief valve

  • Rotary cam burner switch

  • Inline fuel filter

This system delivers fast heat recovery and stable water temperature during long cleaning cycles.

Heavy-Duty Frame and Mobility

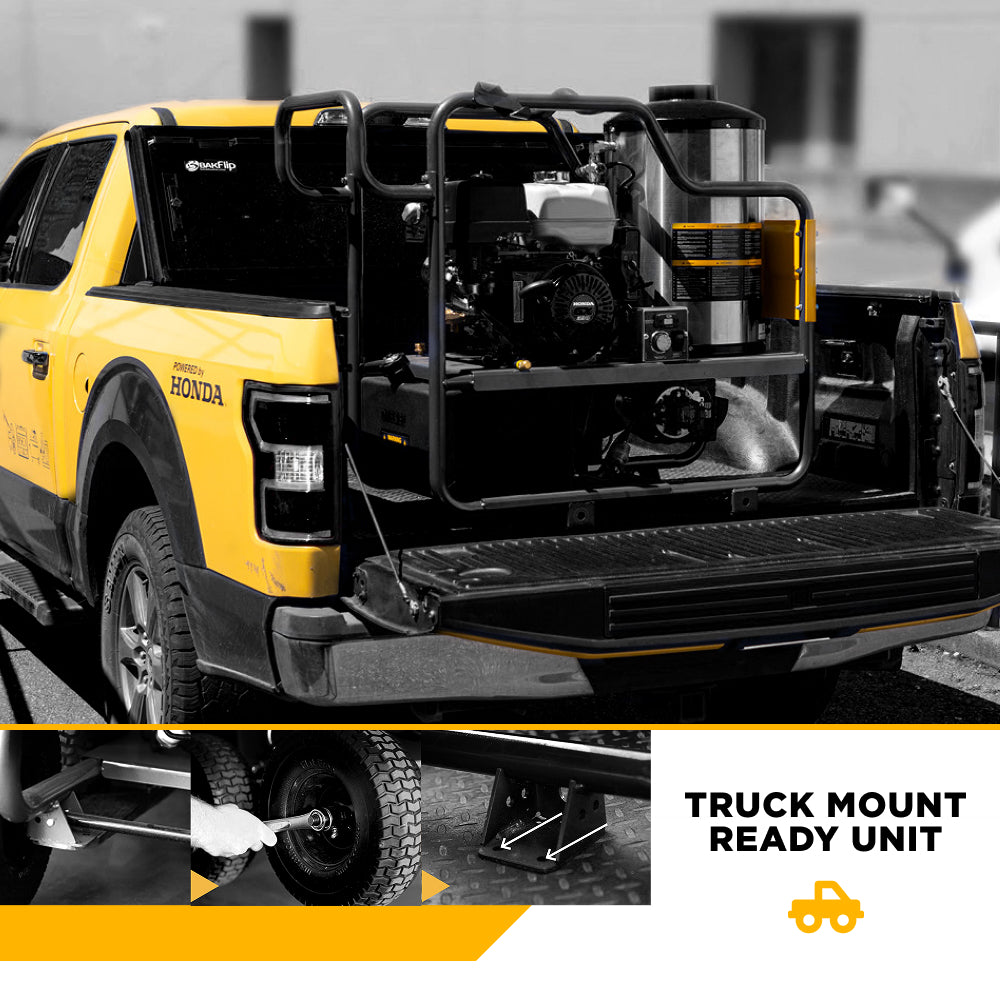

The 15-520 is built on a powder-coated industrial steel frame with roll cage protection. 12” flat-free wheels allow for easy movement across job sites, while the integrated lift point enables safe loading and mounting. Wheels can be removed for bolt-down truck or trailer installation.

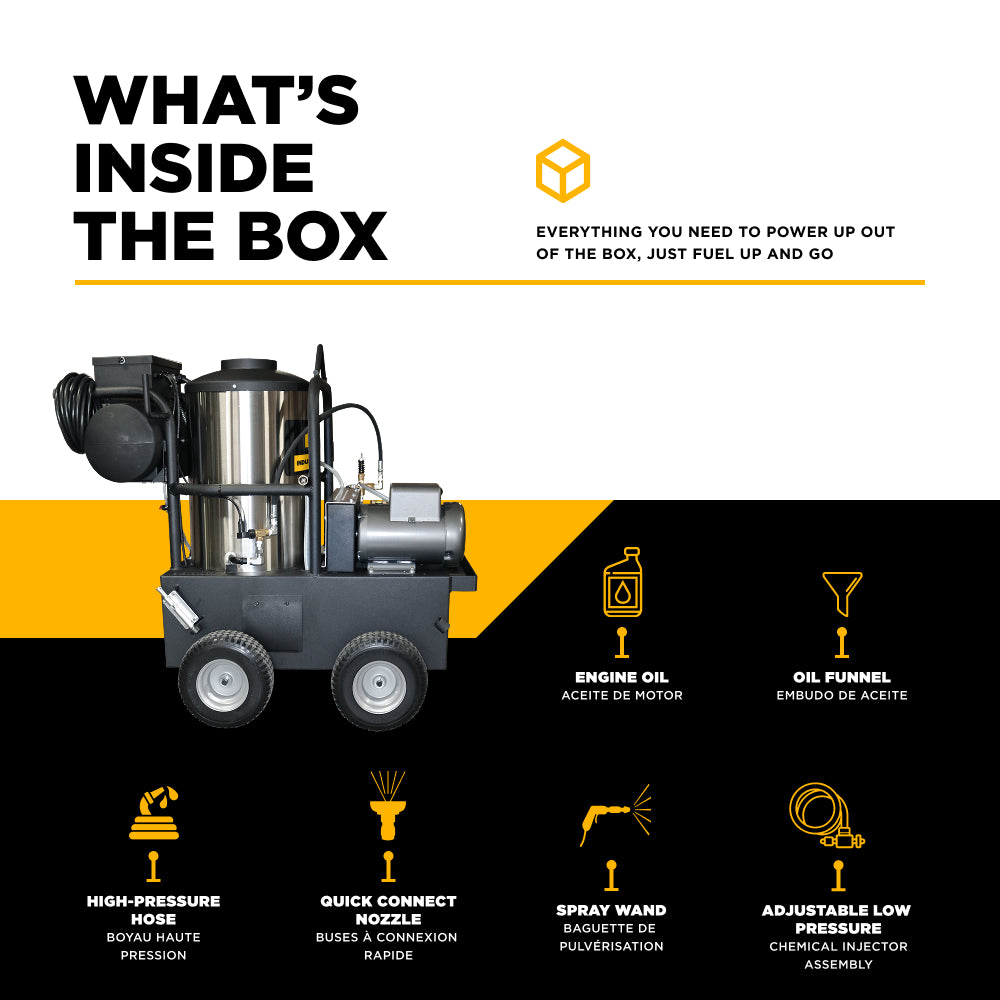

Accessories Included

The 15-520 comes equipped with professional-grade accessories for immediate operation:

  • 50 ft. twin-wire braided high-pressure hose

  • Commercial insulated spray gun

  • 48” insulated spray wand with quick-connect fittings

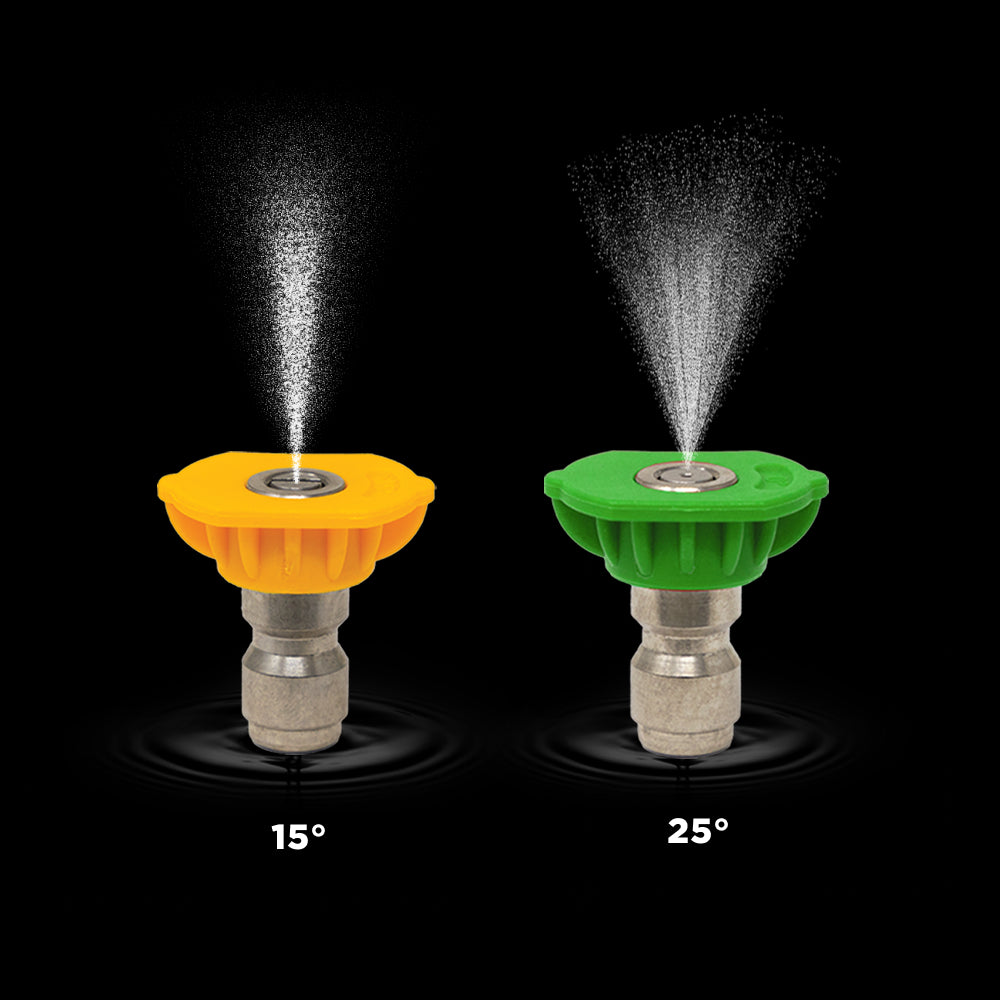

  • 2 quick-connect spray nozzles – 15° and 25°

All accessories are rated for hot water use and built for commercial durability.

Product Details

Model: 15-520
Pressure: 2,000 PSI
Flow Rate: 5.0 GPM
Motor: Baldor electric motor
Horsepower: 7.5 HP
Voltage: 230V
Phase: Single
Amperage: 36A
Motor Speed: 1,725 RPM
Pump: General Triplex TS2021
Pump Class: P8
Unloader: External
Chemical Injection: Adjustable high-pressure metering valve
Burner: 230V Beckett
BTU Output: 315,000
Maximum Temperature: 93°C / 200°F
Heating Coil: 147’ x 1/2” Schedule 80 cold-rolled steel
Burner Fuel Tank: 26.5 L / 7 gal black poly
Thermostat: Adjustable
Flow Switch: Yes
Pressure Relief Valve: Yes
Inline Fuel Filter: Yes
Power Cord / Plug: 10’ cord / no plug

Warranty Coverage

  • Motor: 2 Years

  • Pump: 5 Years

  • Burner: 3 Years

  • Coil: Lifetime

Shipping Information

Shipping Weight: 675 lbs

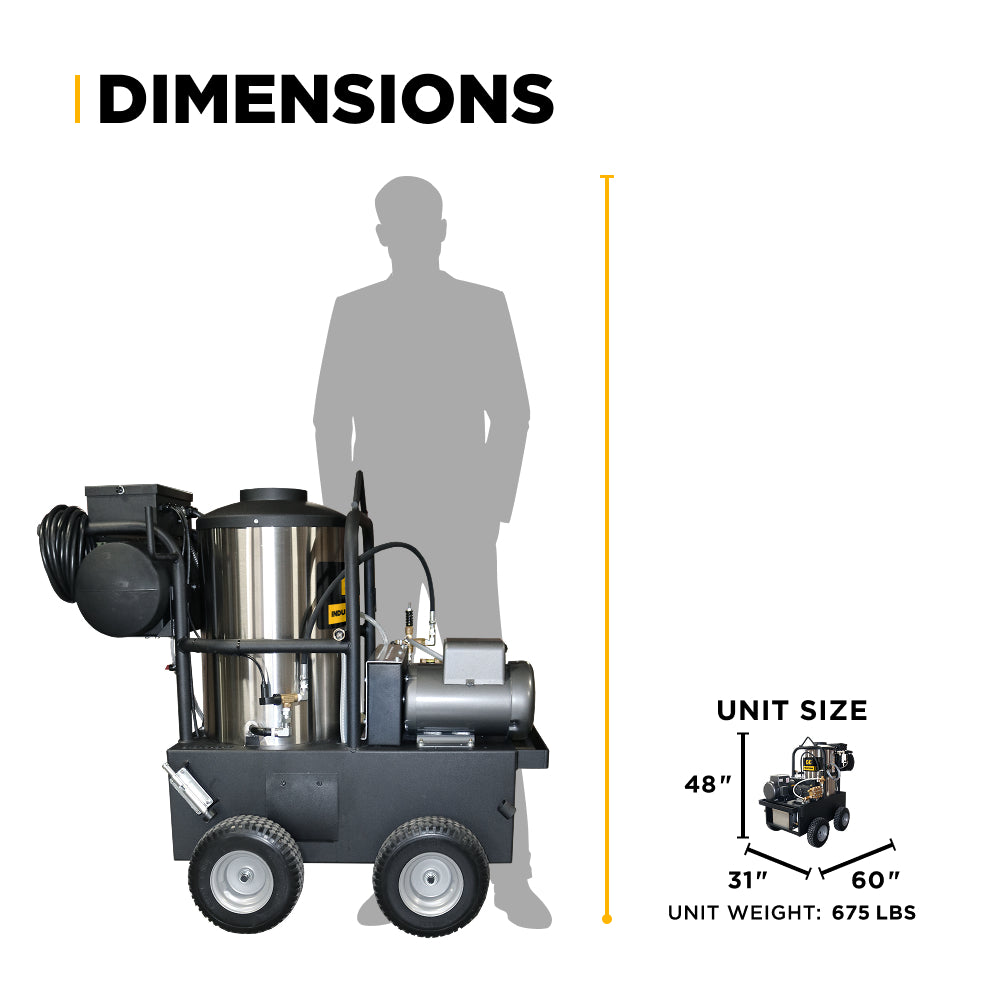

Shipping Dimensions (L × W × H): 67” × 41” × 57”

Factory Tested for Performance

Each BE Power Equipment hot water pressure washer is fully tested at the factory prior to shipping. Units may contain residual oil or fuel odor, confirming that the machine has passed quality inspections and is ready for use.

Built for Professionals Who Need Flow, Heat, and Reliability

For professionals who demand high water volume, controlled pressure, and serious heat, the 15-520 Electric Hot Water Pressure Washer delivers. With a Baldor motor, General triplex pump, and high-output Beckett burner, this unit is engineered to clean faster, smarter, and hotter — job after job.

15-520 — electric power, industrial heat, proven performance.
