Product / Pressure Washers / 96012V

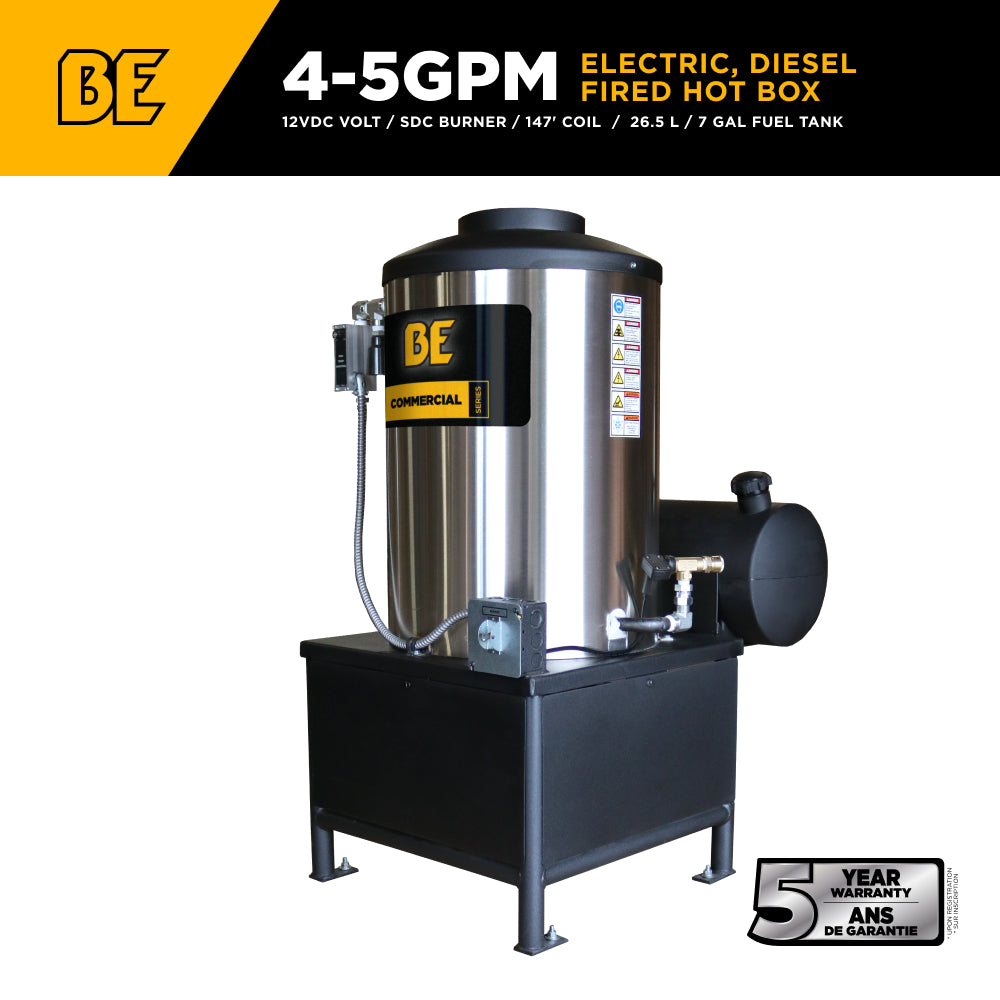

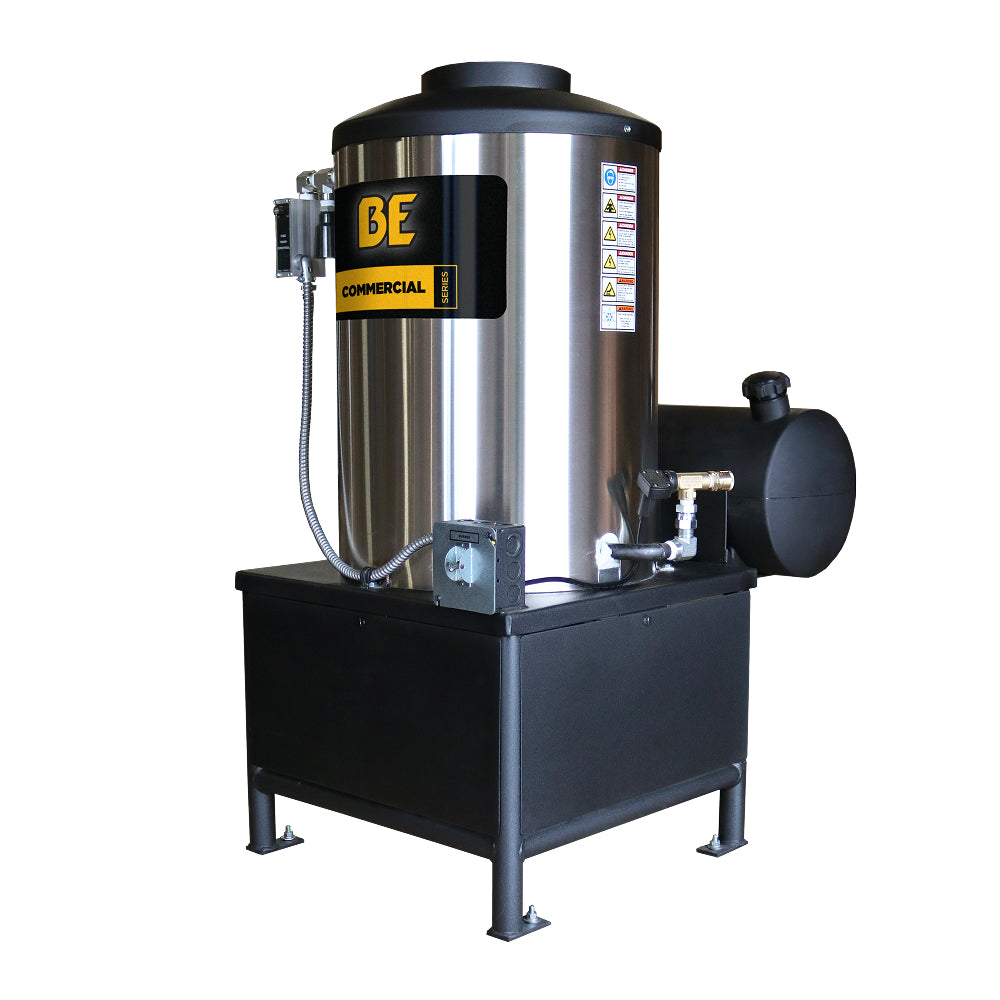

12VDC, 4-5 GPM Diesel Fired Hot Box - 96012V

12VDC, 4-5 GPM Diesel Fired Hot Box - 96012V

Specifications

FRAME

Powder Coated Steel Frame

GPM

4.0-5.0

SERIES

Commercial

WARRANTY

Burner: 3 Years / Coil: Lifetime

VOLTS

12VDC

MAX TEMPRATURE

93°C / 200°F

MATERIAL

Powder Coated

Weight

368 lbs

View full details

PRODUCT

DESCRIPTION

For Those Who Occasionally Need Industrial Heat

The BE Power Equipment 96012V Vertical Electric-Ignition Diesel-Fired Hot Box is designed for professionals who need hot water cleaning power without investing in a full hot water pressure washer. This standalone hot box connects directly to a cold water pressure washer, instantly converting it into a hot water pressure washing system capable of tackling grease, oil, grime, and heavy buildup with ease.

Engineered for mobile and stationary applications, the 96012V operates on 12VDC power, making it ideal for truck-mounted, trailer-mounted, and remote jobsite setups. With a powerful 550,000 BTU diesel-fired burner, this hot box heats water up to 93°C / 200°F, dramatically improving cleaning efficiency while reducing chemical use and labor time.

Built into a rugged, powder-coated steel frame, the 96012V is designed to withstand demanding work environments while delivering reliable, on-demand hot water whenever the job requires it.

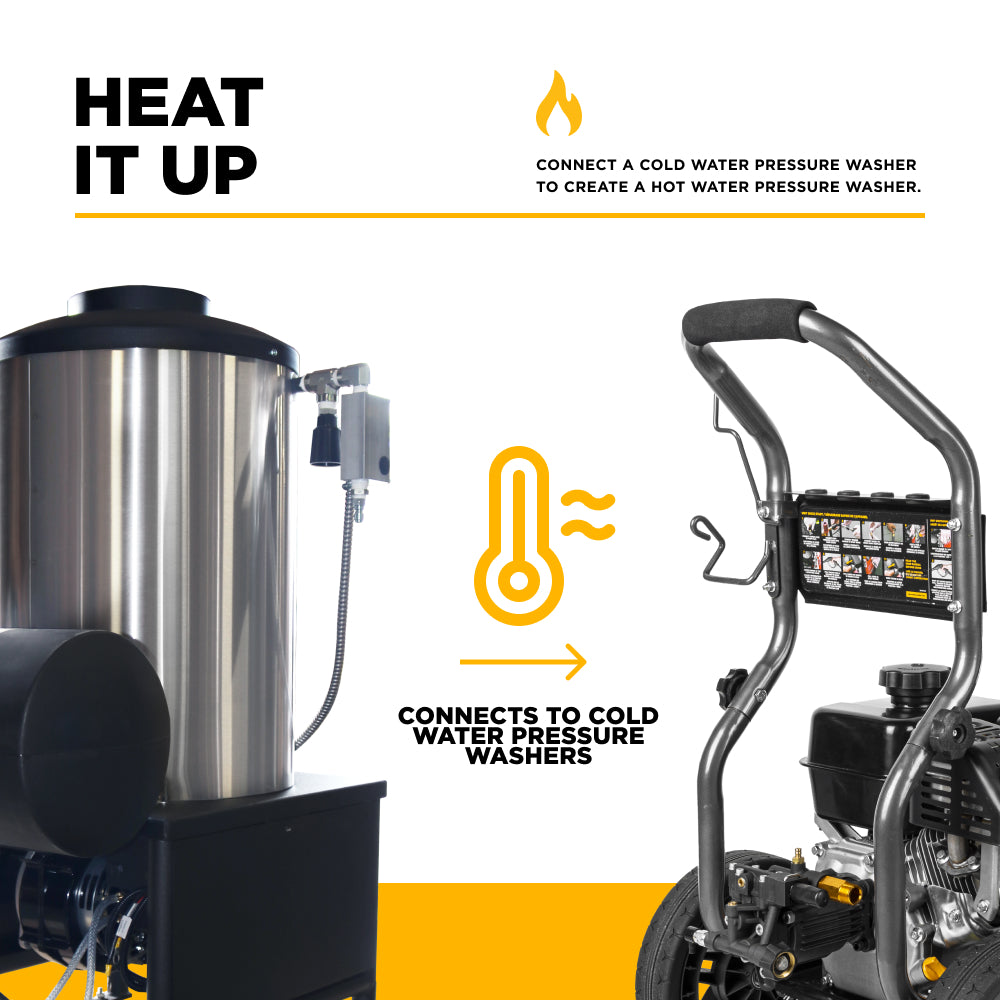

Built to Upgrade Cold Water Pressure Washers

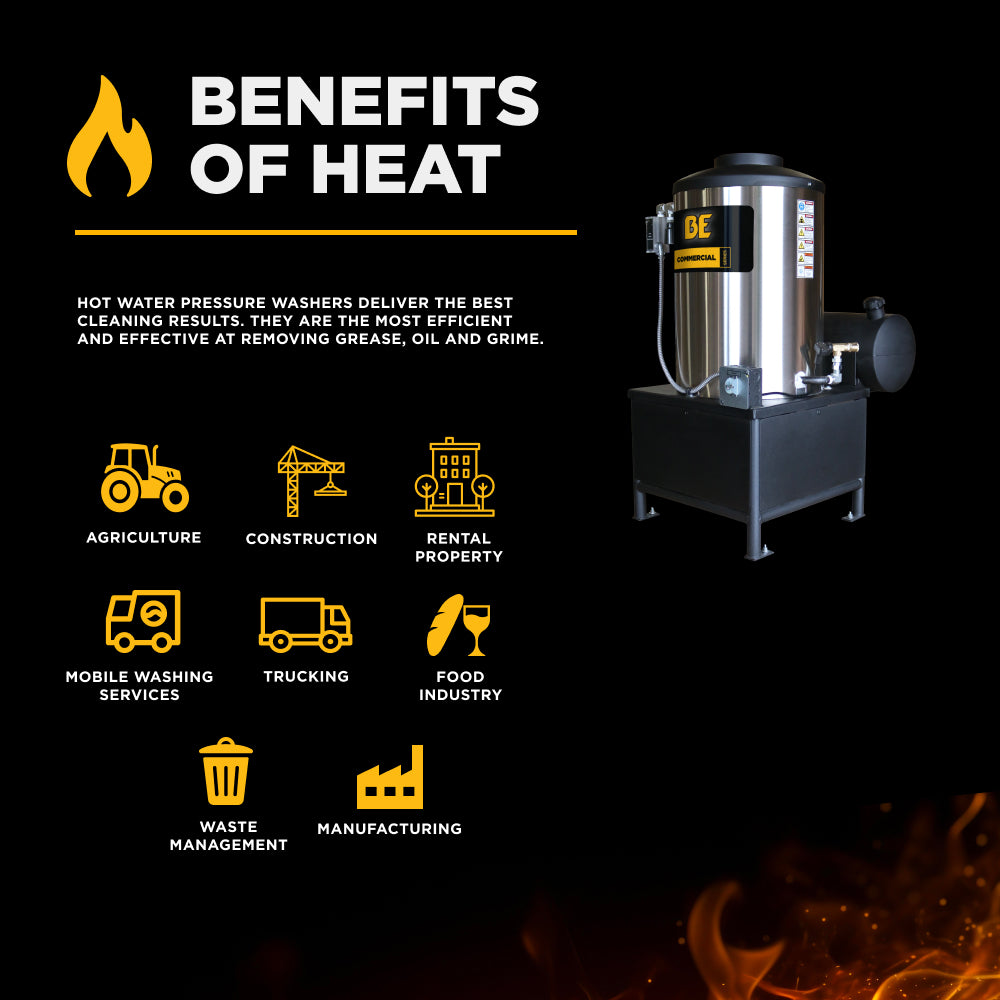

The 96012V hot box is designed to integrate seamlessly with existing pressure washing equipment and is ideal for applications such as:

  • Fleet and heavy equipment cleaning

  • Oil, grease, and hydraulic fluid removal

  • Agricultural and farm equipment washing

  • Industrial maintenance and wash bays

  • Construction and transportation cleanup

Hot water significantly accelerates grease and oil breakdown, allowing operators to clean faster, more effectively, and with less detergent.

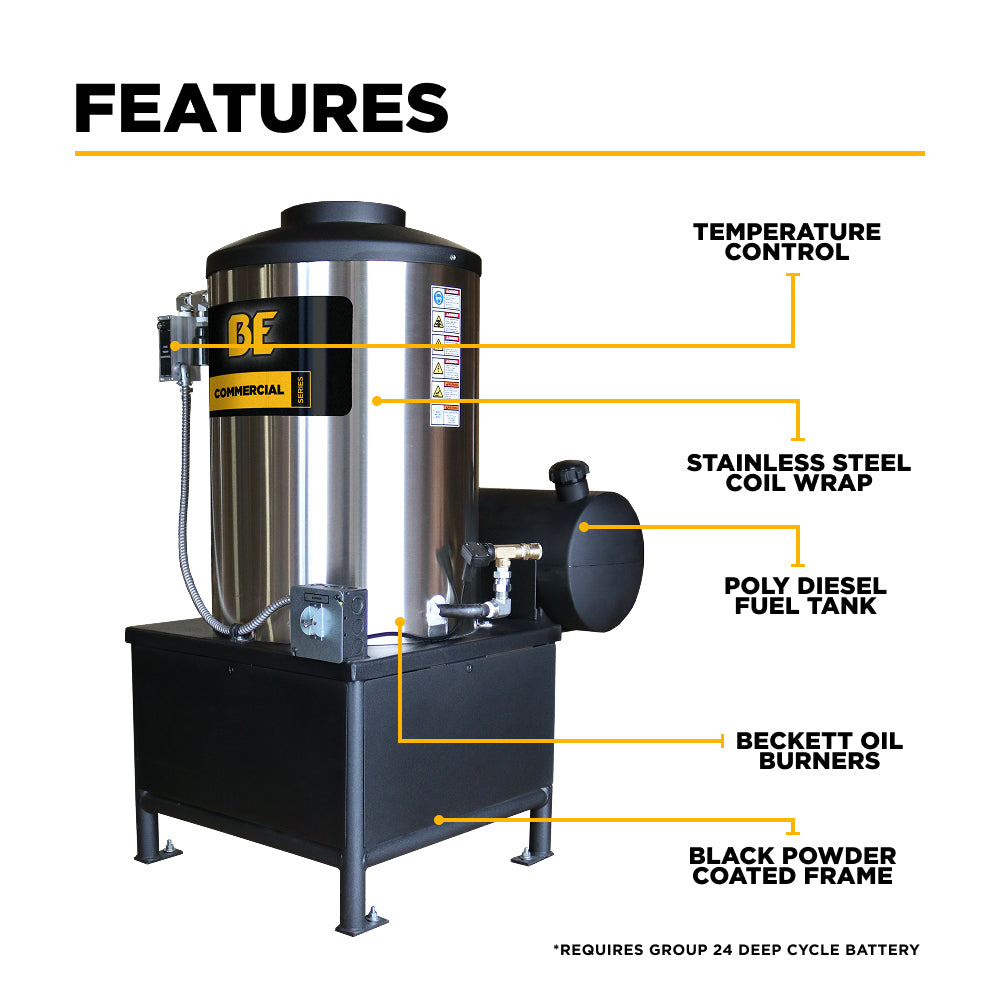

Features

High-Output Diesel-Fired Heating System

At the core of the 96012V is a diesel-fired burner system with electronic ignition, delivering exceptional heating performance for demanding cleaning applications.

Heating system features include:

  • 550,000 BTU output

  • Maximum water temperature of 93°C / 200°F

  • 12VDC operation

  • Adjustable thermostat for precise temperature control

  • Toggle burner on/off switch

  • Inline fuel filter for system protection

This powerful heating system ensures fast temperature recovery and consistent hot water delivery.

Heavy-Duty Heating Coil Assembly

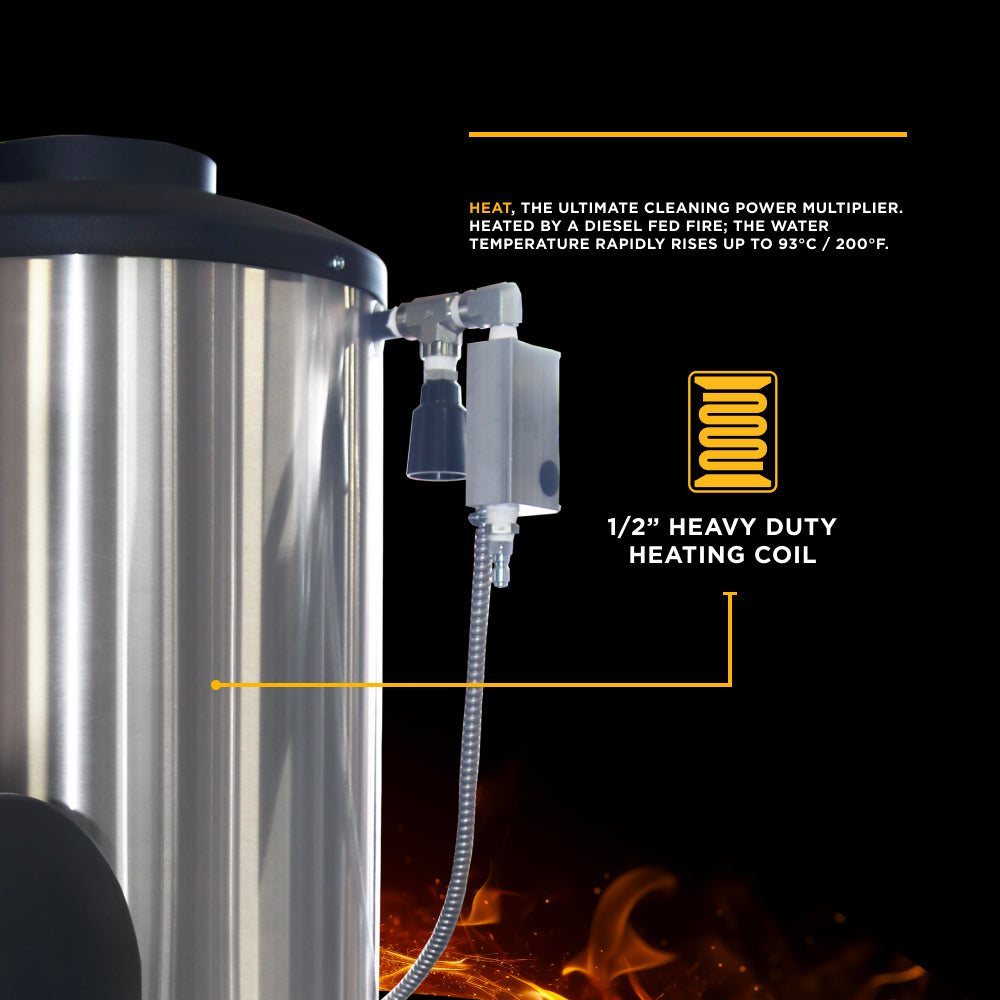

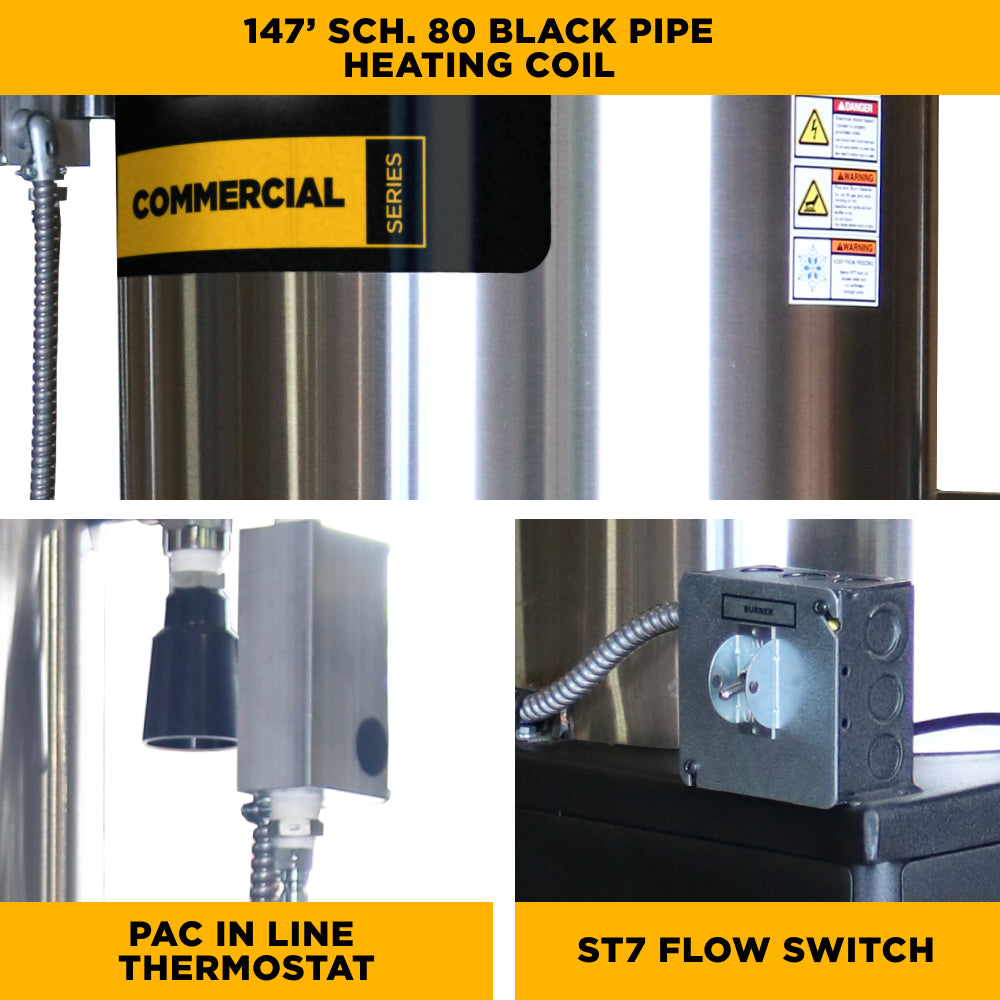

The hot box is equipped with a 147’ x 1/2” Schedule 80 cold-rolled steel heating coil, engineered for long service life and efficient heat transfer.

  • Schedule 80 construction resists pressure and thermal stress

  • Stainless steel coil wrap provides added protection and durability

  • Designed for continuous hot water operation

This coil design delivers reliable heating performance even under extended use.

Flow-Activated Safety and Control System

The 96012V includes multiple safety and operational controls to protect both the operator and connected equipment:

  • Flow switch monitors water movement and burner operation

  • Rupture disk for pressure protection

  • Adjustable thermostat for controlled heating

  • Toggle burner switch for manual control

These systems ensure safe, dependable operation during hot water pressure washing.

Large Diesel Fuel Capacity

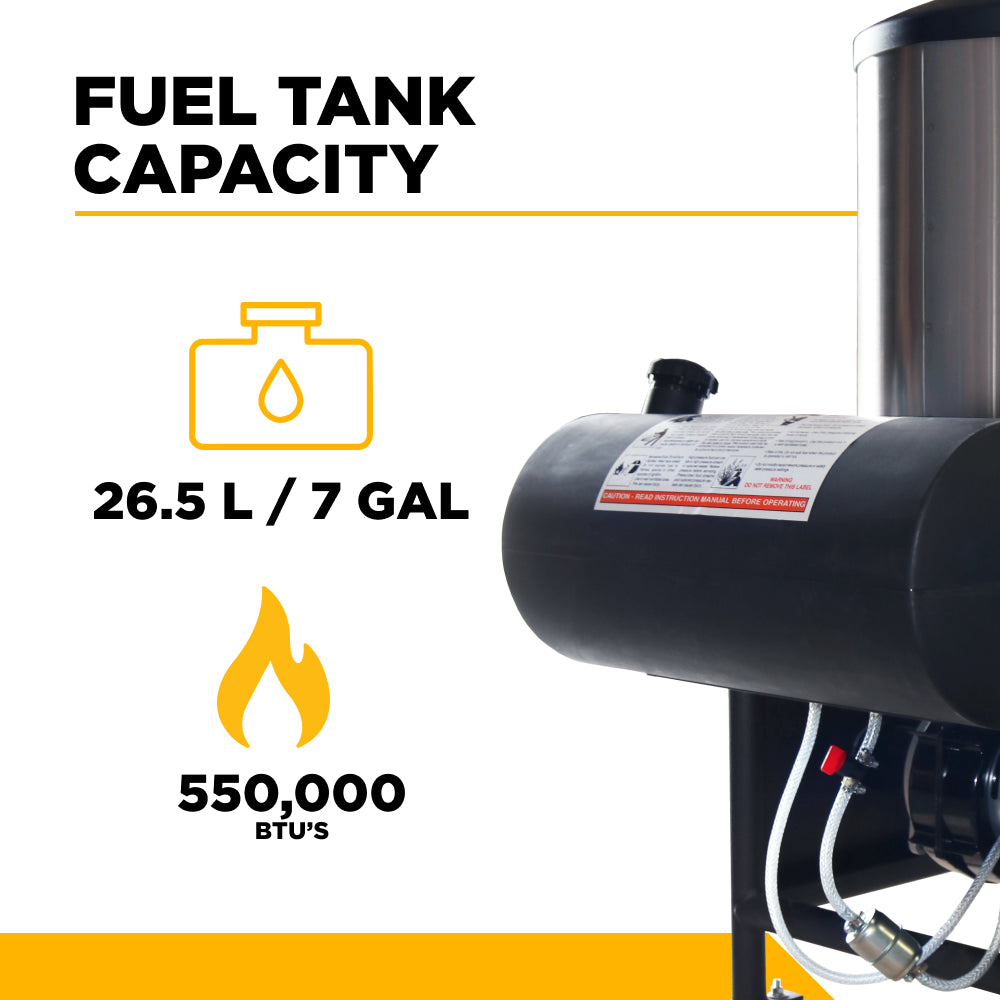

A 7-gallon (26.5 L) black poly diesel fuel tank provides extended run time, reducing downtime and allowing operators to work longer between refueling stops.

Rugged Industrial Frame Design

The hot box is housed in a powder-coated steel frame, providing excellent durability and stability in harsh jobsite conditions. The vertical design minimizes footprint while maintaining service accessibility.

This makes the 96012V well suited for mobile pressure washing rigs and fixed installations alike.

Product Details

Model: 96012V
Water Flow Compatibility: 4.0–5.0 GPM
Power Supply: 12VDC
Battery Requirement: Group 24 deep cycle battery (not included)

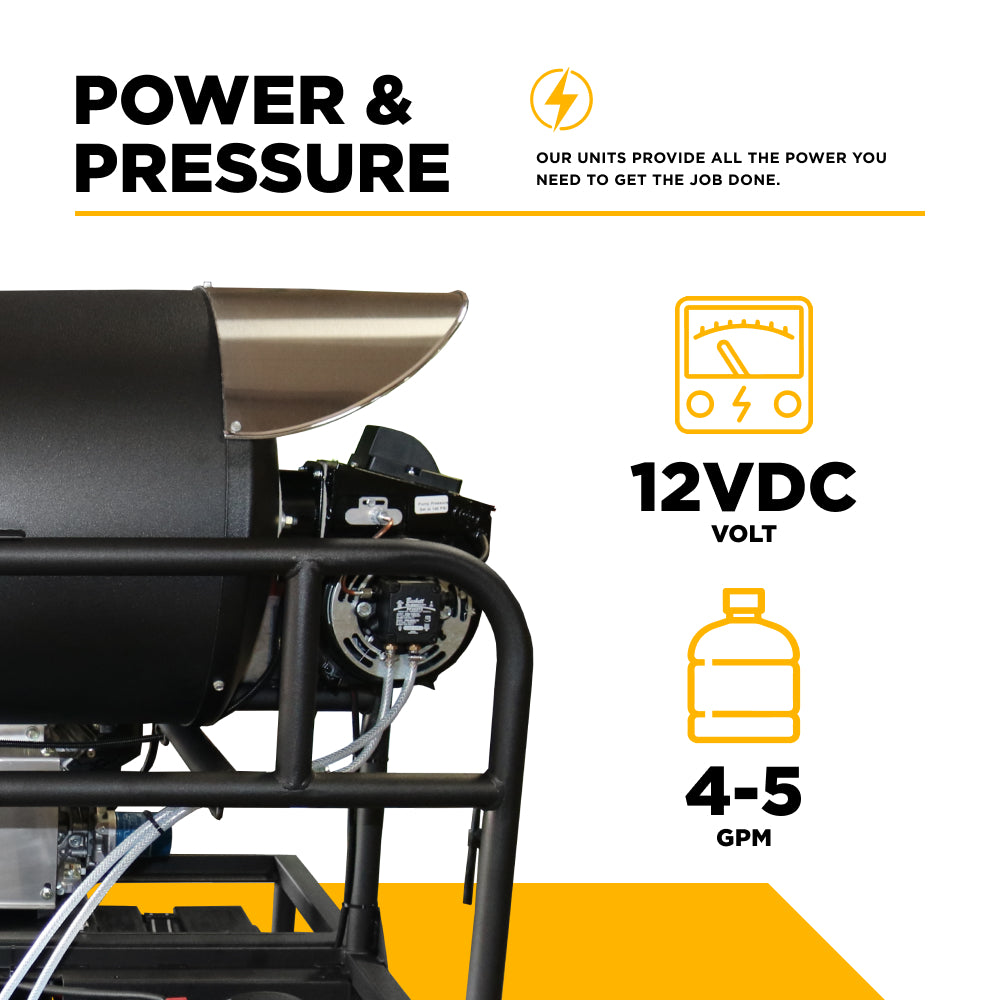

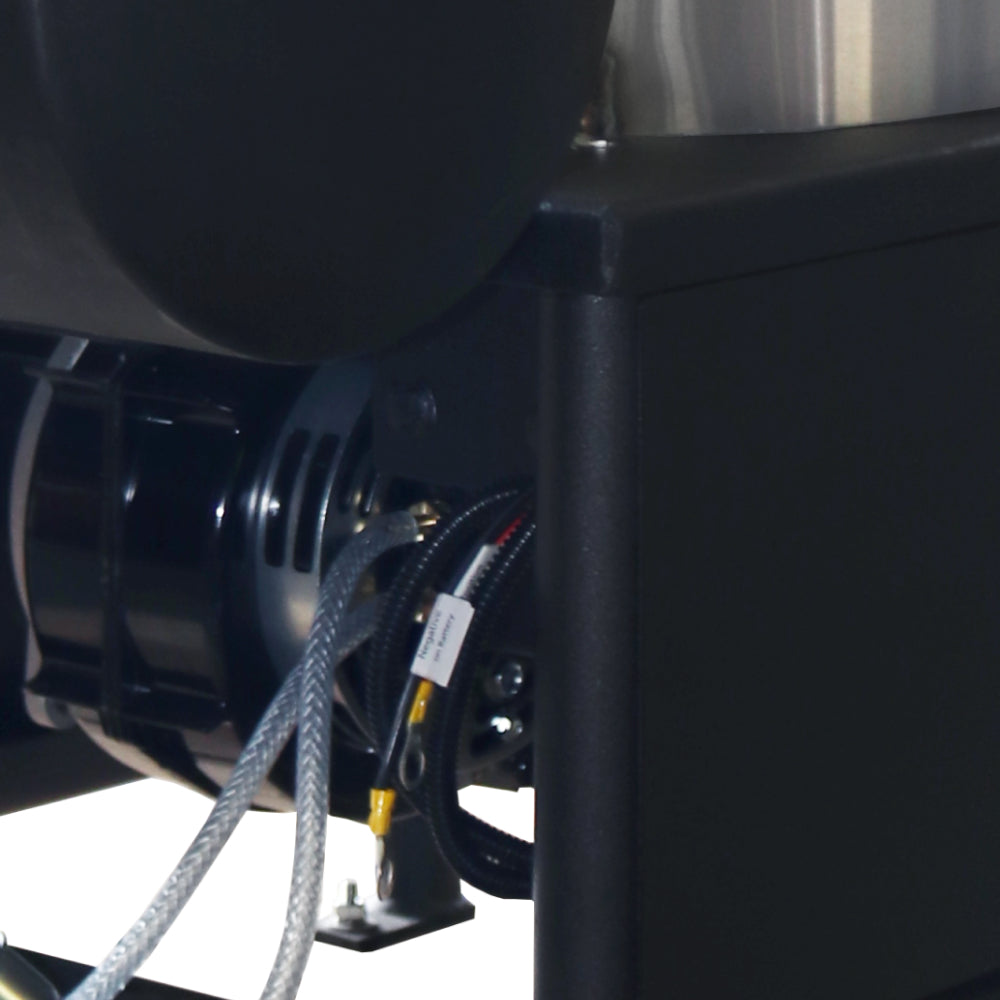

Burner: SDC diesel burner with electronic ignitor
BTU Output: 550,000
Maximum Temperature: 93°C / 200°F
Heating Coil: 147’ x 1/2” Schedule 80 cold-rolled steel
Fuel Tank: 26.5 L / 7 gal black poly
Thermostat: Adjustable
Flow Switch: Yes
Rupture Disk: Yes
High Limit Switch: No
Inline Fuel Filter: Yes
Burner Switch: Toggle
Cord / Plug: No cord / no plug (12VDC system)

Warranty Coverage

  • Burner: 3 Years

  • Heating Coil: Lifetime

Shipping Information

Shipping Weight: 368 lbs

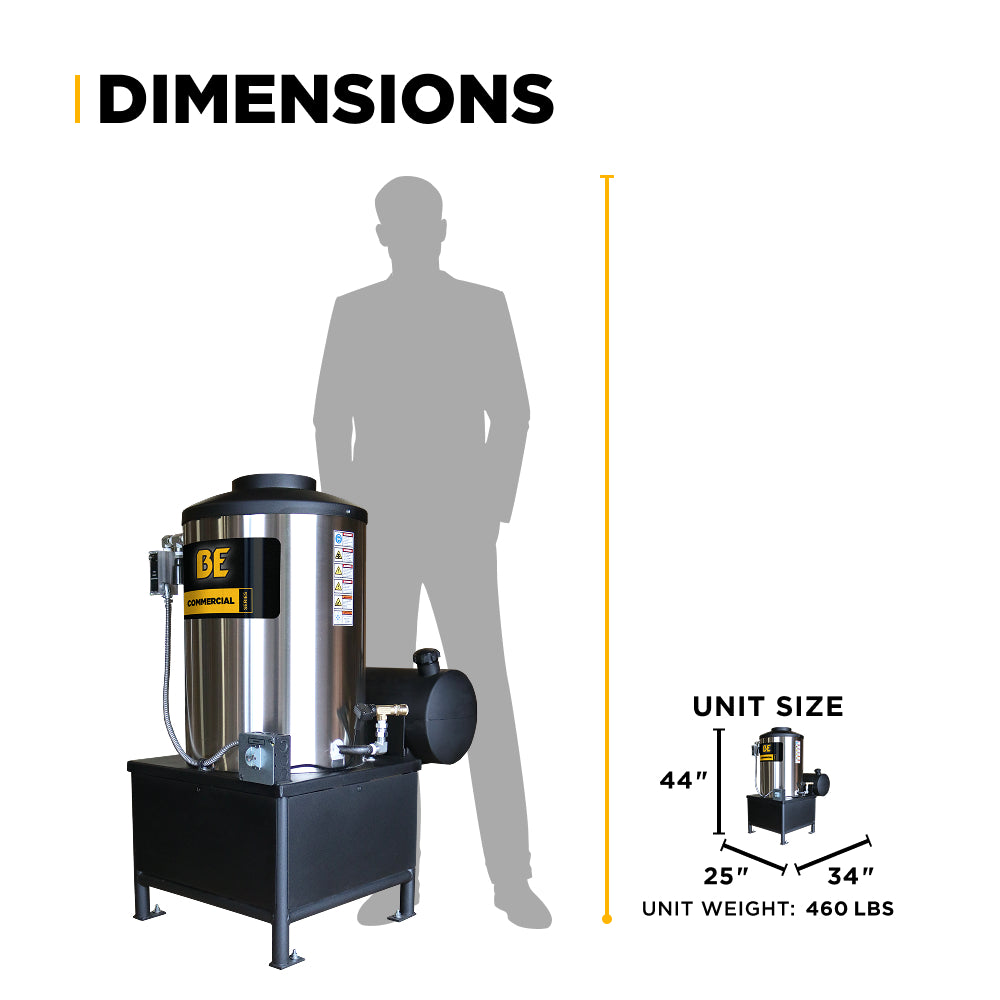

Shipping Dimensions (L × W × H): 48” × 40” × 62”

Factory Tested for Performance

Each BE Power Equipment hot box is functionally tested at the factory prior to shipping. Units may contain residual fuel odor or signs of testing, confirming quality inspection and readiness for operation.

Add Heat. Clean Faster. Work Smarter.

For operators who occasionally need industrial hot water performance without committing to a full hot water pressure washer, the 96012V Hot Box delivers unmatched flexibility and power.

96012V — turn cold water into serious cleaning heat.
